NIB TB WOOD'S 7S 1-5/8 CAST IRON 7 FLEXIBLE COUPLING FLANGE 4-5/8'' OD 7S158
$32.95
Description

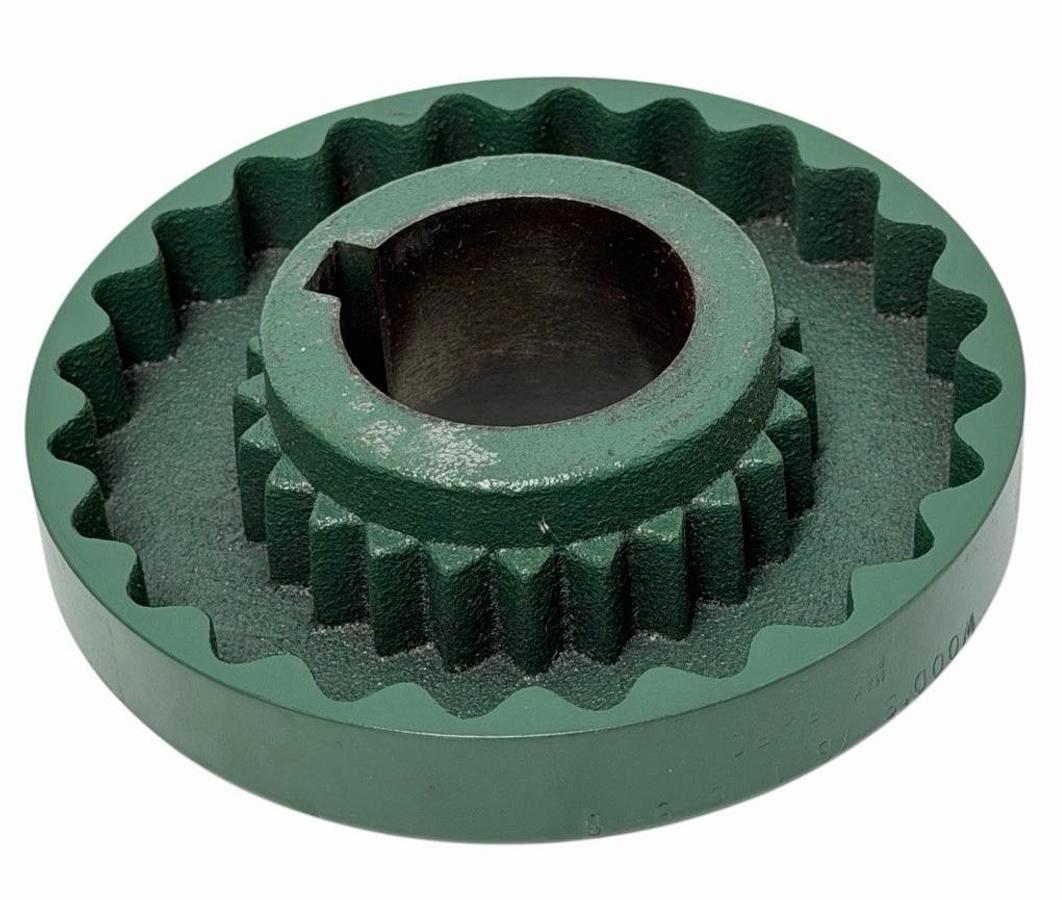

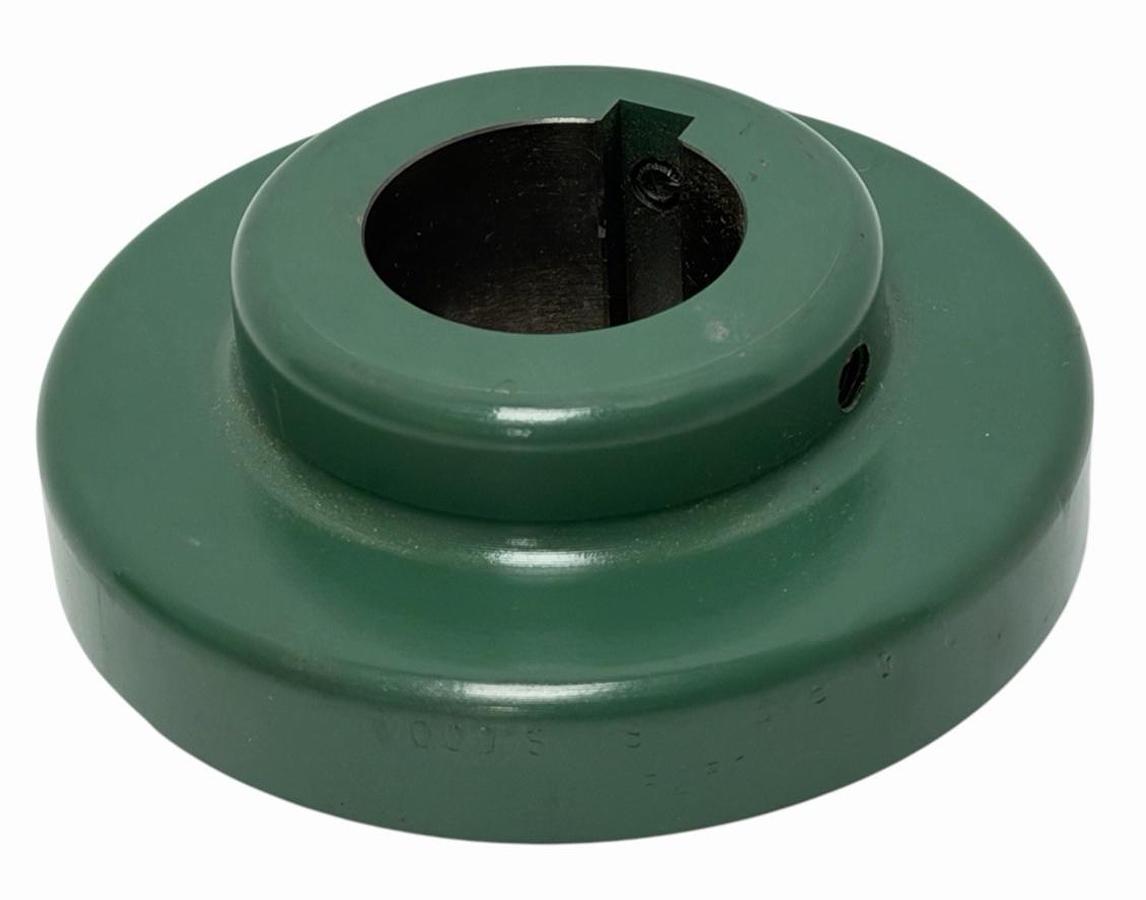

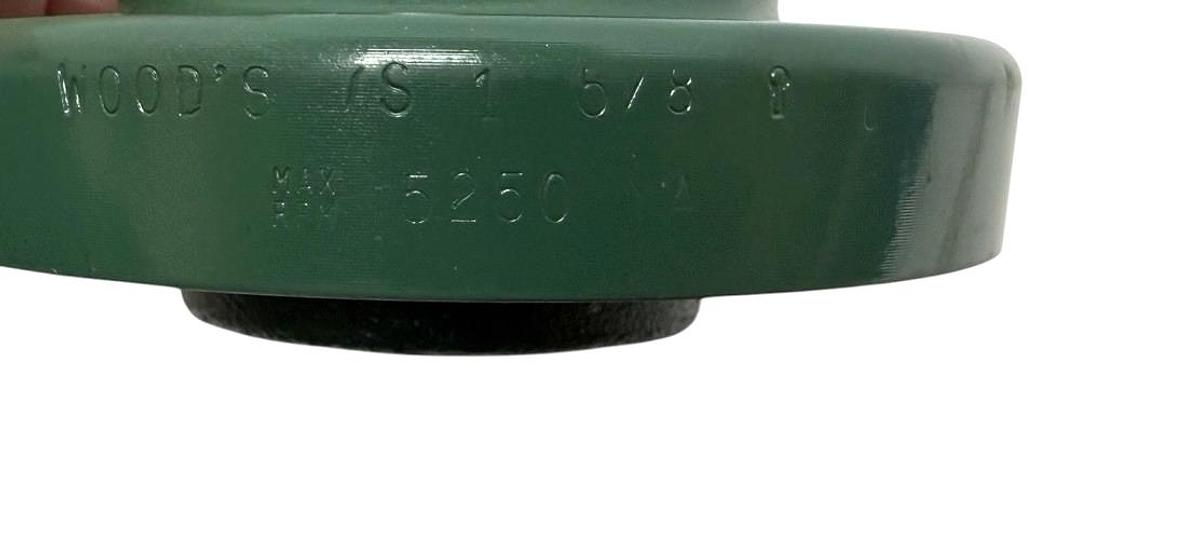

NIB TB WOOD'S 7S 1-5/8 CAST IRON 7 FLEXIBLE COUPLING FLANGE 4-5/8'' OD 7S158
The TB Wood's 7S158 (also referred to as 7S-1 5/8 or 7SX1 5/8) is a Size 7, Type S, bore-to-size sleeve coupling flange used in mechanical power transmission systems.
Key Specifications
• Part Number: 7S158 (Alternative/Supplier Part: 7S1-58)
• Coupling Size: 07 (Size 7)
• Bore Diameter: 1-5/8 in (1.6250 in) with a round keyed design
• Bore Tolerance: +0.0005 in / +0.0015 in
• Keyway Size: 3/8 in (width) x 3/16 in (depth)
• Material: Cast iron
• Outside Diameter: 4-5/8 in
• Hub Diameter: 2-13/16 in
• Length Through Bore: 1-27/32 in
• Maximum Speed: 5,250 RPM
• Maximum Torque: 940 in-lb (with EPDM or Neoprene sleeve) or 2,875 in-lb (with Hytrel sleeve)
SHIPPING & LOGISTICS
-
Same-Day Shipping: Orders placed before 4:00 PM EST Monday through Friday ship out the very same day.
-
Carrier Accounts: We can ship collect using your own UPS or FedEx account upon request.
-
Packaging: All items are packed securely with high-quality materials to ensure safe transit.
WARRANTY
-
Warranty Period: 120 DAYS
-
We guarantee the functionality of this unit under normal operating conditions.
WE BUY SURPLUS PremiumPLC BUYS ALL TYPES OF NEW AND USED INDUSTRIAL AUTOMATION & MRO SURPLUS. Turn your excess inventory, components, and laboratory gear into cash. Contact us today for a fast quote on your surplus assets.
__________________________________________________________________________________________________________
2234
Specifications
| Manufacturer | TB Wood's |
| Model | 7S158 |
| Condition | Used |
| Stock Number | 198693120000 |
| LOCATION | 2234 |
| Country of Origin | United States |
