Honeywell Q7800B1003 Universal Wiring Subbase 7800 Series Burner Control

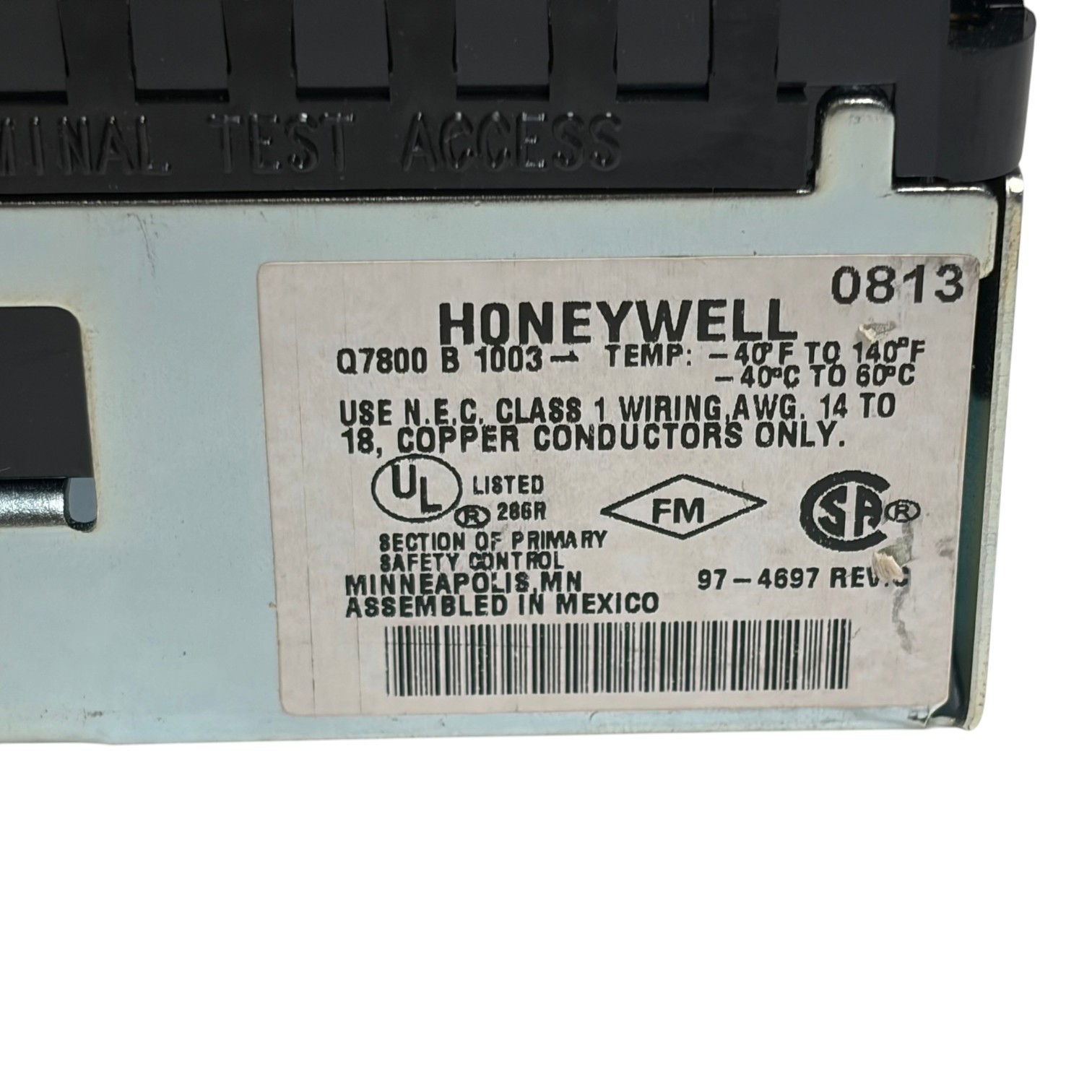

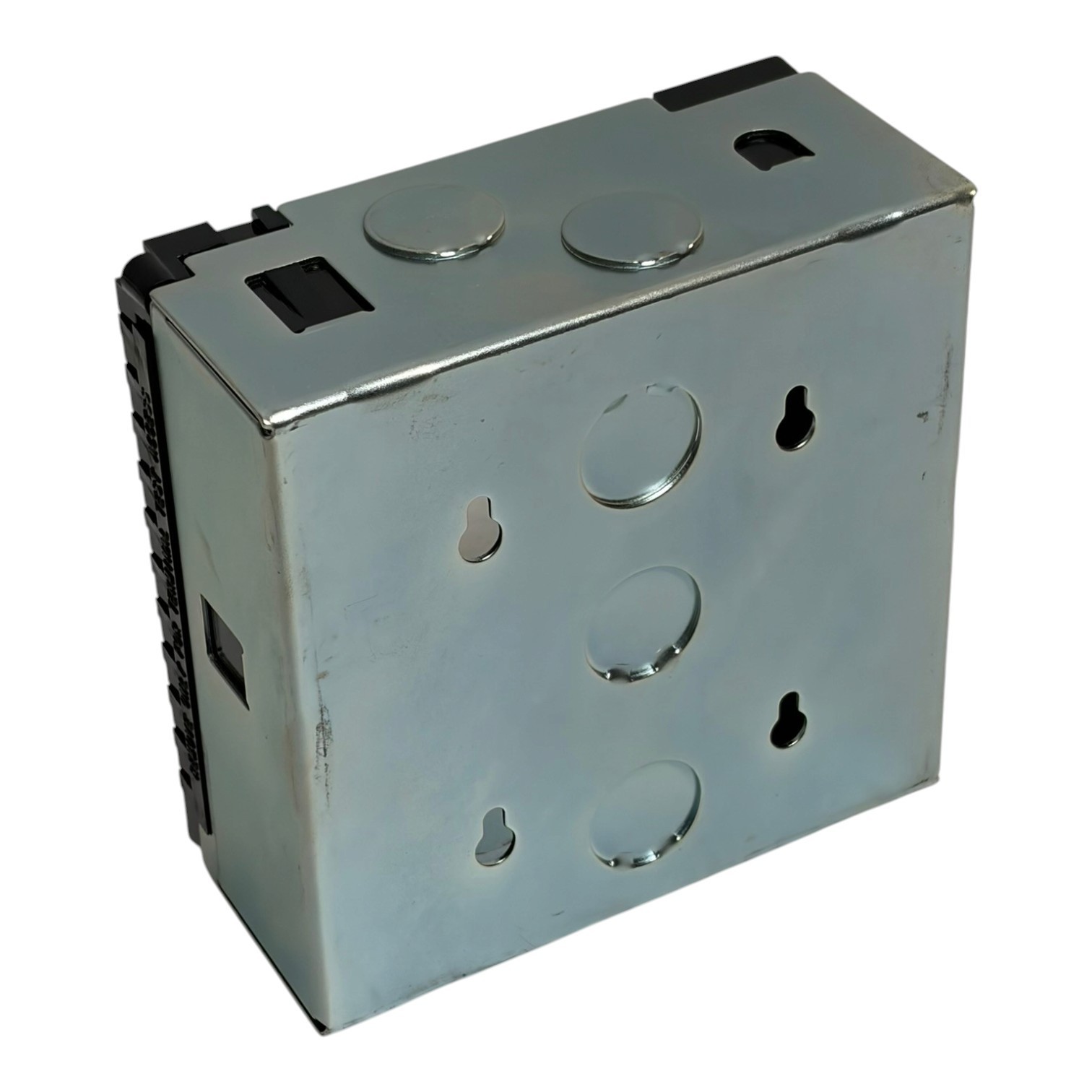

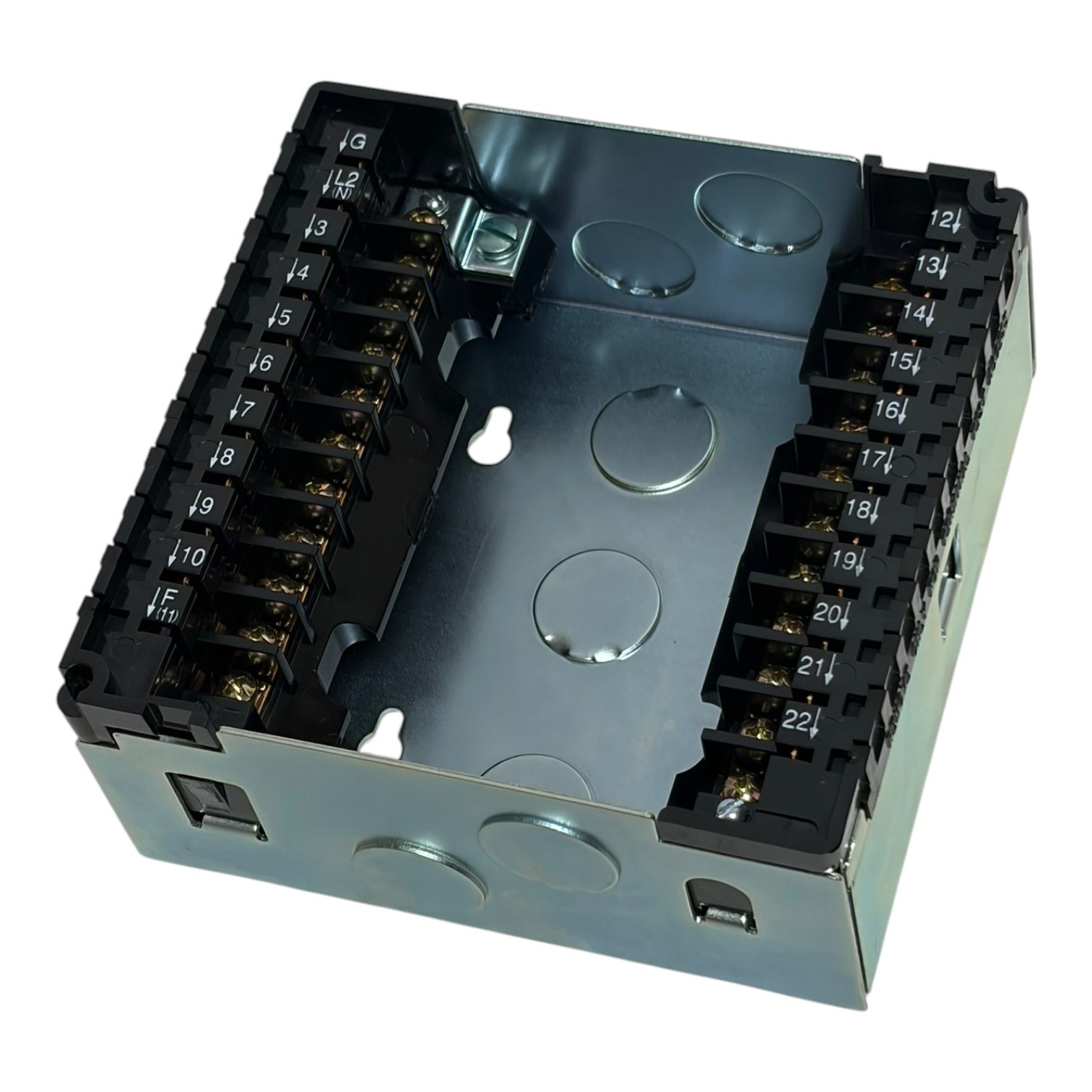

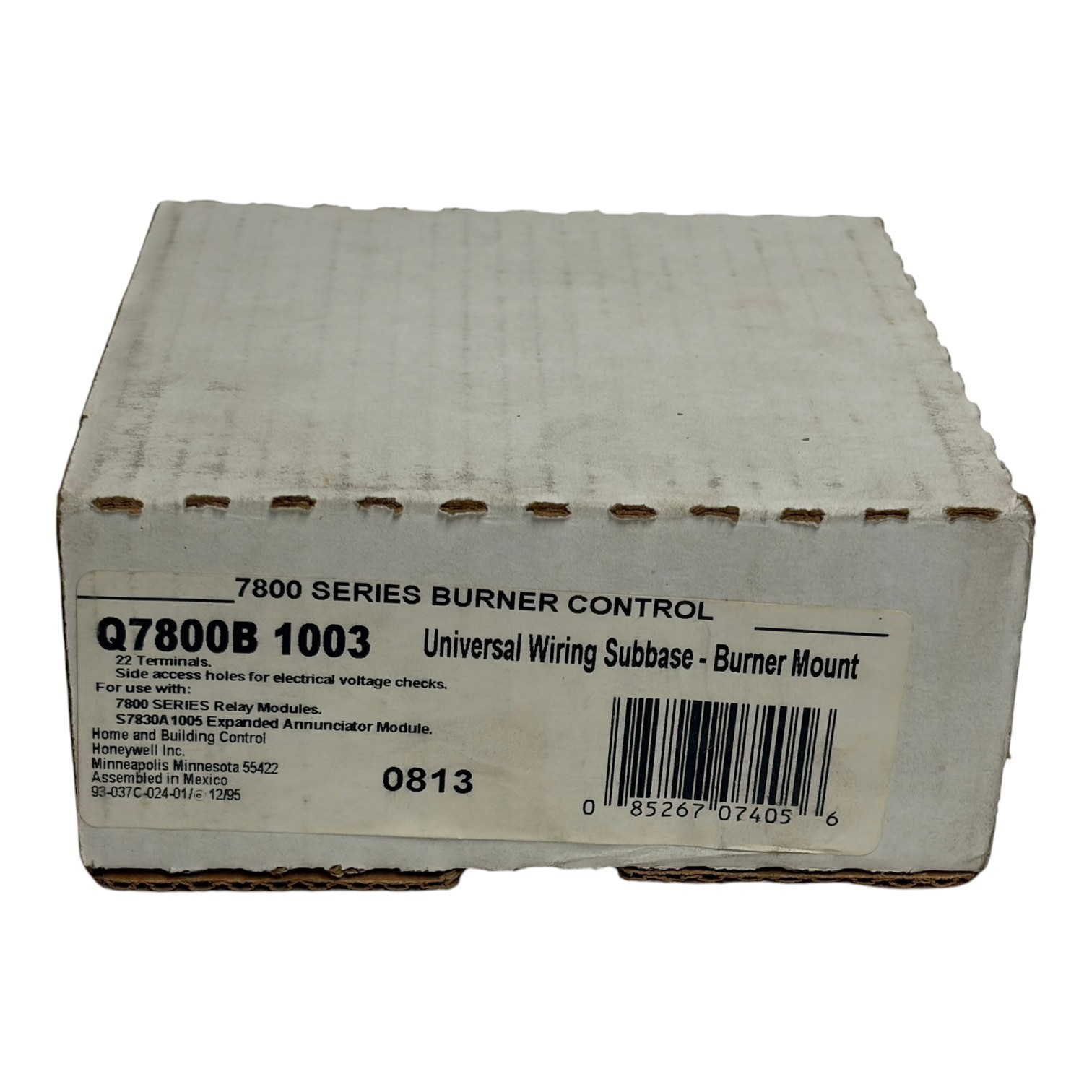

Honeywell Q7800B1003 Universal Wiring Subbase 7800 Series Burner Control This listing is for a brand-new, unused Honeywell 7800 Series universal wiring subbase module. This item is a clean new surplus warehouse asset that comes complete inside its original factory cardboard box. It features a robust 22-terminal metal backbox construction engineered to facilitate reliable electrical surface-mount connections for compatible flame safeguard relay controls and expanded annunciators across commercial boiler, furnace, and industrial burner systems. Item Specifications - Brand: Honeywell Inc. - Product Family: 7800 Series Burner Control Line - Model / Catalog Number: Q7800B1003 (Also stamped Q7800 B 1003) - Product Type: Universal Wiring Subbase / Burner-Wall Mount Plate - Terminal Layout Configuration: Twenty-two (22) independent bifurcated screw terminal channels - Wiring Requirements: Accommodates N.E.C. Class 1 wiring loops using AWG 14 to 18 copper conductors only - Enclosure Hardware Design: Heavy-gauge zinc-plated metal backbox structure with two pre-scored concentric conduit knockouts situated on each end - Special Features: Integrated side-access tester slot windows labeled Terminal Test Access for real-time electrical voltage checks - Compatible Hardware Platforms: Accommodates Honeywell 7800 Series Relay Modules and the S7830A1005 Expanded Annunciator Module - Operating Temperature Limits: -40 to 140 degrees Fahrenheit (-40 to 60 degrees Celsius) - Production Build Date Code Stamp: 0813 - Certifications: UL Listed (Safety Control Section 286R), FM Approved, CSA Certified - Universal Product Barcode (UPC): 085267074056 Condition - New Surplus (In Box): Pristine, completely uninstalled electrical and mechanical condition. The subbase has never been mounted to a burner wall frame or populated with active logic relays. - Cosmetics: Immaculate. The metal chassis and plastic terminal guide tracks are completely factory fresh with no wire clamping indentations, screw torque scores, or field marks. The rear white specification decal and parameters plate are completely legible. - Packaging Notes: Ships inside its original white manufacturer cardboard box detailing matching catalog numbers. The outer box surfaces are structurally stable with normal minor warehouse shelf dust and superficial storage aging. WARRANTY: 120 DAYS SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) SELL YOUR SURPLUS PremiumPLC BUYS ALL TYPES OF NEW AND USED INDUSTRIAL AUTOMATION & MRO SURPLUS ________________________________________________________________________________ 2227
