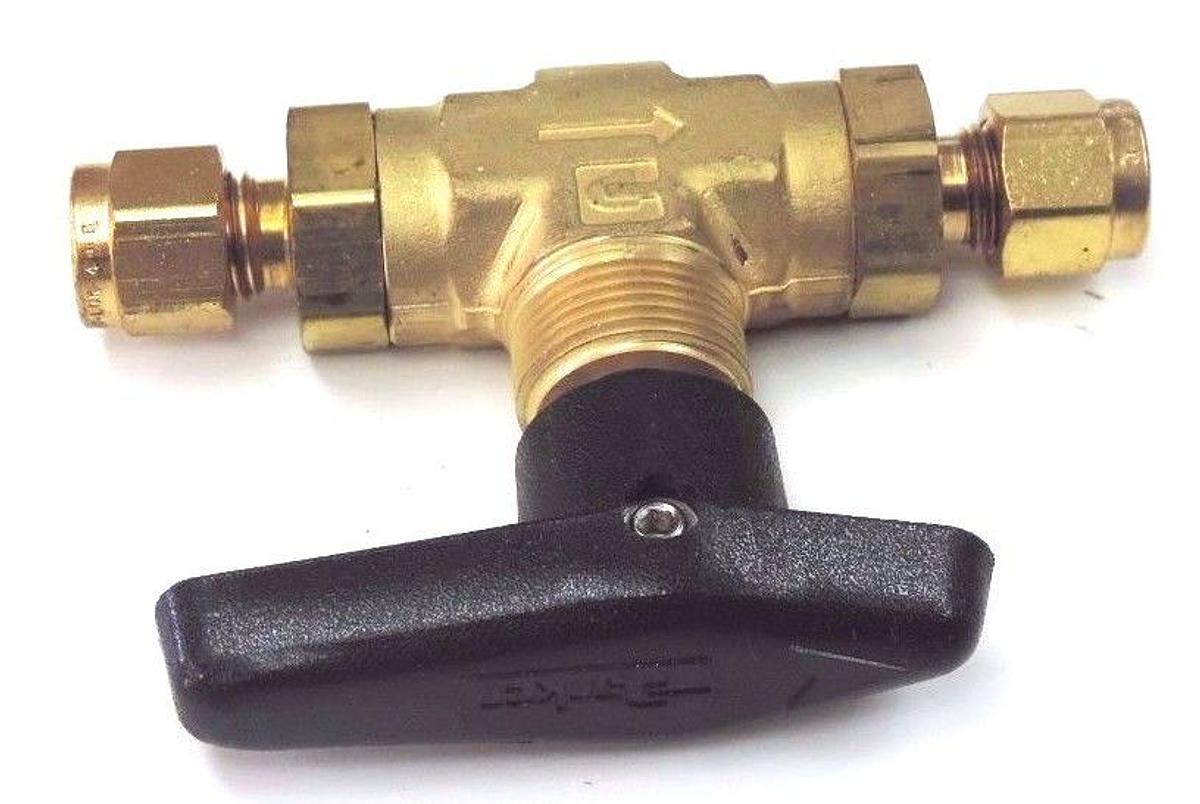

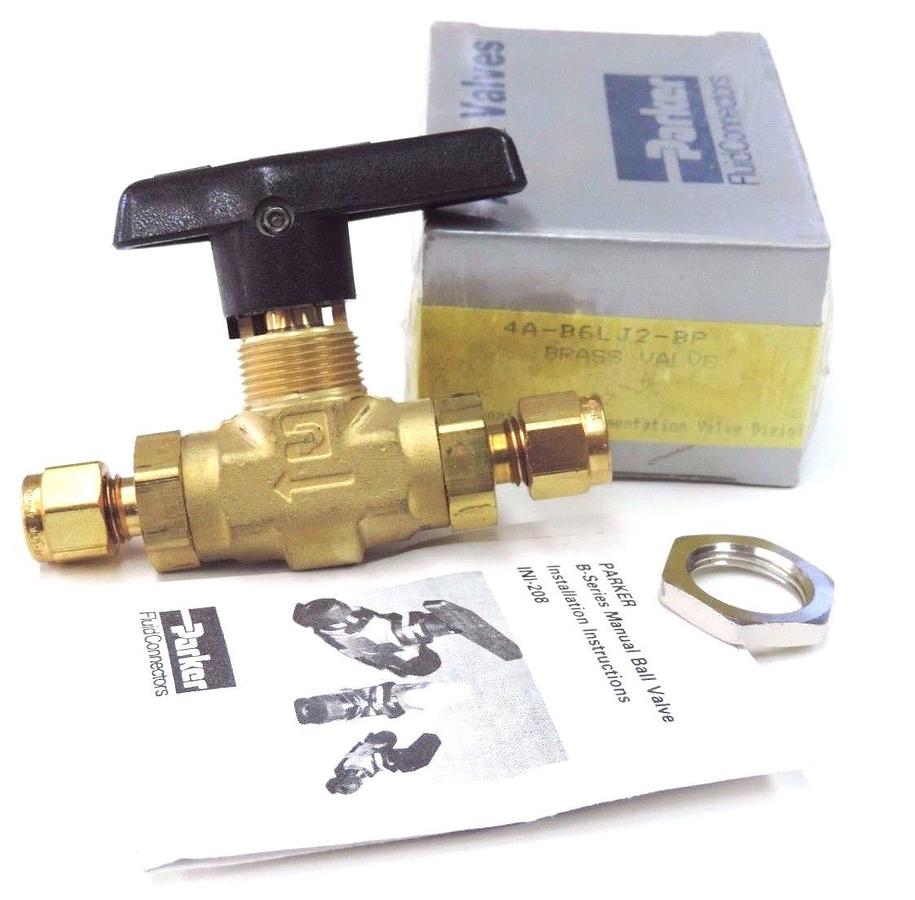

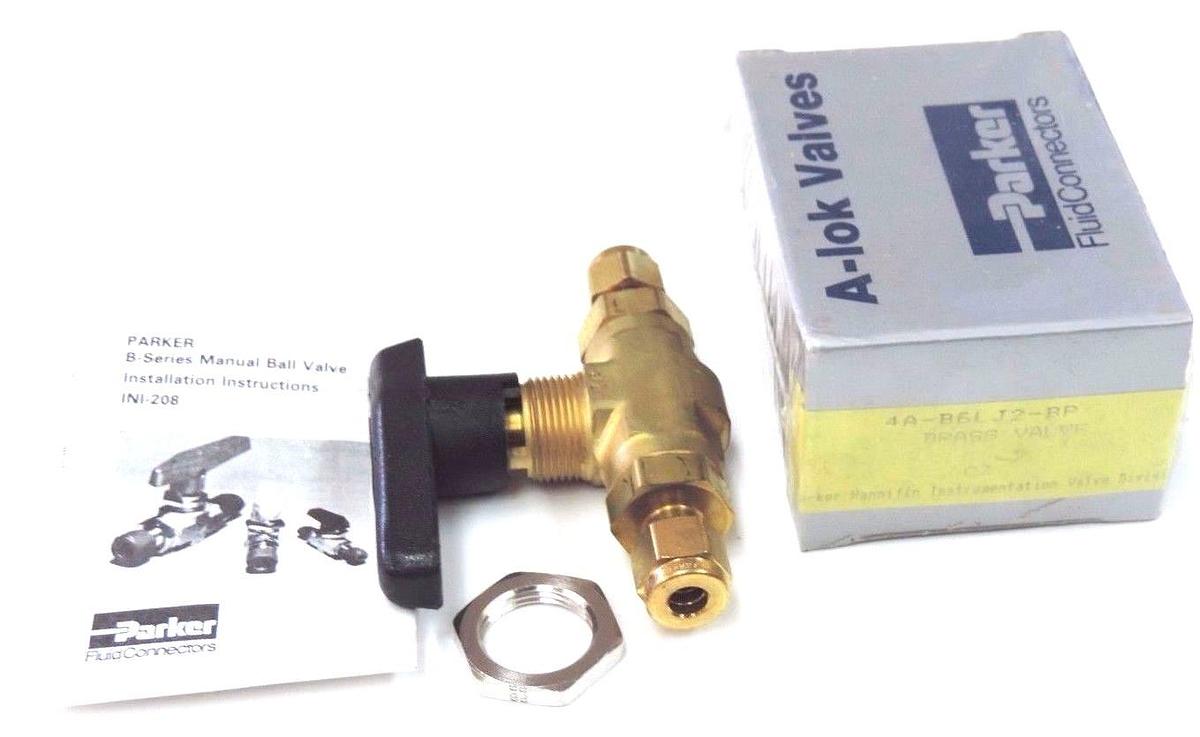

NIB PARKER 4A-B6LJ2-BP 1/4" TWO-WAY B SERIES BRASS BALL VALVE 4AB6LJ2BP

NIB PARKER 4A-B6LJ2-BP 1/4" TWO-WAY B SERIES BALL VALVE 4AB6LJ2BP - Body Material: BP - Brass - Port: 4A - 1/4" A-LOK - Dimensions G Inches (mm): 1.88 (47.8) - Seal Material: Blank - PTFE - Dimensions C Inches (mm): 0.33 (8.4) - Dimensions H Inches (mm): 0.58 (14.7) - Dimensions I Inches (mm): 0.13 (3.3) - Dimensions D Inches (mm): 0.33 (8.4) - Dimensions E Inches (mm): 0.94 (23.9) - Dimensions F Inches (mm): 0.75 (19.1) - Flow Data Cv: 0.93 - Flow Data XT: 0.43 - Flow Data Orifice Inch: 0.165 - Flow Data Orifice mm: 4.2 - Dimensions B inch (mm): 1.48 (37.6) - Dimensions A Inches (mm): 1.48 (37.6) - Seat Material: J2 - PCTFE - Valve Series: B6L - Colored Lever Handles: Black = Standard - Pressure Ratings CWP: 3000 psig (207 bar) - Pressure Ratings with PTFE Seats: 1500 psig (103 bar) ___________________________________________________________________________________________________________________________________________________________ C6
