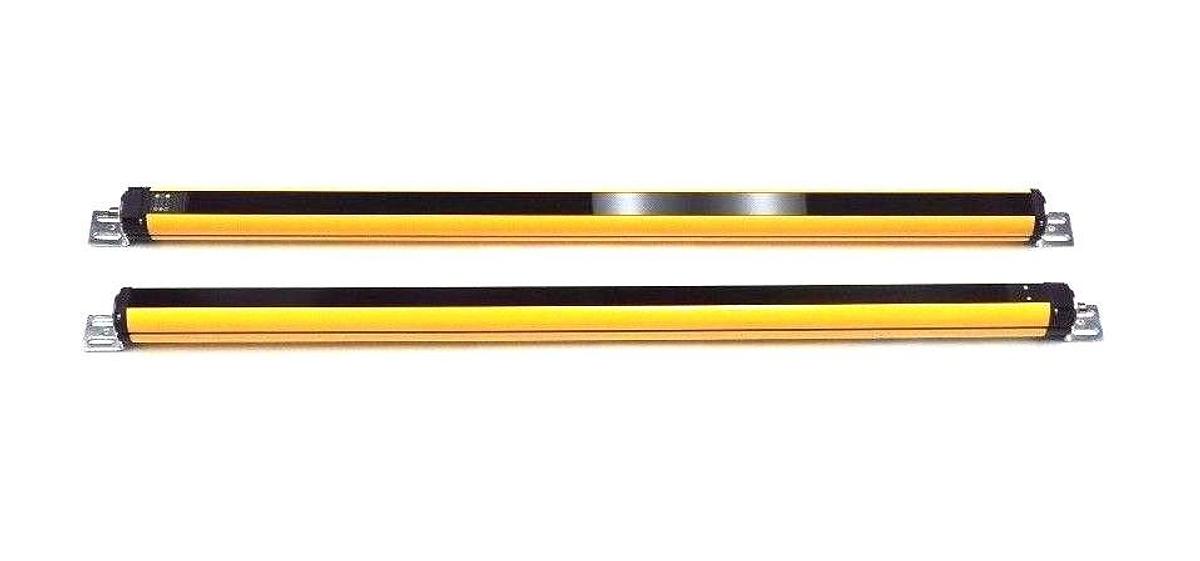

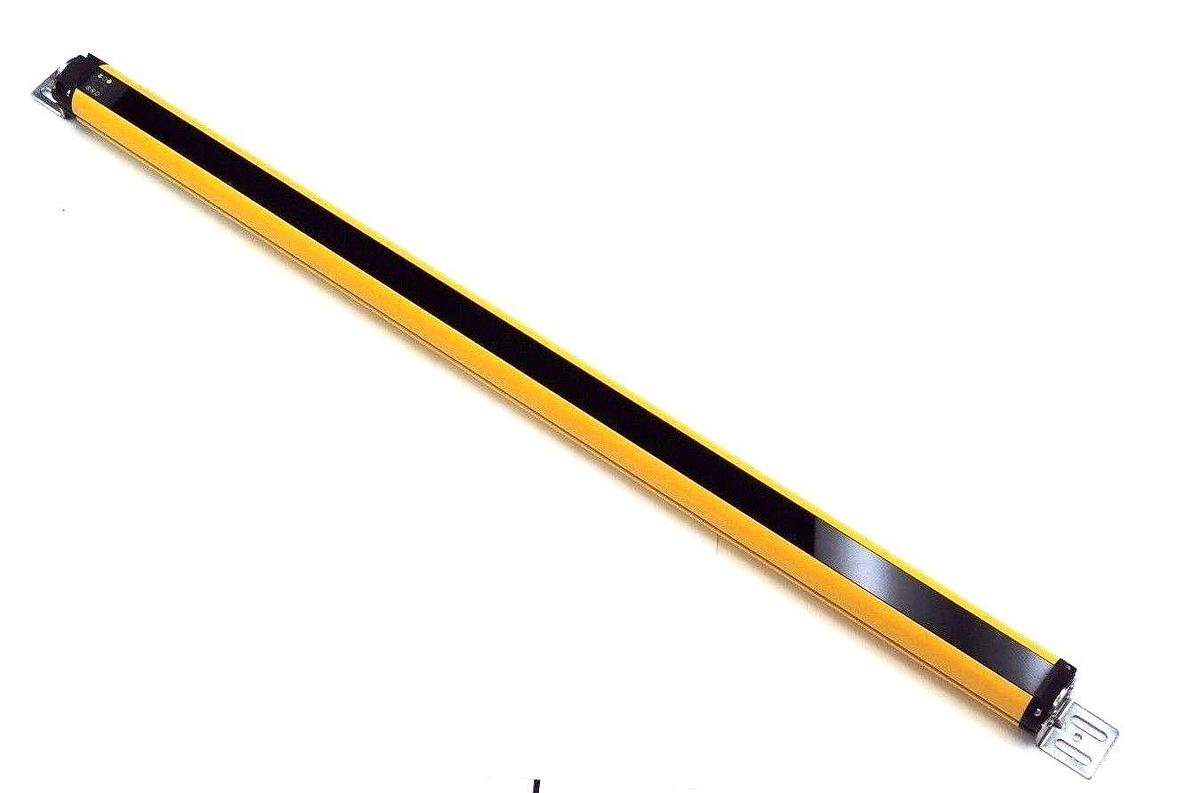

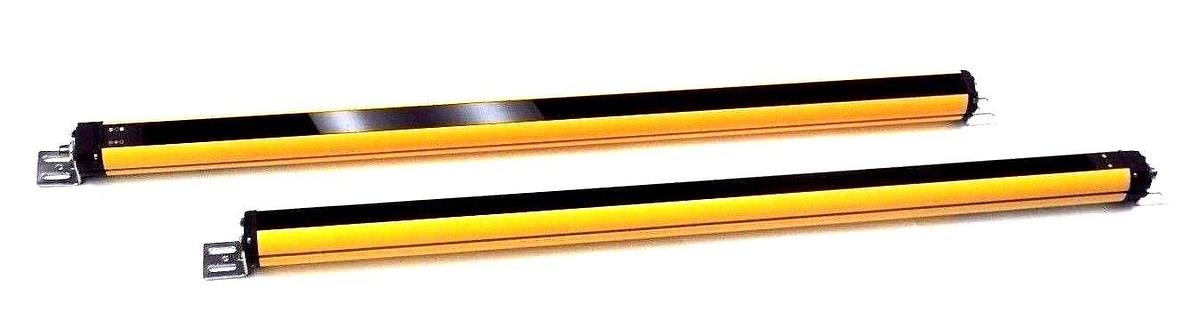

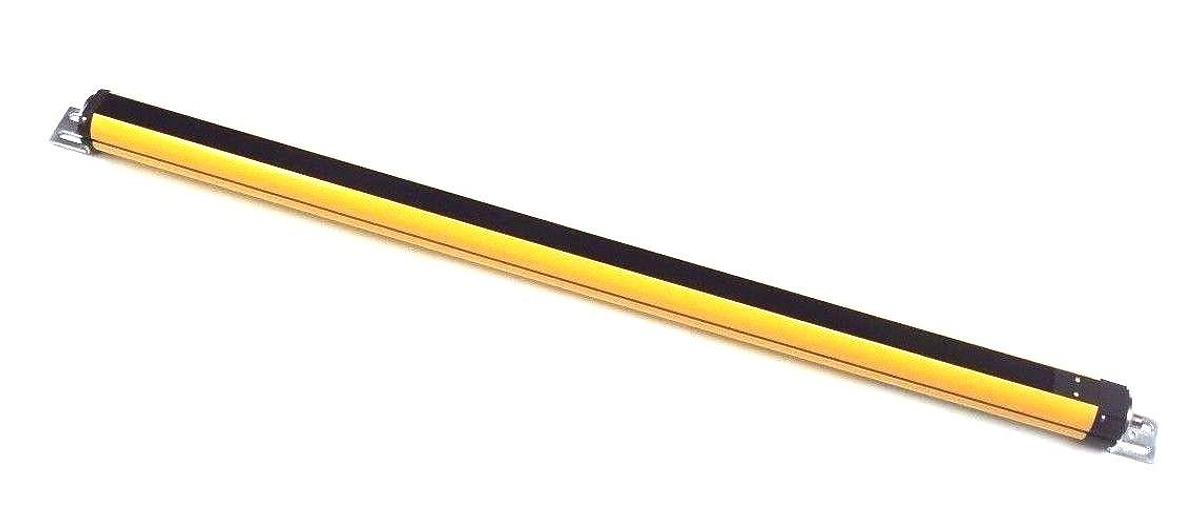

LOT OF SCHMERSAL SLG420 LIGHT CURTAINS SLG 420-R0800-03-RF, SLG 420-E0800-03-RF

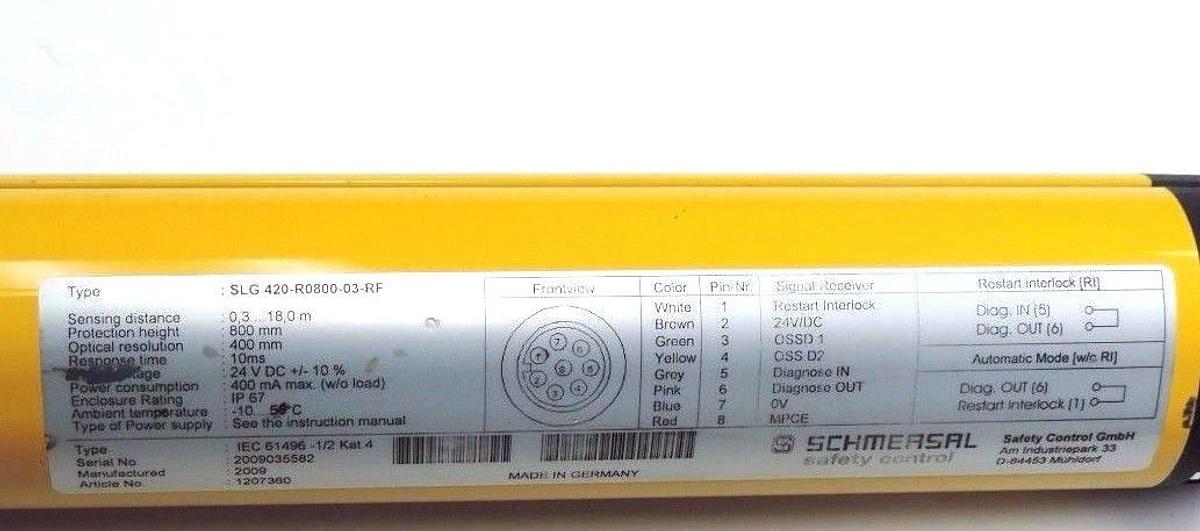

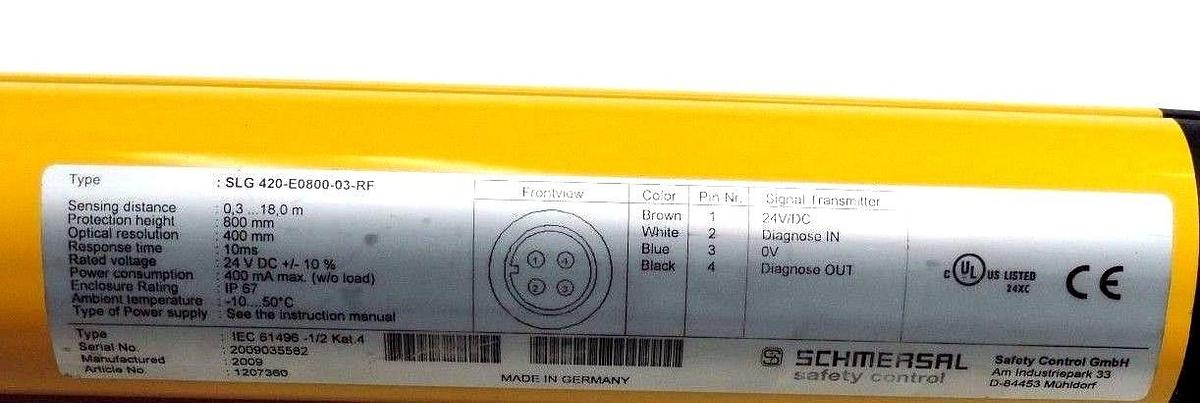

LOT OF SCHMERSAL SLG420 LIGHT CURTAINS SCHMERSAL SLG 420-R0800-03-RF RECIEVER SCHMERSAL SLG 420-E0800-03-RF EMMITER _____________________________________________________ SHELF A31 Product name SLG 420 Sicherheits-Lichtvorhang Standards IEC/EN 61496-1/-2 Compliance with the Directives (Y/N) Yes Operating resource protection class Protection class 3 Safety type in accordance with IEC 61496-1 4 Materials - Material of the housings Aluminium Weight Beam coding (Y/N) Yes Protection field height 800 mm Range of the protection field 300 - 18000 mm Reaction time 10 ms Wave length of the sensors 880 Fade-out is possible (Y/N) No Override possible (Y/N) No reduced resolution (Y/N) No Clock control possible (Y/N) No Muting possible (Y/N) No Restart block (Y/N) Yes Master/slave function No Cascadable (Y/N) No Monitoring function of downstream devices (Y/N) Yes Recommended safety-monitoring module SRB 301ST SCR 211 Mechanical data Detection ability for test bodies 800 mm Number of beams 3 piece Design of electrical connection Connector - Wiring of the transmitter connector plug M12, 4-pole - Wiring of the receiver connector plug M12, 8-pole Cable length 100 m Ambient conditions Ambient temperature - Min. environmental temperature −25 °C - Max. environmental temperature +50 °C Storage and transport temperature - Min. Storage and transport temperature −25 °C - Max. Storage and transport temperature +70 °C Protection class IP67 to IEC/EN 60529 Electrical data Design of output switching element OSSD PNP Power consumption - Power consumption Transmitter 4 W - Power consumption Receiver 8 W Voltage type DC Switching voltage of the OSSD in high state 24 V ± 20% Outputs Max. output current at secured output 500 mA Electrical data - Safety outputs Number of secure semi-conductor outputs 2 piece Number of secure outputs with contact 0 piece LED switching conditions display LED switching conditions display (Y/N) Yes - Status and diagnostics Yes - 7-segment display ATEX Explosion protection categories for gases None Explosion protected category for dusts None Dimensions Dimensions of the sensor - Height of transmitter 920 mm - Height of Receiver 935 mm - Diameter of sensor 49 mm
