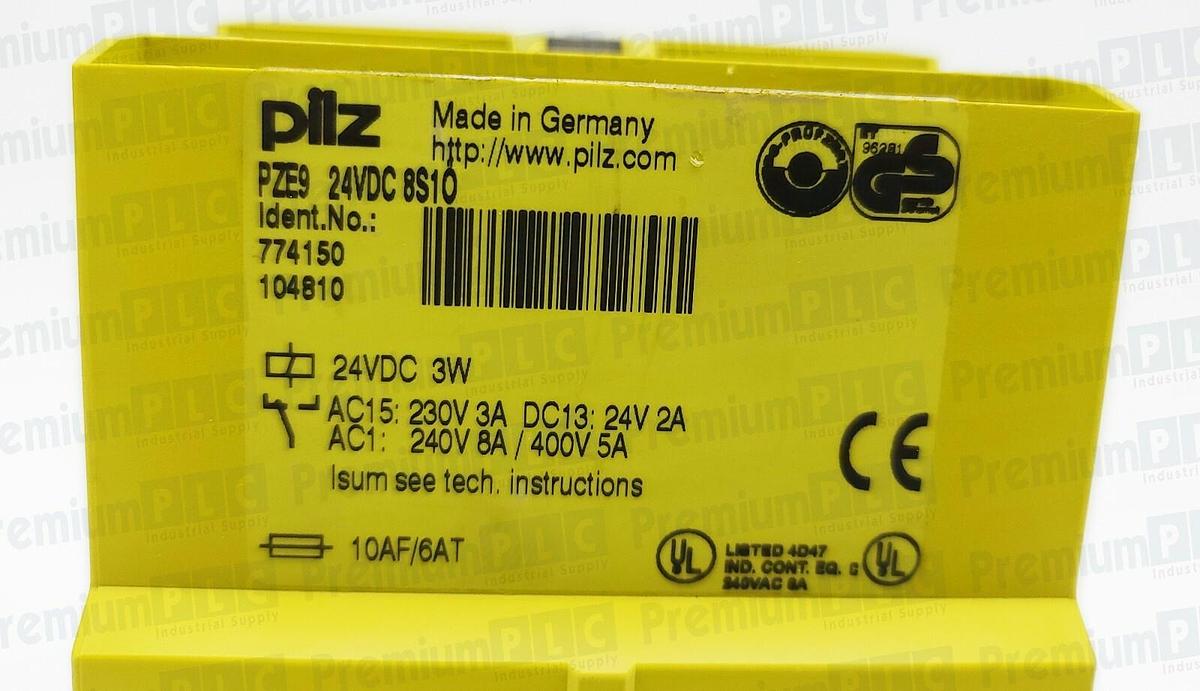

PILZ PZE 9 24VDC 8n/o 1n/c 774150 CONTACT EXPANSION MODULE IDENT. NR. 774150

PILZ PZE 9 24VDC 8n/o 1n/c 774150 CONTACT EXPANSION MODULE IDENT. NR. 774150 Technical details Certifications: CE, cULus Listed, EAC (Eurasian), TÜV, CCC Application options: Instantaneous contact expansion Operating modes: Single-channel, Dual-channel, Detection of shorts across contacts, without detection of shorts across contacts Standards: EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1 Supply voltage (V): 24,0 Supply voltage type: DC Terminal style: fixed Terminal type: Screw terminal Number of instantaneous safety contacts: 8 Number of delayed safety contacts: 0 Number of auxiliary contacts: 1 Max. current at DC13 I (6 cycles/min): 7.0 A Voltage at AC15: 230 V Width dimension: 90.0 mm Height dimension: 87.0 mm Depth dimension: 121.0 mm Gross weight: 460 g Net weight: 450 g Ambient temperature: -10 - 55 °C ________________________________________________________________________________________________ 1089-2
