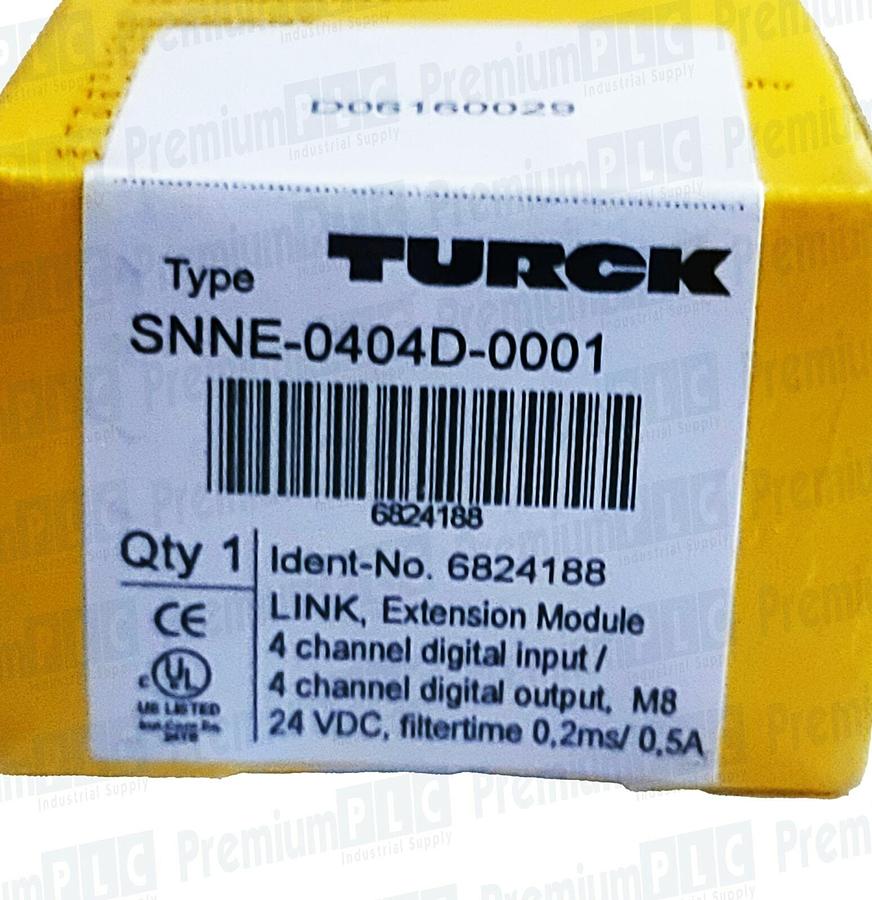

NEW TURCK SNNE-0404D-0001 PICONET EXTENSION MODULE LINK 4IN/4OUT 24VDC 6824188

NEW TURCK SNNE-0404D-0001 PICONET EXTENSION MODULE LINK 4IN/4OUT 24VDC 6824188 Type designation SNNE-0404D-0001 Ident no. 6824188 Number of channels 8 Operating / load voltage 20…29 VDC Operating current ð 25 mA Fibre-optic length ð 15 m Number of channels 4 digital inputs acc. to EN 61131-2 Input voltage 20…29 VDC via operating voltage Low level signal voltage -3…5 VDC (EN 61131-2, type 2) High level signal voltage 11…30 VDC (EN 61131-2, type 2) Input delay 0.2 ms Max. input current 6 mA Number of channels 4 digital outputs acc. to EN 61131-2 Output voltage 20…29 VDC from load voltage Output current per channel 0.5 A, short-circuit proof Load type resistive, inductive, lamp load Switching frequency ð 500 Hz Simultaneity factor 1 Dimensions (W x L x H) 30 x 126 x 26.5mm Operating temperature 0…+55 °C Storage temperature -25 to 85 °C Vibration test as per EN 60068-2-6 Shock test acc. to DIN EN 60068-2-27 Electromagnetic compatibility according to EN 61000-6-2/EN 61000-6-4 Protection class IP67 Approvals CE, cULus SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
