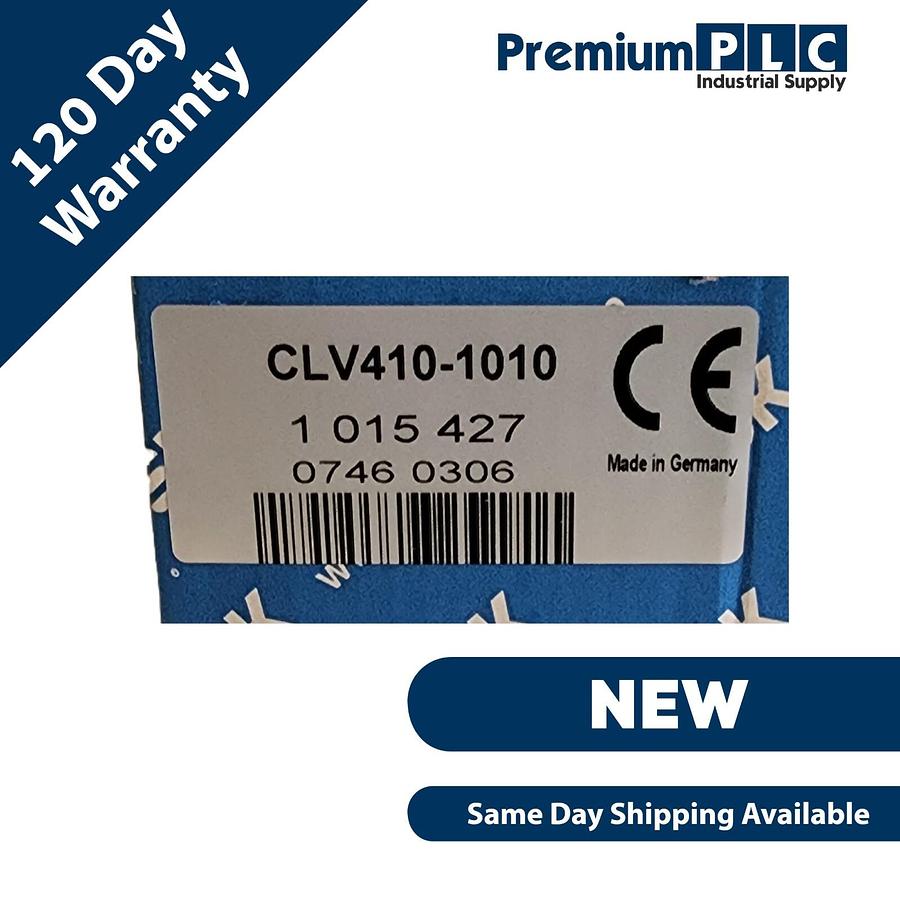

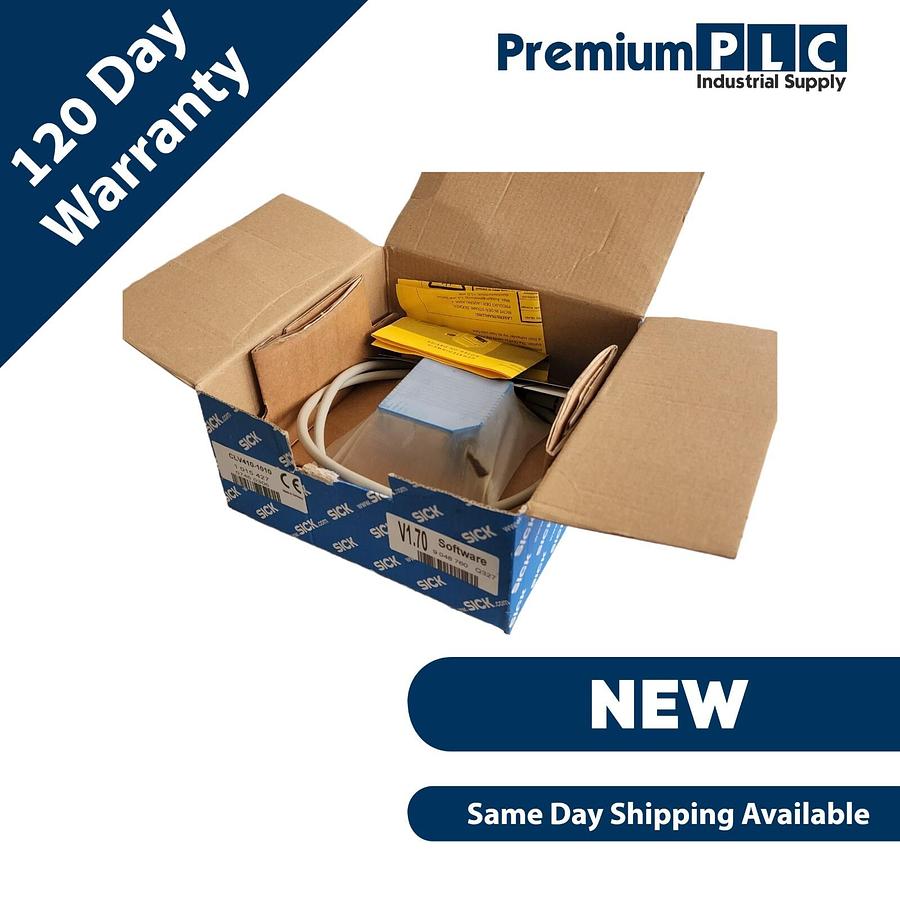

NEW SICK CLV410-1010 / 1015427 MID-RANGE BAR CODE SCANNER V1.70 SOFTWARE
$1,100
Description
NEW SICK CLV410-1010 / 1015427 MID-RANGE BAR CODE SCANNER V1.70 SOFTWARE
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
______________________________________________________________________________________________________
1003
TECHNICAL DATA:
-
Features
Version Mid Range
Connection type Standard
Reading field Front
Scanner design Raster scanner
Focus Fixed focus
Light source Visible red light (laser, 670 nm)
MTBF 20,000 h
Laser class 2 (DIN EN 60825-1)
Aperture angle ≤ 60°
Scanning frequency 200 Hz ... 800 Hz
Code resolution 0.2 mm ... 1 mm
Reading distance 50 mm ... 380 mm 1)
Raster height, number of lines, at distance 15 mm, 8, 200 mm
- 1) For details see reading field diagram.
-
Performance
Bar code types All current code types, Code 39, Code 128, Code 93, Codabar, GS1-128 / EAN 128, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode
Print ratio 2:1 ... 3:1
No. of codes per scan 1 ... 3
No. of codes per reading interval 1 ... 10
No. of characters per reading interval 100
No. of multiple readings 1 ... 99
-
Interfaces
Serial (RS-232, RS-422/-485) ✔ , AUX (only RS-232)
Function Host, AUX
Data transmission rate 300 Baud ... 57,600 Baud, AUX: 9,600 baud
Ethernet –
CAN bus –
PROFIBUS DP –
EtherCAT –
DeviceNet –
Switching inputs 2 (“Sensor 1”, “Sensor 2”)
Switching outputs 3 (“Result 1”, “Result 2”, “Result 3”)
Reading pulse Reflector polling, Switching input “Sensor 1”, non-powered, serial interface
Optical indicators 4 LEDs (function indicator)
Acoustic indicators Beeper/buzzer (can be switched off, can be allocated as a result indication function)
-
Mechanics/electronics
Electrical connection 1 x 15-pin D-Sub HD male connector (0.9 m)
Operating voltage 5 V DC ... 30 V DC 1)
Power consumption 3 W
Housing Die-cast zinc, does not contain paint wetting impairment substances
Housing color Light blue (RAL 5012)
Enclosure rating IP 65 (DIN 40 050)
Protection class III (IEC 1010-1)
Weight 250 g, with connecting cable
Dimensions (L x W x H) 59 mm x 62.7 mm x 35.2 mm
- 1) UL certified for use with a Class 2 mains supply unit (checked to UL 1310)
-
Ambient data
Electromagnetic compatibility (EMC) EN 61000-6-3 / EN 61000-6-2
Vibration resistance IEC 68-2-6 Test FC
Shock resistance IEC 68-2-27 Test EA
Ambient operating temperature 0 °C ... +40 °C
Storage temperature –20 °C ... +70 °C
Permissible relative humidity ± 90 %, Non-condensing
Ambient light immunity 2,000 lx, on bar code
Bar code print contrast (PCS) ≥ 60 %
Specifications
| Manufacturer | SICK |
| Model | CLV410-1010 |
| Condition | Used |
| Stock Number | 195243069580 |
| Country of Origin | Germany |
