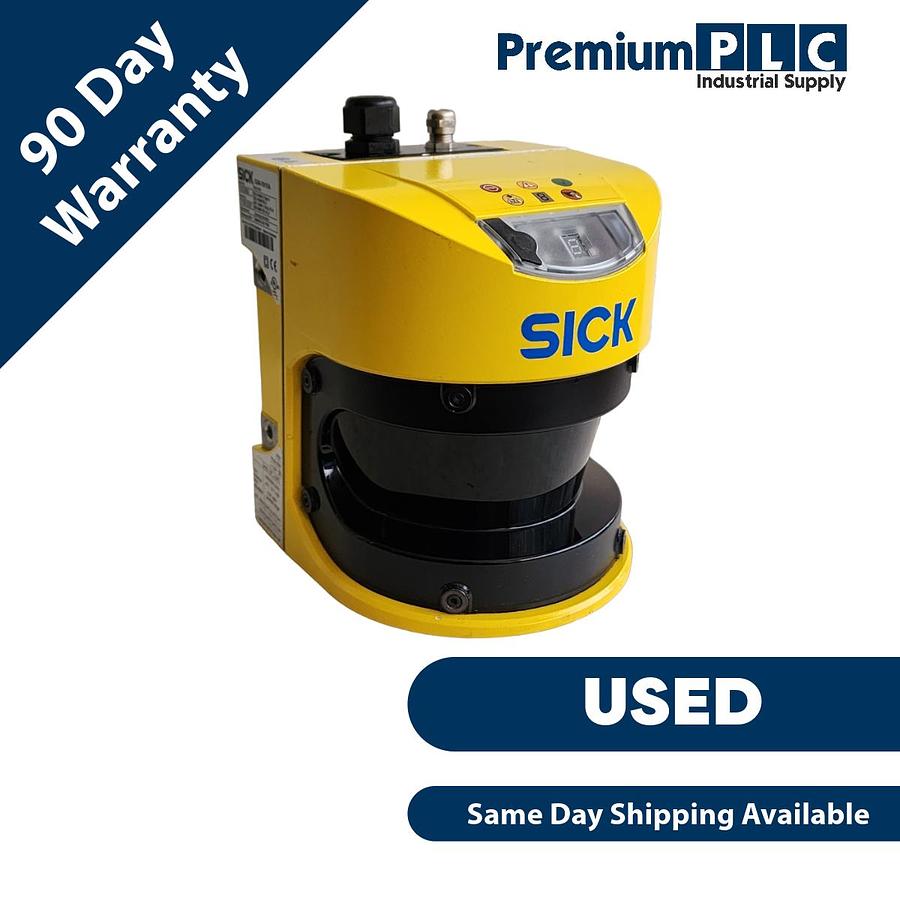

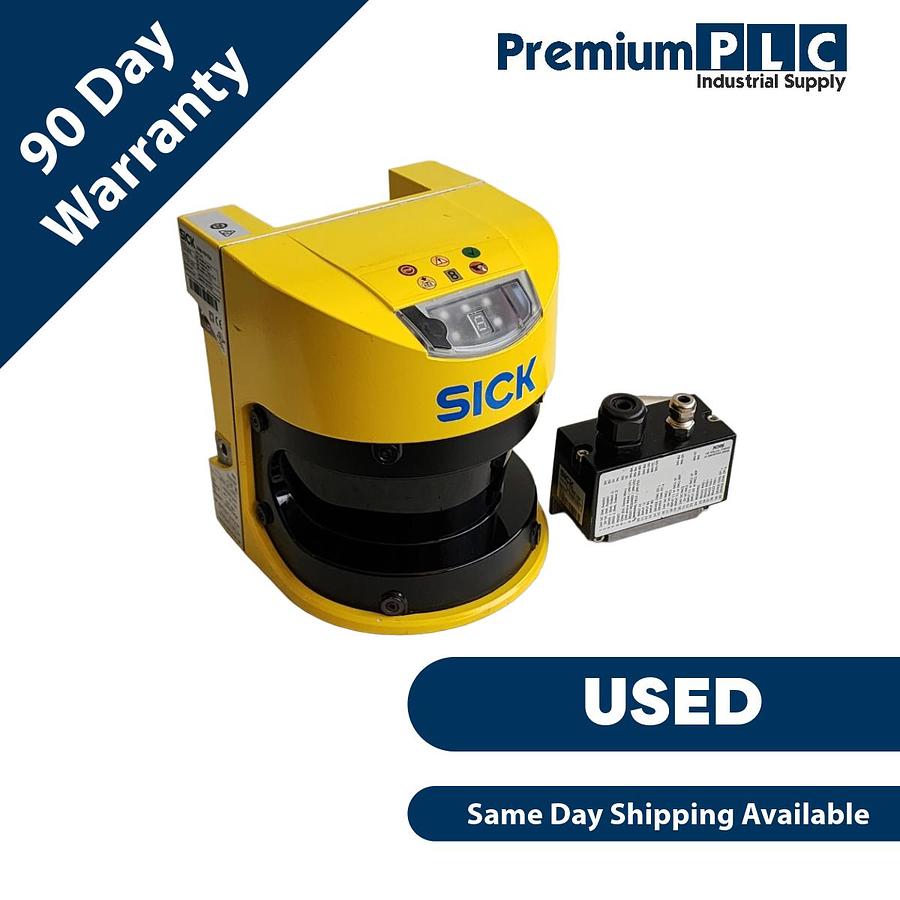

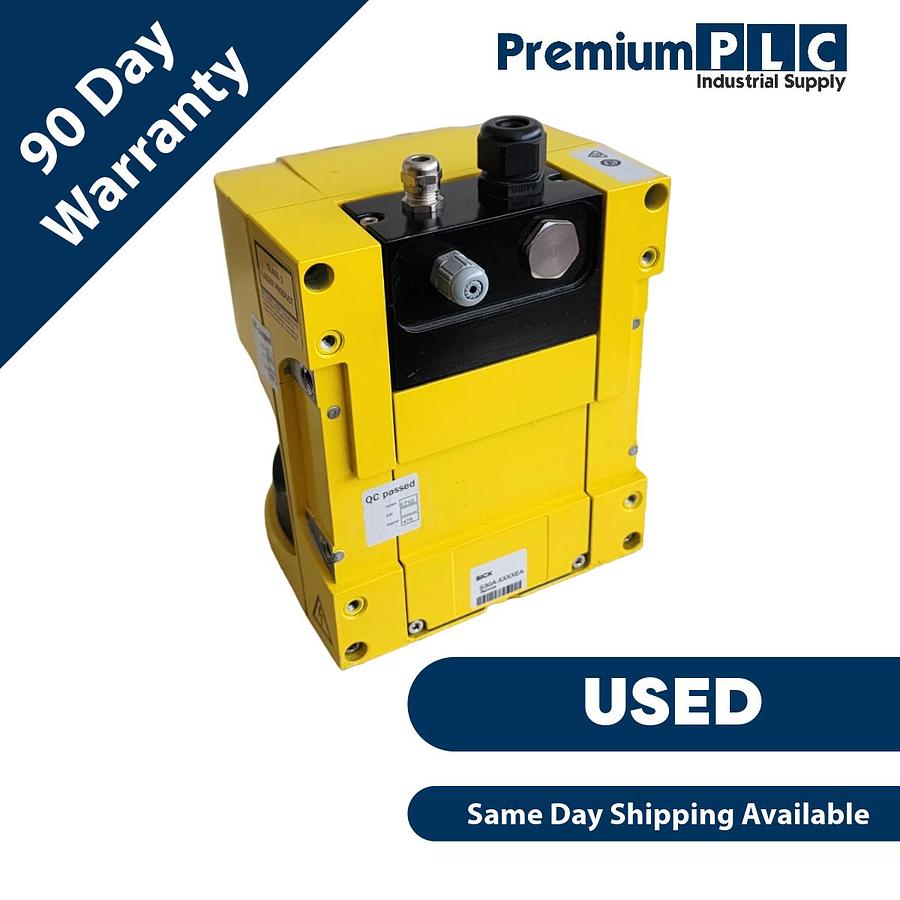

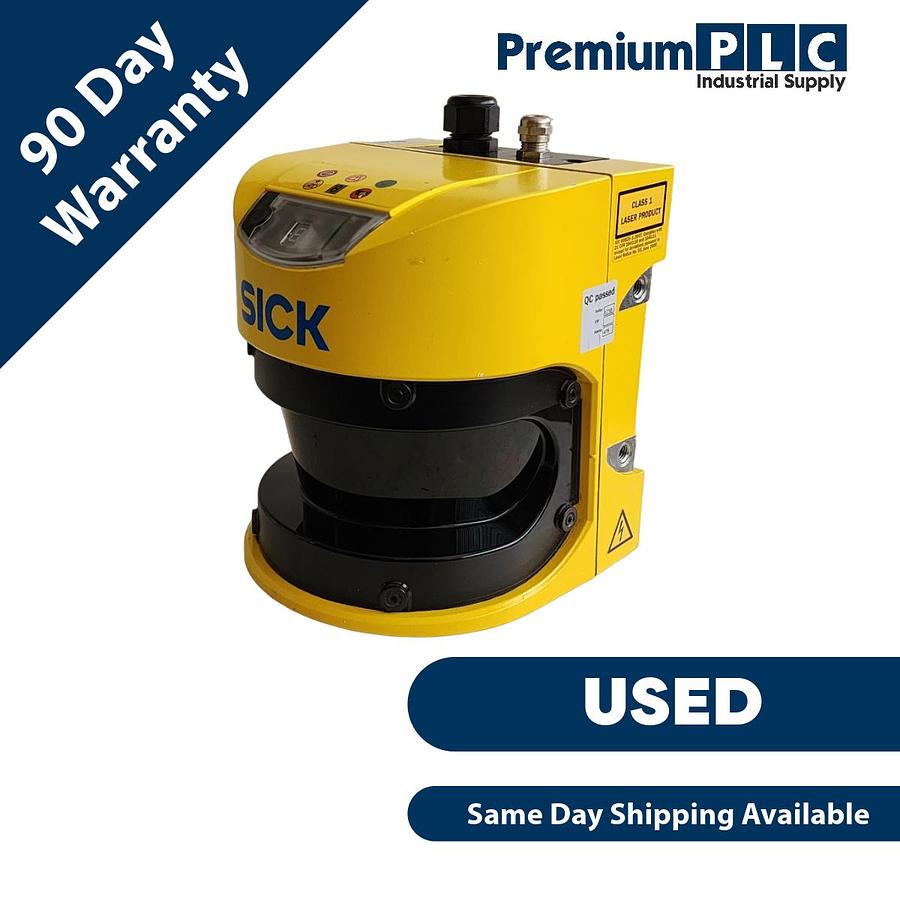

USED SICK S30A-7011EA S3000 SAFETY LASER SCANNER P/N 1023893 W/SX0A-A0000B PLUG
$2,150
Description
USED SICK S30A-7011EA S3000 SAFETY LASER SCANNER P/N 1023893 W/SX0A-A0000B PLUG
CONDITION: USED IN GREAT CONDITION.
WARRANTY: 90 DAYS
-
Features
Usage Can only be used in the EFI system network, e.g., with a Flexi Soft safety controller and an additional S300 or S3000 safety laser scanner
Model Sensor without system plug
Application Indoor
Protective field range 7 m
Warning field range 49 m (20 m at 20 % reflectivity)
Distance measuring range 49 m
Number of simultaneously monitored protective fields ≤ 4 1)
Type of field set Triple field sets, dual field sets
Number of field sets 32 2) 3)
Number of fields 64
Number of monitoring cases 32 3)
Scanning angle 190°
Resolution (can be configured) 30 mm, 40 mm, 50 mm, 70 mm, 150 mm
Angular resolution 0.5°, 0.25°, depending on range and resolution
Response time 60 ms 4)
Protective field supplement 100 mm
Number of multiple samplings 2 ... 16, configurable
Delay of automatic reset 2 s ... 60 s, configurable
- 1) If several protective fields are monitored simultaneously, the shut-off signals must be connected to safe outputs on a Flexi Soft safety controller or routed via a safe EFI gateway.
- 2) In dual field mode 32, in triple field mode 21 field sets.
- 3) The performance characteristics of the Remote device correspond to those of the host. If the system exclusively consists of Remote devices connected to an EFI partner, 16 dual field sets or 10 triple field sets and 32 monitoring cases are available. For monitoring case switching static or dynamic inputs of the EFI partner have to be used.
- 4) Depending on basic response time and multiple sampling.
-

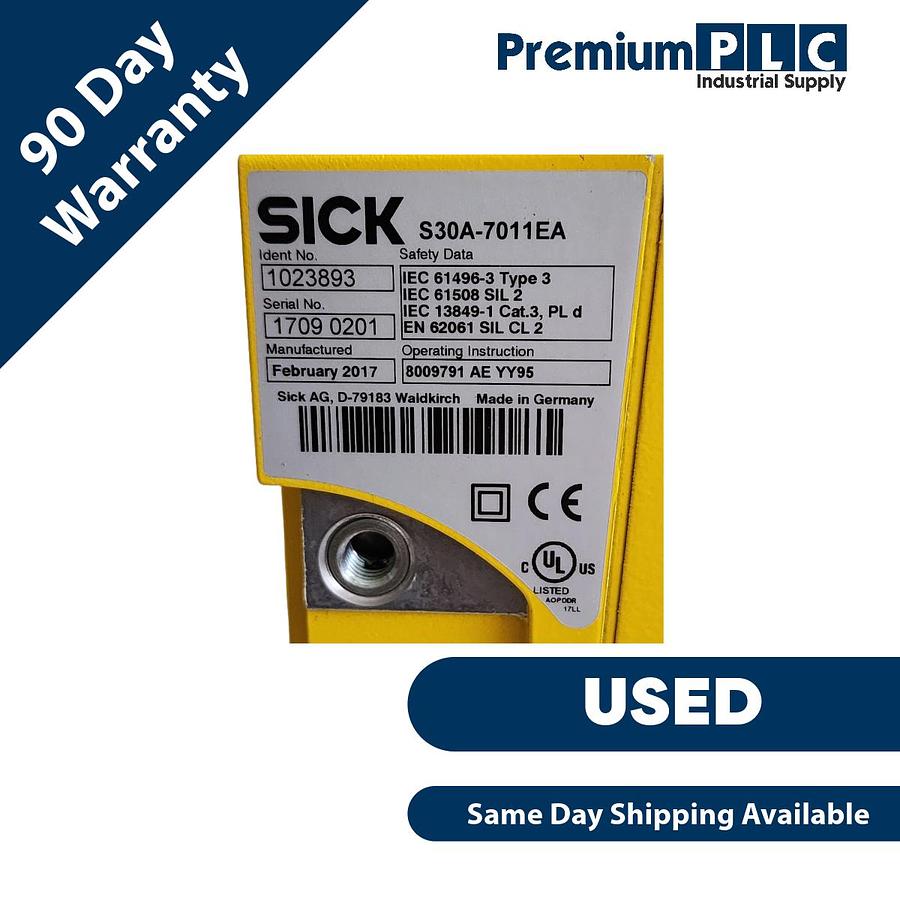

Safety-related parameters
Type Type 3 (IEC 61496)
Safety integrity level SIL2 (IEC 61508)
Category Category 3 (EN ISO 13849)
Performance level PL d (EN ISO 13849)
PFHD (mean probability of a dangerous failure per hour) 8.0 x 10-8
TM (mission time) 20 years (EN ISO 13849)
Safe state in the event of a fault At least one OSSD is in the OFF state.
-
Functions
Restart interlock ✔
External device monitoring (EDM) ✔
Multiple sampling ✔
Monitoring case switching ✔
Simultaneous monitoring ✔
Static protective field switching ✔
Dynamic protective field switching ✔
Contour as a reference ✔
Integrated configuration memory ✔
Measured data output Via RS-422
Safe SICK device communication via EFI ✔
-
Electrical data
Protection class II (EN 50178)
Supply voltage Vs 24 V DC (16.8 V DC ... 28.8 V DC)
Power consumption
≤ 0.8 A 1)
≤ 2.3 A 2)
Outputs
Output signal switching devices (OSSDs) 2 x 500 mA
Application diagnostic outputs 3 x 100 mA 3)
- 1) At 24 V DC without output load.
- 2) At 24 V DC including maximum output load.
- 3) Freely programmable, e.g. warning field, contamination, reset required.
-
Mechanical data
Dimensions (W x H x D) 155 mm x 185 mm x 160 mm
Weight 3.3 kg
Housing material Aluminum die cast
Housing color RAL 1021 (yellow)
Front screen material Polycarbonate
Front screen surface finish Outside with scratch-resistant coating
-
Ambient data
Enclosure rating IP65 (EN 60529)
Ambient operating temperature –10 °C ... +50 °C
Storage temperature –25 °C ... +50 °C
Vibration resistance IEC 60068-2-6, IEC 60068-2-64, IEC 60721-3-5, IEC TR 60721-4-5, IEC 61496-3
Class 5M1 (IEC 60721-3-5)
Shock resistance IEC 60068-2-27, IEC 60721-3-5, IEC TR 60721-4-5, IEC 61496-3
Class 5M1 (IEC 60721-3-5)
Continuous shock 50 m/s², 11 ms
100 m/s², 16 ms
-
Other information
Type of light Pulsed laser diode
Wave length 905 nm
Detectable remission factor 1.8 % ... > 1,000 %, reflectors
Laser class 1 (21 CFR 1040.10 and 1040.11, IEC 60825-1)
-
Classifications
eCl@ss 5.0 27272705
eCl@ss 5.1.4 27272705
eCl@ss 6.0 27272705
eCl@ss 6.2 27272705
eCl@ss 7.0 27272705
eCl@ss 8.0 27272705
eCl@ss 8.1 27272705
eCl@ss 9.0 27272705
eCl@ss 10.0 27272705
eCl@ss 11.0 27272705
eCl@ss 12.0 27272705
ETIM 5.0 EC002550
ETIM 6.0 EC002550
ETIM 7.0 EC002550
ETIM 8.0 EC002550
UNSPSC 16.0901 39121528
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
________________________________________________________________________________
1179
-
Specifications
| Manufacturer | SICK |
| Model | 1023893 |
| Condition | Used |
| Stock Number | 364494131718 |
| Country of Origin | Germany |
| Type | S30A-7011EA |
| Sensor Type | Safety laser scanner |
