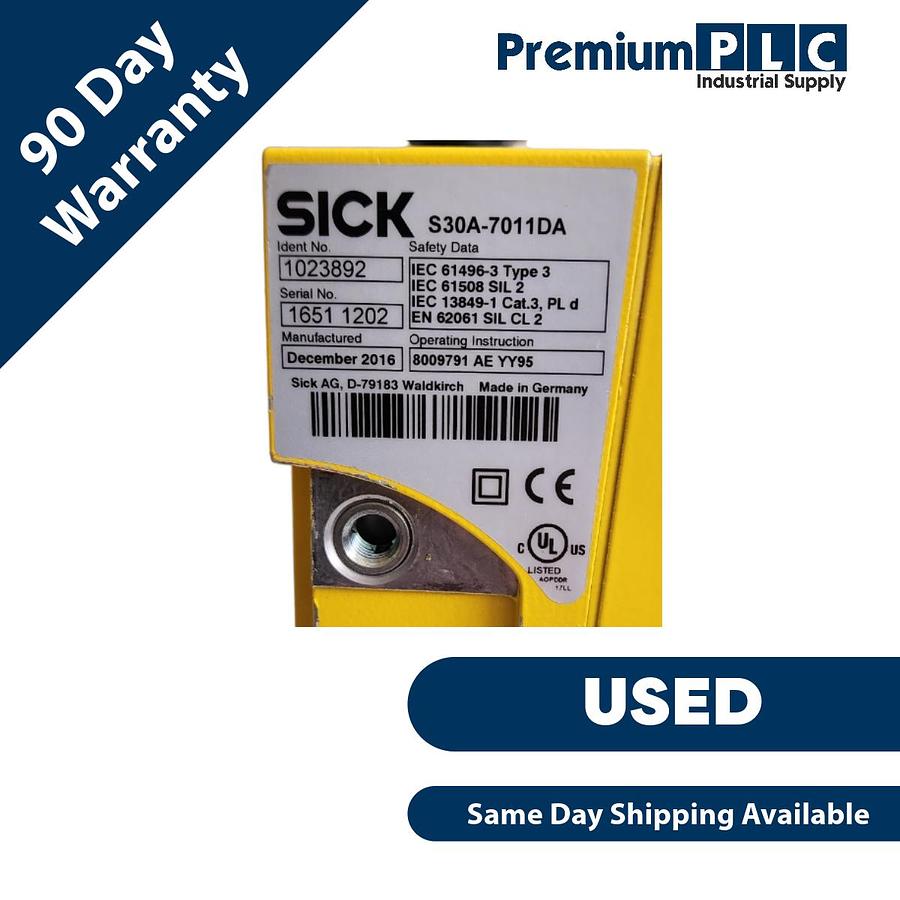

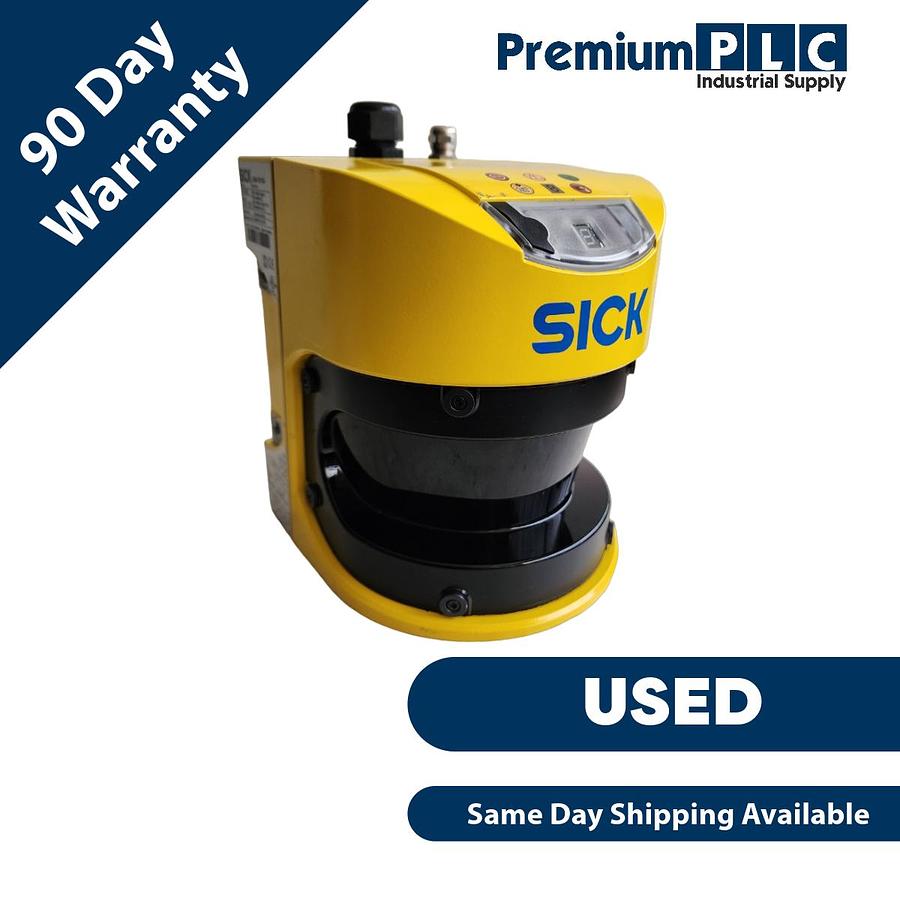

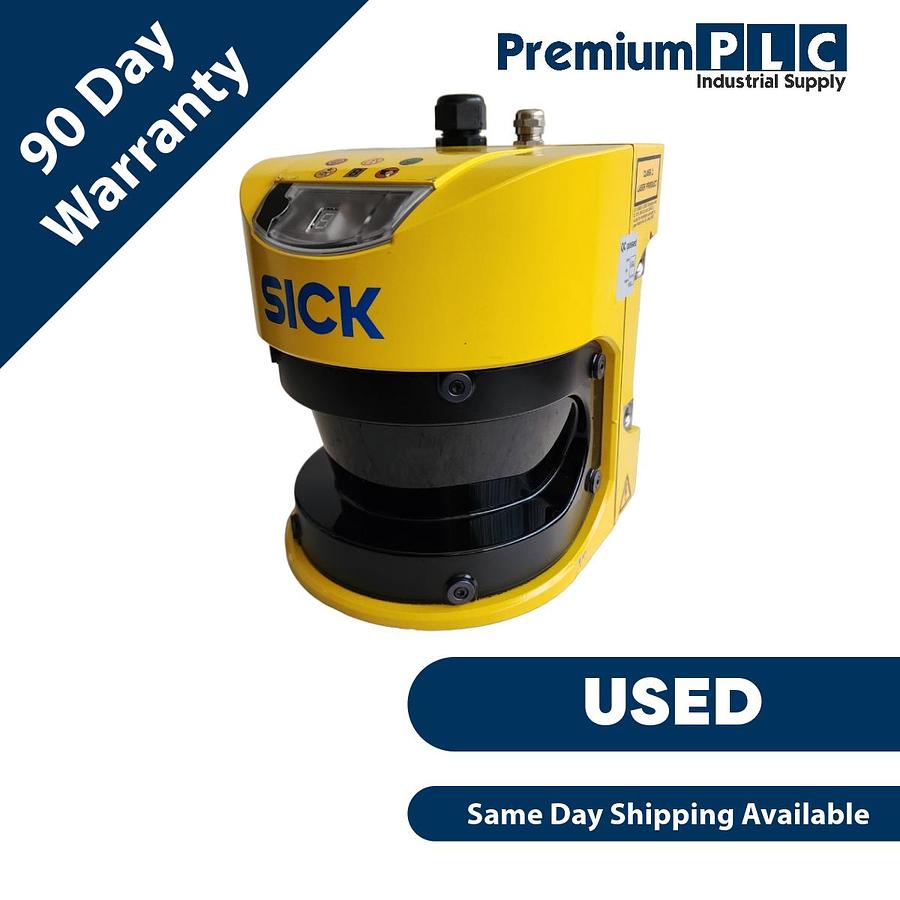

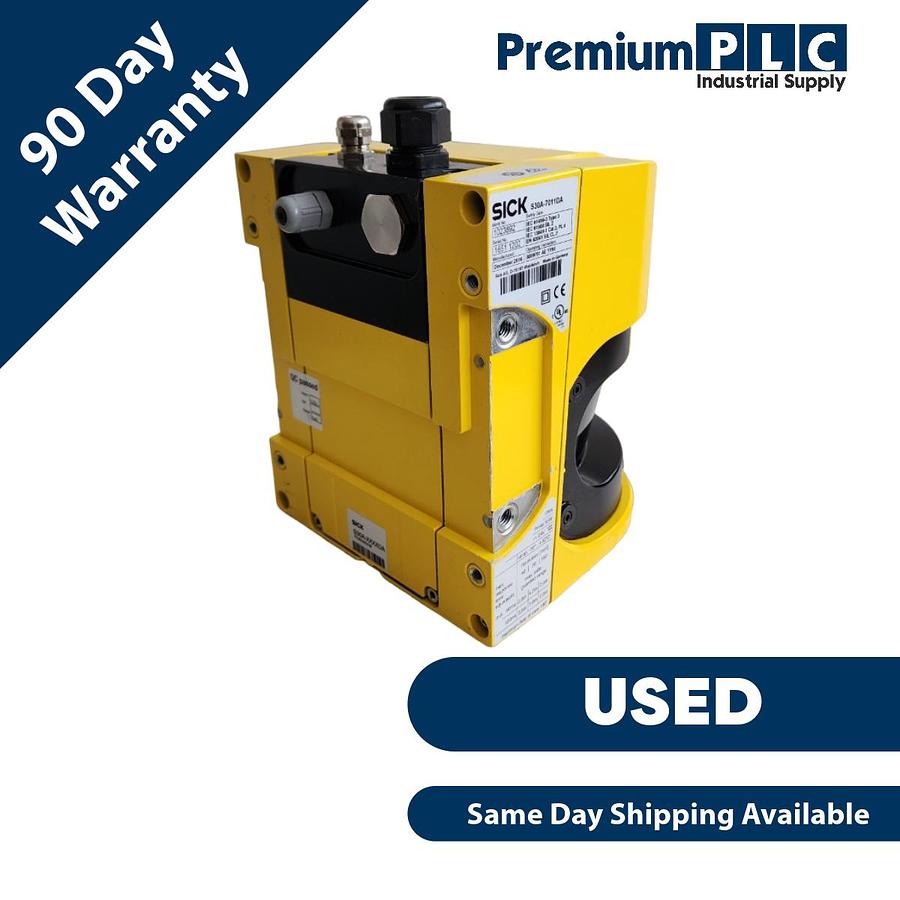

USED SICK S30A-7011DA S3000 SAFETY LASER SCANNER P/N 1023892 W/SX0A-A0000B PLUG
$2,250
Description
USED SICK S30A-7011DA S3000 SAFETY LASER SCANNER P/N 1023892 W/SX0A-A0000B PLUG
CONDITION: USED IN GREAT CONDITION.
WARRANTY: 90 DAYS
-
Features
Model Sensor without system plug
Application Indoor
Protective field range 7 m
Warning field range 49 m (20 m at 20 % reflectivity)
Distance measuring range 49 m
Number of simultaneously monitored protective fields ≤ 4 1)
Type of field set Triple field sets, dual field sets
Number of field sets 8
Number of fields 24
Number of monitoring cases 16
Scanning angle 190°
Resolution (can be configured) 30 mm, 40 mm, 50 mm, 70 mm, 150 mm
Angular resolution 0.5°, 0.25°, depending on range and resolution
Response time 60 ms 2)
Protective field supplement 100 mm
Number of multiple samplings 2 ... 16, configurable
Delay of automatic reset 2 s ... 60 s, configurable
- 1) If several protective fields are monitored simultaneously, the shut-off signals must be connected to safe outputs on a Flexi Soft safety controller or routed via a safe EFI gateway.
- 2) Depending on basic response time and multiple sampling.
-
Safety-related parameters
Type Type 3 (IEC 61496)
Safety integrity level SIL2 (IEC 61508)
Category Category 3 (EN ISO 13849)
Performance level PL d (EN ISO 13849)
PFHD (mean probability of a dangerous failure per hour) 8.0 x 10-8
TM (mission time) 20 years (EN ISO 13849)
Safe state in the event of a fault At least one OSSD is in the OFF state.
-
Functions
Restart interlock ✔
External device monitoring (EDM) ✔
Multiple sampling ✔
Monitoring case switching ✔
Simultaneous monitoring ✔
Static protective field switching ✔
Dynamic protective field switching ✔
Contour as a reference ✔
Integrated configuration memory ✔
Measured data output Via RS-422
Safe SICK device communication via EFI ✔
-
Electrical data
Protection class II (EN 50178)
Supply voltage Vs 24 V DC (16.8 V DC ... 28.8 V DC)
Power consumption
≤ 0.8 A 1)
≤ 2.3 A 2)
Outputs
Output signal switching devices (OSSDs) 2 x 500 mA
Application diagnostic outputs 3 x 100 mA 3)
- 1) At 24 V DC without output load.
- 2) At 24 V DC including maximum output load.
- 3) Freely programmable, e.g. warning field, contamination, reset required.
-
Mechanical data
Dimensions (W x H x D) 155 mm x 185 mm x 160 mm
Weight 3.3 kg
Housing material Aluminum die cast
Housing color RAL 1021 (yellow)
Front screen material Polycarbonate
Front screen surface finish Outside with scratch-resistant coating
-
Ambient data
Enclosure rating IP65 (EN 60529)
Ambient operating temperature –10 °C ... +50 °C
Storage temperature –25 °C ... +50 °C
Vibration resistance IEC 60068-2-6, IEC 60068-2-64, IEC 60721-3-5, IEC TR 60721-4-5, IEC 61496-3
Class 5M1 (IEC 60721-3-5)
Shock resistance IEC 60068-2-27, IEC 60721-3-5, IEC TR 60721-4-5, IEC 61496-3
Class 5M1 (IEC 60721-3-5)
Continuous shock 50 m/s², 11 ms
100 m/s², 16 ms
-
Other information
Type of light Pulsed laser diode
Wave length 905 nm
Detectable remission factor 1.8 % ... > 1,000 %, reflectors
Laser class 1 (21 CFR 1040.10 and 1040.11, IEC 60825-1)
-
Classifications
eCl@ss 5.0 27272705
eCl@ss 5.1.4 27272705
eCl@ss 6.0 27272705
eCl@ss 6.2 27272705
eCl@ss 7.0 27272705
eCl@ss 8.0 27272705
eCl@ss 8.1 27272705
eCl@ss 9.0 27272705
eCl@ss 10.0 27272705
eCl@ss 11.0 27272705
eCl@ss 12.0 27272705
ETIM 5.0 EC002550
ETIM 6.0 EC002550
ETIM 7.0 EC002550
ETIM 8.0 EC002550
UNSPSC 16.0901 39121528
-
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
________________________________________________________________________________
1177
-
Specifications
| Manufacturer | SICK |
| Model | 1023892 |
| Condition | Used |
| Stock Number | 364494155371 |
| Country of Origin | Germany |
| Type | S30A-7011DA |
| Sensor Type | Safety laser scanner |
