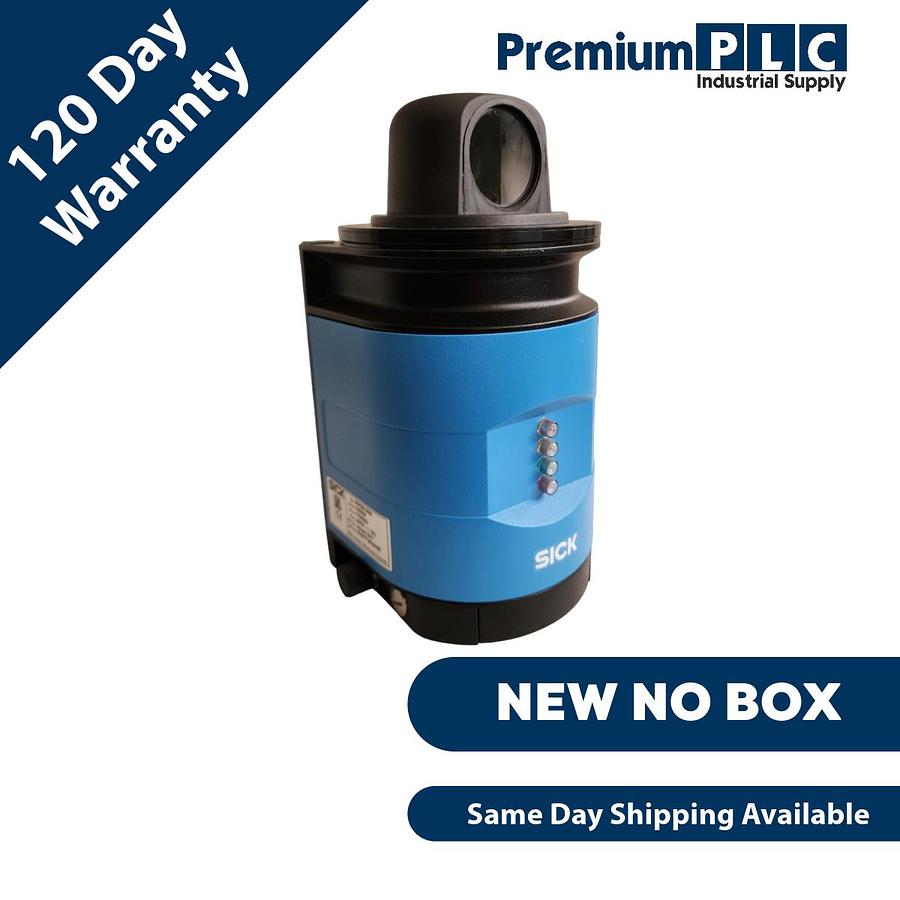

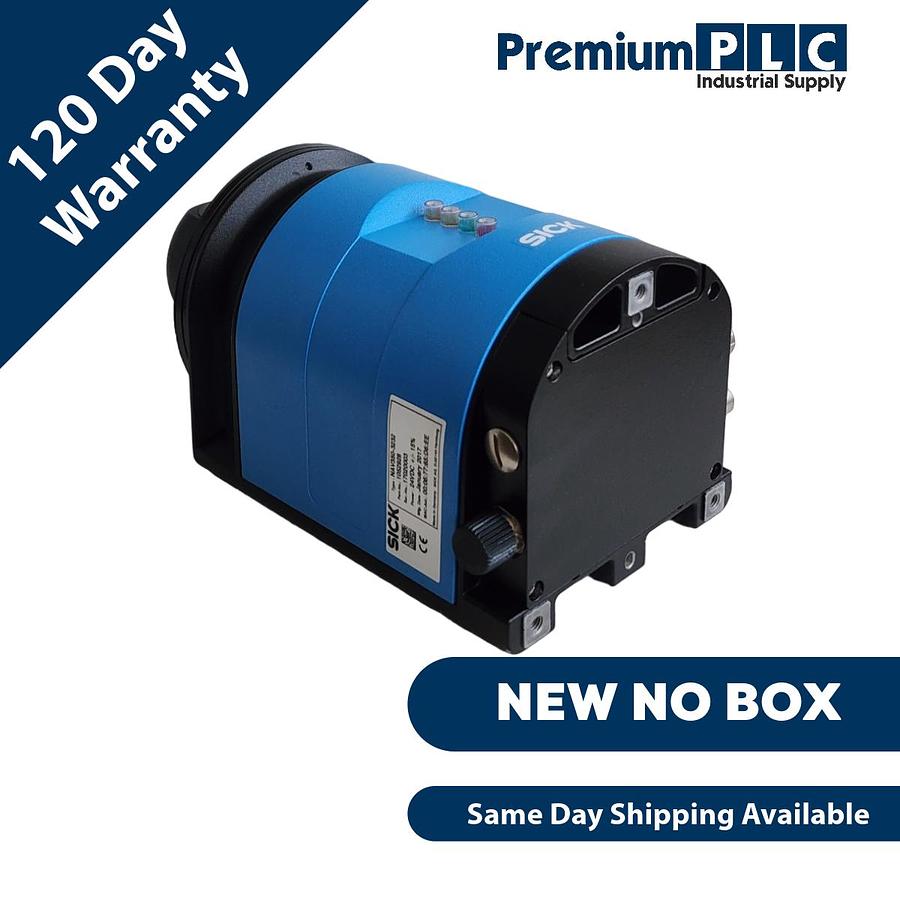

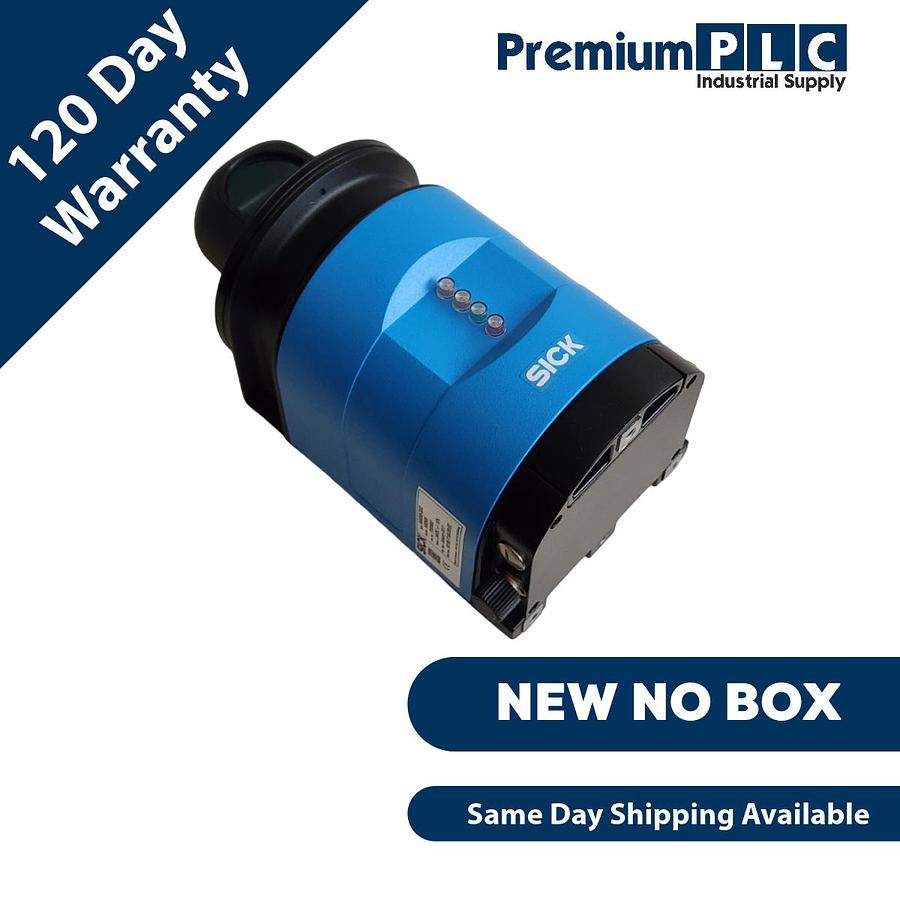

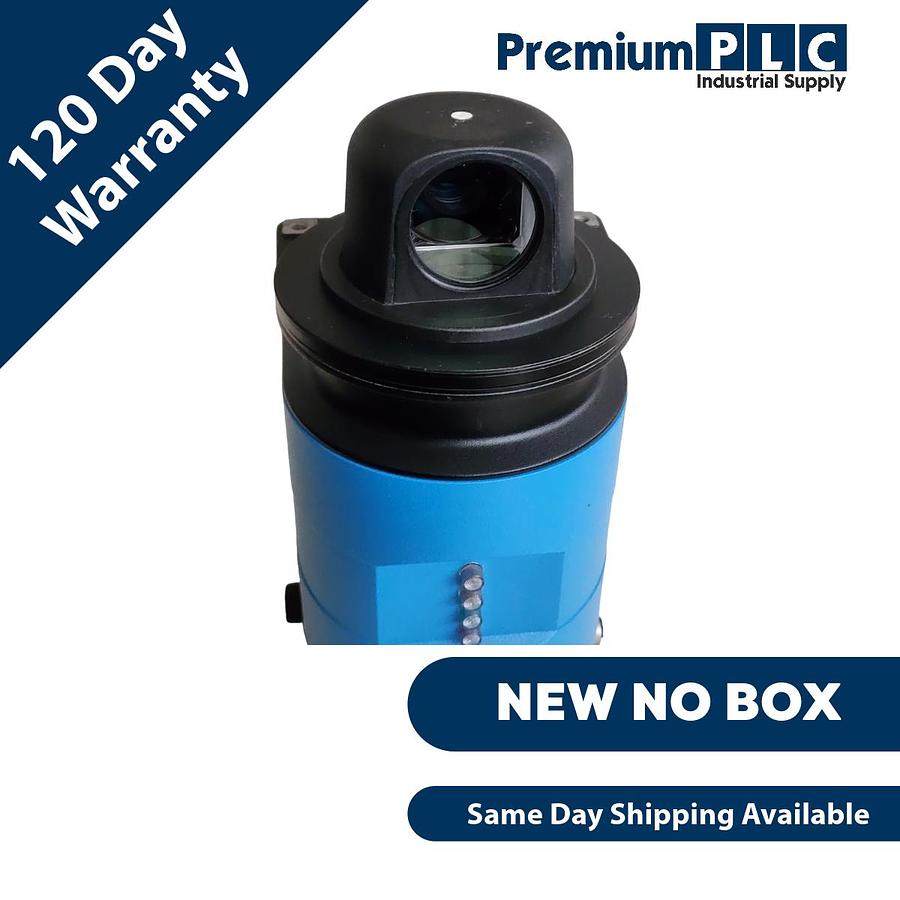

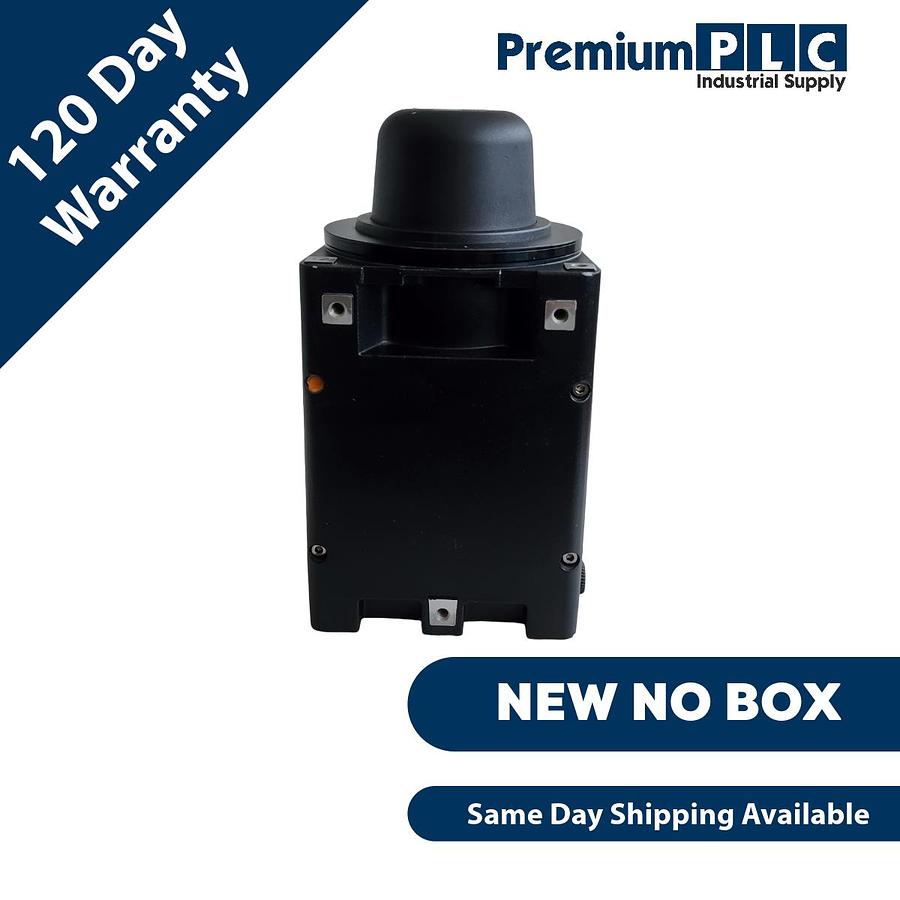

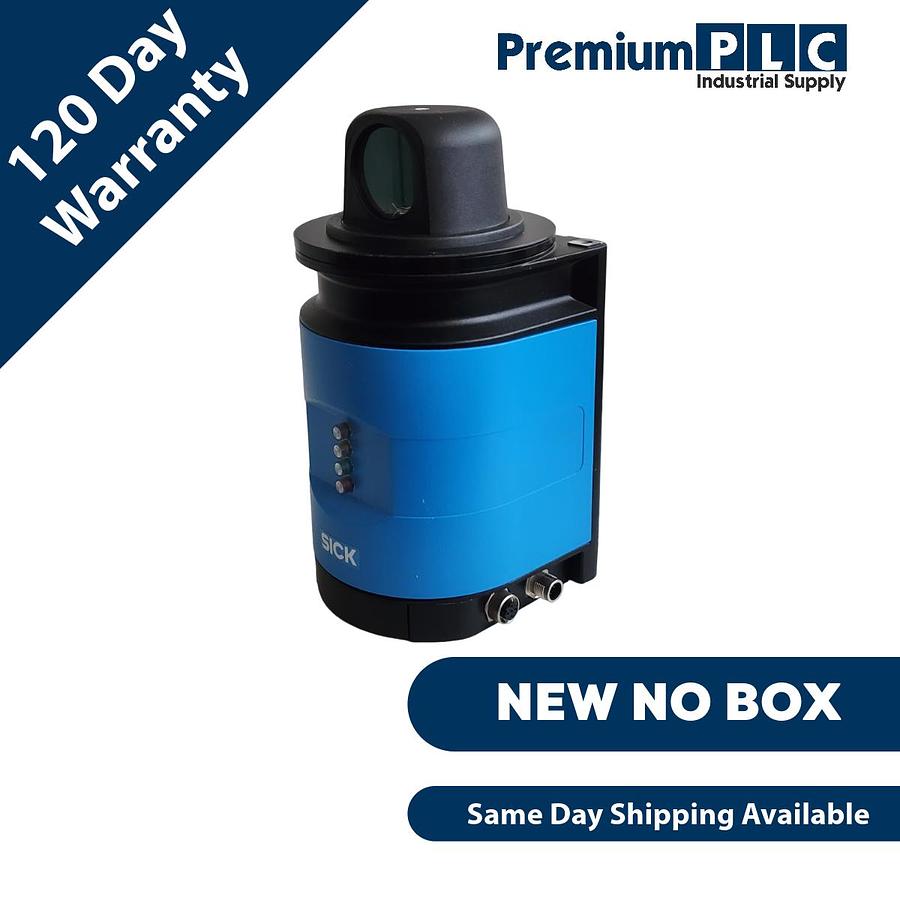

NEW SICK NAV350-3232 NAV3XX / INDOOR 2D LiDAR SENSOR NAV3503232 P/N 1052928
$7,250
Description
NEW SICK NAV350-3232 NAV3XX / INDOOR 2D LiDAR SENSOR NAV3503232 P/N 1052928
CONDITION: NEW NO BOX. ITEM WAS INSTALLE BUT NEVER PUT INTO OPERATION PROJECT WAS CANCELED. MINOR SHELF WEAR.
WARRANTY: 120 DAYS (LIMITED 1 YEAR)
-
Features
Application Indoor
Light source 905 nm
Laser class 1 (IEC 60825-1:2014, EN 60825-1:2014)
Aperture angle
Horizontal 360°
Scanning frequency 8 Hz, ± 5 %
Angular resolution 0.25°
Working range 0.5 m ... 250 m (0.5 m ... 70 m on reflectors)
Scanning range
At 10% remission 35 m
At 90% remission 100 m
-
Mechanics/electronics
Connection type 3 x M12 male connector/female connector
Supply voltage 24 V DC, ± 15 %
Power consumption 36 W
Housing Aluminum die cast
Housing color Light blue (RAL 5012)
Enclosure rating IP65
Protection class III
Weight 2.4 kg
Dimensions (L x W x H) 115 mm x 120.5 mm x 222 mm
-
Safety-related parameters
MTBF 86 years
MTTFD > 100 years
-
Performance
Detectable object shape Almost any
Systematic error
± 10 mm (RDI) 1)
± 15 mm (Contour) 1)
Statistical error 15 mm (Contour) 1)
Reflector memory 12,000
Positioning accuracy ± 4 mm
Integrated application Navigation
- 1) Typical value; actual value depends on environmental conditions.
-
Interfaces
Ethernet ✔ , TCP/IP
Data transmission rate 100 Mbit/s
Serial ✔ , RS-232
Data transmission rate 19.2 kBaud ... 115 kBaud
Digital outputs 1 (digital)
Optical indicators 4 LEDs (status displays)
-
Ambient data
Ambient operating temperature 0 °C ... +50 °C
Storage temperature –20 °C ... +80 °C
Permissible relative humidity 85 %, Non-condensing
Reflector marks (recommended) Stripes: width ≥ 80 mm, cylindrical: diameter ≥ 80 mm
-
General notes
Note on use The sensor does not constitute a safety component as defined by relevant legislation on machine safety.
-
Classifications
eCl@ss 5.0 27270990
eCl@ss 5.1.4 27270990
eCl@ss 6.0 27270913
eCl@ss 6.2 27270913
eCl@ss 7.0 27270913
eCl@ss 8.0 27270913
eCl@ss 8.1 27270913
eCl@ss 9.0 27270913
eCl@ss 10.0 27270913
eCl@ss 11.0 27270913
eCl@ss 12.0 27270913
ETIM 5.0 EC002550
ETIM 6.0 EC002550
ETIM 7.0 EC002550
ETIM 8.0 EC002550
UNSPSC 16.0901 41111615
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
________________________________________________________________________________
1175
-
Specifications
| Manufacturer | SICK |
| Model | 1052928 |
| Condition | Used |
| Stock Number | 364492489592 |
| Type | NAV350-3232 |
| Sensor Type | LiDAR sensor |
