USED SICK TIM320-1031000 / TIM3201031000 2D LiDAR SENSOR TiM P/N 1063467
$975
Description

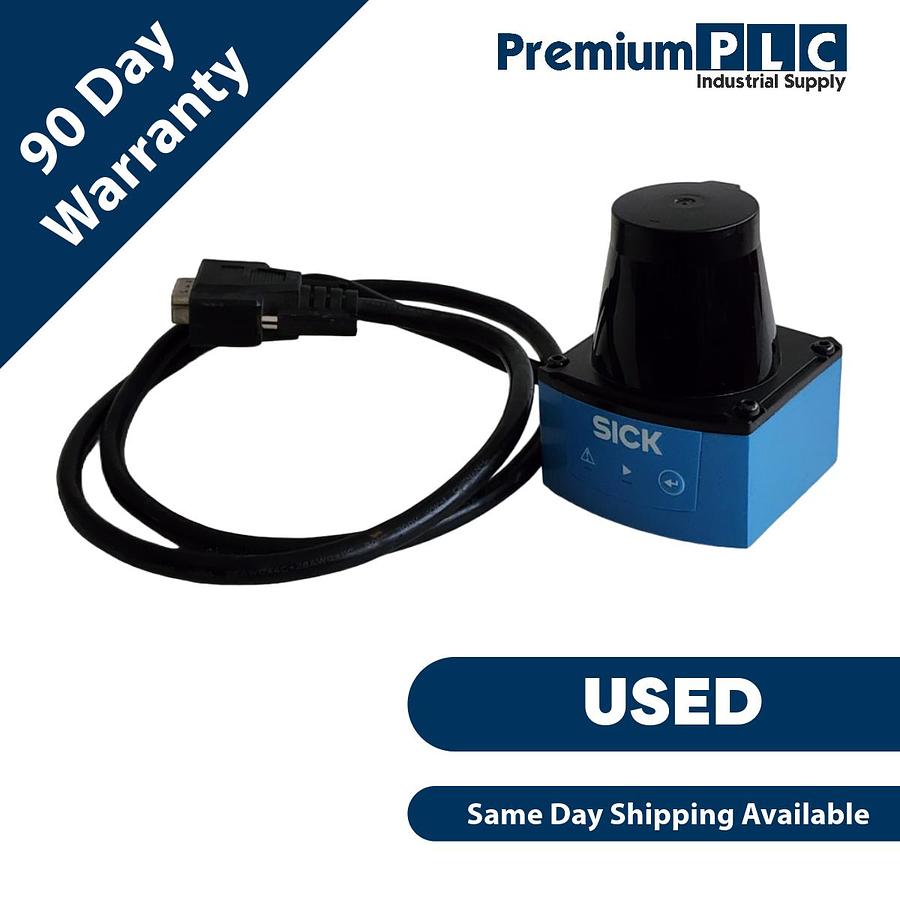

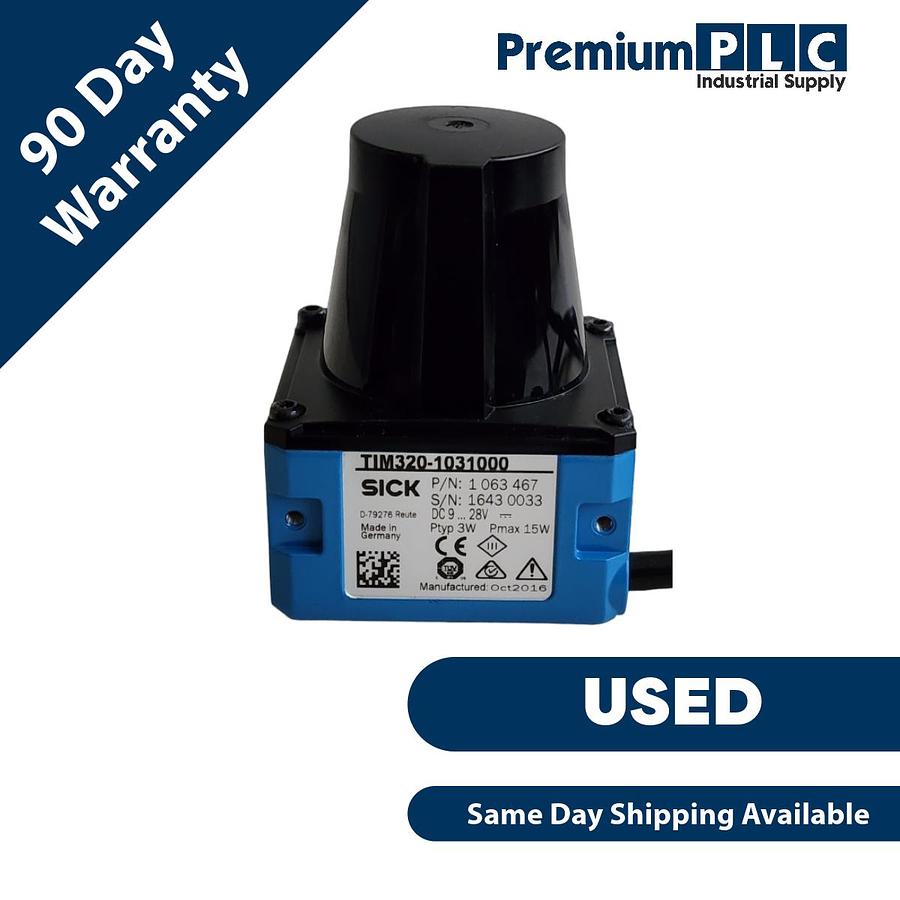

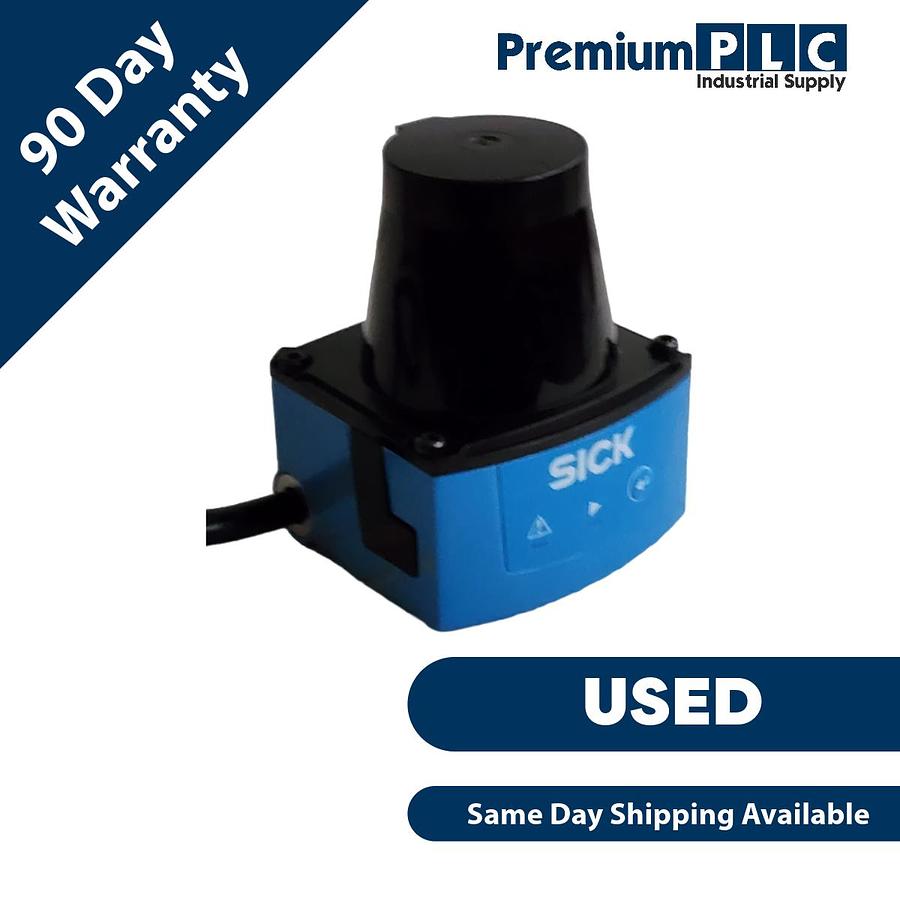

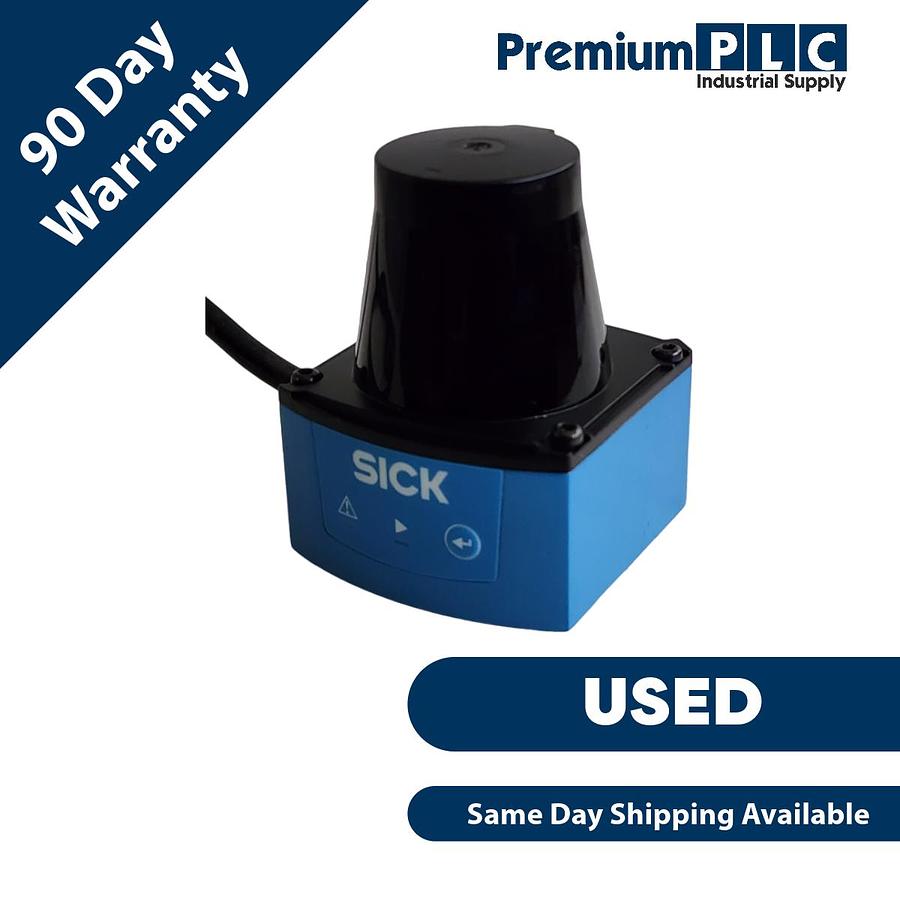

USED SICK TIM320-1031000 / TIM3201031000 2D LiDAR SENSOR TiM P/N 1063467
-
Features
Measurement principle HDDM+
Application Indoor
Light source Infrared (850 nm)
Laser class 1 (IEC 60825-1:2014, EN 60825-1:2014)
Aperture angle
Horizontal 270°
Scanning frequency 15 Hz
Angular resolution 1°
Working range 0.05 m ... 4 m
Scanning range
At 10% remission 2 m
-
Mechanics/electronics
Connection type 1 x 15-pin D-sub HD male connector (0.9 m)
Supply voltage 9 V DC ... 28 V DC
Power consumption Typ. 4 W, 16 W with 4 max. loaded digital outputs
Output current ≤ 100 mA
Housing color Light blue (RAL 5012)
Enclosure rating IP65 (IEC 60529:1989+AMD1:1999+AMD2:2013)
Protection class III (IEC 61140:2016-1)
Weight 150 g, without connecting cables
Dimensions (L x W x H) 60 mm x 60 mm x 79 mm
-
Safety-related parameters
MTBF > 100 years
MTTFD 100 years
-
Performance
Response time
1 scan, typ. 67 ms
2 scans, ≤ 134 ms 1)
Detectable object shape Almost any
Systematic error ± 40 mm 2)
Statistical error < 30 mm 2)
Integrated application Field evaluation with flexible fields
Number of field sets 16 field triples (48 fields, 1 triple (3 flexible fields) can be configured directly at the scanner)
Simultaneous evaluation cases 1 (3 fields)
- 1) At +45° to +225° of the working range; max. 150 ms at –45° to +45° of the working range.
- 2) Typical value at 90% remission up to maximum scanning range; real value depends on ambient conditions.
-
Interfaces
USB ✔
Remark Micro USB
Function AUX, parameterization
Digital inputs 4
Digital outputs 3 (PNP, additional 1 x “Device Ready”)
Delay time 67 ms ... 30,000 ms (configurable)
Dwell time 67 ms ... 600,052 ms (configurable)
Optical indicators 2 LEDs (ON, switching status)
-
Ambient data
Object remission 4 % ... 1,000 % (reflectors)
Electromagnetic compatibility (EMC)
Emitted radiation Residential area (EN 61000-6-3:2007+AMD:A1:2011)
Electromagnetic immunity Industrial environment (EN 61000-6-2:2005)
Vibration resistance
Sine resonance scan 10 Hz ... 1,000 Hz 1)
Sine test 10 Hz ... 500 Hz, 5 g, 10 frequency cycles 1)
Noise test 10 Hz ... 250 Hz, 4.24 g RMS, 5 h 2)
Shock resistance
50 g, 11 ms, ± 3 single shocks/axis 3)
25 g, 6 ms, ± 1,000 continuous shocks/axis 3)
50 g, 3 ms, ± 5,000 continuous shocks/axis 3)
Ambient operating temperature –10 °C ... +50 °C 4)
Storage temperature –30 °C ... +70 °C 4)
Switch-on temperature –10 °C ... +50 °C
Temperature change –10 °C ... +50 °C, 10 cycles 5)
Damp heat +25 °C ... +55 °C, 95 % RH, 6 cycles 6)
Permissible relative humidity
Operation < 80 %, Non-condensing (EN 60068-2-30:2005)
Storage ≤ 90 %, Non-condensing (EN 60068-2-30:2005)
Ambient light immunity 80,000 lx
- 1) IEC 60068-2-6:2007.
- 2) IEC 60068-2-64:2008.
- 3) IEC 60068-2-27:2008.
- 4) IEC 60068-2-14:2009.
- 5) EN 60068-2-14:2009.
- 6) EN 60068-2-30:2005.
-
General notes
Note on use The sensor does not constitute a safety component as defined by relevant legislation on machine safety.
-
Classifications
eCl@ss 5.0 27270990
eCl@ss 5.1.4 27270990
eCl@ss 6.0 27270913
eCl@ss 6.2 27270913
eCl@ss 7.0 27270913
eCl@ss 8.0 27270913
eCl@ss 8.1 27270913
eCl@ss 9.0 27270913
eCl@ss 10.0 27270913
eCl@ss 11.0 27270913
eCl@ss 12.0 27270913
ETIM 5.0 EC002550
ETIM 6.0 EC002550
ETIM 7.0 EC002550
ETIM 8.0 EC002550
UNSPSC 16.0901 41111615
-
-
CONDITION: USED
WARRANTY: 90 DAYS
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
________________________________________________________________________________
1175
-
Specifications
| Manufacturer | SICK |
| Model | 1063467 |
| Condition | Used |
| Stock Number | 195992916644 |
| Type | TIM320-1031000 |
| Termination Type | Cable with Connector |
| Sensor Type | 2D LiDAR sensor |
