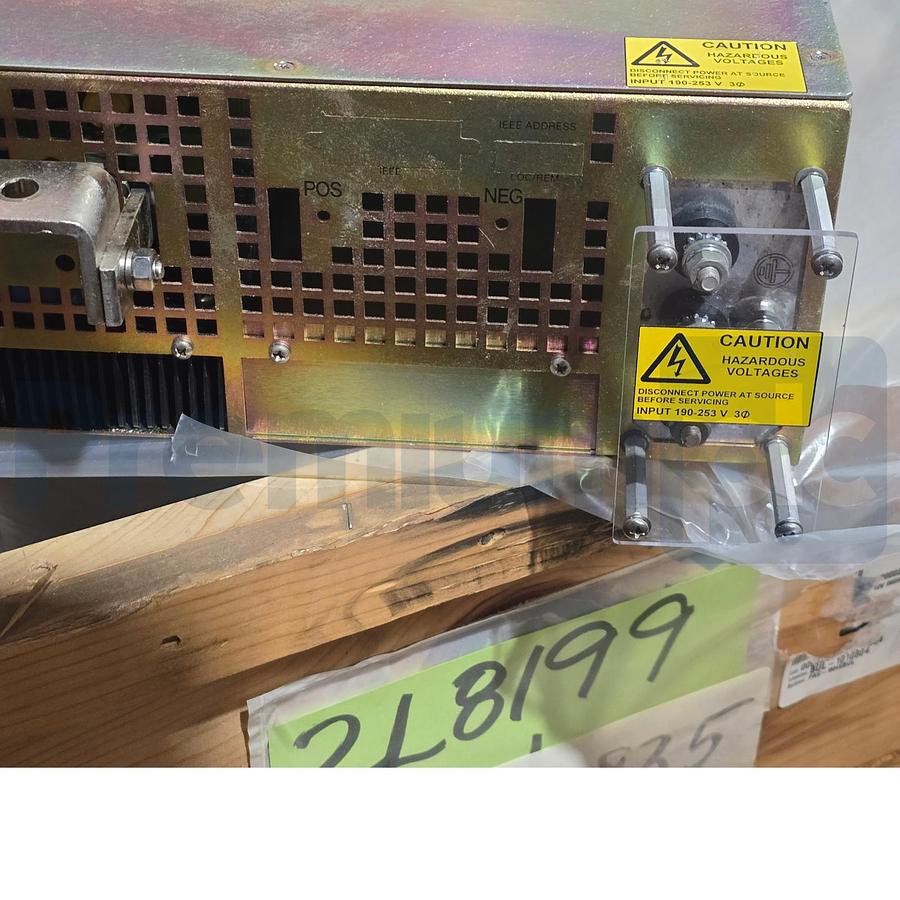

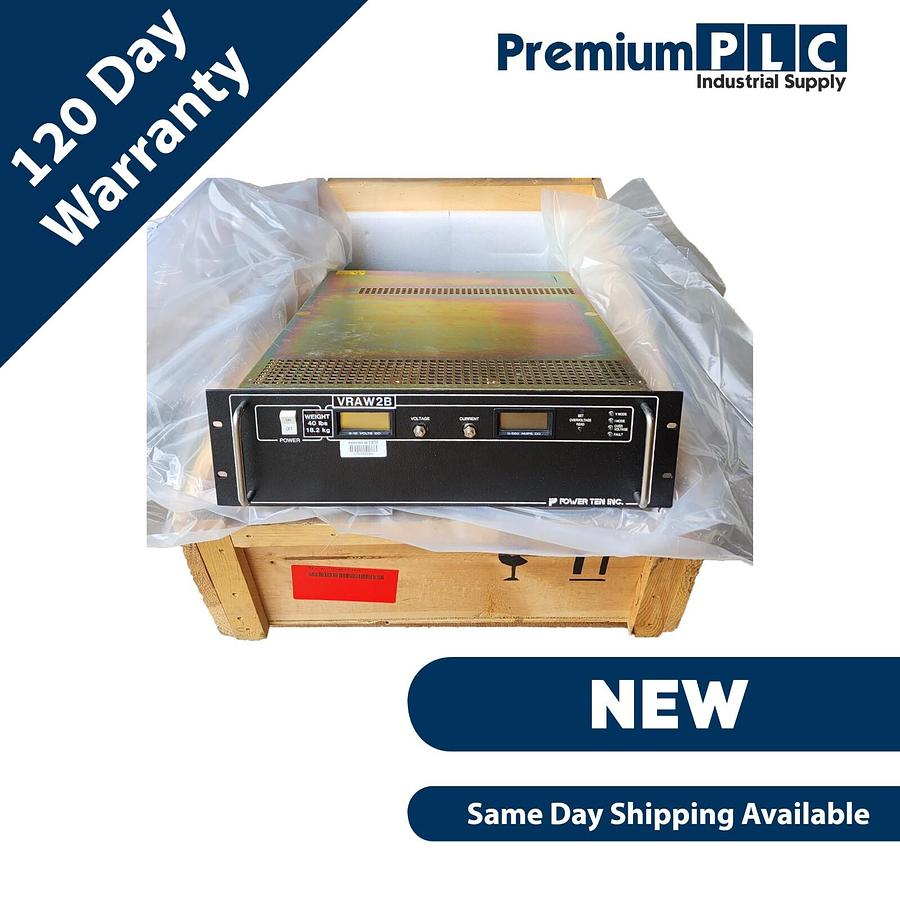

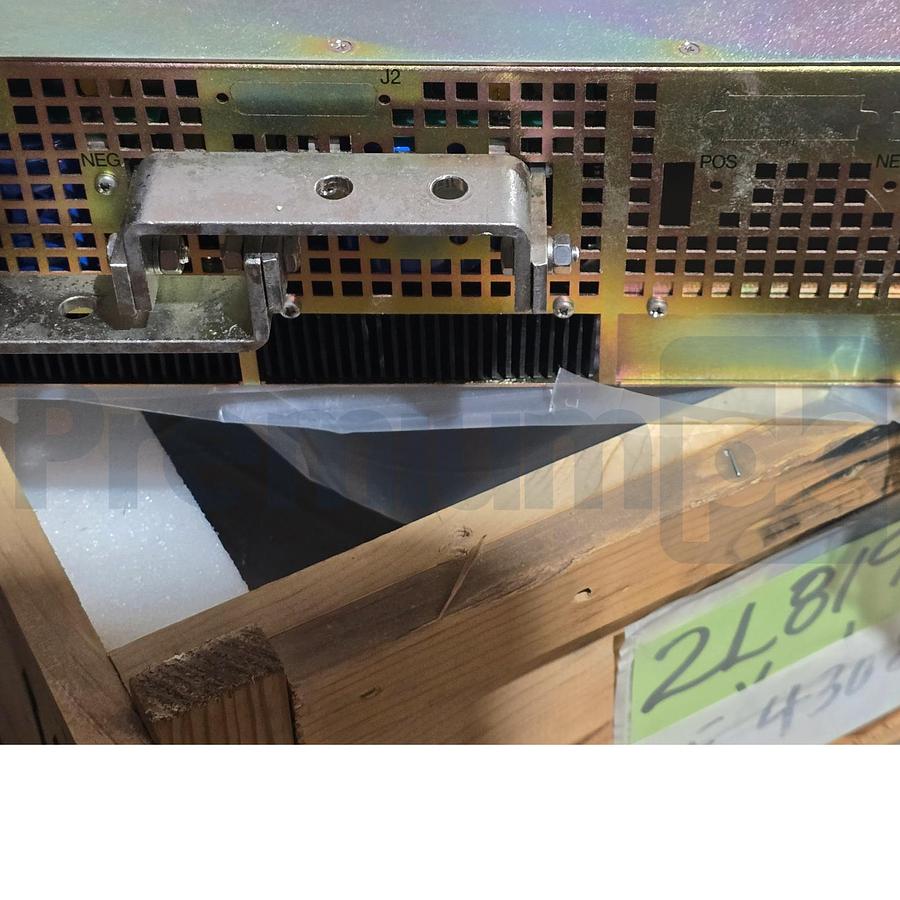

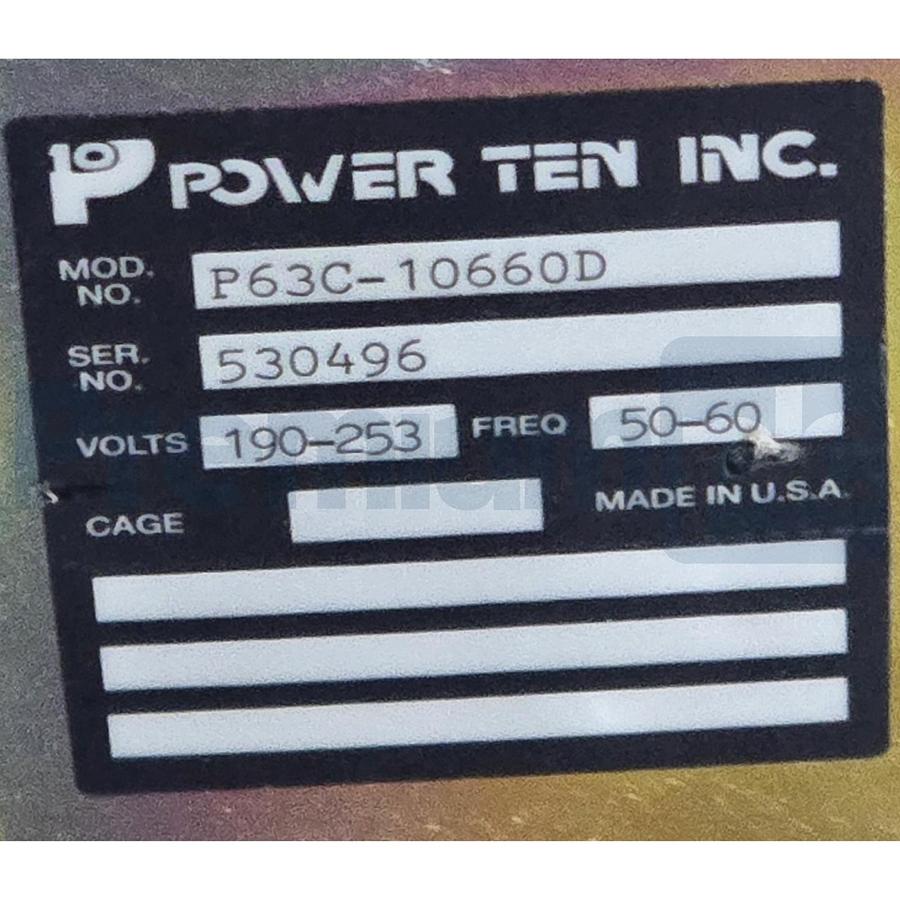

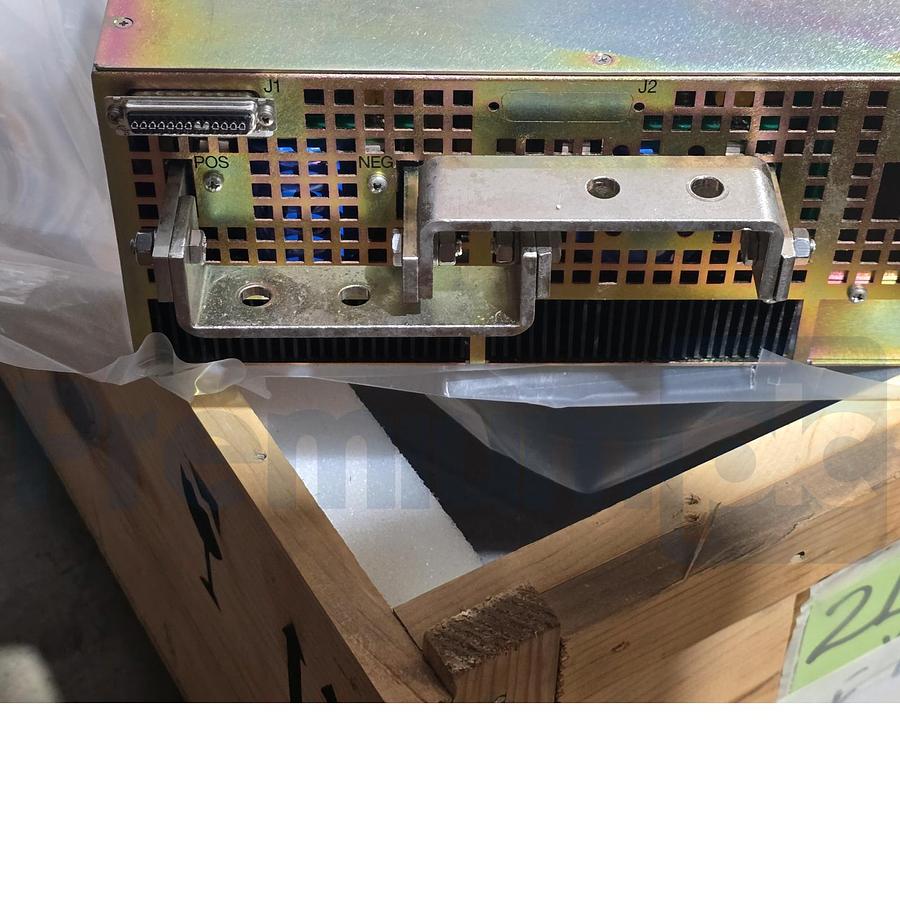

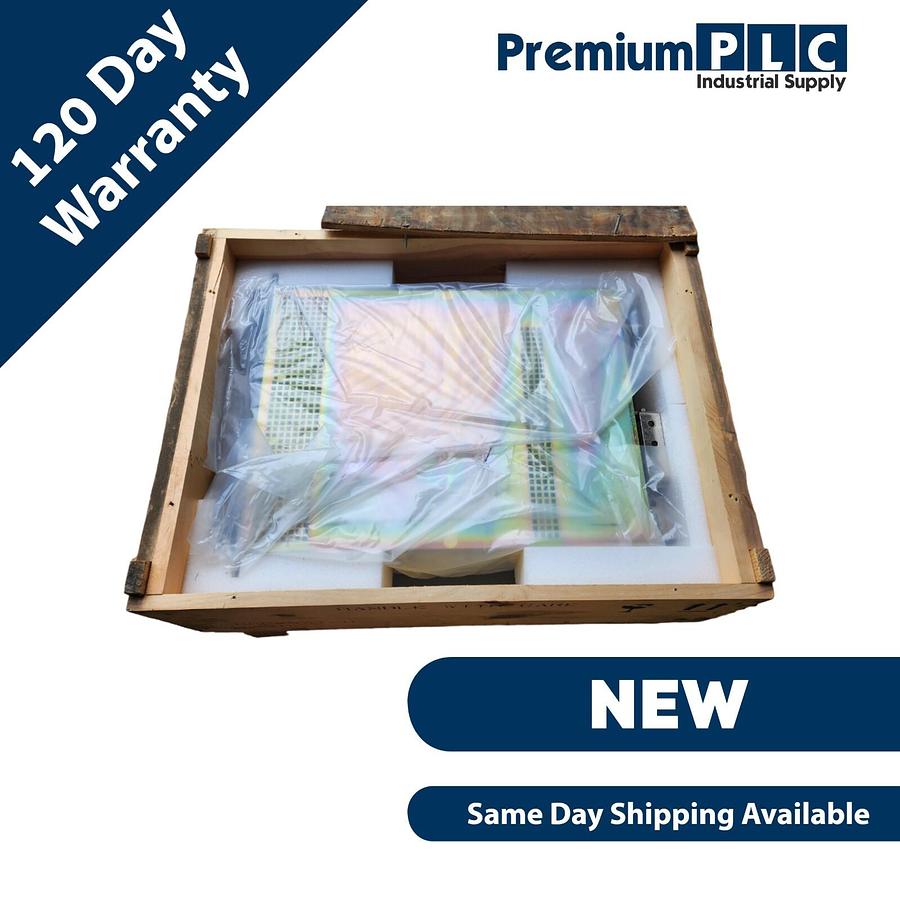

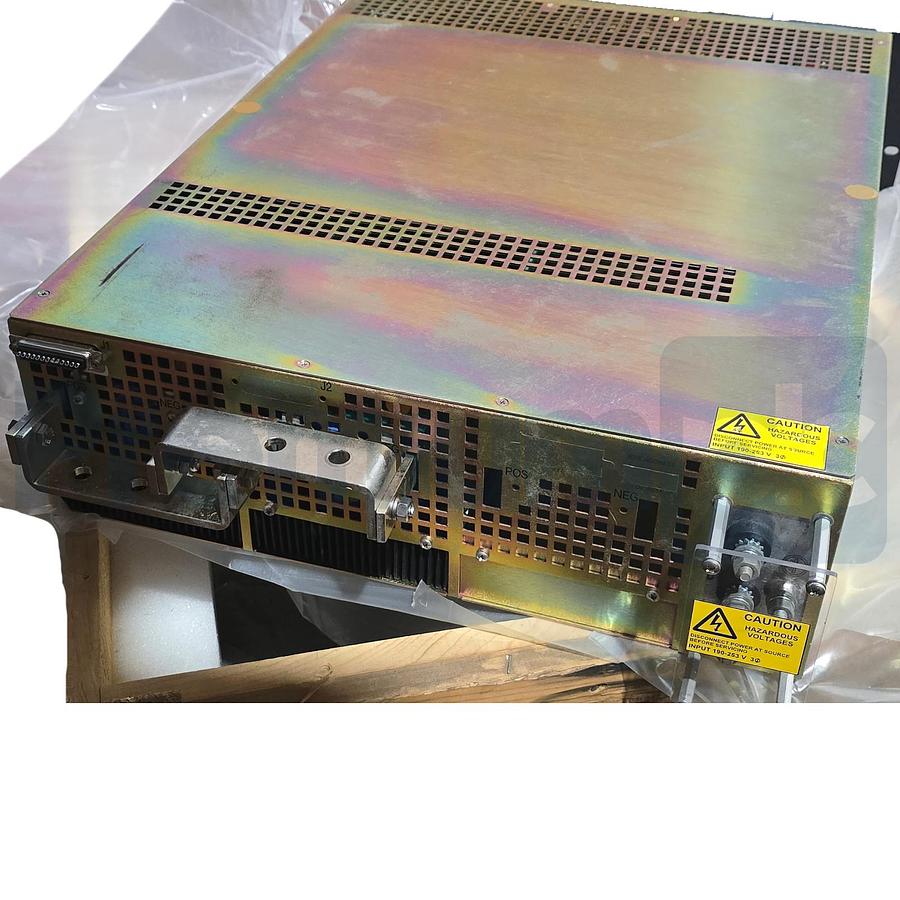

NEW POWER TEN P63C-10660D P63C SERIES VARIABLE POWER SUPPLY 10V 660A 10kW

$3,750

Description

NEW POWER TEN P63C-10660D P63C SERIES VARIABLE POWER SUPPLY 10V 660A 10kW - Output: 10V, 660A, 50mV Ouput P-P Ripple - Input Voltage: 190-253 VAC, 47-63 Hz - Input Current @ 208 VAC (Typical): At 10.0 kW Output: 41 A (Operates from Delta or Wye Source) - Dimensions: 19" (W) X 5.25" (H) X 22" (D) - AC Input Interface: 3 wire + GND (#10-32 threaded studs) (208 VAC) - DC Output Interface - Control/Monitor Interface: DB 25-pin female connector - Regulation (Line or Load) Voltage: 0.1% of maximum rated output - Current: 0.5% of maximum rated output - Transient Response - A 30% current step load will recover to within ±2% of set voltage within 10 msec. - Stability - ±0.05% of set point per 8 hours after 30 minutes warm-up at fixed line, load and temperature. - Temperature Coefficient - 0.02%/°C of rated output voltage - 0.03%/°C of rated output current - Operating Temperature - 0 to +50° C, No derating - Storage Temperature - -20 to +70°C - Cooling - Internal fans - Controls (Front Panel) - On/Off switch, DC volts adjust, DC amps adjust, OVP preset adjust (limit set) - Meters/Indicators - LCD DC voltmeter, ammeter and OVP limit set. LED indicators for voltage mode, current mode. OVP fault and fault - Built-In Protection - Over Voltage, Current limit Fold back, Over Temperature, Brown Out, Turn On Surge Limit, Slow Start - Remote Control/Monitor (Rear Panel) - On/Off control via contact closure, 6-120 VDC, TTL or CMOS switch, output voltage and current monitor, OVP limit set, summary fault status on P60 Series. - Remote Programming (Voltage (0 to 100%) Current (0 to 100%)): - Resistive: 0-5K ohms 0-5K ohms - Voltage: 0-5 VDC or 10 VDC 0-5 VDC or 10 VDC - Optional IEEE 488.2 and RS 232 Programming with SCPI protocol - Remote Sensing: - Terminals provided to sense output voltage at load - Operational Features: - Master/Slave, Series, Parallel CONDITION: NEW IN CRATE WARRANTY: 120 DAYS _____________________________________________________________________________________ UPALLET/A6

Specifications

ManufacturerPower Ten
ModelP63C-10660D
ConditionUsed
Stock Number314762225005
SeriesP63C
Nominal Current Rating660A
Output Voltage Rating (DC)10 V
Nominal Power Rating10 kW
Country of OriginUnited States
