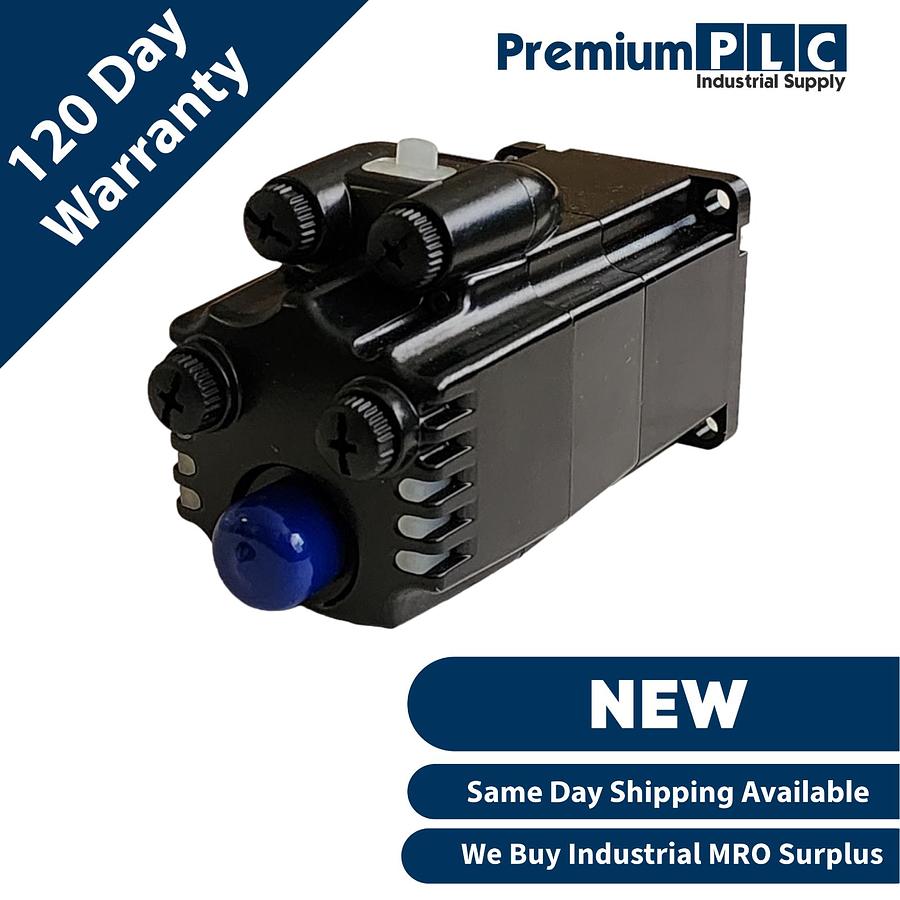

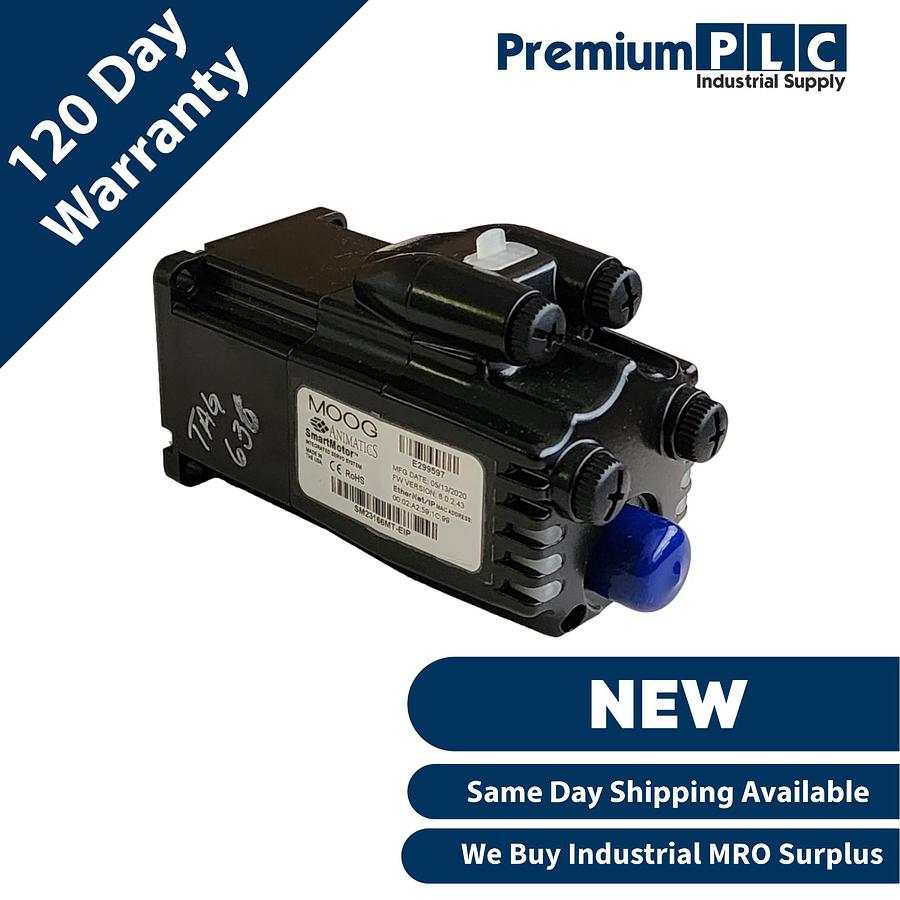

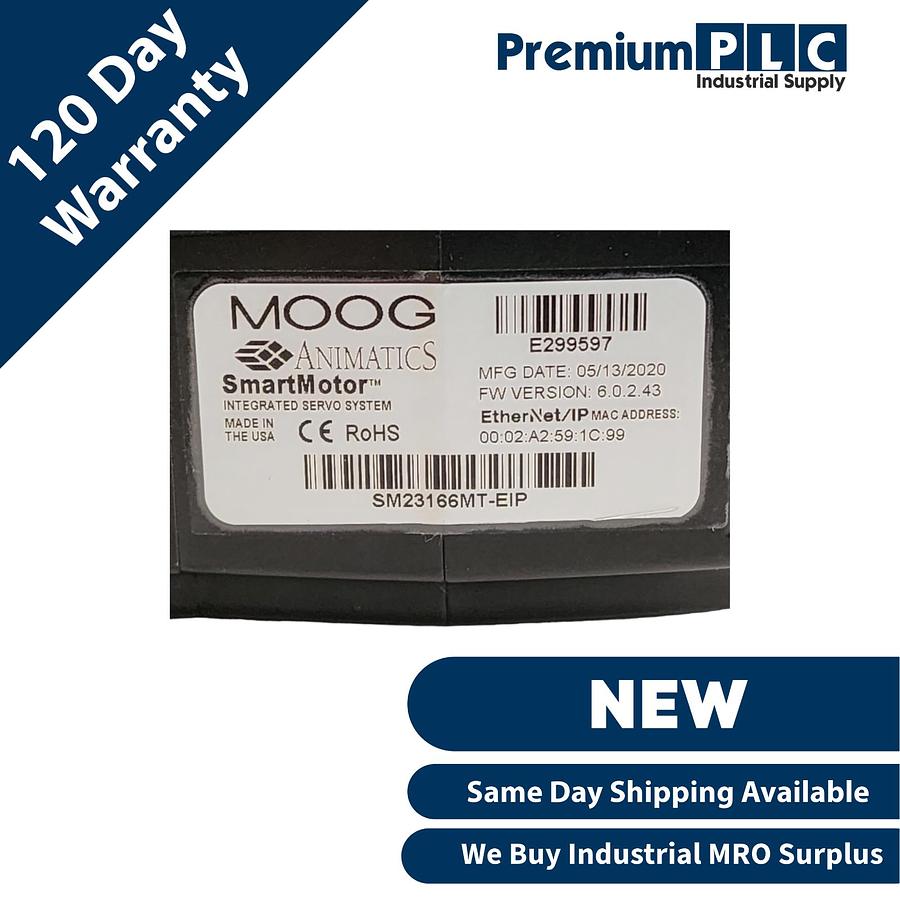

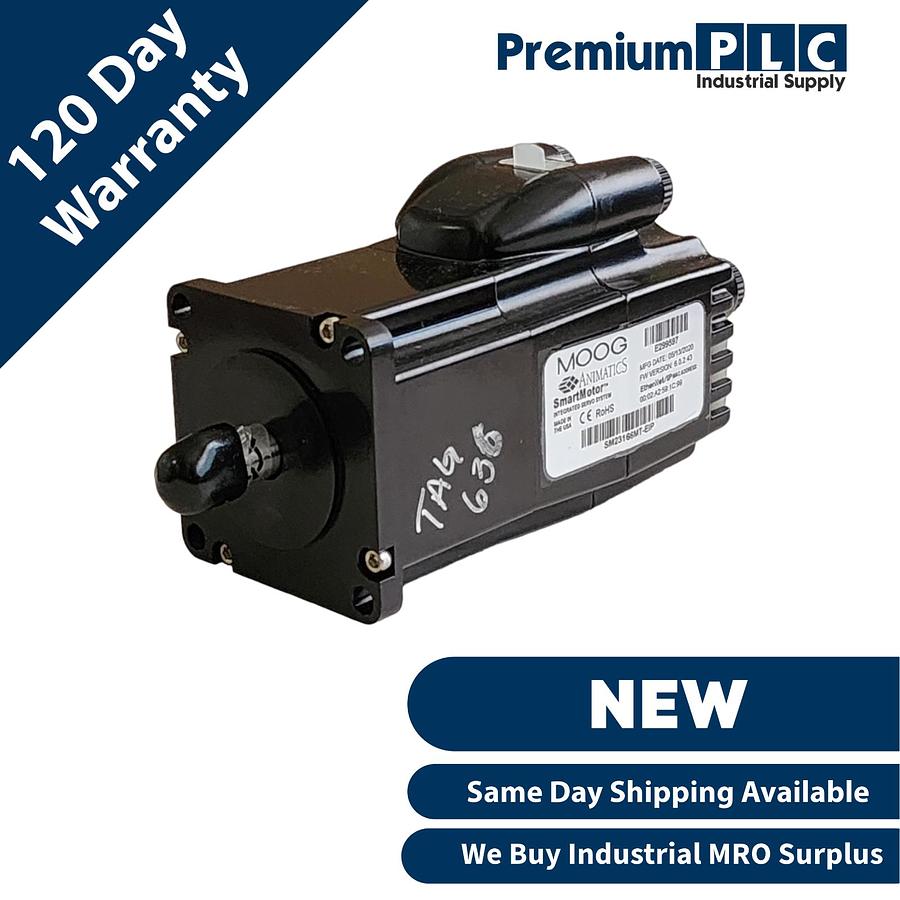

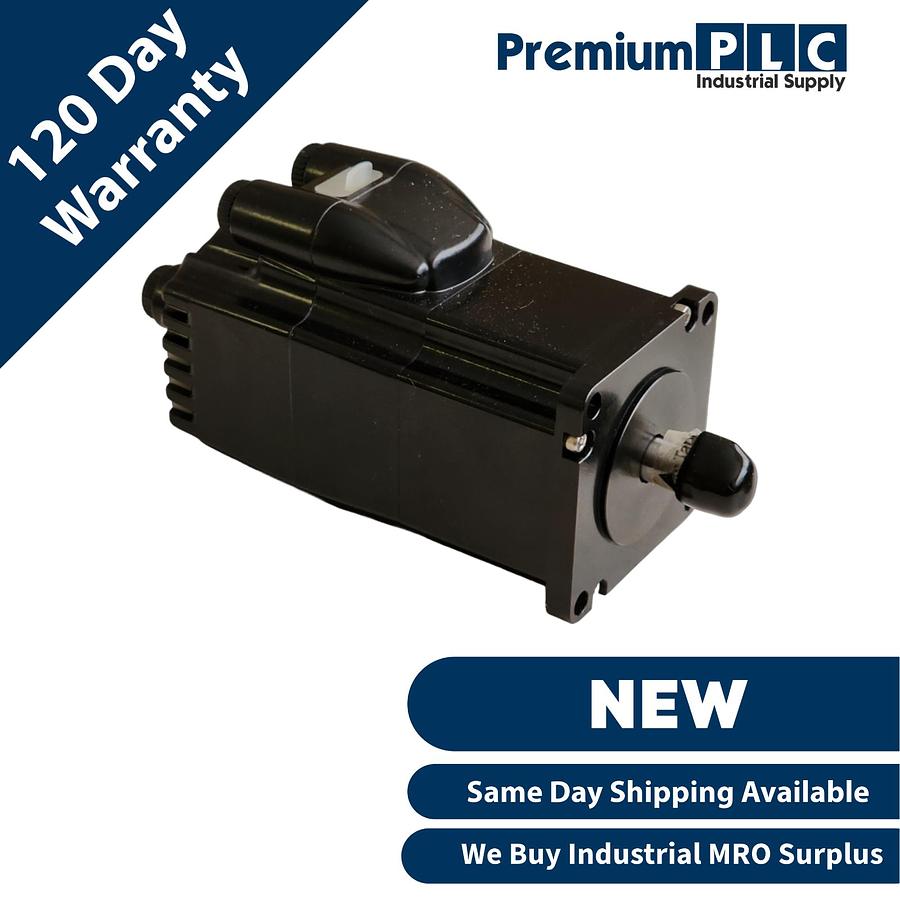

NEW MOOG ANIMATICS SM23166MT-EIP EtherNet/IP CLASS 6 SmartMotor SERVO MOTOR
$2,500
Description
NEW MOOG ANIMATICS SM23166MT-EIP EtherNet/IP CLASS 6 SmartMotor SERVO MOTOR
SmartMotor™ Series
SM23166MT-EXX
Continuous Torque at 48 volts
68
oz-in
0.48
N-m
Peak Torque
128
oz-in
0.90
N-m
Nominal Continuous Power
189
watts
Nominal Peak Power
213
watts
No Load Speed
4,700
rpm
Voltage Constant
9.08
V/kRPM
Winding Resistance
0.7
Ohms
Encoder Resolution
4,000
counts/rev
Rotor Inertia
0.00103
oz-in-sec2
7.27
10-6 kg-m2
Weight
1.7
lb
0.77
kg
Shaft Diameter
.375
in
9.53
mm
Shaft, Radial Load
15.0
lb
6.80
kg
Shaft, Axial Thrust Load
3.00
lb
1.36
kg
EtherCAT Available*
No
PROFINET Available*
No
EtherNet/IP Available*
Yes
Class 6 EtherNet/IP™ (EIP option) Fieldbus
Easily integrates as a position controller (10 h)
device, for:
• Access to unique SmartMotor commands and
parameters
• Improved uptime with optional redundant
cabling through Device Level Ring (DLR)
• Optimal performance ensured through Quality
of Service (QoS)
• Simplified, modular programming through
Add On Instructions (AOI)
• Direct access to SmartMotor native
commands and parameters through TCP/IP
CONDITION: NEW NO BOX
WARRANTY: 120 DAYS (LIMITED 1 YEAR)
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
__________________________________________________________________________________
#1-SHELF/4
Specifications
| Manufacturer | Animatics |
| Model | SM23166MT |
| Condition | Used |
| Stock Number | 364682406823 |
| Country of Origin | United States |
| Power Rating | 189 W |
| Nominal Rated Input Voltage | 48 V |
