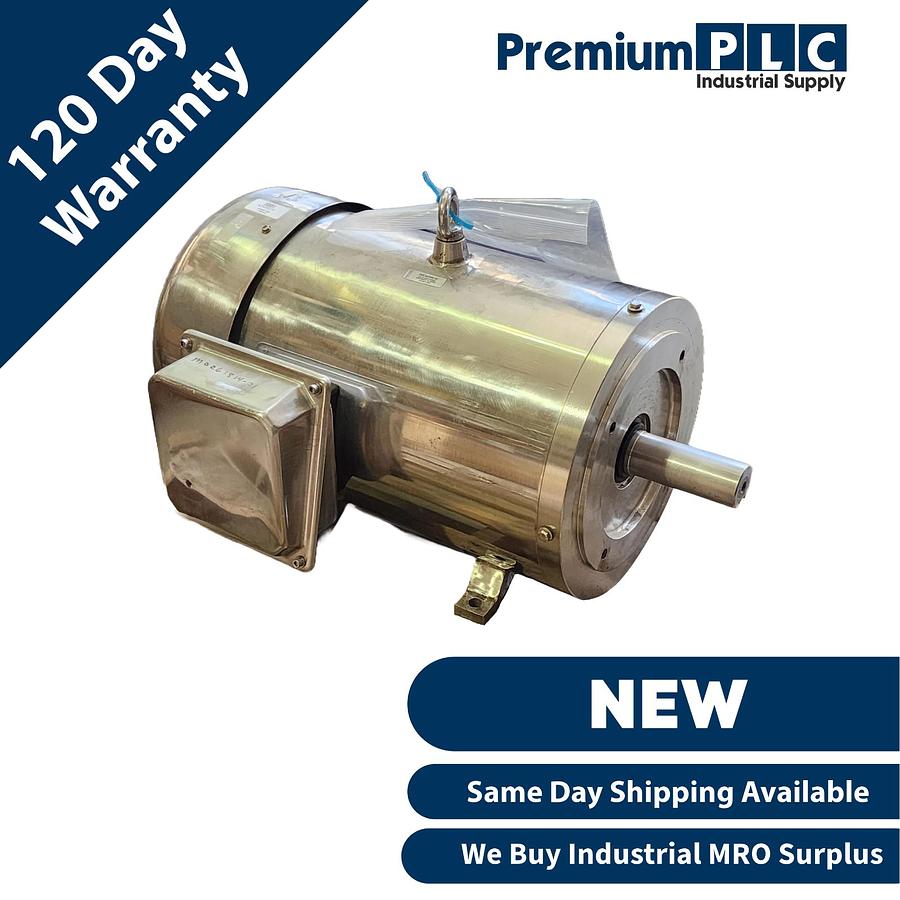

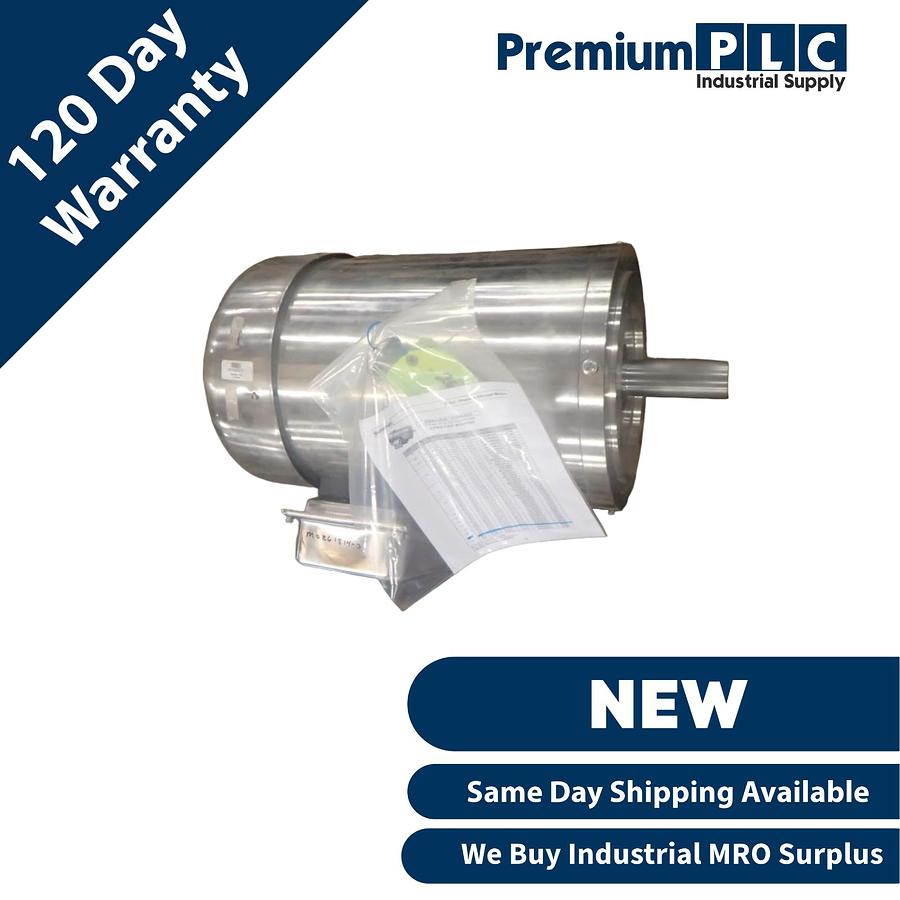

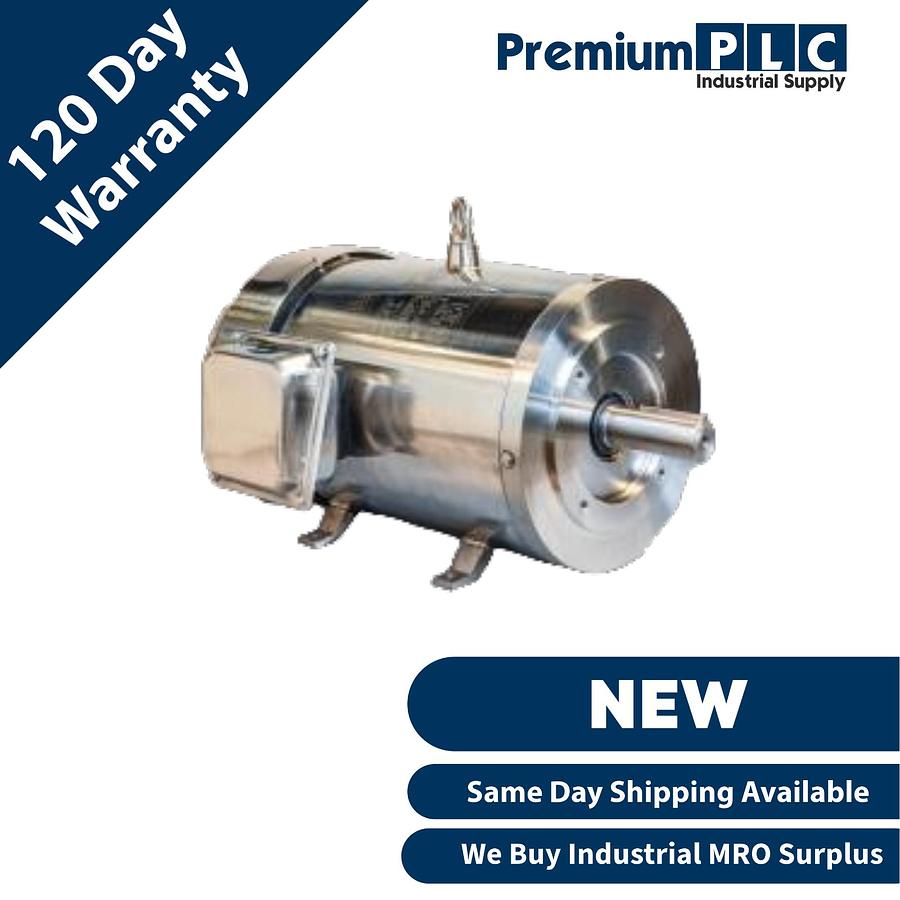

NEW STERLCO STERLING ELEC XH0254PHA-1 SS MOTOR 25HP 1800 3/60/230/460 284TC TEFC

NEW STERLCO STERLING ELECTRIC XH0254PHA-1 STERLI-SEAL STAINLESS STEEL MOTOR 25HP, 284TC CONDITION: NEW NO BOX. W/MINOR SHELF WEAR. WARRANTY: 120 DAYS COMPLETE SPECIFICATIONS Model Number XH0254PHA-1 Horsepower 25 RPM 1800 RPM (full load) 1770 Phase 3 Frequency 60 Voltage 230/460 Frame Size 284TC Mounting Footed Enclosure TEFC Amps 57.6/28.8 Amps (locked) 334/167 Efficiency (at 100%) 93.6 Efficiency (at 75%) 93.4 Efficiency (at 50%) 92.7 Power Factor (at 100%) 87 Power Factor (at 75%) 88.1 Power Factor (at 50%) 82.5 Full Load Torque (ft lb) 74.2 Locked Rotor Torque (% of Full Load) 170 Breakdown Torque (% of Full Load) 220 Brake Torque (ft lb) 0 Efficiency Type Premium Construction Materials Stainless Steel Estimated Weight Washdown Yes Wiring Diagram [3,4](https://www.sterlingelectric.com/documents/motor_wiring_diagram.pdf) SAME DAY FREIGHT AVAILABLE ON ORDERS MADE BEFORE 12PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) ________________________________________________________________________________
