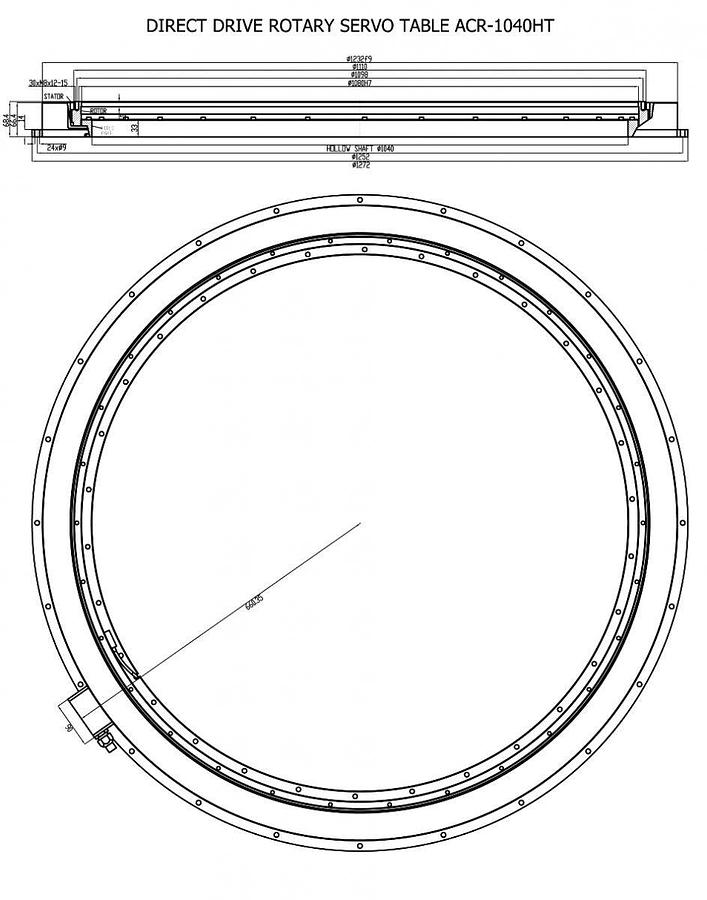

IntelLiDrives ACR-1040HT AccuRing DIRECT-DRIVE ROTARY SERVO TABLE / STAGE 1040mm
$29,500
Description

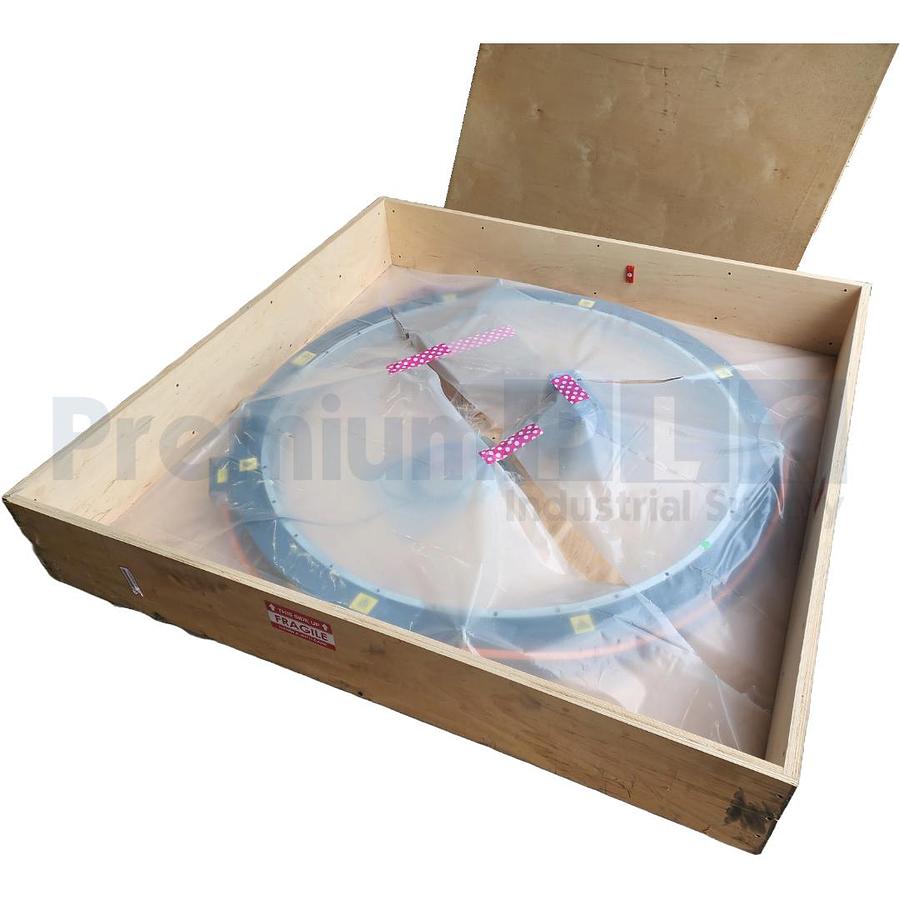

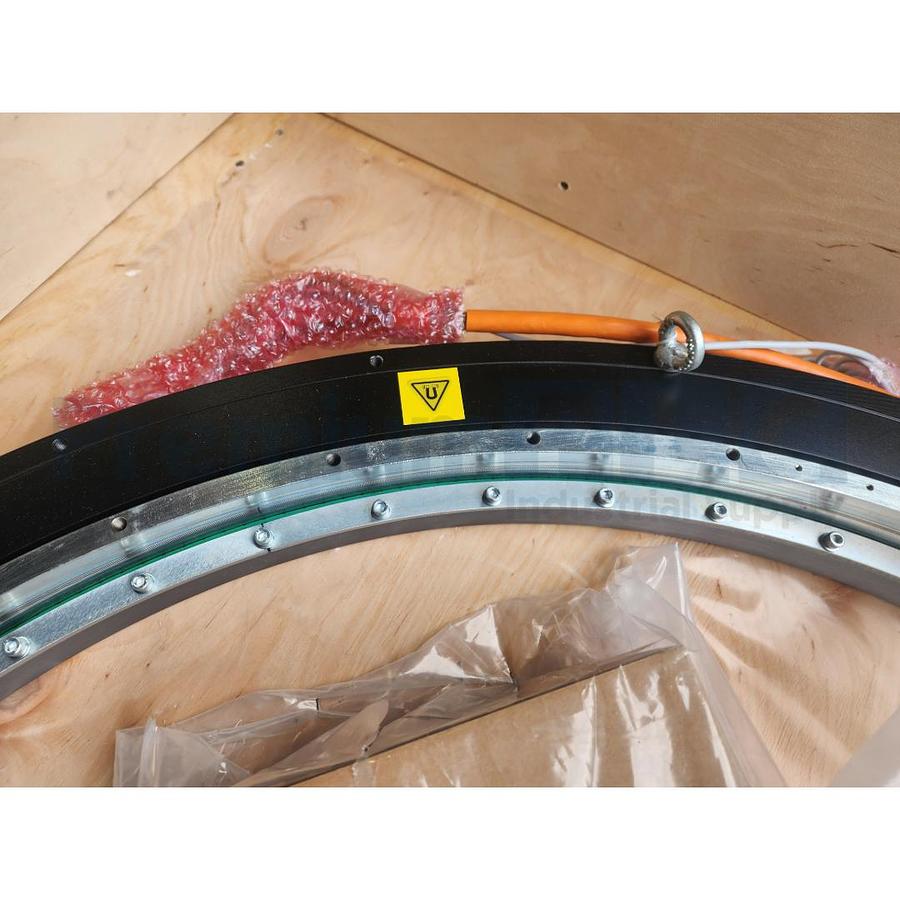

NEW IntelLiDrives ACR-1040HT AccuRing DIRECT-DRIVE ROTARY SERVO TABLE / STAGE, APERTURE-1040mm w/ASSC.

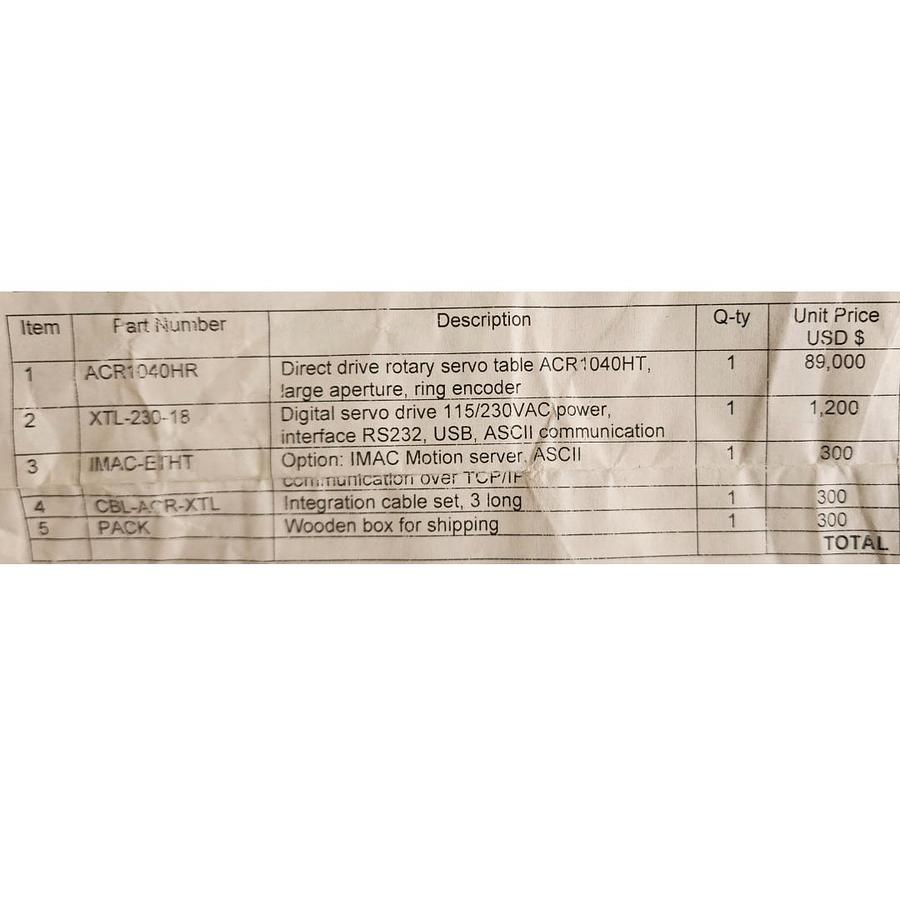

INCLUDES:

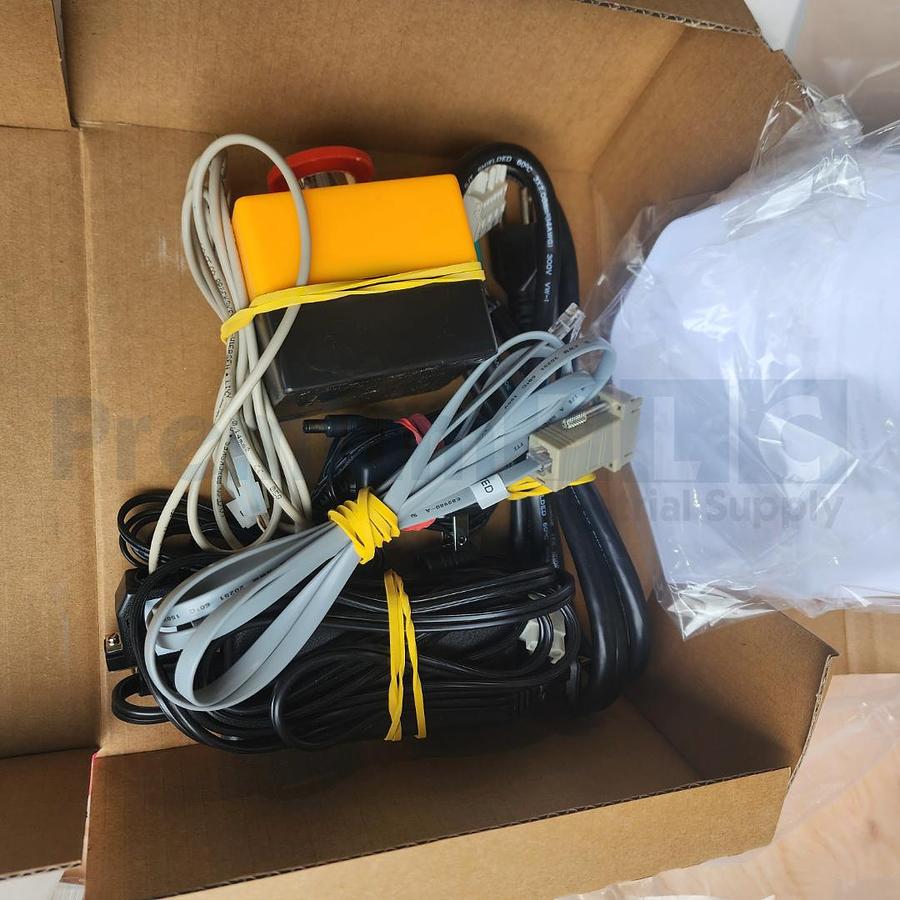

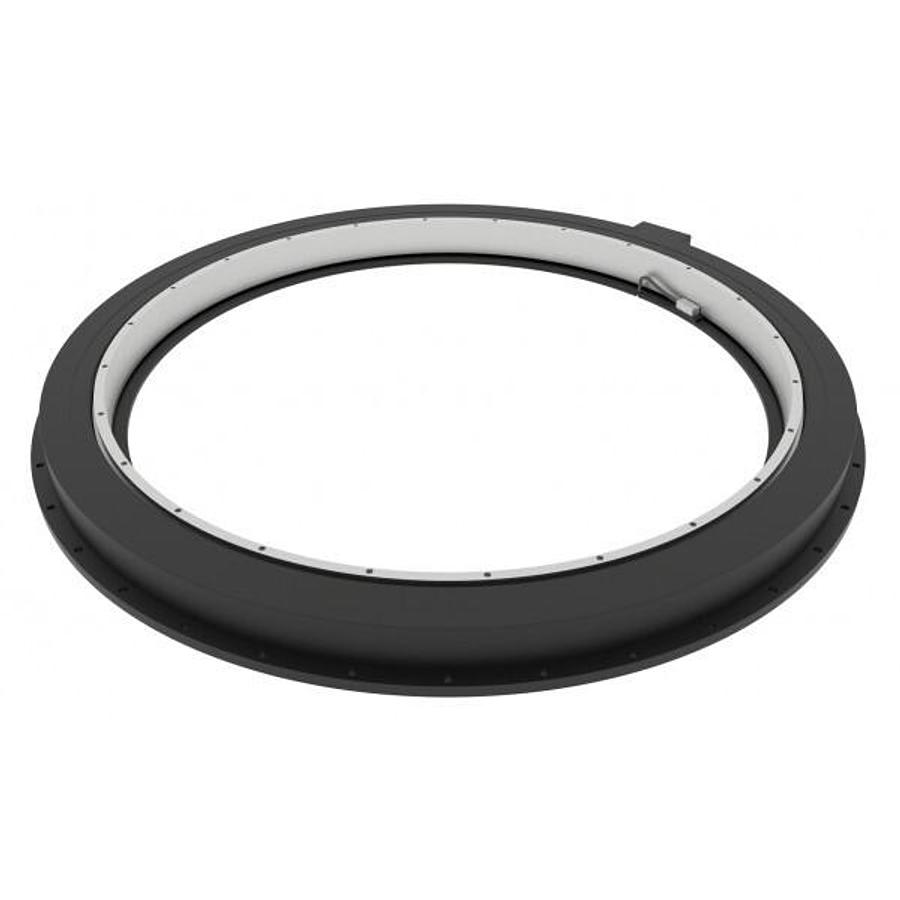

- ACR1040HR - DIRECT DRIVE ROTARY SERVO TABLE, LARGE APERTURE, RING ENCODER

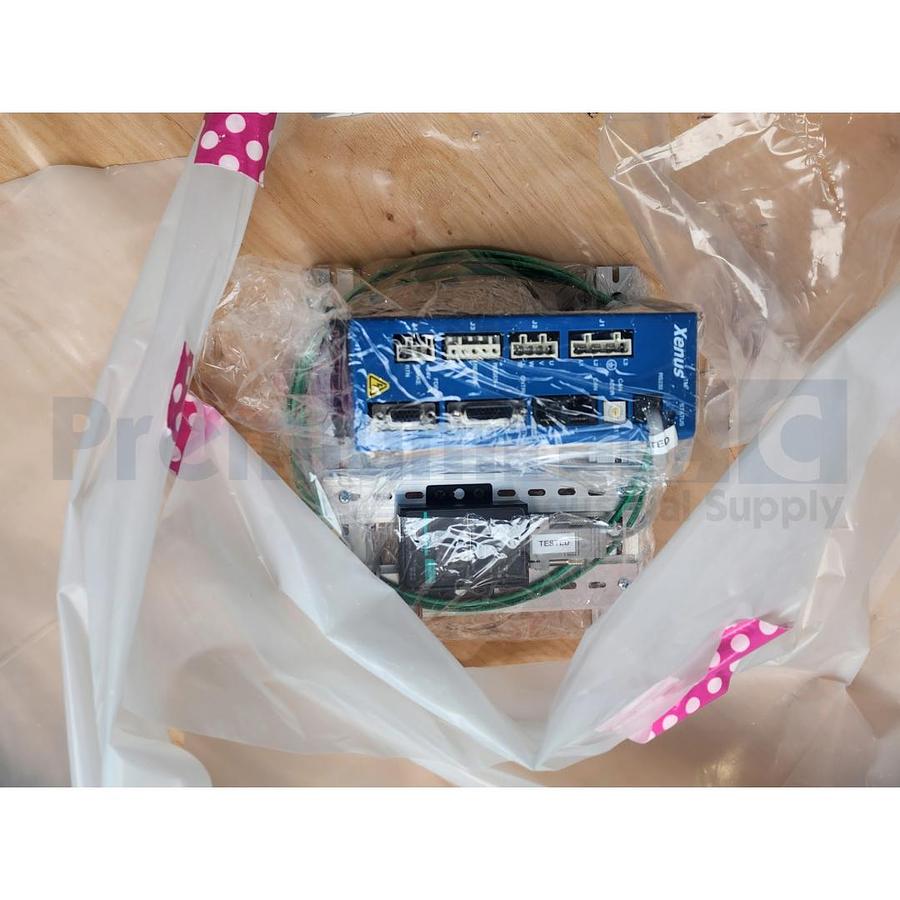

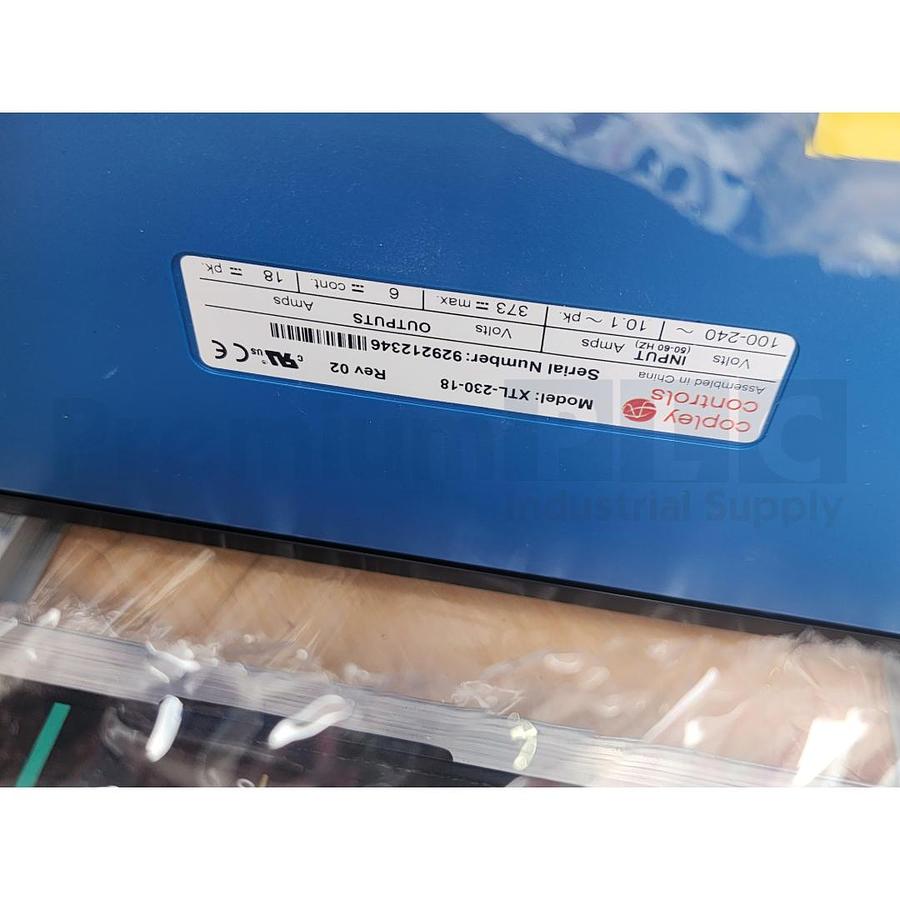

- XTL-230-18 - COPLEY CONTROLS DIGITAL SERVO DRIVE 115/230VAC POWER, INTERFACE RS232, USB, ASCII COMMUNICATION
- IMAC-ETHT - OPTION: IMAC MOTION SERVER. ASCII COMMUNICATION OVER TCP/IP

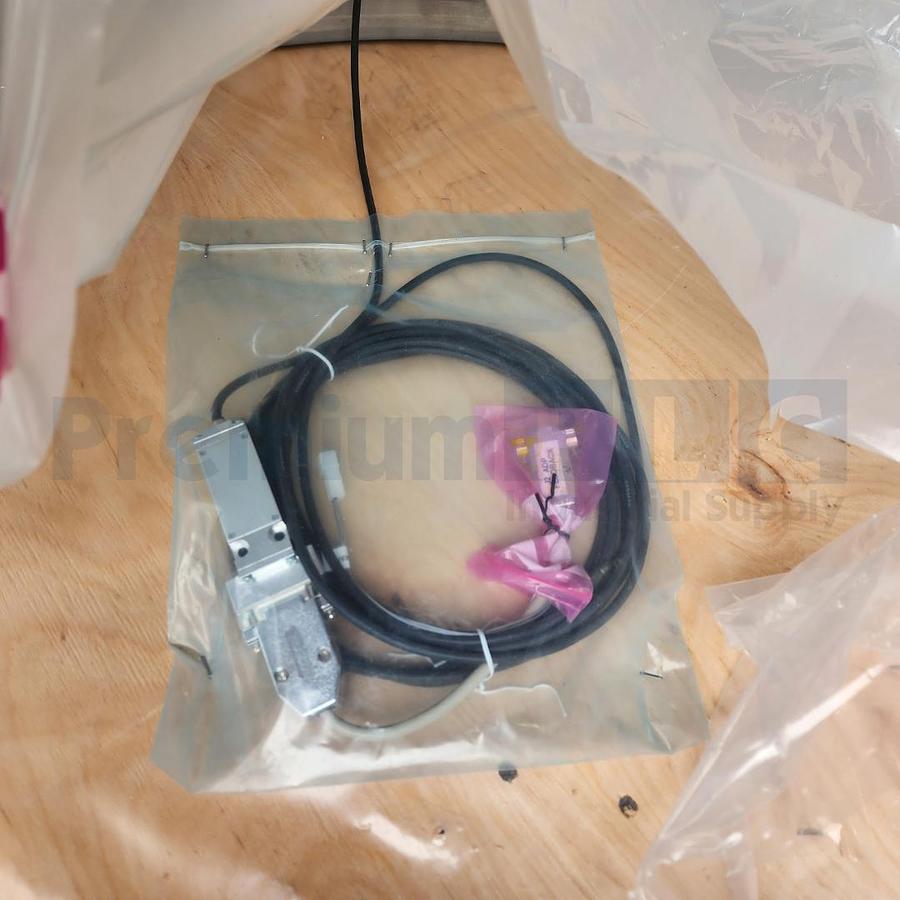

- CBL-ACR-XTL - INTERGRATION CABLE SET, 3' LONG
AccuRing rotary tables provide superior angular positioning and are designed to eliminate backlash, friction and wear problems associated with worm, gear and belt drives. Low maintenance and high throughput characteristics of the AccuRing stage yields the lowest total cost of ownership.
Compact package and Superior design of the AccuRing rotary stages was optimized to minimize stage height. The low profile of the stage reduces total system working height. Angular contact bearings are used to maximize performance with respect to wobble, moment stiffness and friction. AccuRing stage has large clear center aperture that can be used for air or wire line feed-through or beam delivery.
AccuRing utilizes direct drive three phase brushless motor technology. There are no brushes to replace and no gear trains or belts to maintain. Coreless magnetic design assures smooth rotation and dynamic performance.
Accurate Positioning is assured with contact-less encoder. The motor and rotary encoders are directly coupled to eliminate coupling backlash. The low inertia and zero backlash make AccuRing the ideal solution for applications requiring frequent directional changes.
Specification:
System Performance
Unit
ACR-1040HT
Center aperture
mm
1040
Outside diameter
mm
1232
Stage height
mm
68
Peak Torque
Tp
(Nm)
2622
Continuous torque
air cooling, coil 120°C
Tc120
(Nm)
1270
Peak current at Tp
Amp p rrms
39.3
Continuous current at Tc
Amp c rrms
14.4
Supply voltage (note 1)
Uvac
220-380
Max speed at Tp and Us
(note 2)
RPM
18
Max speed at Tc and Us
(note 2)
RPM
33
Positioning resolution
(note 3)
counts/rev
3,400,000 - 13,600,000
Positioning resolution
(arc-sec)
0.09-0.38
Accuracy
Arc-sec
<30
Repeatability Arc-sec <1
Run-out axial/radial
micron
<40
Rotor Inertia kr x m2 4
Stage weight
M (Kg)
140
Load weight
M (Kg)
1000
Note 1: Rotary table can operate at lower voltages with lower speeds
Note 2: Speed values shown at rated torque
Note 3: Max speed may be limited by controller's encoder frequency input.
Sin/cos 1 Vpp and other encoder resolutions available.
CONDITION: NEW IN CRATE WITH ACCESSIORES. RETAILS FOR OVER $89K MAKE OFFER
WARRANTY: 1 YEAR LIMITED
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
