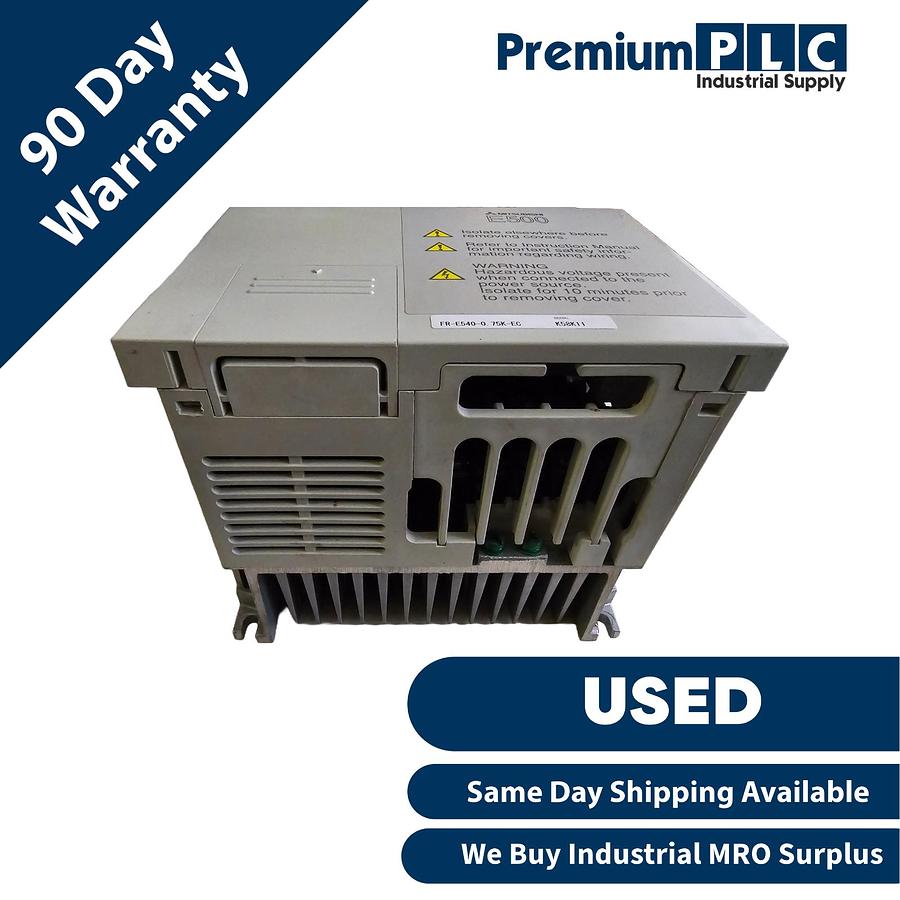

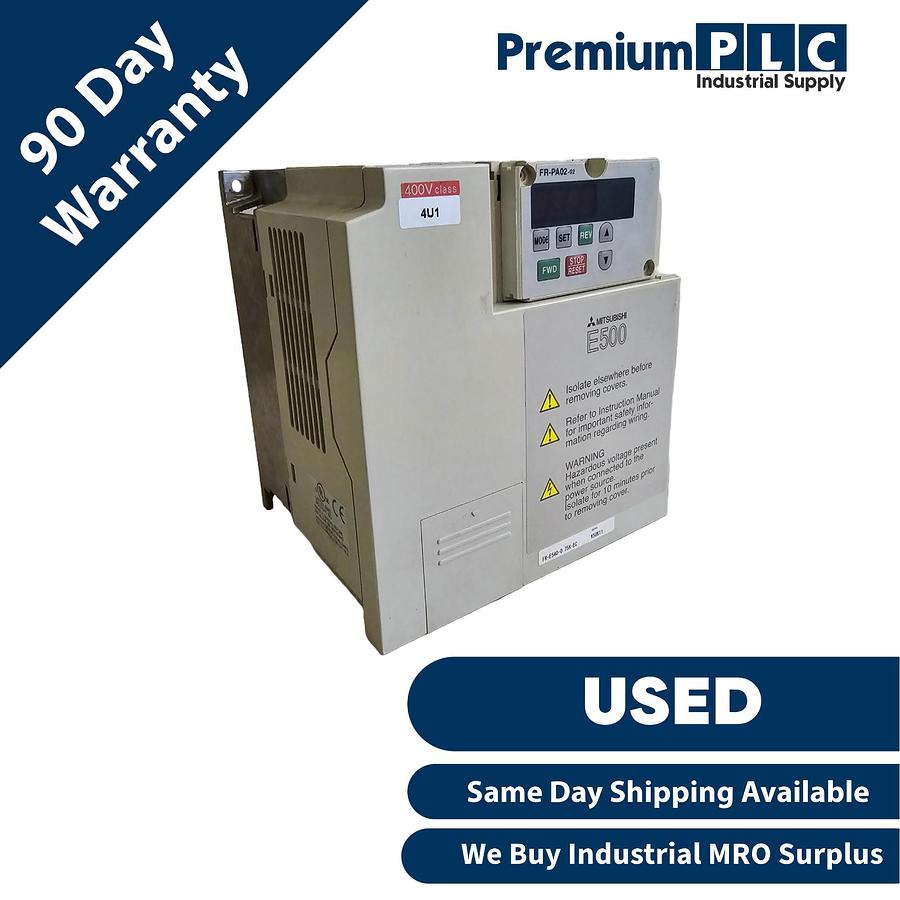

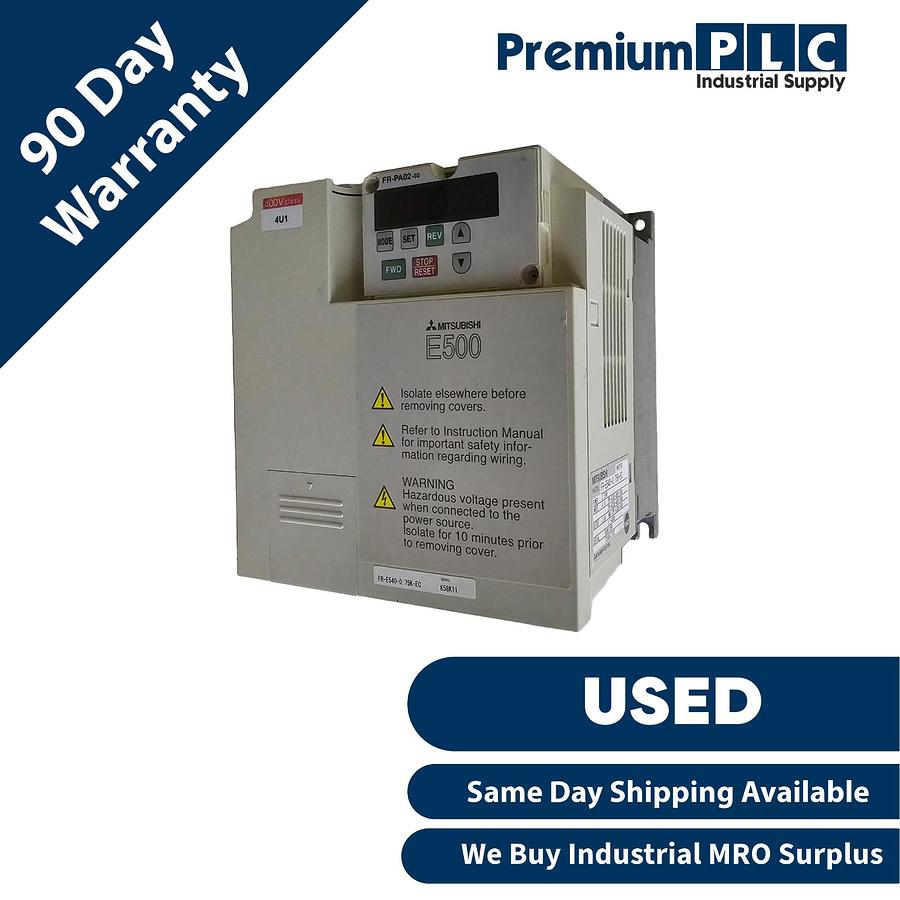

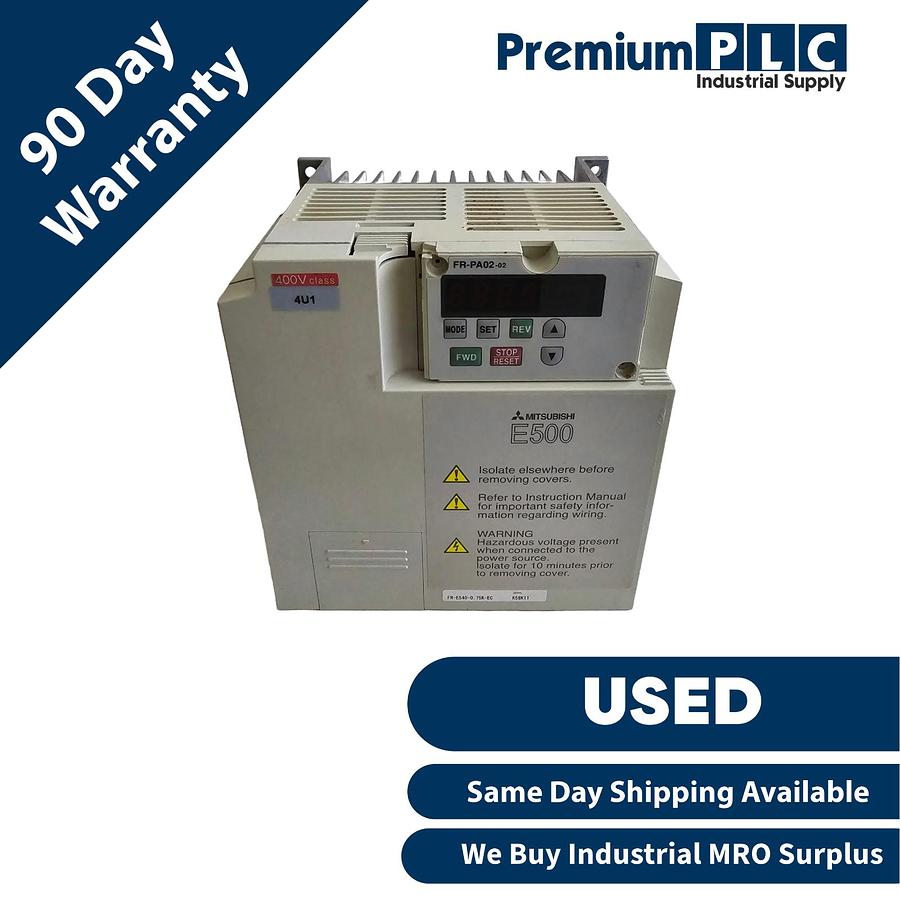

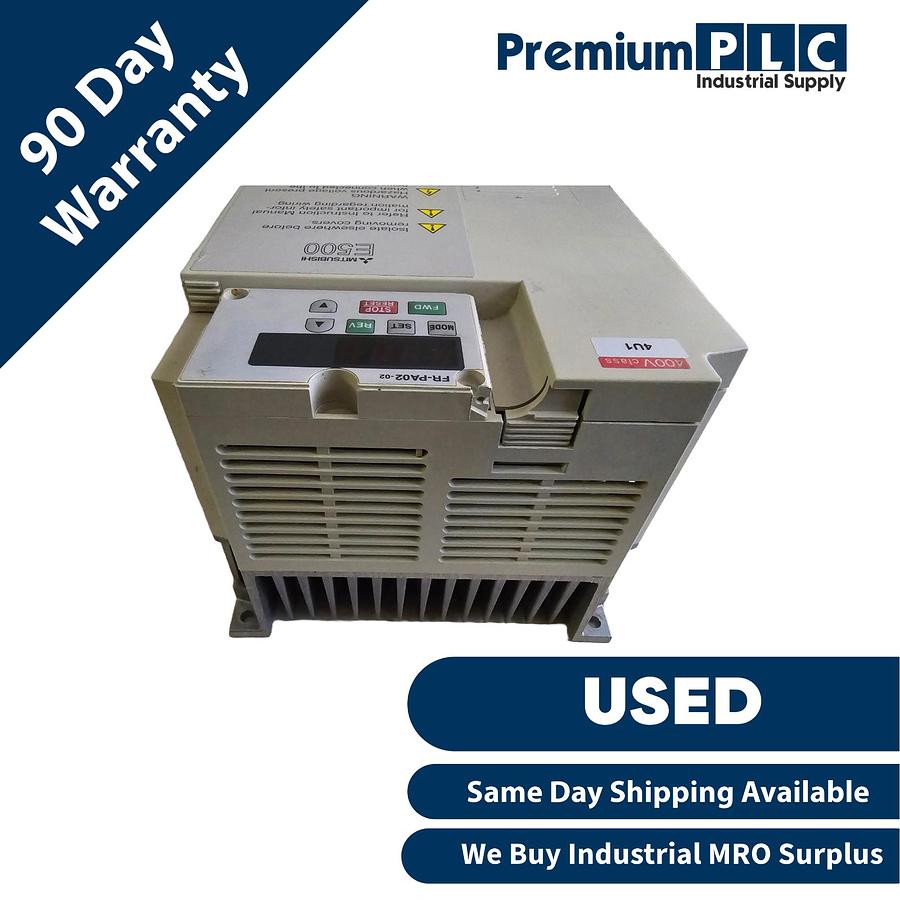

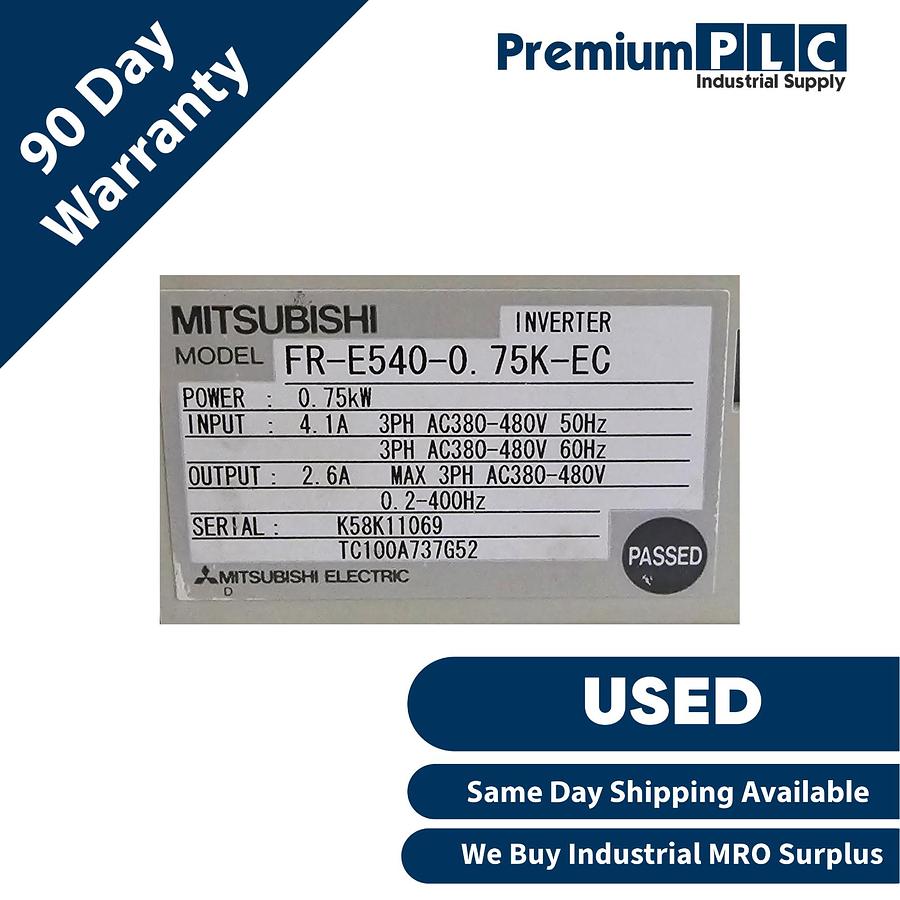

USED MITSUBISHI ELECTRIC FR-E540-0.75K-EC FREQROL FR-E500 VFD/VSD .75kW/1HP

$625

Description

USED MITSUBISHI ELECTRIC FR-E540-0.75K-EC FREQROL FR-E500 VFD/VSD .75kW/1HP Specifications Primary brand Mitsubishi Electric Main function Variable Speed/Frequency Drive (VSD/VFD) / Inverter Product series / family name FREQROL FR-E500 series Network frequency (output) 0.2-400 Hz Functions Variable Speed/Frequency Drive (VSD/VFD) / Inverter Soft-PWM control High carrier frequency PWM control Maximum/minimum frequency setting Frequency jump operation External thermal relay input selection Automatic restart after instantaneous power failure operation Forward/reverse rotation prevention Slip compensation Offline auto tuning function PID control Computer link operation (RS-485) Design EU / European specification frequency setting with knob Forced air cooling Supply voltage (AC) 380Vac-480Vac (400Vac / 415Vac / 440Vac) Type of network 3-phase/3P Rated current 2.6A 150% In for 60s / 200% In for 0.5s overload current rating (inverse-time characteristic) Rated active power (kW) 750W / 0.75kW Rated power (HP) 1HP Communication protocol Modbus RTU Digital inputs 1 x digital input (source/sink) (STF) 1 x digital input (source/sink) (STR) 1 x digital input (source/sink) (RH) 1 x digital input (source/sink) (RM) 1 x digital input (source/sink) (RL) 1 x digital input (source/sink) (MRS) 1 x digital input (source/sink) (RES) Digital outputs 1 x digital output (SPDT (Single Pole Double Throw contact A/B/C) (Error output) 1 x digital output (open collector transistor) (Operating status output) Analog inputs 1 x analog input (0-5Vdc / 0-10Vdc) 1 x analog input (0-5Vdc / 0-10Vdc / 4-20mA) Analog outputs 1 x analog output (can be used as PTO) Degree of protection IP40 Rated apparent power (S) 2kVA Order code / Manufacturer SKU FR-E540-0.75K-EC Manufacturer product status Commercialized Equivalent to FRE540075KEC Compliant with standard(s) UL CSA CE EN CONDITION: USED WARRANTY: 90 DAYS SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. ________________________________________________________________ SHELF B6-3

Specifications

ManufacturerMitsubishi Electric
ModelFREQROL FR-E500
ConditionUsed
Stock Number196313740945
Power Rating0.75 KW
Input Voltage380-480VAC
EnclosureIP40
Rated Load1 HP
Number Of Phases3-Phase
