VECTOR VT7820 ROTATION SENSOR MODULE W/VT900A FOR VT SYSTEM HIL TESTING NSNP
$1,950
Description
VECTOR VT7820 ROTATION SENSOR MODULE W/VT900A FOR VT SYSTEM HIL TESTING NSNP
https://cdn.vector.com/cms/content/products/vtsystem/VT7820/VT7820_VT7900A_1920x1080_96dpi.jpg

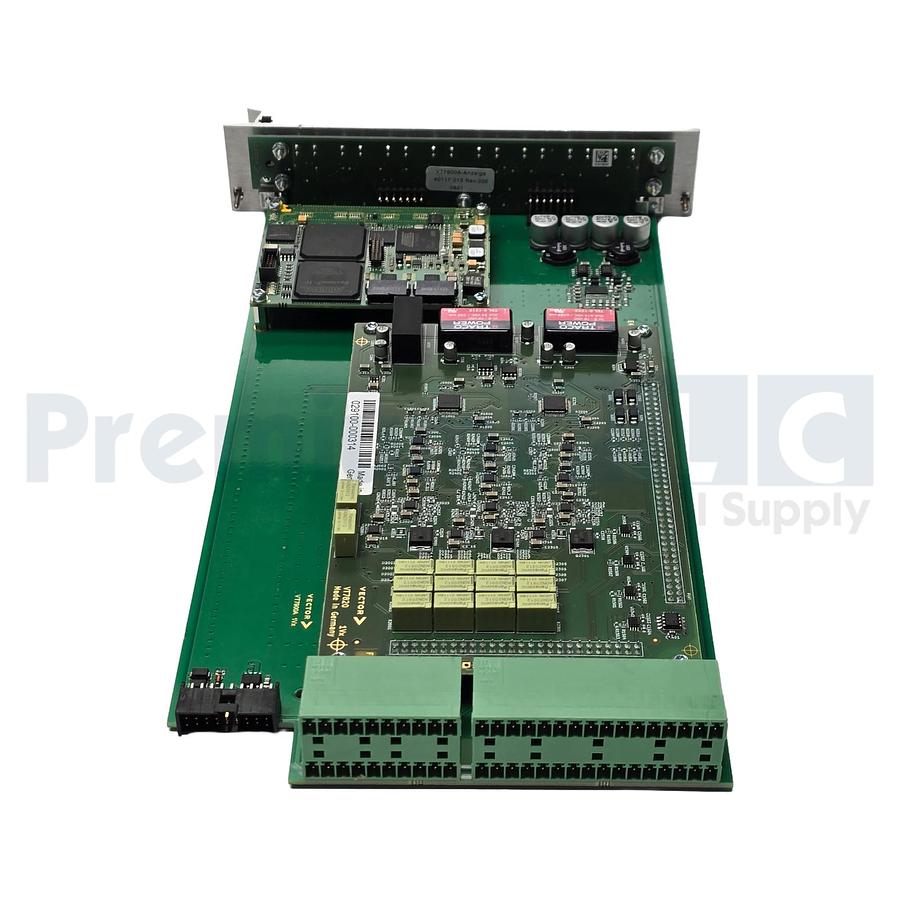

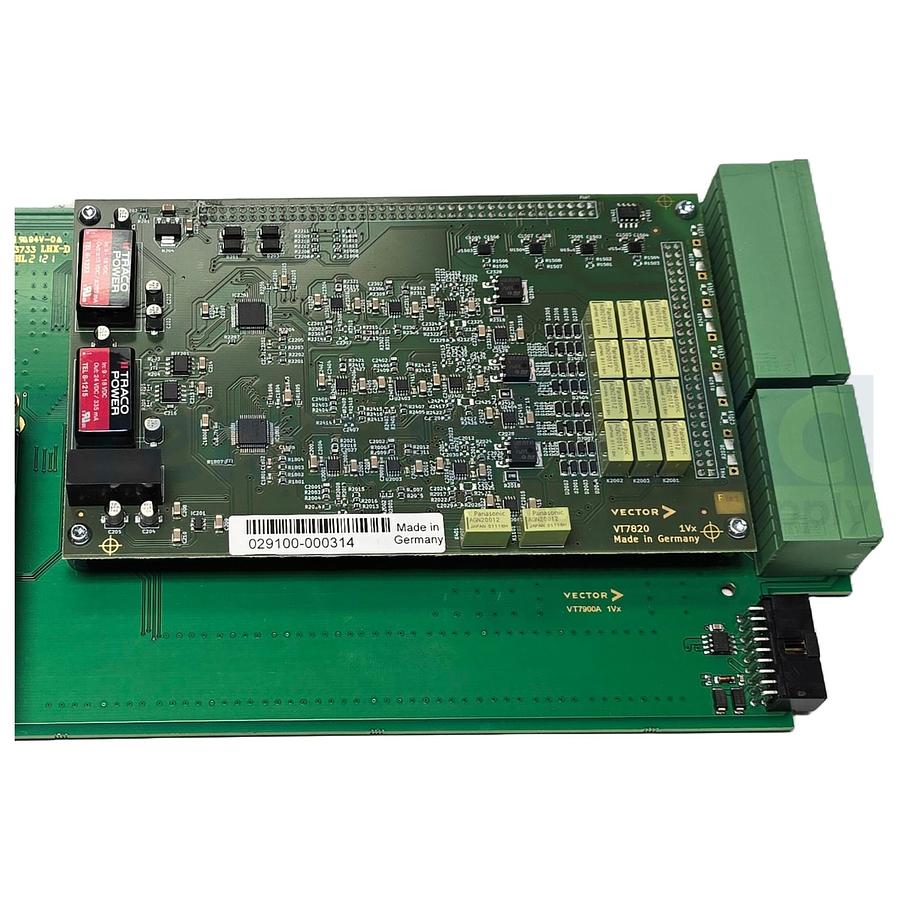

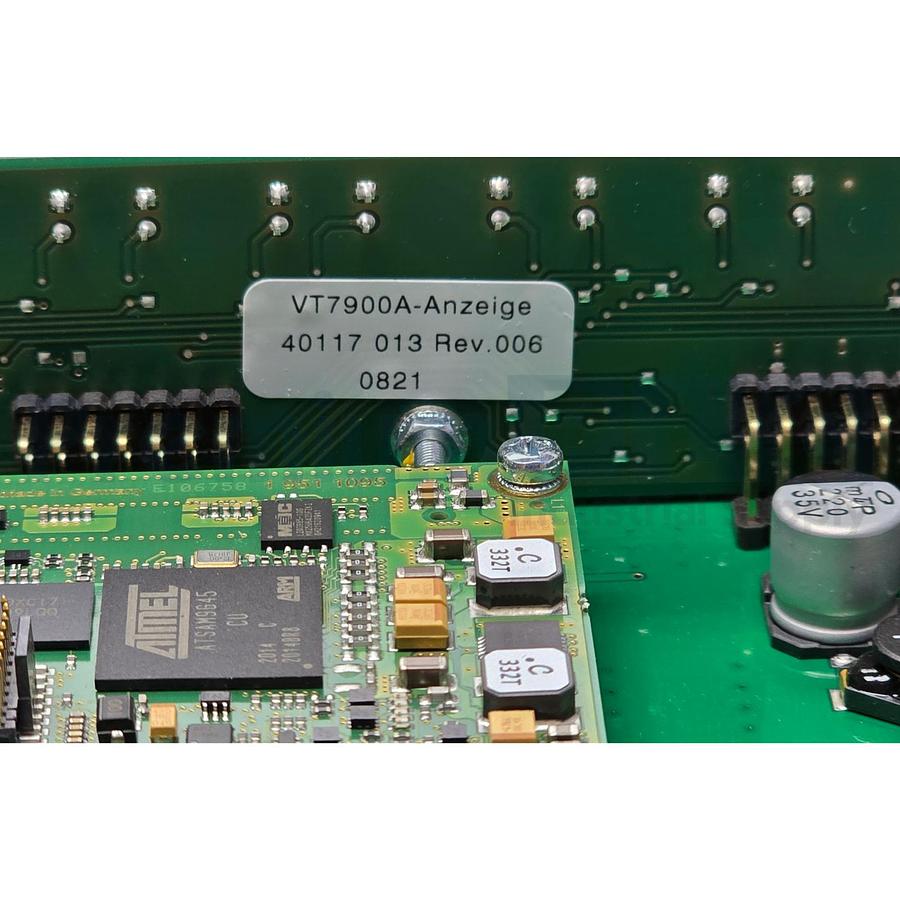

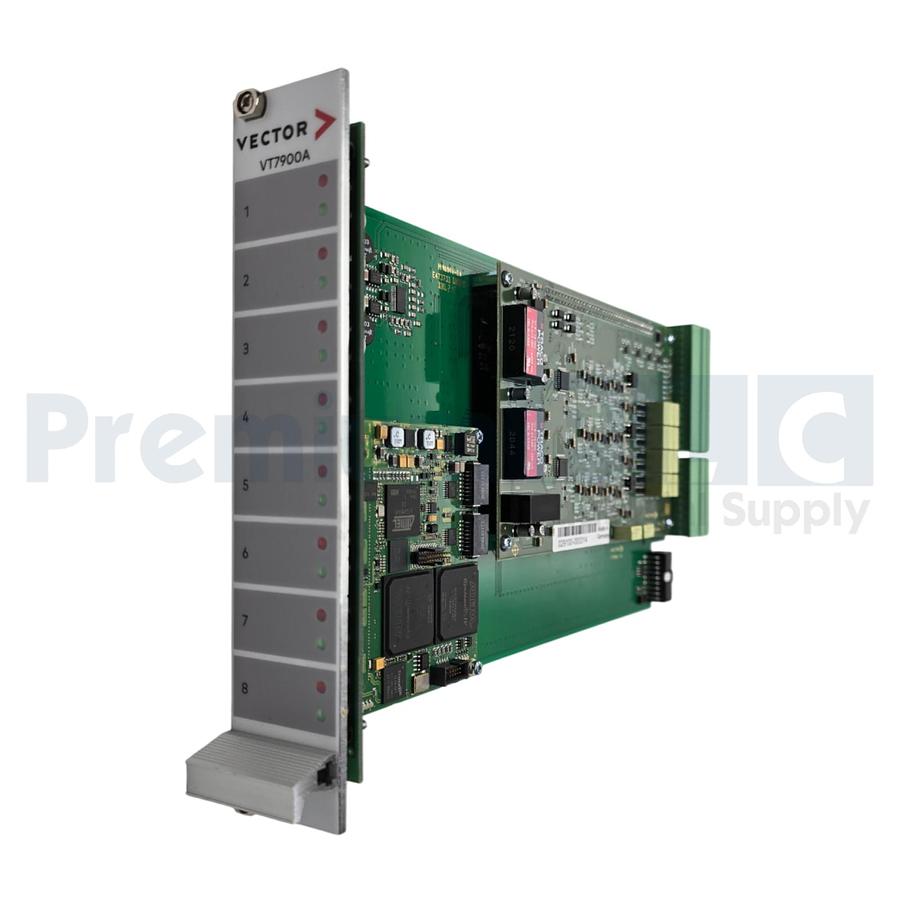

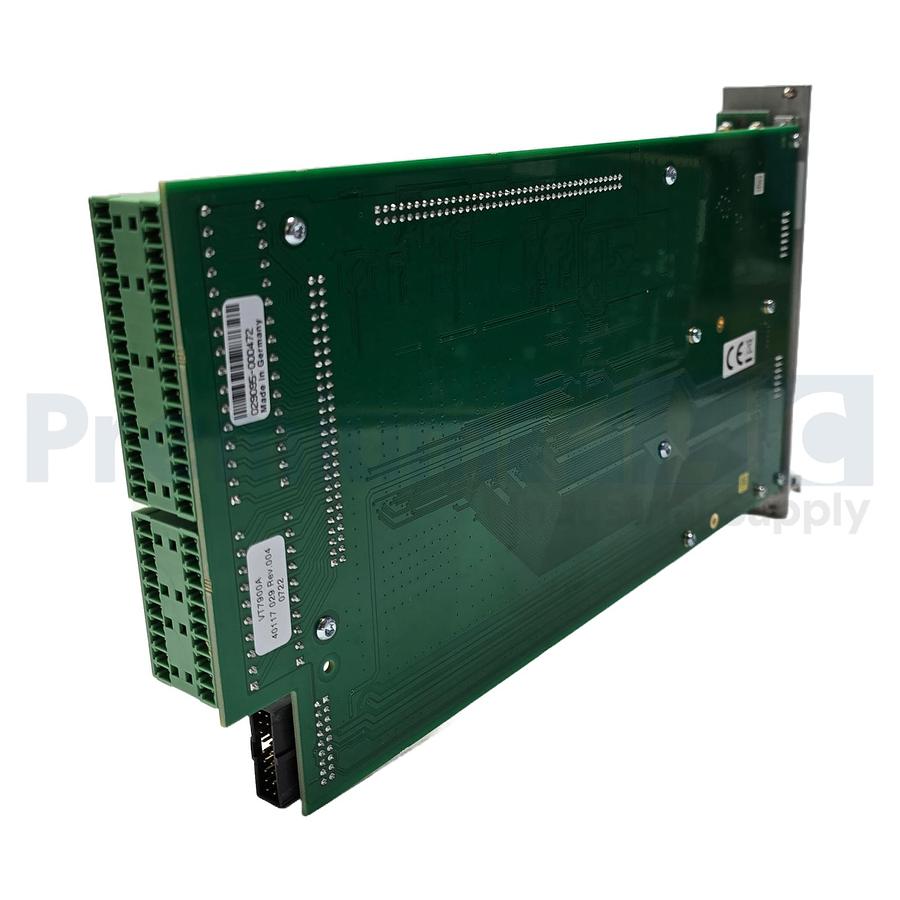

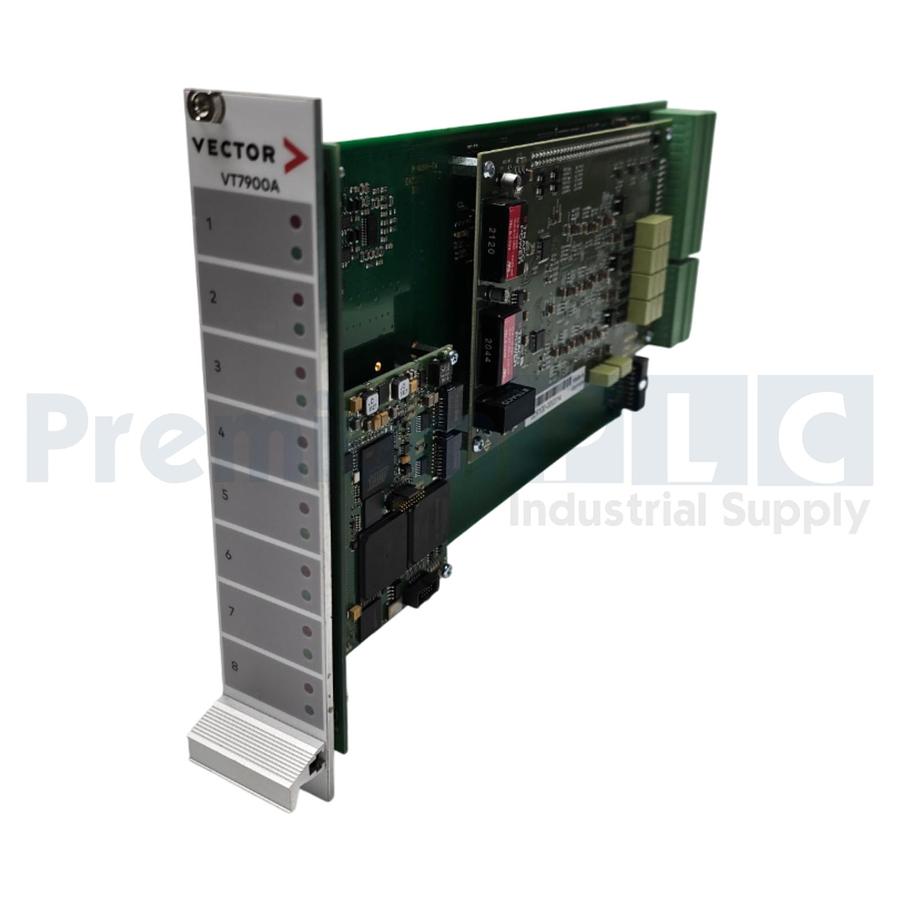

The VT7820 is a dedicated application board for VT7900A FPGA. It is designed for the simulation of rotational sensors and can be used e.g. for testing of brake control ECUs or motor ECUs.
Module Features
- Simulation of wheel speed sensors (S-, I- and V-type)
- Simulation of cam- and crankshaft sensors
- Number of encoder wheel teeth and gaps freely configurable
- Voltage or current modulated signal
- Digital levels and slew rate freely adjustable
- Fault injection (short circuit, line break)
Technical Data
VT7820
Voltage modulation
Output voltage (range/resolution) -12 V … 12 V / ± (2 % + 0,5 V)
Output current Max. 50 mA
D/A converter 14 bit
Tooth frequency Max. 1 MHz
Slew rate (resistive load) 190 V/µs
Current modulation
Output current (range/resolution)
0 mA … 100 mA ± ( 2% + 1mA)
0 mA … 50 mA ± (2 % + 1mA) at voltages > 12 V and load < 100 Ω
Input voltage range 0 V … 24 V
D/A converter 14 bit
Tooth frequency Max. 300 kHz
Slew rate (resistive load) 250 mA/µs
Basic Data
Supply voltage (via backplane) 12 V ±10 %
Power consumption Max. 8.6 W (all relays powered)
Temperature range 0 … 55 °C
Dimensions (L x W x H) 300 x 173 x 36 mm (on VT7900A FPGA)
Weight Approx. 110 g / approx. 450 g incl. VT7900A FPGA
https://cdn.vector.com/cms/content/products/vtsystem/VT6060/VT6060_1920x1080_96dpi.jpg
CONDITION: NSNP - New Surplus No Manufacturer Package (OEM). MINOR SHELF WEAR.
WARRANTY: 120 DAYS
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
________________________________________________________________________________
Specifications
| Manufacturer | Vector |
| Model | VT7820 w/VT7900A |
| Condition | Used |
| Stock Number | 316073067221 |
| Country of Origin | Germany |
| Type | Rotation Sensor Module |
| Controller Platform | VT System |
