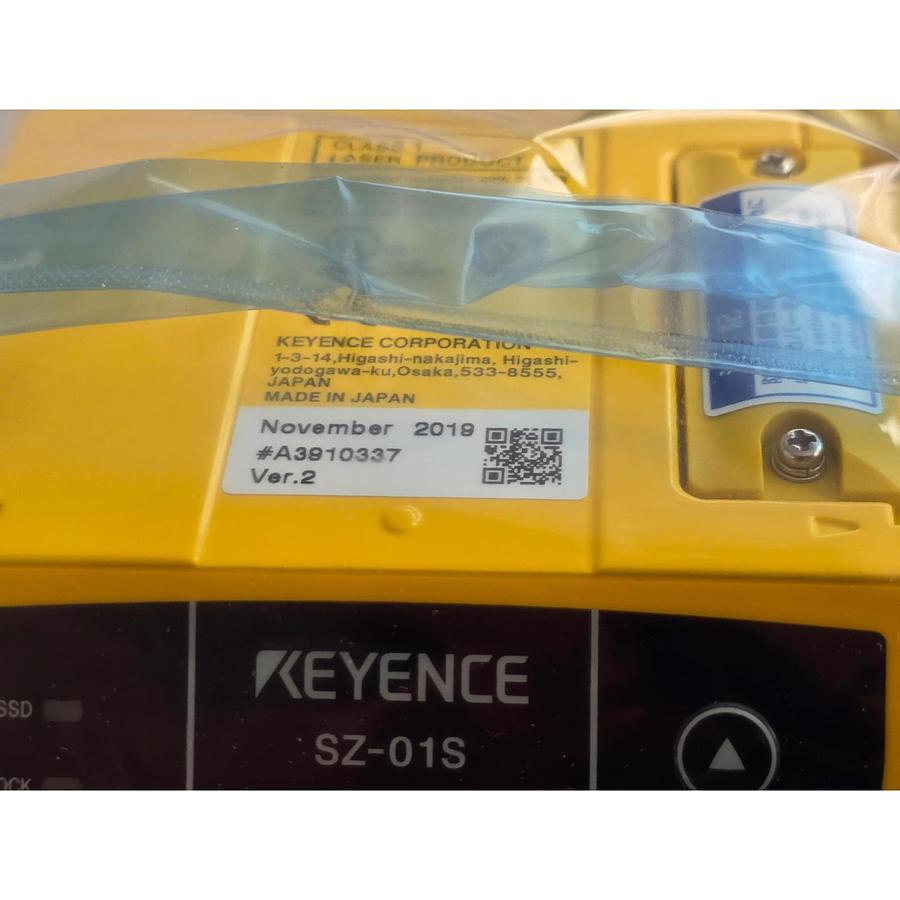

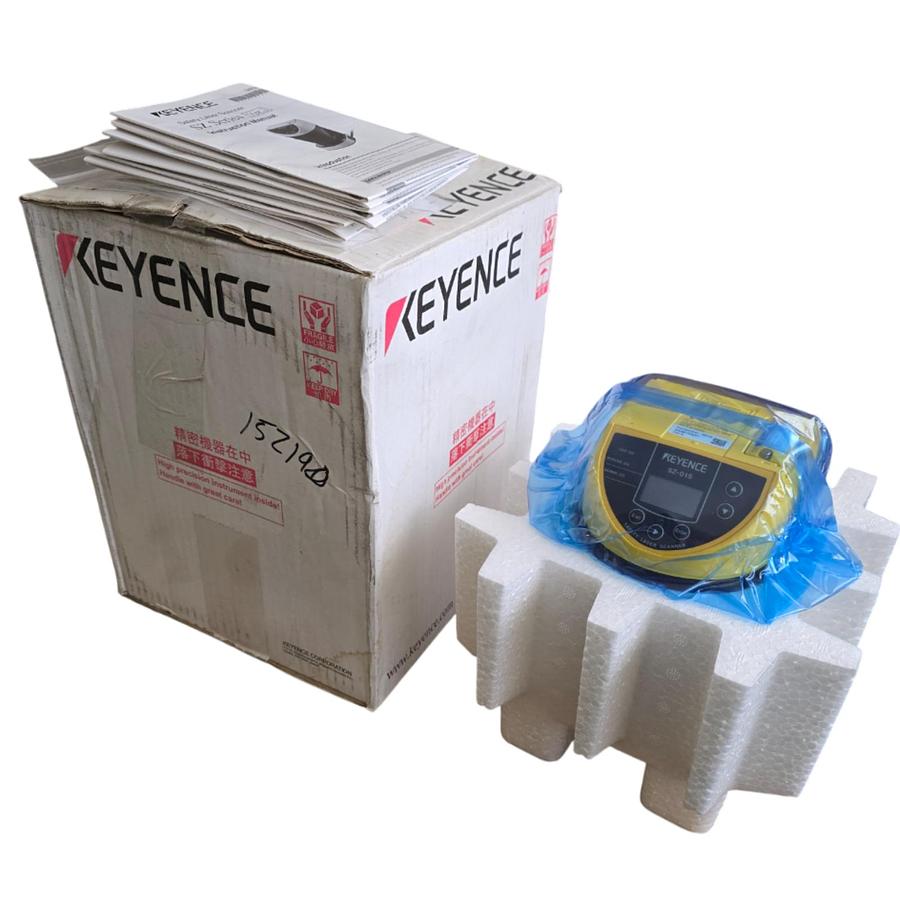

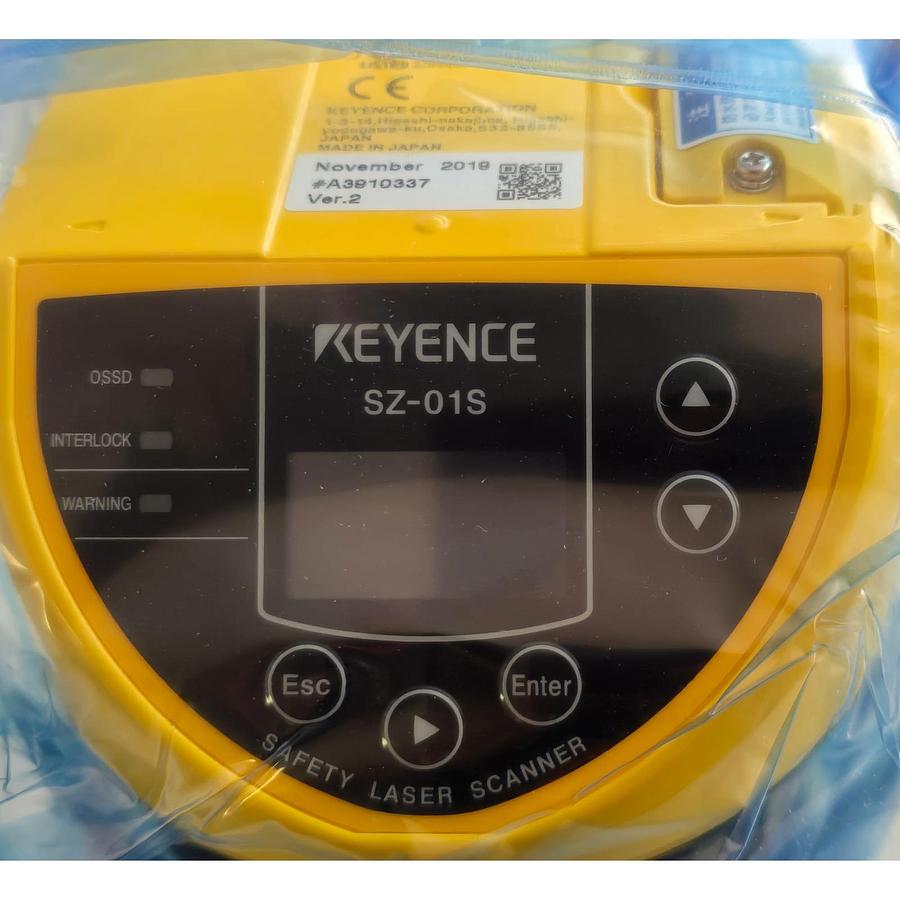

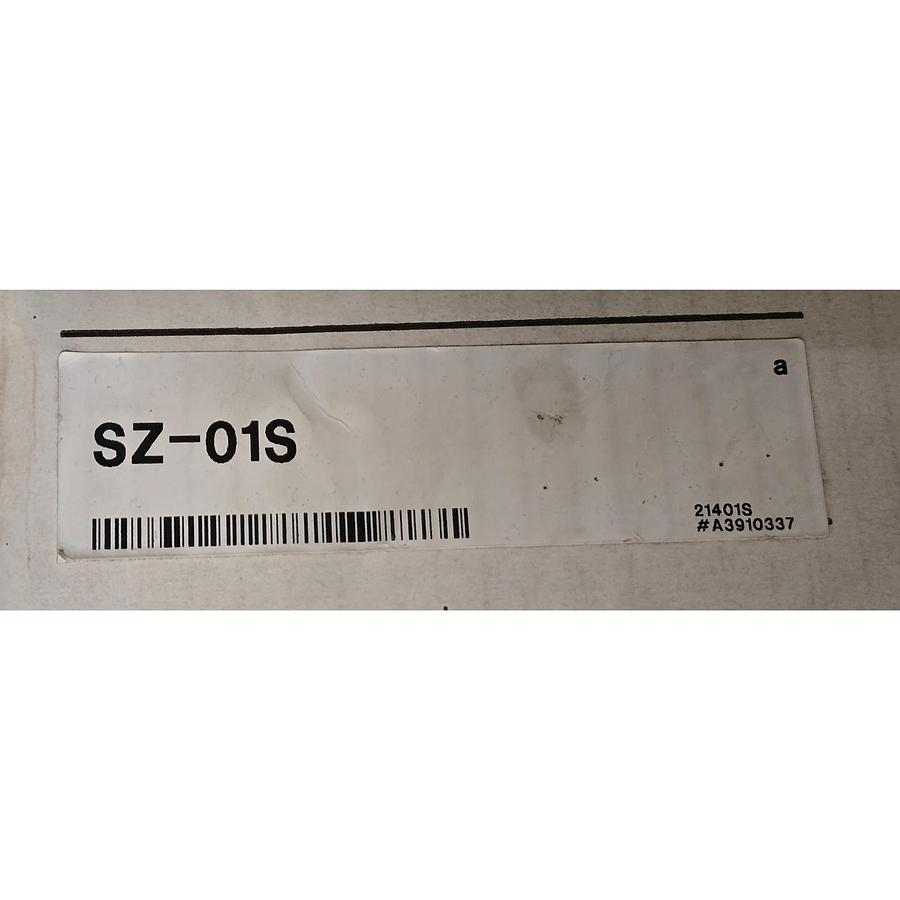

KEYENCE SZ-01S Safety Laser Scanner Main Unit Single-Function Type 270° 24V NSMP
$3,150
Description
KEYENCE SZ-01S Safety Laser Scanner Main Unit Single-Function Type 270° 24VDC SZ01S NSMP
The
[KEYENCE SZ-01S](https://www.google.com/search?ibp=oshop&prds=pvt:hg,pvo:29,imageDocid:10609285049661326482,headlineOfferDocid:2639213431565323430,productDocid:2639213431565323430&q=product&sa=X&ved=2ahUKEwin5Pf628WSAxXMk4kEHeLVINwQxa4PegYIAQgEEAI) is a high-performance, single-function safety laser scanner designed for industrial automation and motion control. This main unit provides reliable protection zones and warning zones to ensure workplace safety.
Technical Specifications
- Model:
[SZ-01S](https://www.google.com/search?ibp=oshop&prds=pvt:hg,pvo:29,imageDocid:10609285049661326482,headlineOfferDocid:2639213431565323430,productDocid:2639213431565323430&q=product&sa=X&ved=2ahUKEwin5Pf628WSAxXMk4kEHeLVINwQxa4PegYIAQgGEAI) (Main Unit, Single-Function Type)
- Detection Angle: 270° wide-angle scanning range
- Operating Voltage: 24 VDC ±10%
- Protection Zone: Up to 4.2m (13.78') depending on object size
- Warning Zone: Up to 10m (32.18')
- Min. Object Detection: Selectable (30 mm, 40 mm, 50 mm, 70 mm, or 150 mm)
- Response Time: 60 ms to 480 ms (adjustable)
- Light Source: Infrared laser diode (905 nm), Class 1 Laser Product
- Output Type: PNP or NPN selectable (OSSD x 2)
- Environmental Rating: IP65 water and dust resistance
CONDITION: NSMP - New Surplus Manufacturer Package (OEM)
WARRANTY: 120 DAYS (LIMITED 1 YEAR)
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
________________________________________________________________________________
PALLET/209
Specifications
| Manufacturer | KEYENCE |
| Model | SZ-01S |
| Condition | Used |
| Stock Number | 365504438083 |
| Current Type | DC |
| Termination Type | Connector |
| Country of Origin | Japan |
