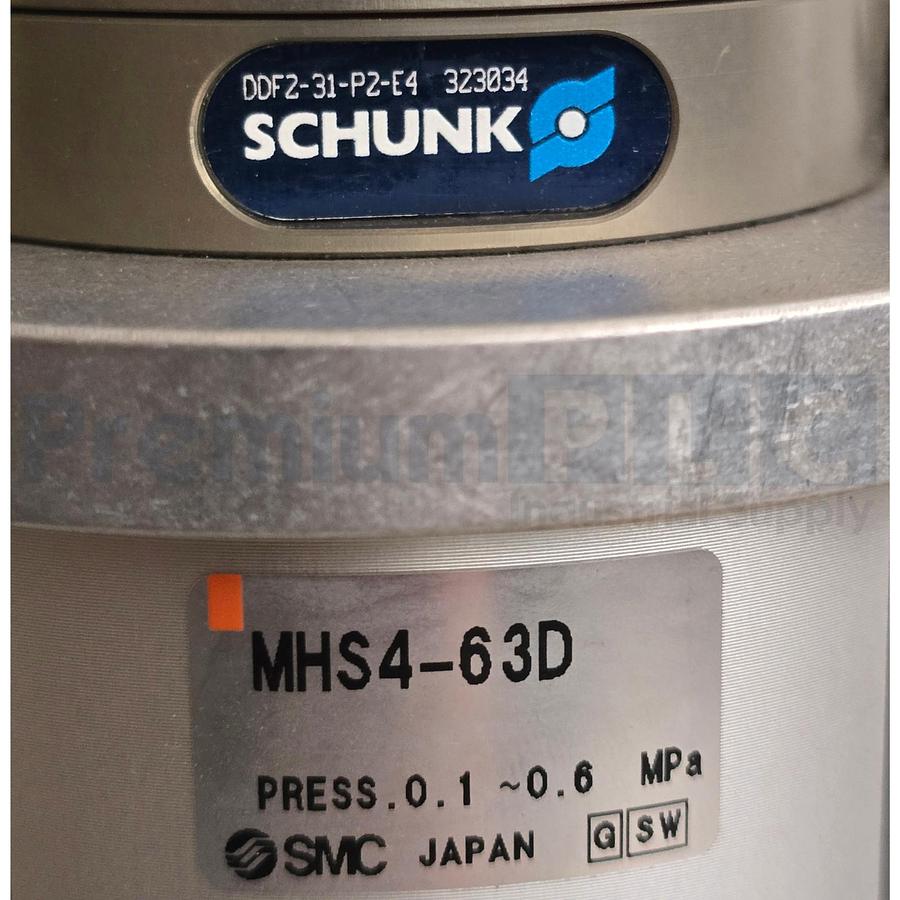

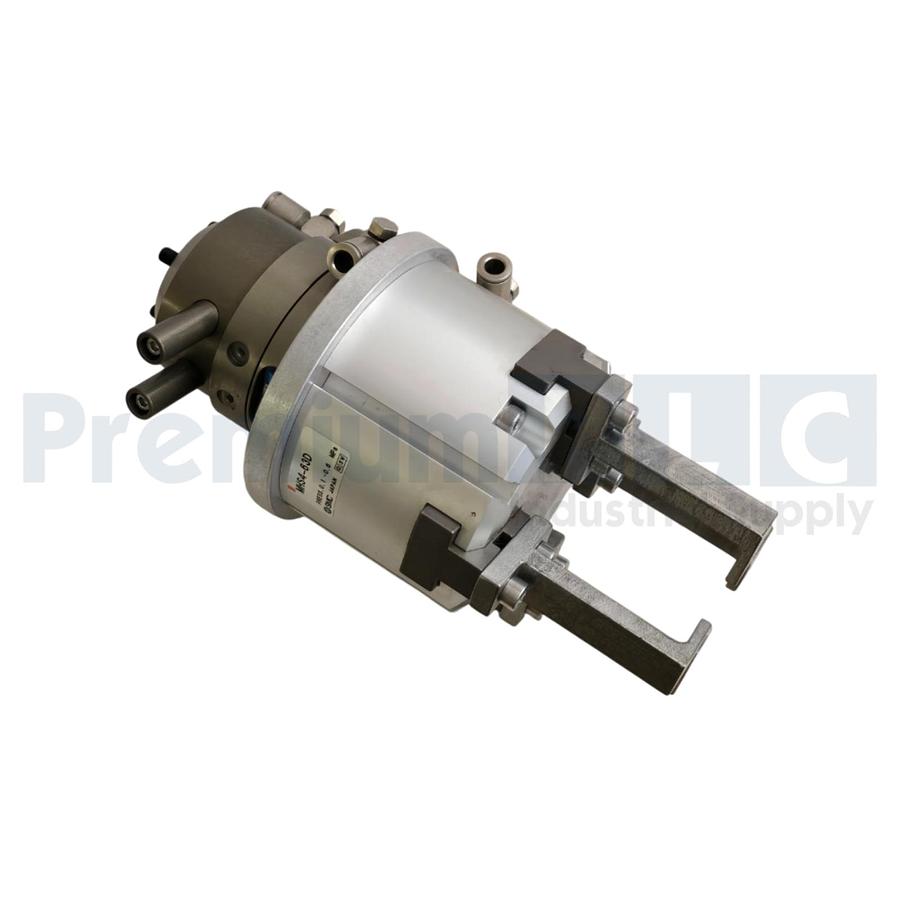

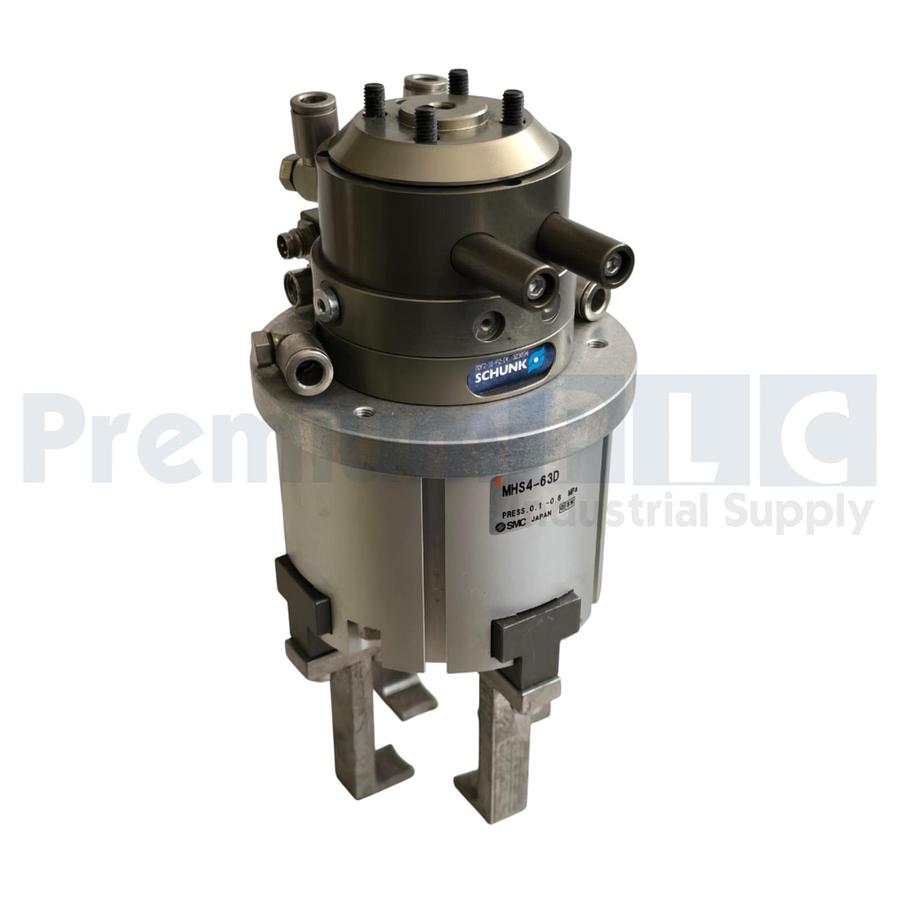

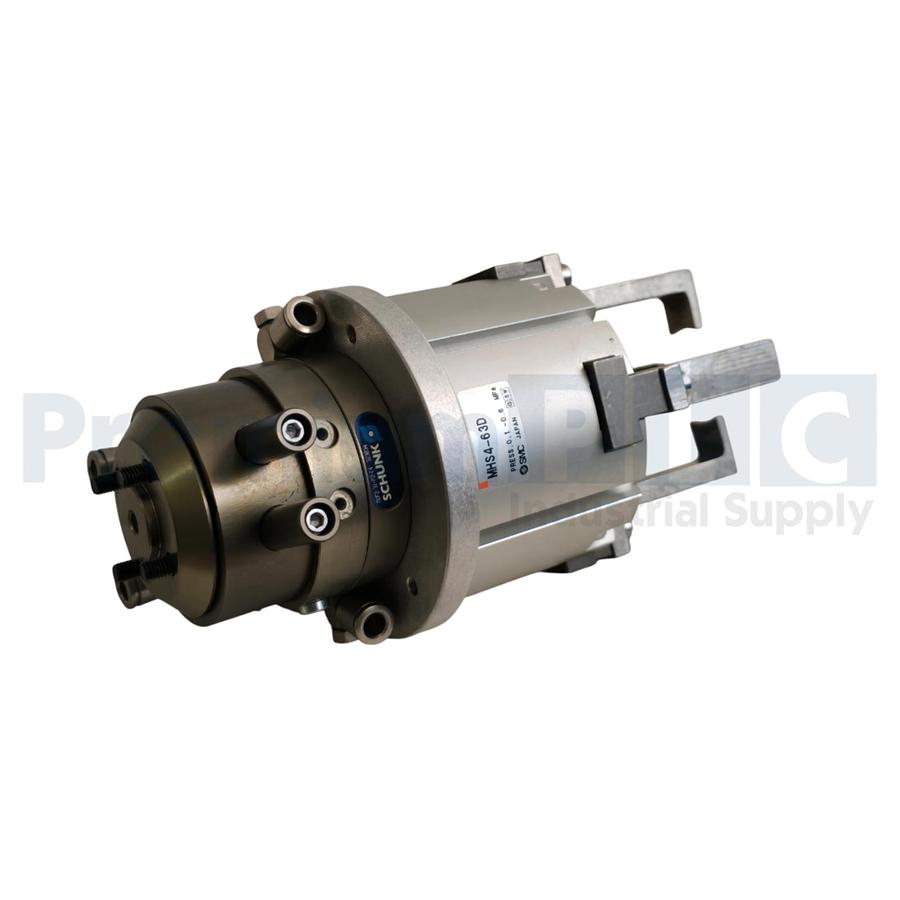

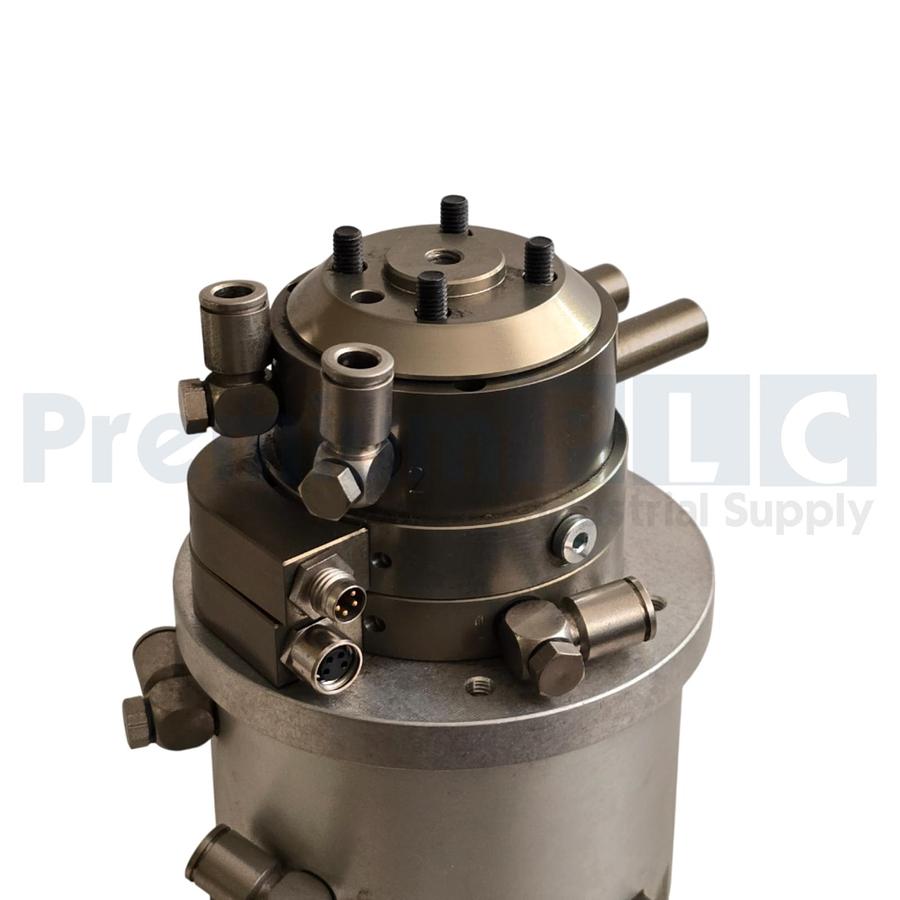

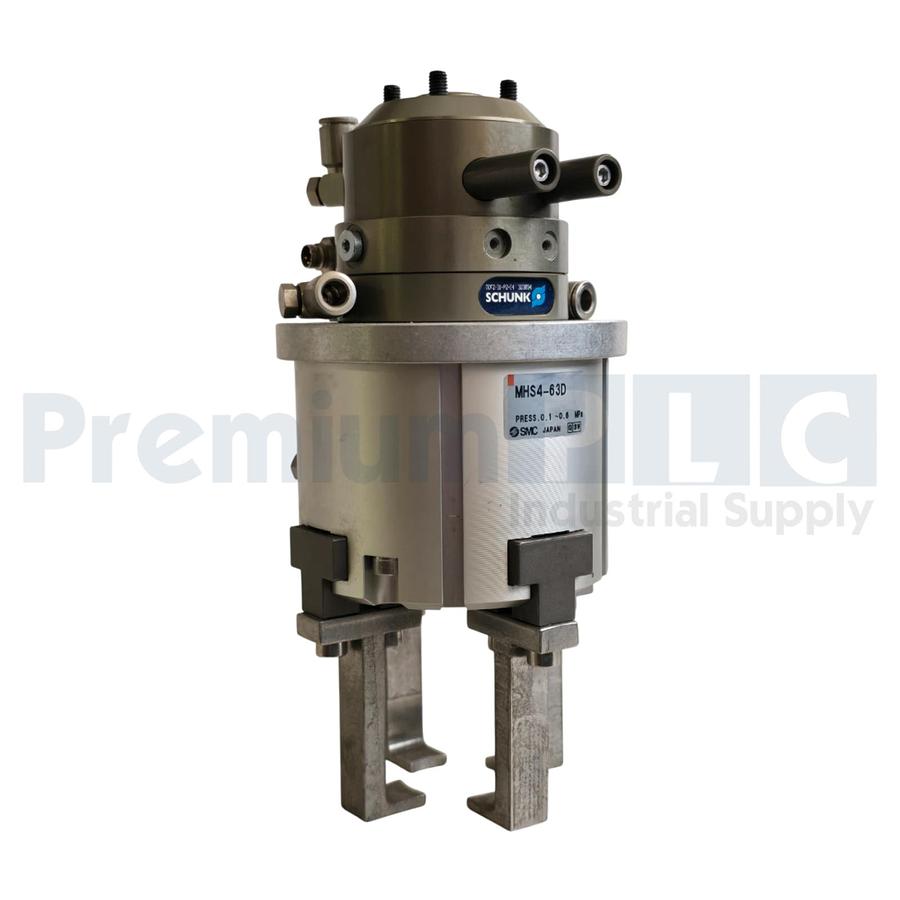

SCHUNK DDF 2-031-P2-E4 / DDF2-31-P2-E4 ROTARY FEED-THROUGH ID 323034 W/MHS4-63D

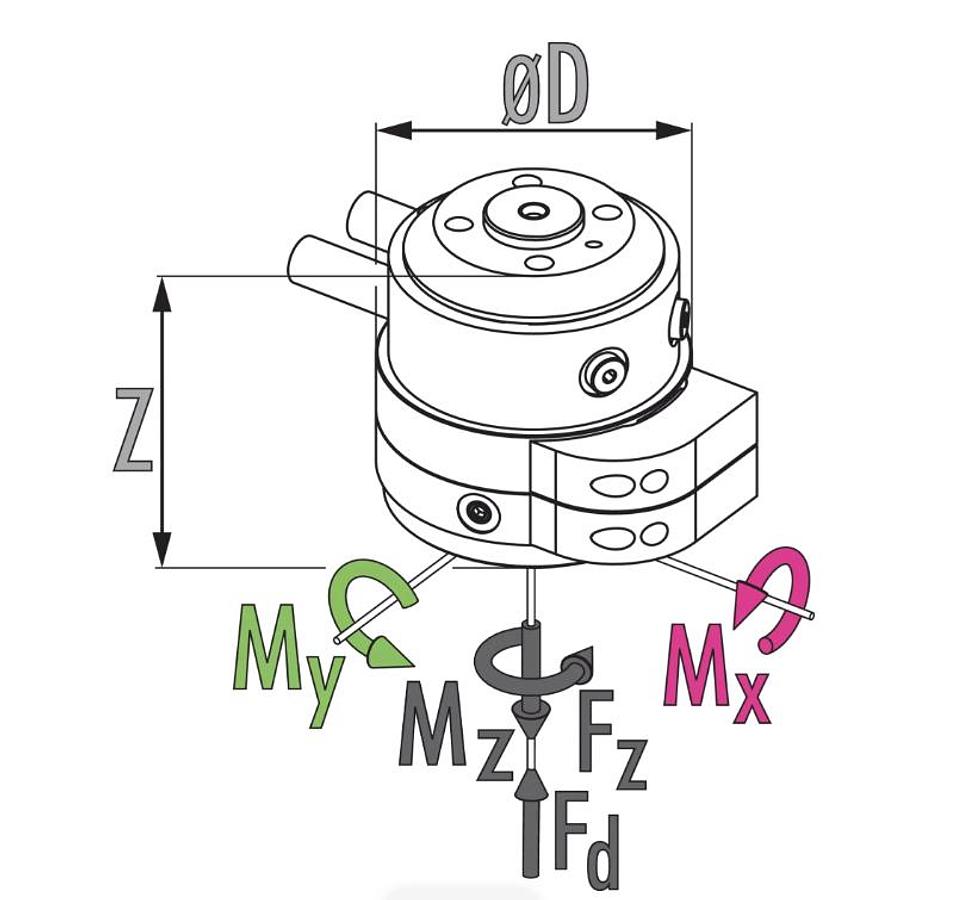

SCHUNK DDF 2-031-P2-E4 / DDF2-31-P2-E4 ROTARY FEED-THROUGH FOR ROBOTS ID 323034 W/SMC MHS4-63D GRIPPER Rotary feed-through for robots DDF 2, Size: 031 - No. of fluid feed-throughs: 2 - Number of electrical feed-throughs: 4 - Workpiece weight: 6 kg - Force Fz max.: 240 N - Force Fd max.: 2000 N TECHNICAL DETAILS Feed-through pneumatic and electric feed-through Recommended handling weight [kg] 6.0 Max. drive speed [1/min] 120.0 Max. speed of rotation [°/s] 720.0 Nominal torque [Nm] 0.8 Starting torque [Nm] 1.3 Angle of rotation [°] > 360 No. of fluid feed-throughs 2.0 Air connection thread pneumatic feed-through 2x M5 Max. pressure per connection [bar] 10.0 Rate of flow at 6 bar (per channel) [l/min] 100.0 Max. air pressure air purge [bar] 1.0 Number of electrical feed-throughs 4.0 Max. voltage [V] 60.0 Max. current strength [A] 1.0 Weight [kg] 0.5 Robot-side connection ISO 9409-1-31.5-4-M5 Min. ambient temperature [°C] 5.0 Max. ambient temperature [°C] 60.0 Max. dynamic bending moment Mx* [Nm] 12.0 Max. dynamic bending moment My* [Nm] 12.0 Max. dynamic torsional moment Mz* [Nm] 8.0 Max. shear force Fq* [N] 60.0 Diameter D [mm] 63.0 Height Z [mm] 56.0 Bending moment Mx [Nm] 25.0 Bending moment My [Nm] 25.0 Force Fz max. [N] 240.0 Max. force Fd [N] 2000.0*This is the max. total of all payloads (acceleration forces and torques, process forces, emergency stops, etc.), which can affect a rotary feed-through, in order to ensure error-free function. A version for vacuum feed-through is available on request. Please ask for details. CONDITION: USPI – Used Surplus Previously Installed (OEM). "VERY CLEAN SURPLUS UNIT REMOVED FROM ROBOT" WARRANTY: 90 DAYS SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) ________________________________________________________________________________ BELOW PALLET A5
