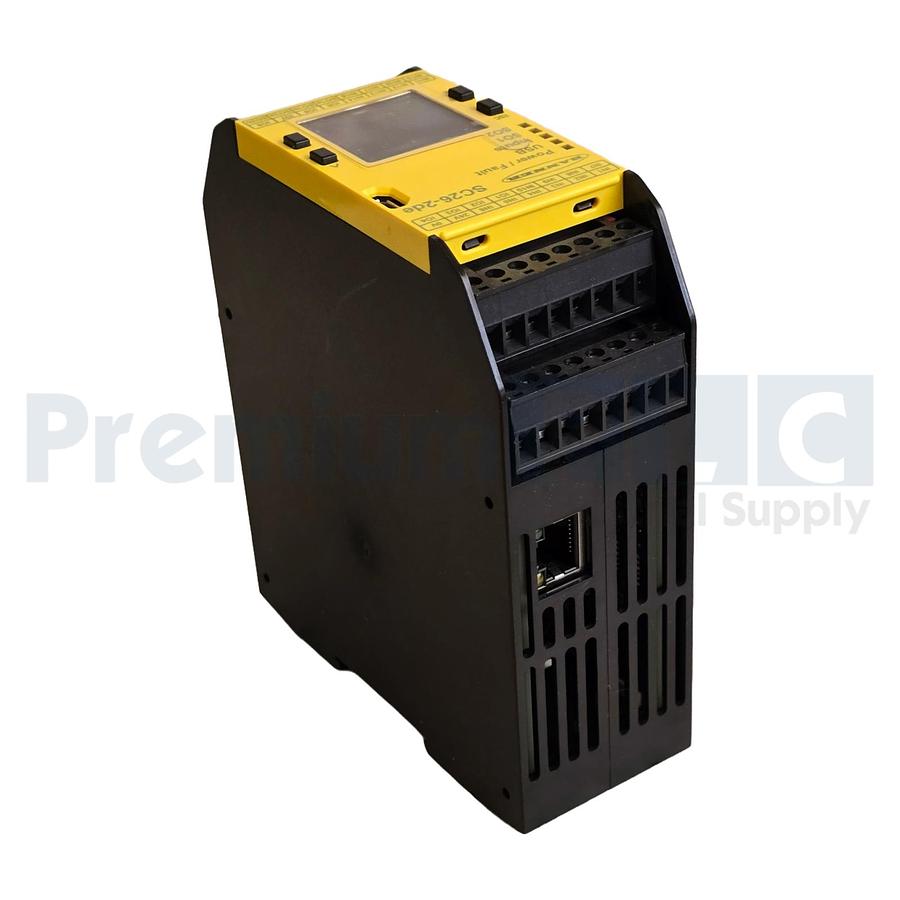

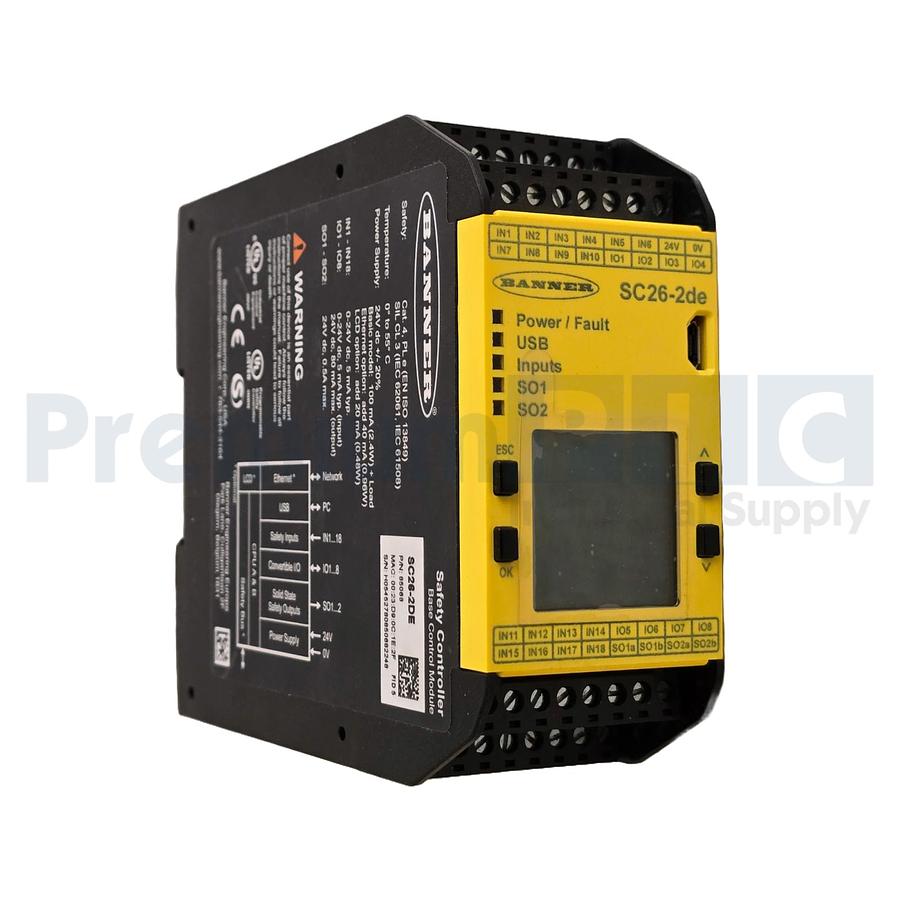

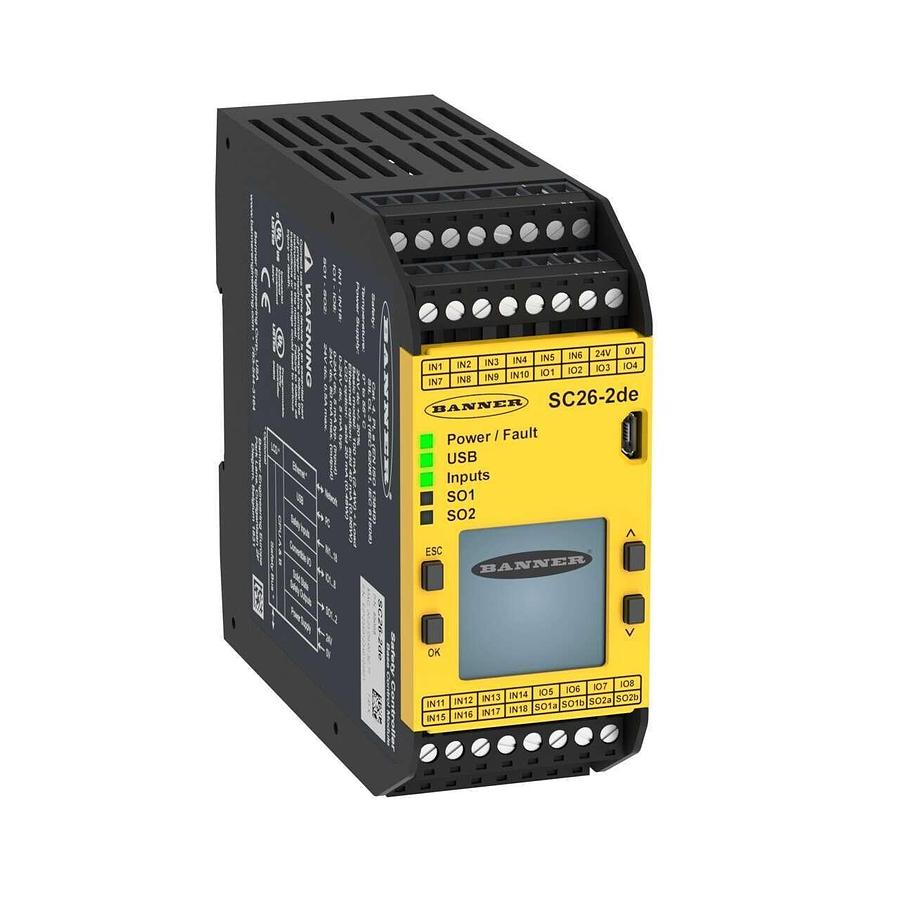

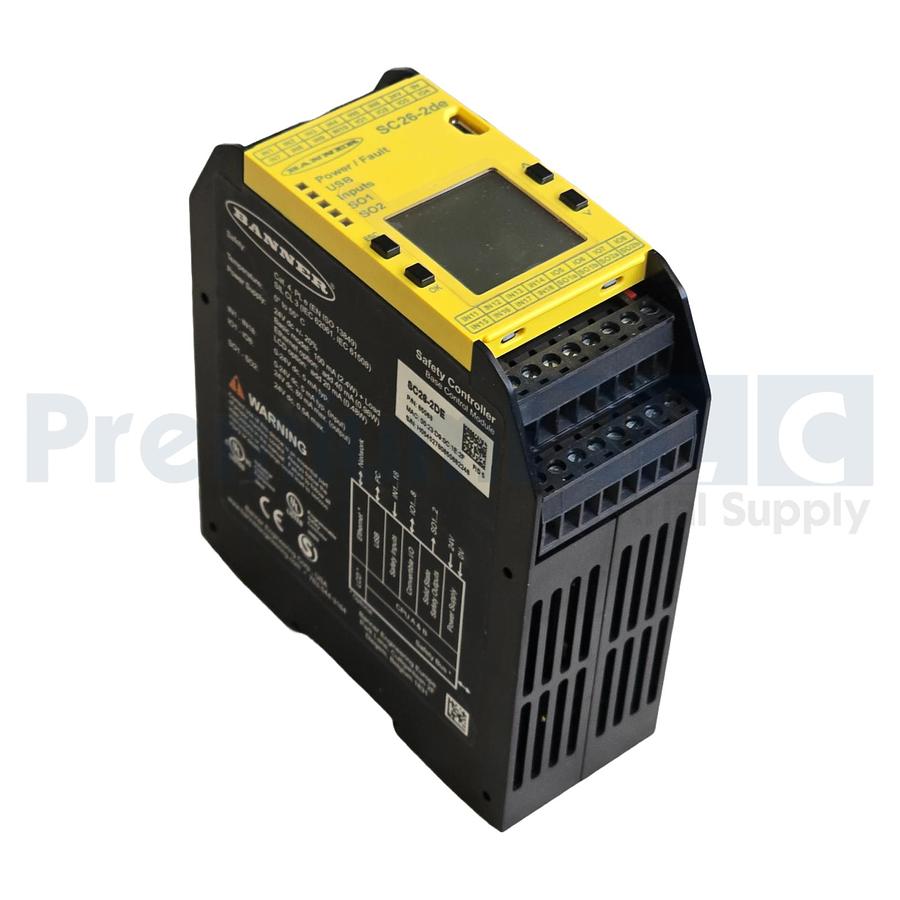

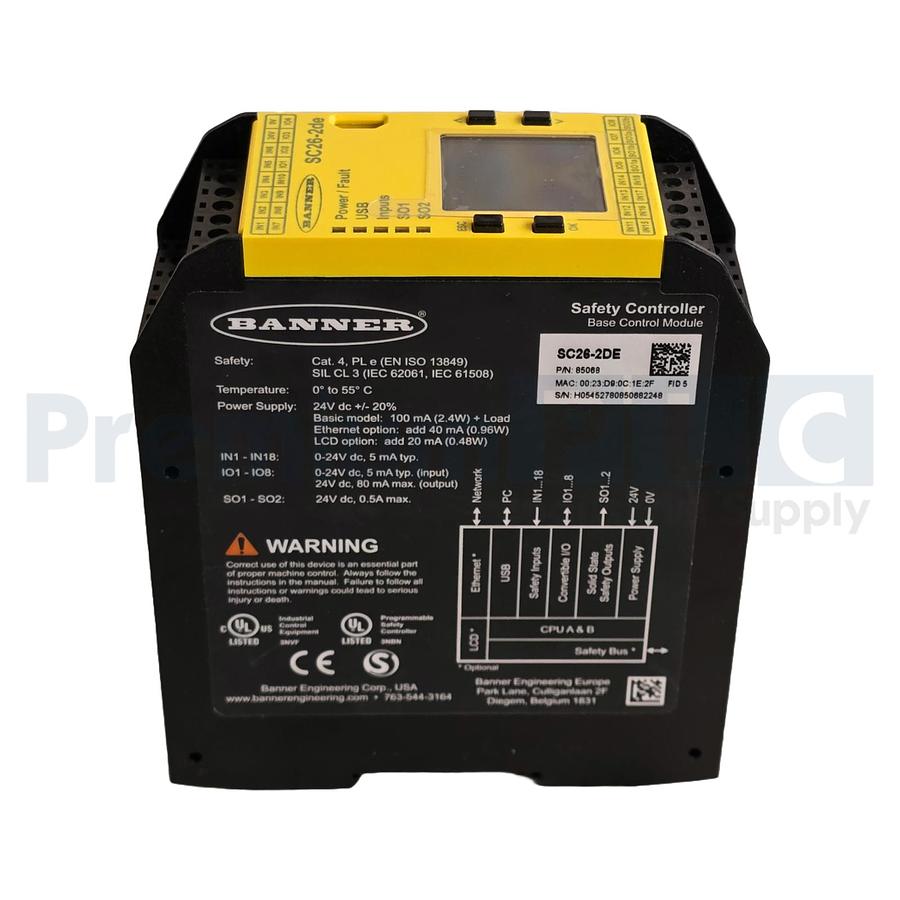

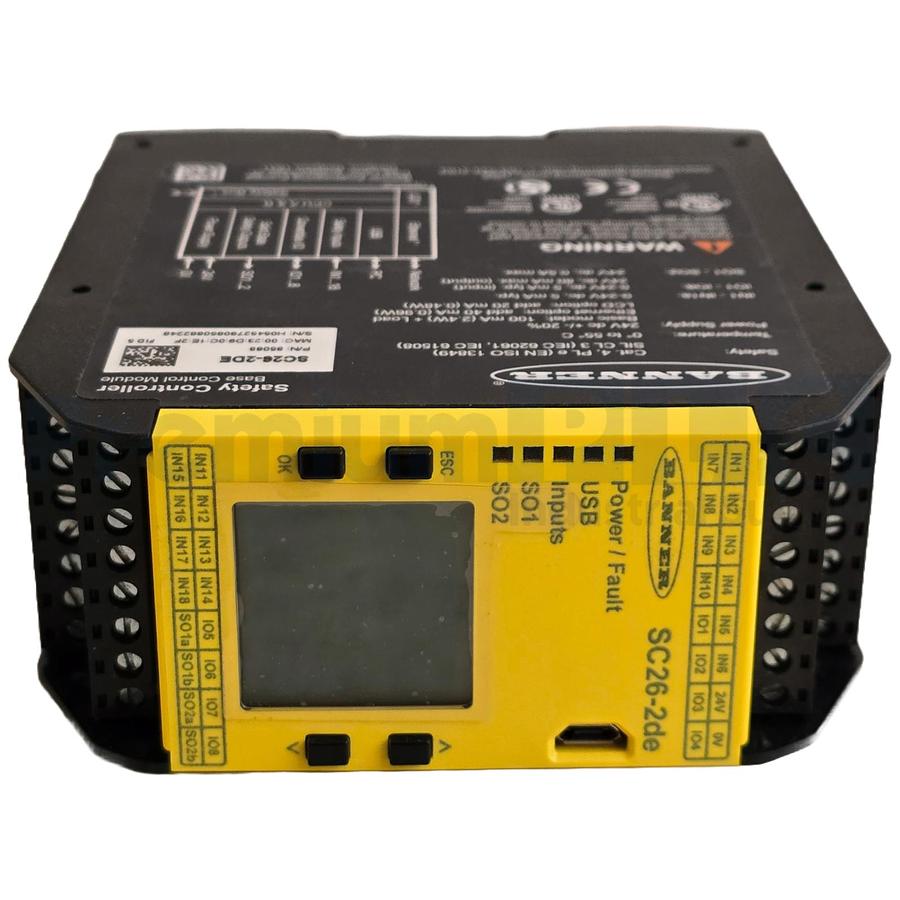

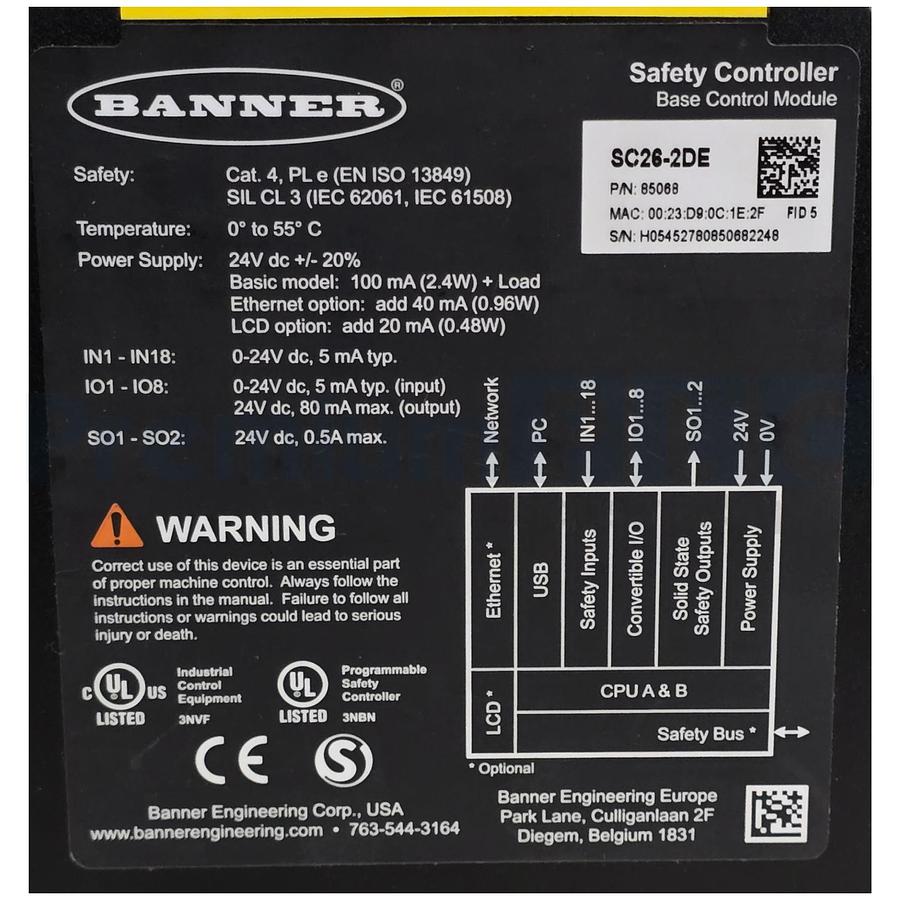

BANNER SC26-2DE SC26 SAFETY CONTROLLER BASE CONTROL MODULE P/N 85068 NUPI
$895
Description
BANNER SC26-2DE SC26 SAFETY CONTROLLER BASE CONTROL MODULE P/N 85068 NUPI
SPECIFICATIONS:
IP RatingIP20
Network View and ConfigureYes
PowerDC
Device TypeSafety Controller
In-Series DiagnosticsNo
Safety Module TypeBase Controller
ExpandableNo
LCD DisplayYes
Dimension (H x W x D in mm)110 x 45 x 129
Relative Humidity90% @ 50° C
Max Operating Temperature ( °C)55
Input OperationSimultaneous or Concurrent
Number of Safe Inputs26
Input ConfigurationConfigurable
Number of Convertible Inputs8
Safety Input - Dual Channel (Dry Contact)5-50 mA @ 24 V dc
Safety Input - Dual Channel (Solid-State)50 mA @ 15 - 30 V dc
Safety Input - Reset5-50 mA @ 24 V dc
Independently Controlled Safe Outputs4
Output Configuration2 OSSD Pairs
Non Safe Output ConfigurationUp to 11 PNP
Non Safe Output Rating80 mA @ 24 V dc (individual) max for IOx; overcurrent protected, 500 mA @ 24 V dc for Sox
Safe Output RatingOSSD 0.50 A max. @ 24 V dc
Splittable Safe OutputYes
Power Consumption0.16 A (controller only)
Response Time (ms)See Software Configuration Summary
Supply Voltage24 V dc +/- 20%
Terminal TypeScrew
Removable TerminalsYes
Vibration9-150 Hz at 1g occasional/0.5g continuous
PL Ratinge
Safety Category Rating4
SIL Rating3
SISTEMAPFHd = 1.05 x 10-9
THC RatingIIIC
Safety Input - Single Channel5-50 mA @ 24 V dc
Input Resistance150 Ω max. per lead
E-Stops/Rope PullsYes
Safety MatYes
Motor SpeedNo
Two-Hand ControlsYes
MutingYes
Gate Switch (NC/NC) InputYes
Gate Switch (NC/NO) InputYes
Gate Switch (OSSD) InputYes
Light Curtains/Scanner with EDM InputYes
Light Curtains/Scanner without EDM InputYes
EtherNet/IPYes
Modbus/TCPYes
PCCCYes
PROFINETYes
CONDITION: NUPI – New Unused Previously Installed (OEM)
WARRANTY: 120 DAYS
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
________________________________________________________________________________
B-TOP 3 (3)
Specifications
| Manufacturer | Banner Engineering |
| Model | SC26-2DE |
| Condition | Used |
| Stock Number | 316245264878 |
| Country of Origin | Belgium |
| Type | Safety Controllers |
| Controller Platform | SC26 |
