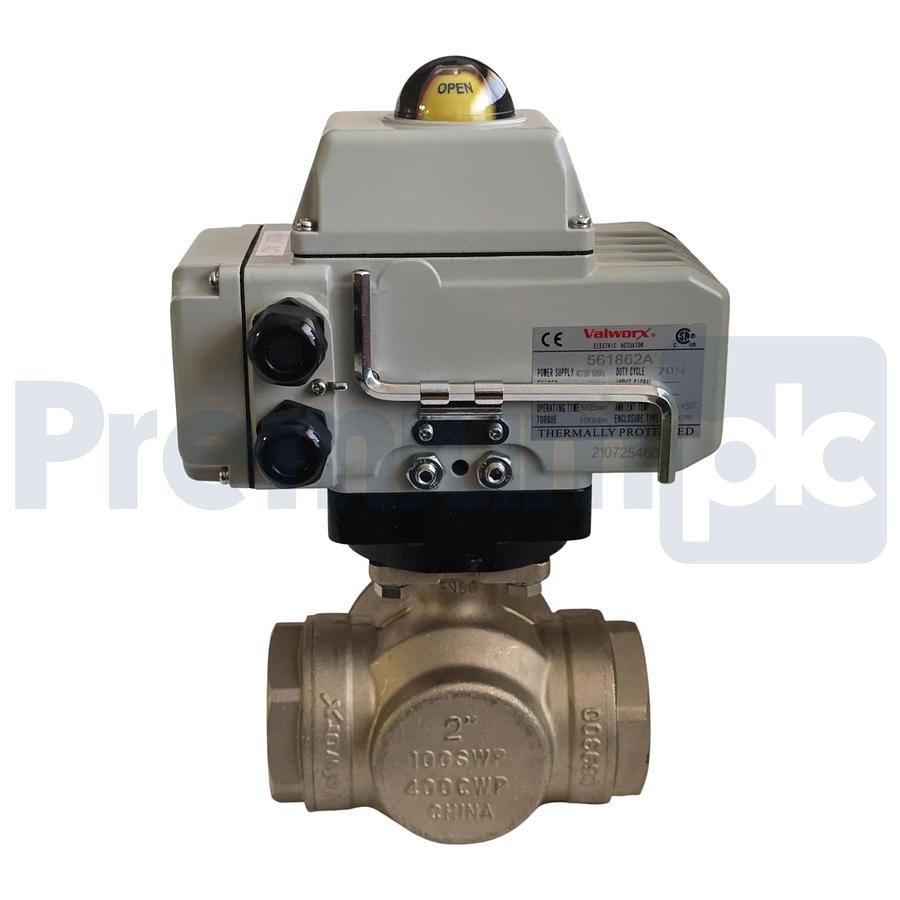

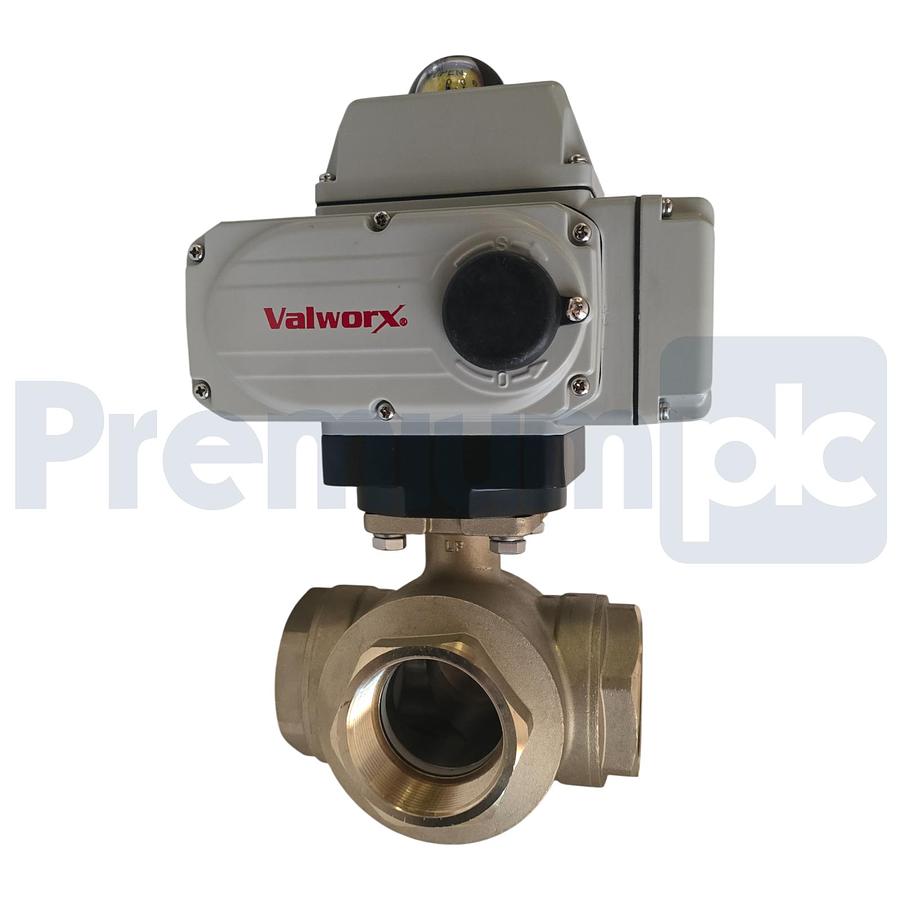

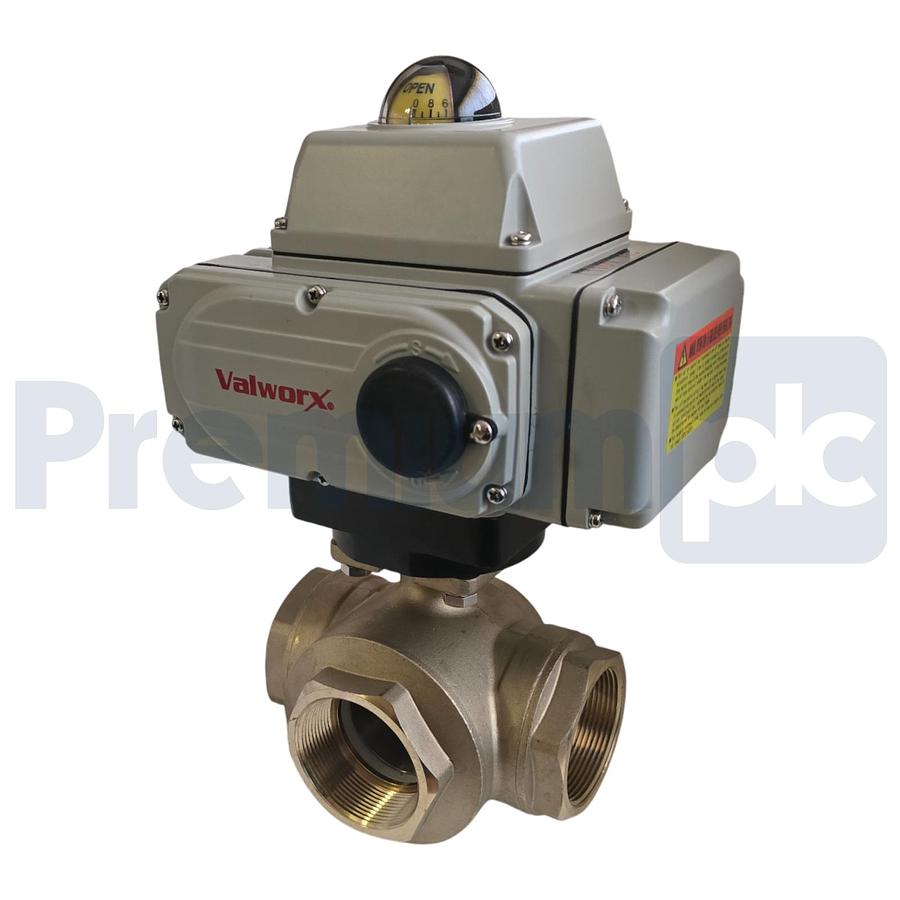

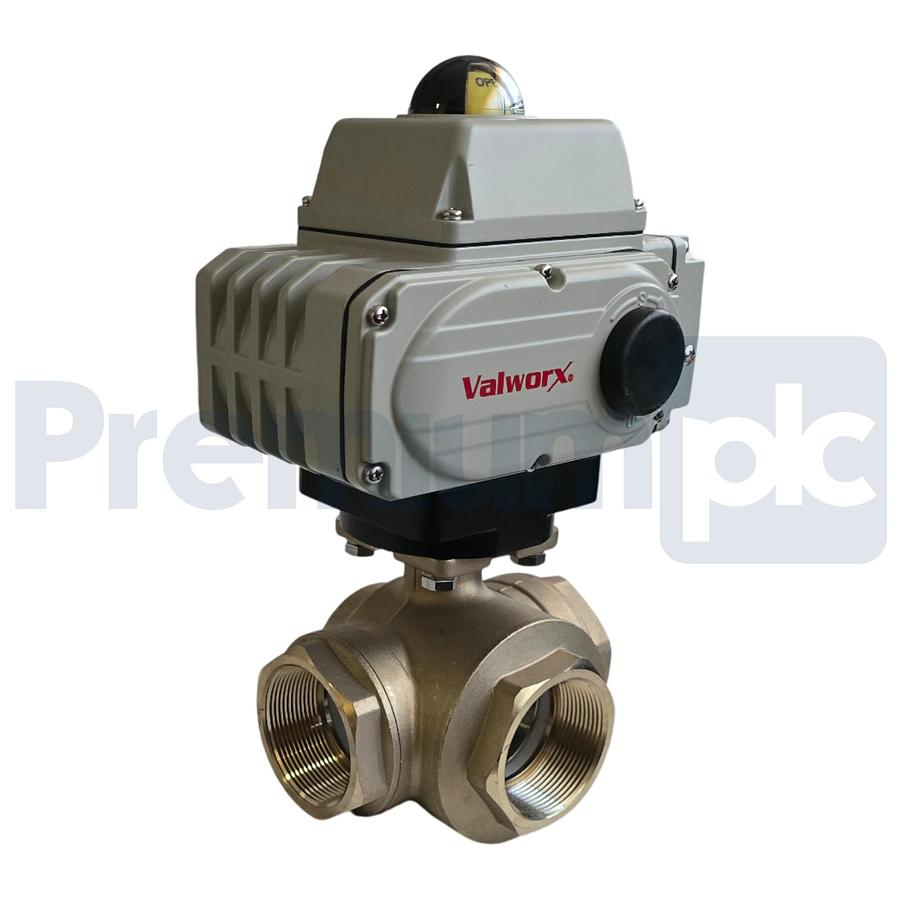

VALWORX 567916A 2" ELECTRIC ACTUATED 3-WAY BRASS T-DIVERTER VALVE 110VAC 561862A
$1,100
Description
VALWORX 567916A 2" ELECTRIC ACTUATED 3-WAY BRASS T-DIVERTER VALVE 110VAC 561862A

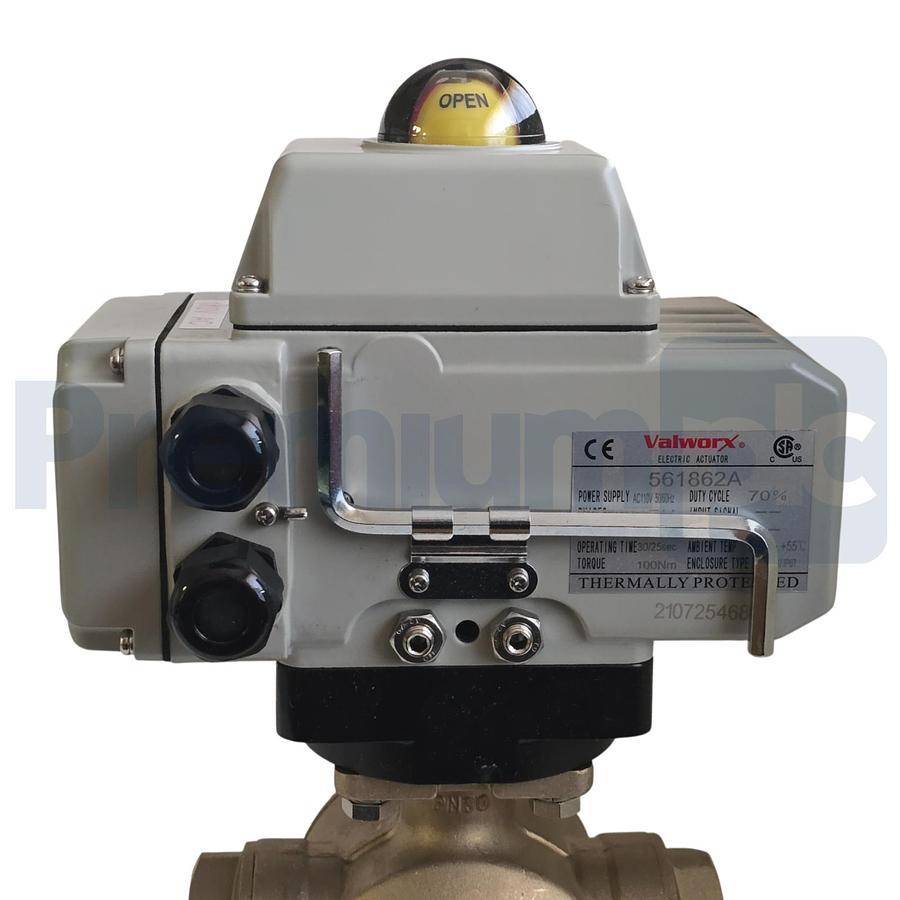

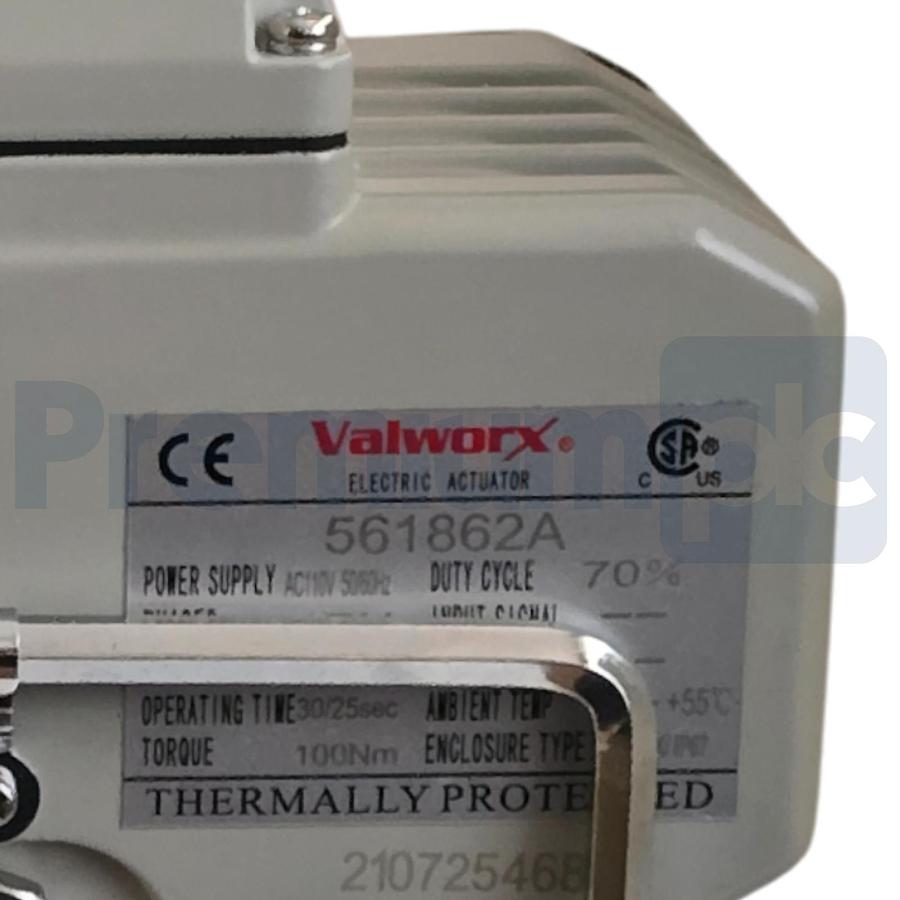

- 561862A Electric Actuator 885 in.lbs (100Nm), 110 VAC
Type Electric Actuated 3 Way Brass Valve- On/Off
Voltage 110 VAC 50/60 Hz
Current Rating 0.64A (full load amps)
Cycle Time 30 seconds per 90° rotation (no load)
Pipe Size 2" NPT female
Port Size Full Port, orifice 2.0 inches, Cv 82
Pressure (Max) 400 PSI (see P/T chart),
25 PSI saturated steam with high temp. kit, vacuum service to 29" Hg
Valve Temperature Range -4 to 344 °F (-20 to +173 °C)
Actuator Temperature Range -13 to +131 °F (-25 to +55 °C)
Valve Body Lead Free Brass C69300
Ball and Stem 316 stainless steel
Stem Seals PTFE (Teflon) with dual FKM (Viton) seals
Ball Seats (4) PTFE (Teflon) energized with FKM (Viton)
Duty Cycle 70%
Enclosure Aluminum alloy, polyester painted, SS fasteners
Enclosure Rating Type 4X (IP67) weatherproof
Electrical Connections Terminal strip, 1/2" NPT conduit (optional) / cable connector (included)
Valve Position Confirmation 2 x SPST auxiliary limit switches rated 3A@125/250VAC,30VDC resistive load
Manual Override 5mm hex drive with protective cover
Motor Protection Thermal overload
Anti-Condensation Heater 4 watts thermostatically controlled
Max Fluid Velocity 10 feet per second

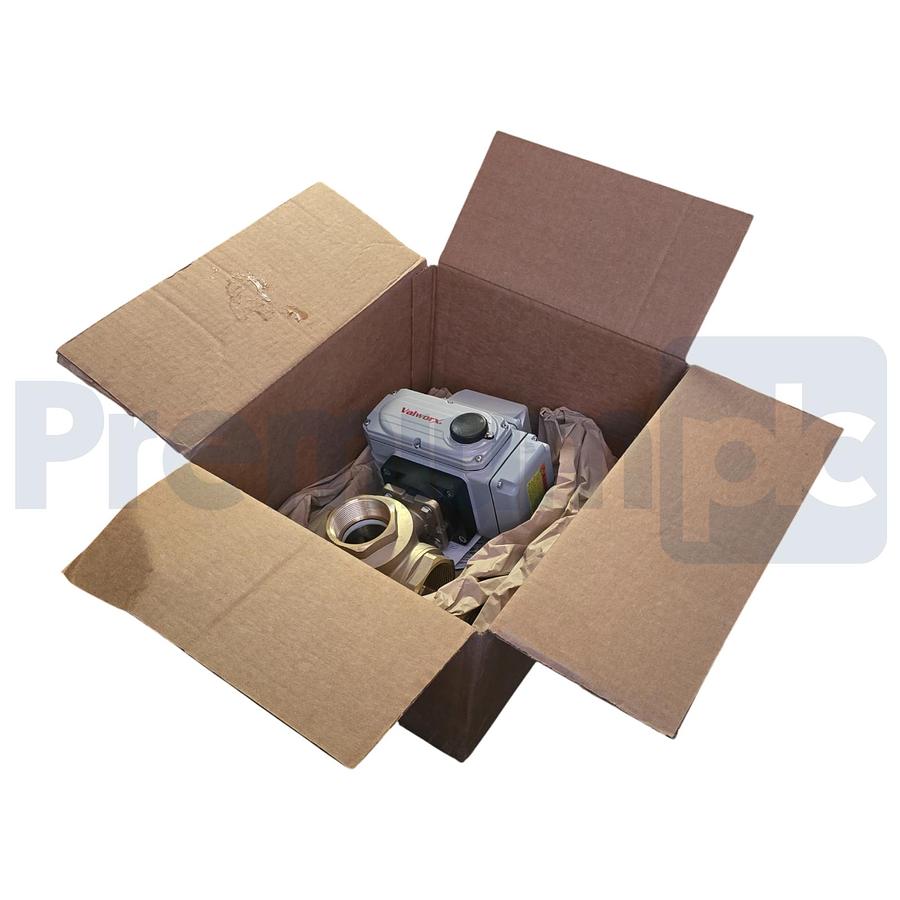

CONDITION: NSMP - New Surplus Manufacturer Package (OEM)
WARRANTY: 120 DAYS (LIMITED 1 YEAR)
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
________________________________________________________________________________
pallet 160
Specifications
| Manufacturer | Valworx |
| Model | 567916A |
| Condition | Used |
| Stock Number | 365900127990 |
| Technical Standard | National Pipe Taper (NPT) |
| Housing Material | Brass |
| WOG Rating | 400 psi |
| Valve Operation | electric actuated |
| WSP Rating | 100 psi |
| Diameter | 2 in |
