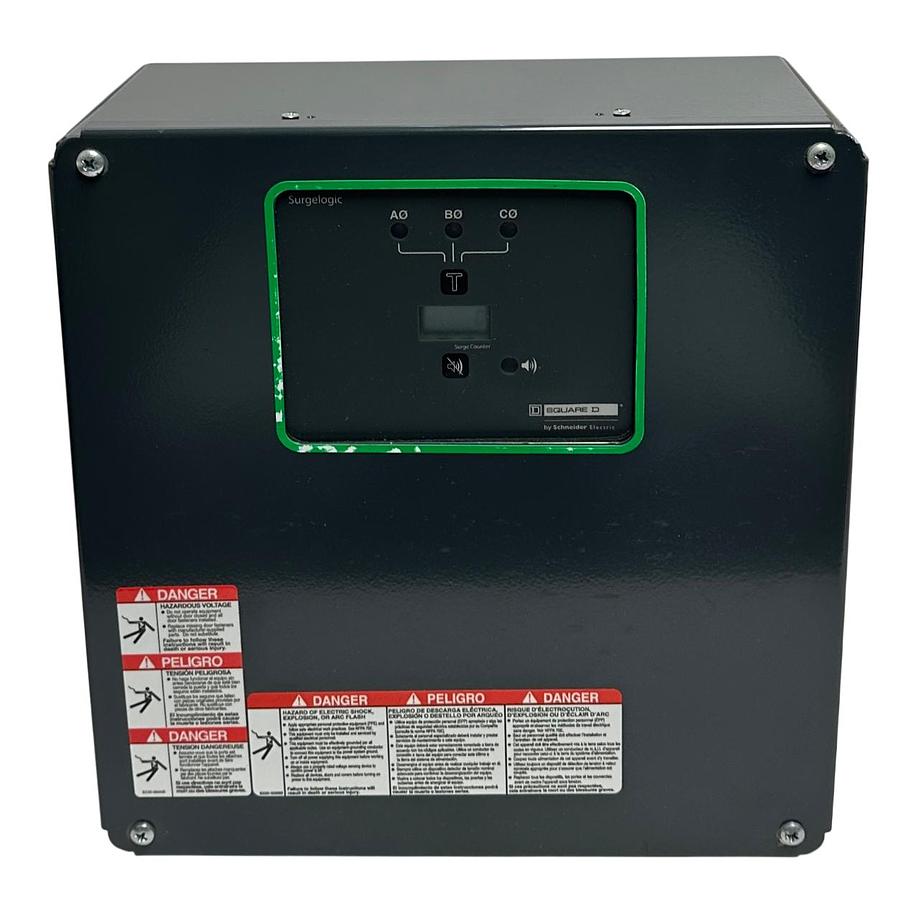

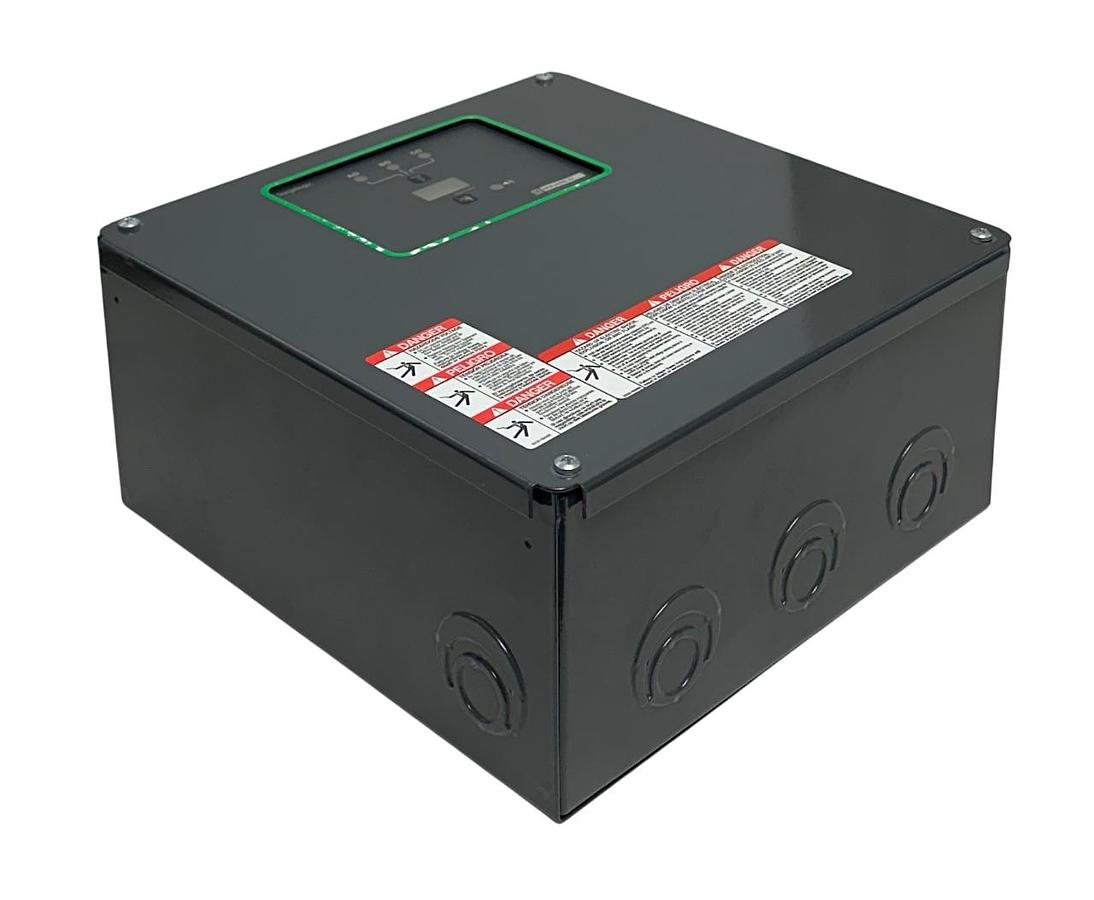

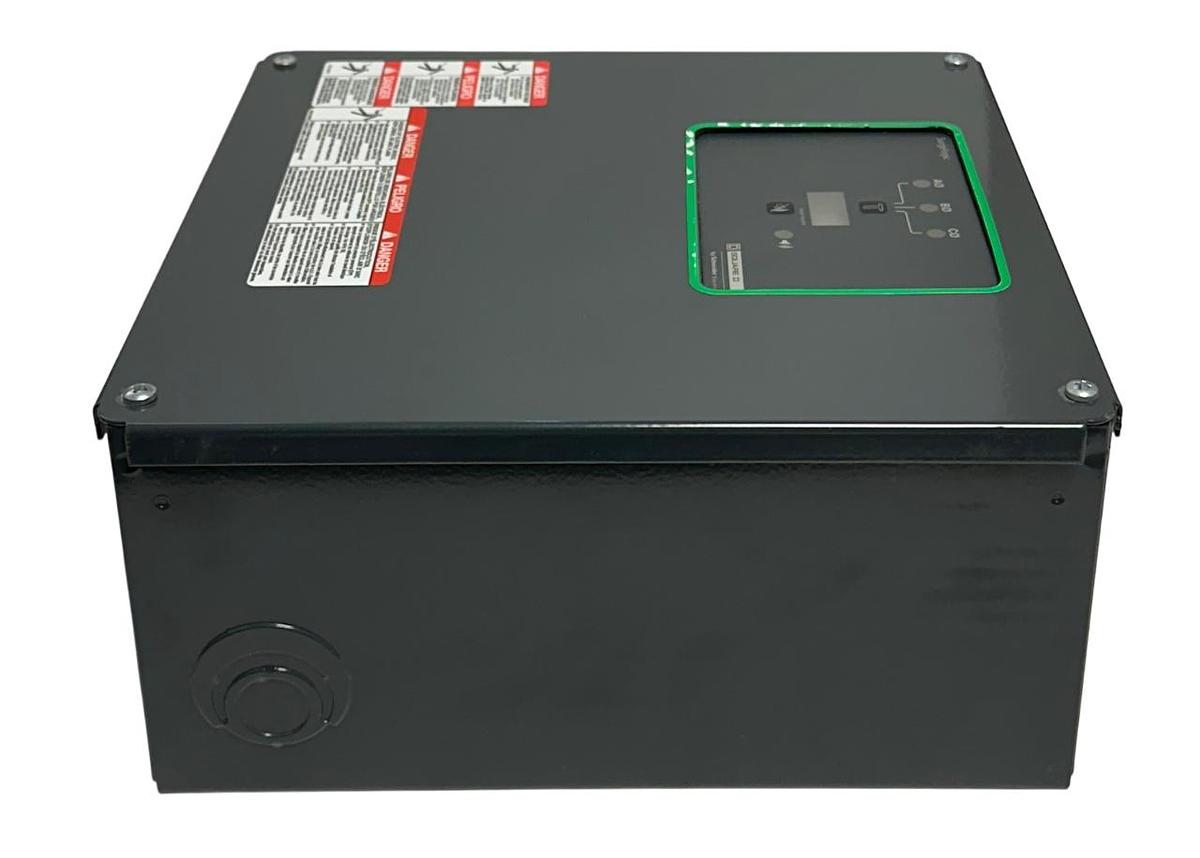

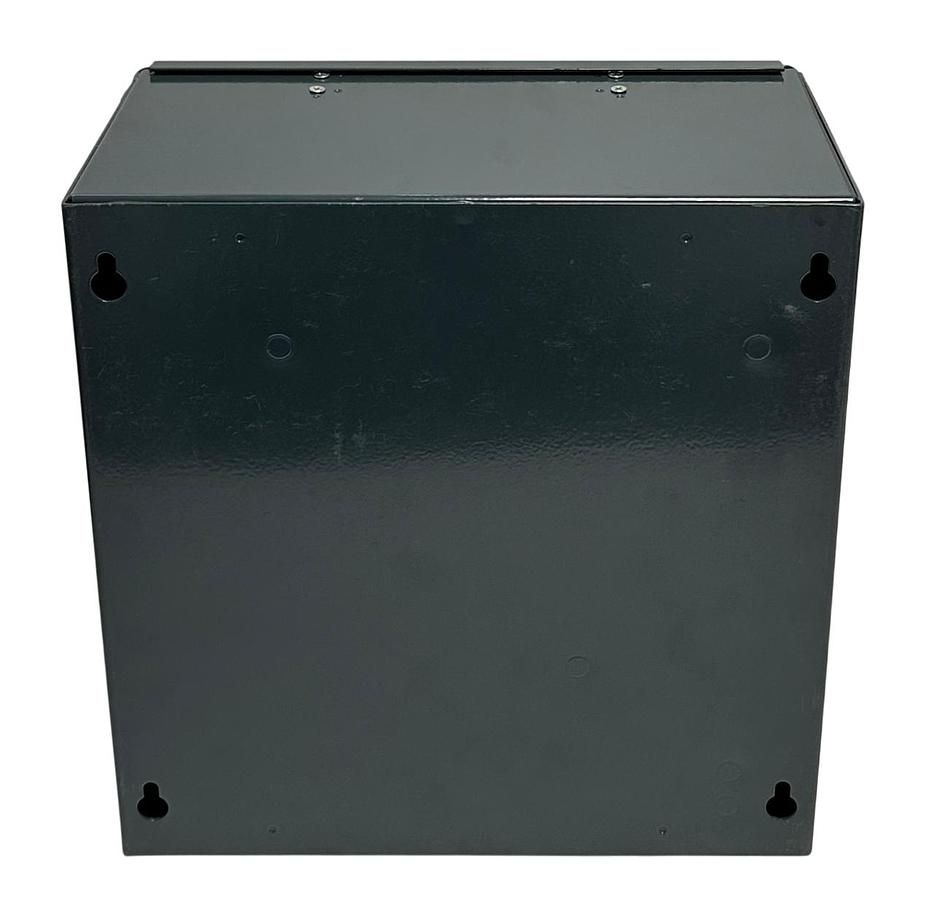

SCHNEIDER SQUARE D SSP02EMA12 Surgelogic PROTECTIVE DEVICE SERIES 002 120V NSMP
$1,500
Description
SCHNEIDER SQUARE D SSP02EMA12 Surgelogic PROTECTIVE DEVICE SERIES 002 120V NSMP
Main
Product Surge protection device
Range Surgelogic
Device Short Name EMAComplementary
Voltage Rating 208Y/120 V AC
MCOV 150 V
SCCR 200 kA
Surge Current 120 kA
Nominal Discharge Current 20 kA
Number of Phases 3 phase
Wiring Configuration 4-wire
Connection Lugs AWG 10...AWG 2 copper 35.4 lbf.in (4 N.m)

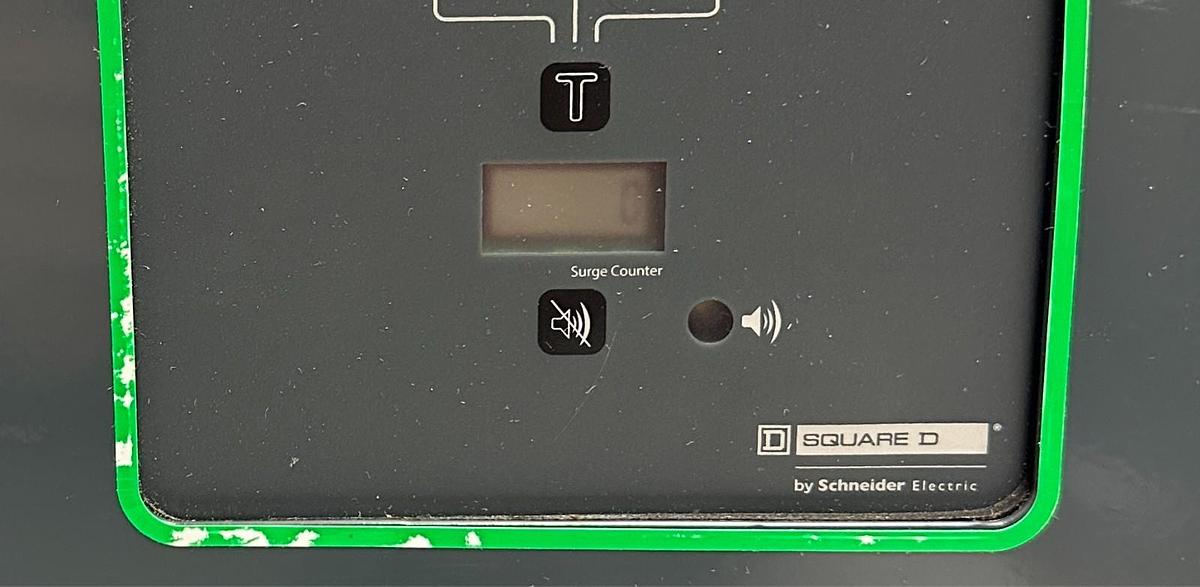

Local Signalling Status LED green per phase normal operation
Status LED red per phase fault
Provided Equipment Alarm enable/disable switch
Surge counter
Dry contacts
Cable length 19.02 in (483 mm)
Device Mounting Surface
Height 11.4 in (290 mm)
Width 8.2 in (208 mm)
Depth 5.3 in (135 mm)Environment
Ambient Operating 149 °F (65 °C)
Enclosure Rating NEMA 1
Enclosure Material Gray painted sheet steel
Standards CSA C22.2 No 8
UL 1449:ed. 4
UL 1283:ed. 5Ordering and shipping details
Category US1DE1B08464
Discount Schedule DE1B
GTIN 785901972464
Returnability Yes
Country of origin MXPacking Units
Unit Type of Package 1 PCE
Nbr. of units in pkg. 1
Package 1 Height 6.00 in (15.24 cm)
Package 1 Width 13.50 in (34.29 cm)
Package 1 Length 12.00 in (30.48 cm)
Package weight(Lbs) 15.750 lb(US) (7.144 kg)

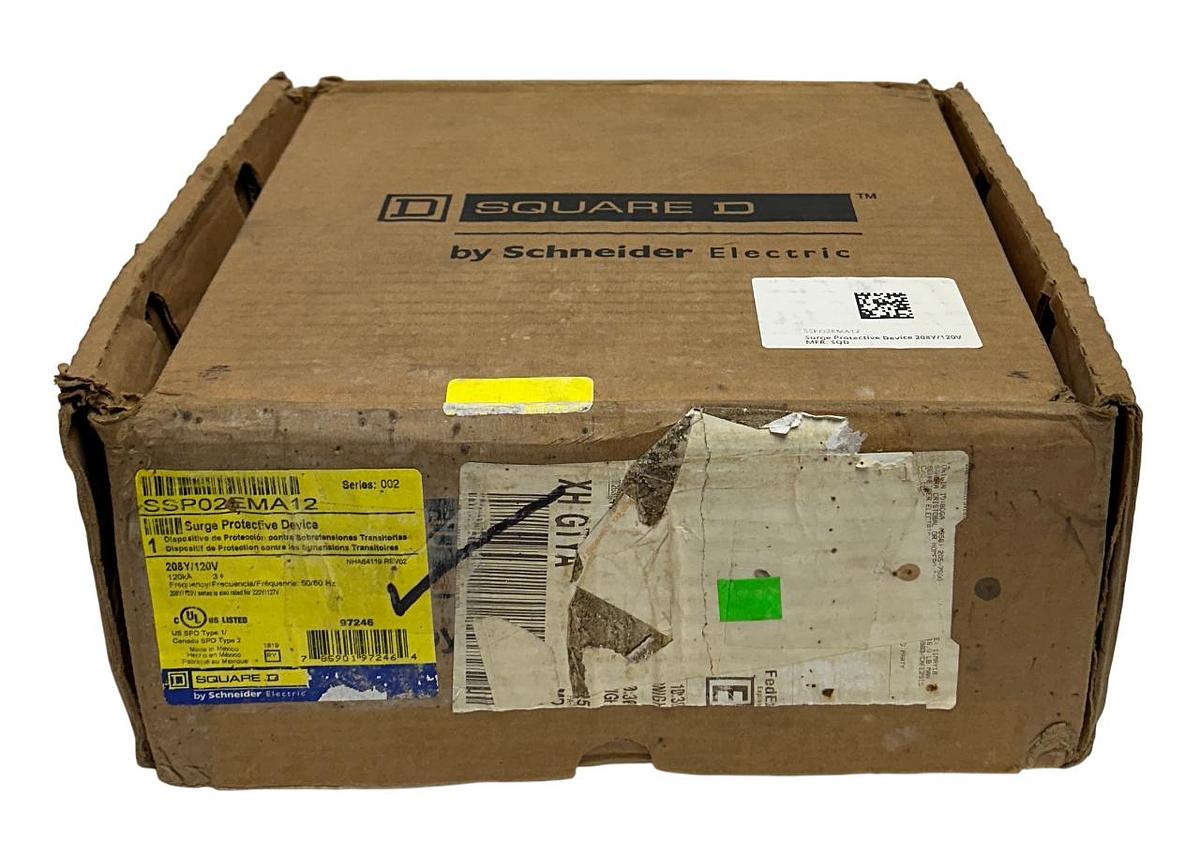

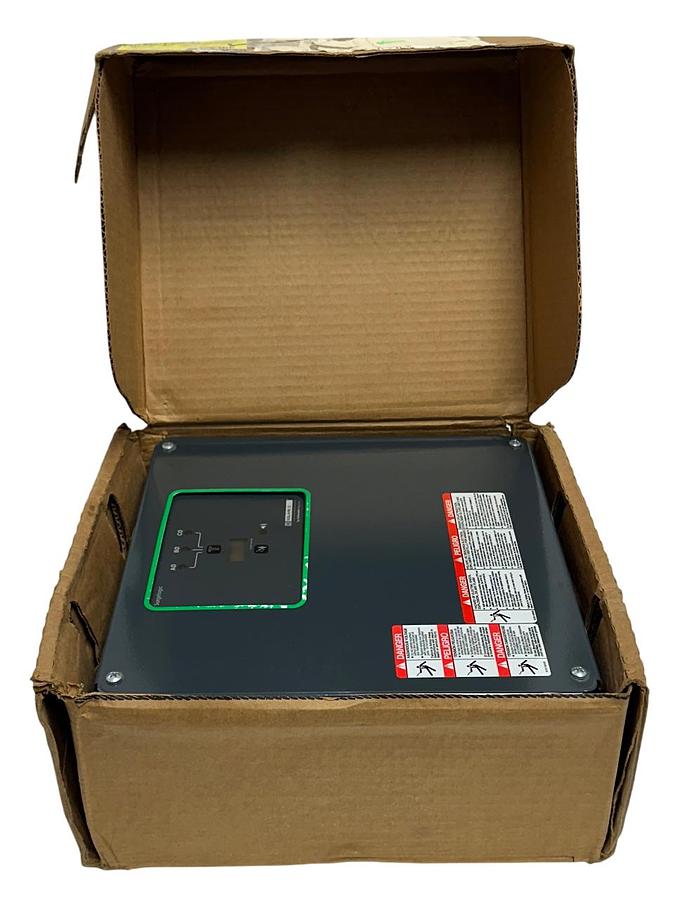

CONDITION: NEW SURPLUS IN FACTORY BOX, CHIPS ON GREEN PAINT ON COVER
WARRANTY: 120 DAYS
SAME DAY SHIPPING AVAILABLE ON ALL ORDERS MADE BEFORE 4PM EST
___________________________________________________________________________
PALLET 7
Specifications
| Manufacturer | Square D |
| Model | SSP02EMA12 |
| Condition | Used |
| Stock Number | 317222746747 |
| Country of Origin | Mexico |
| LOCATION | PALLET 7 |
| Type | SURGE PROTECTIVE DEVICE |
| Current Type | AC |
| Voltage | 208Y/120V |
| Number of Phases | 3 |
