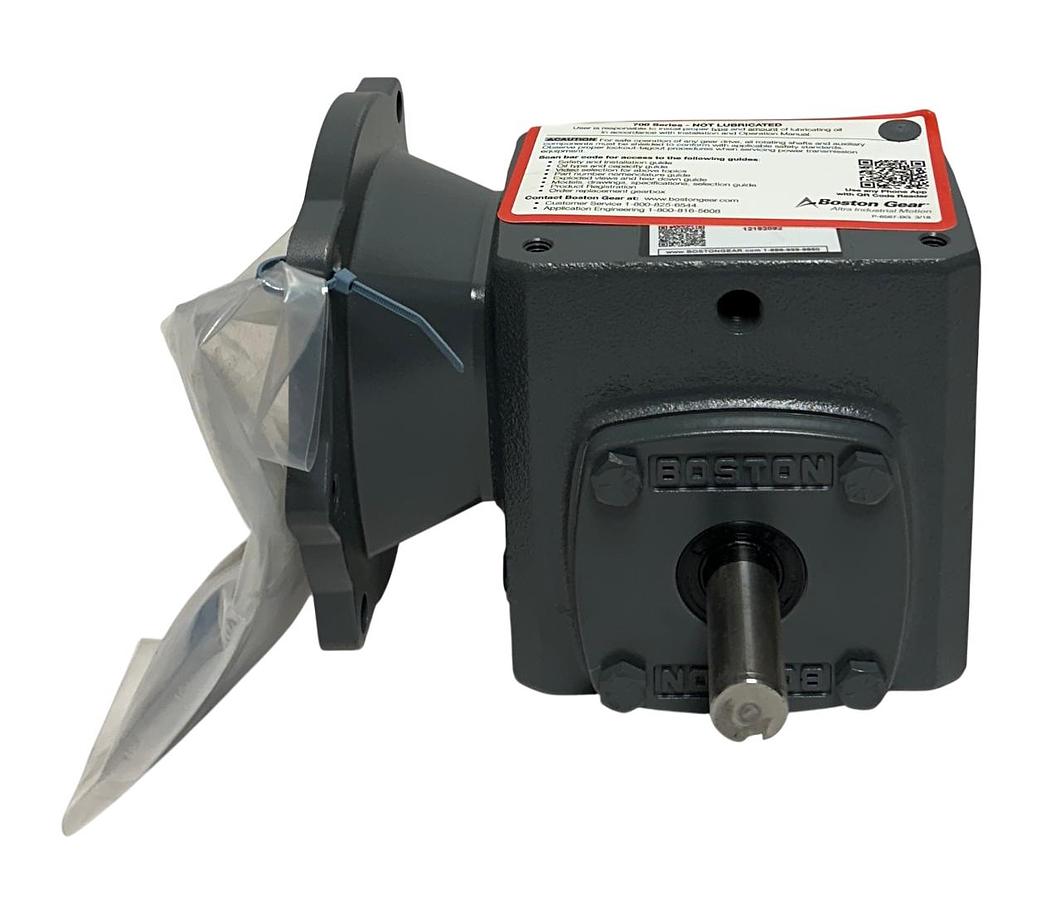

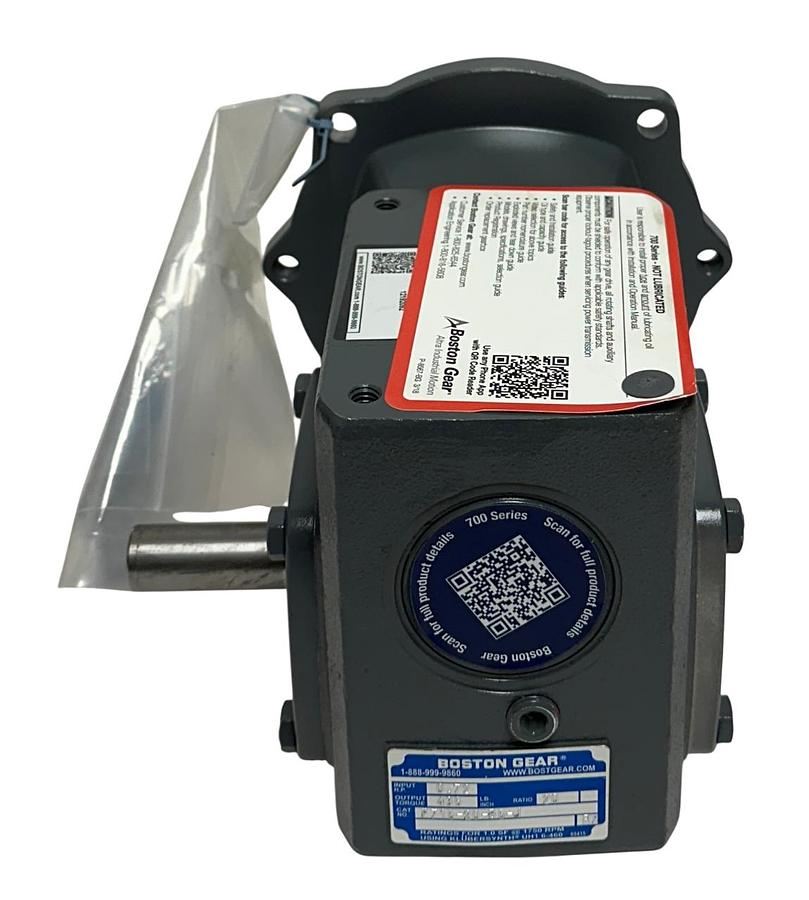

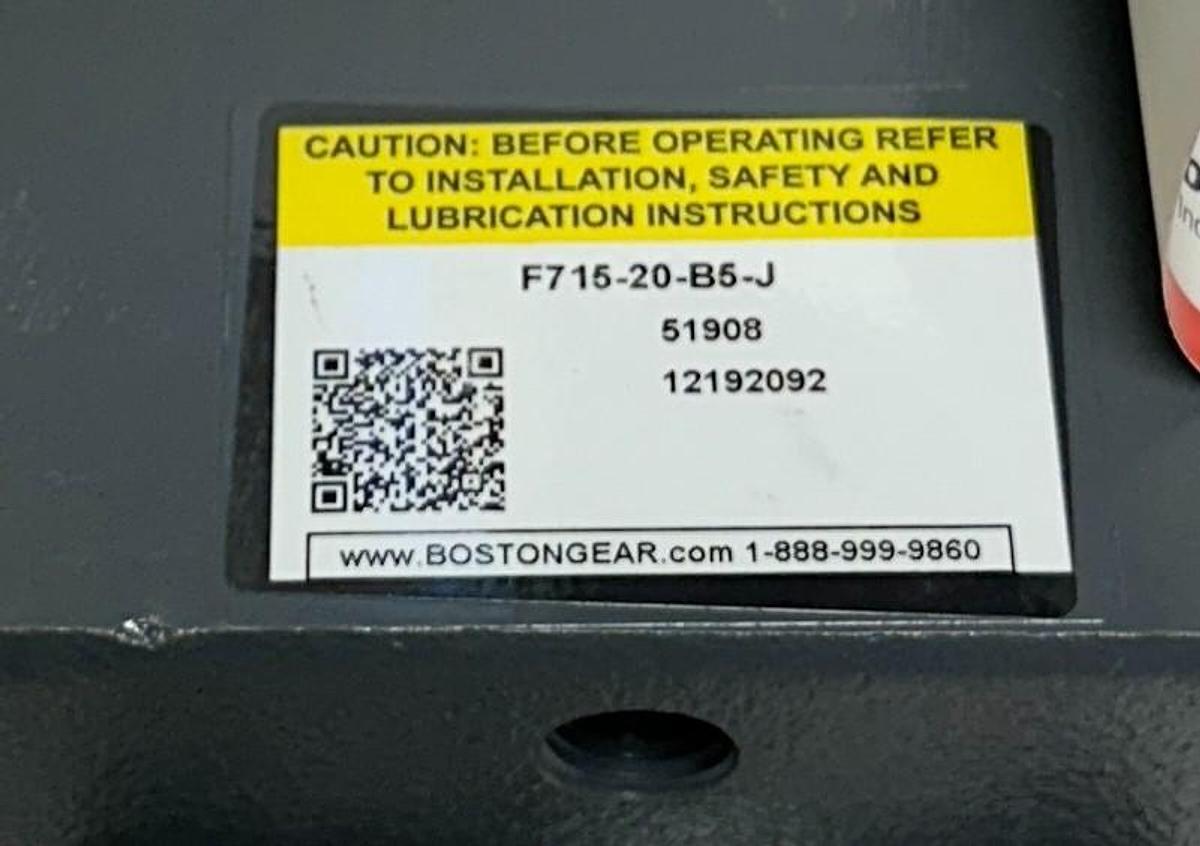

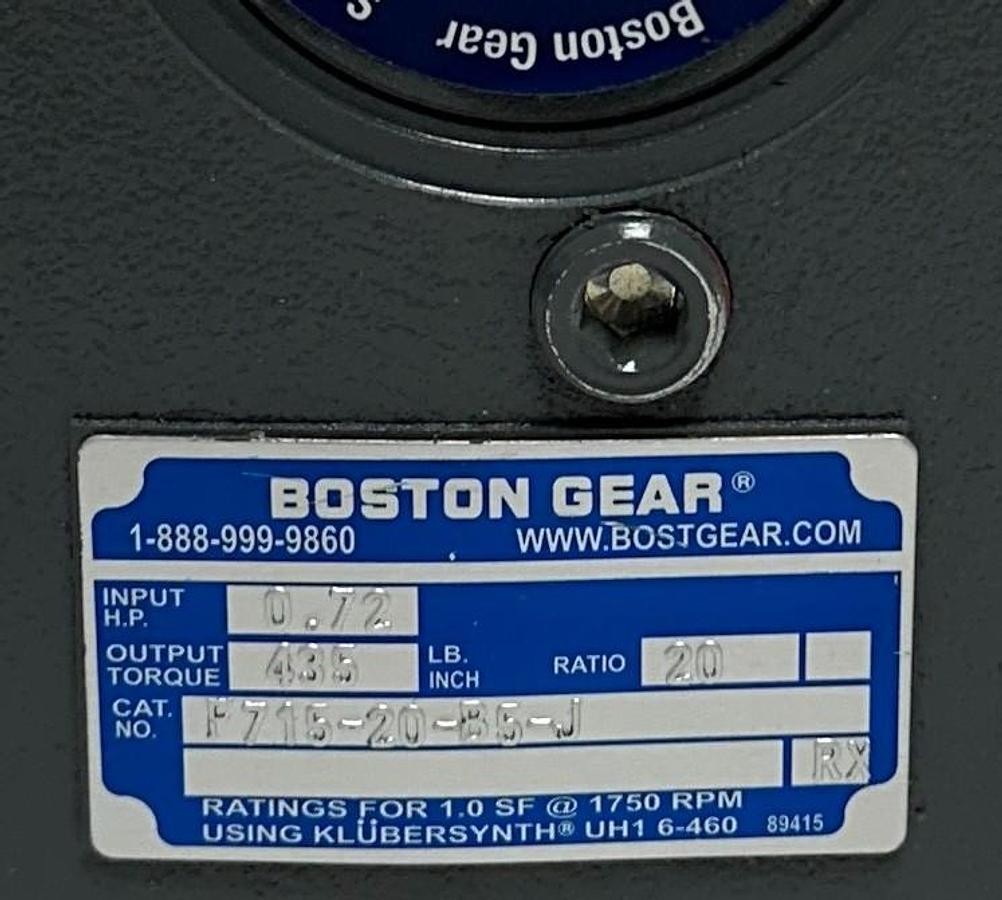

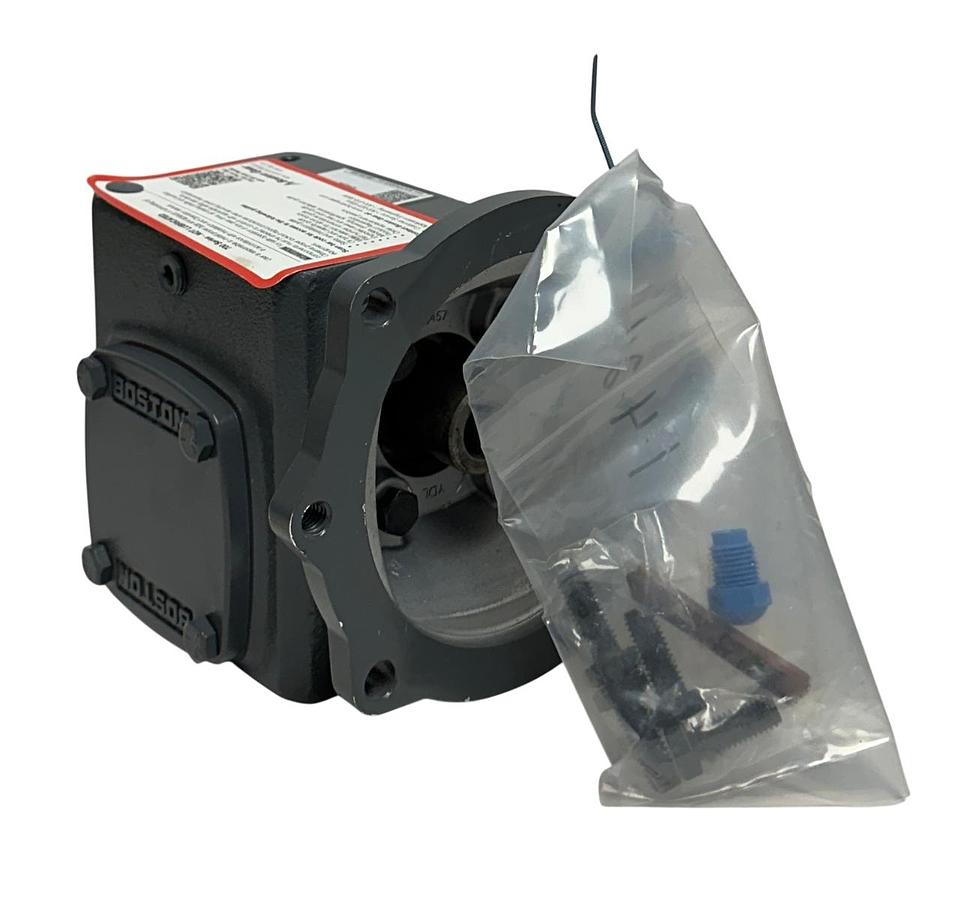

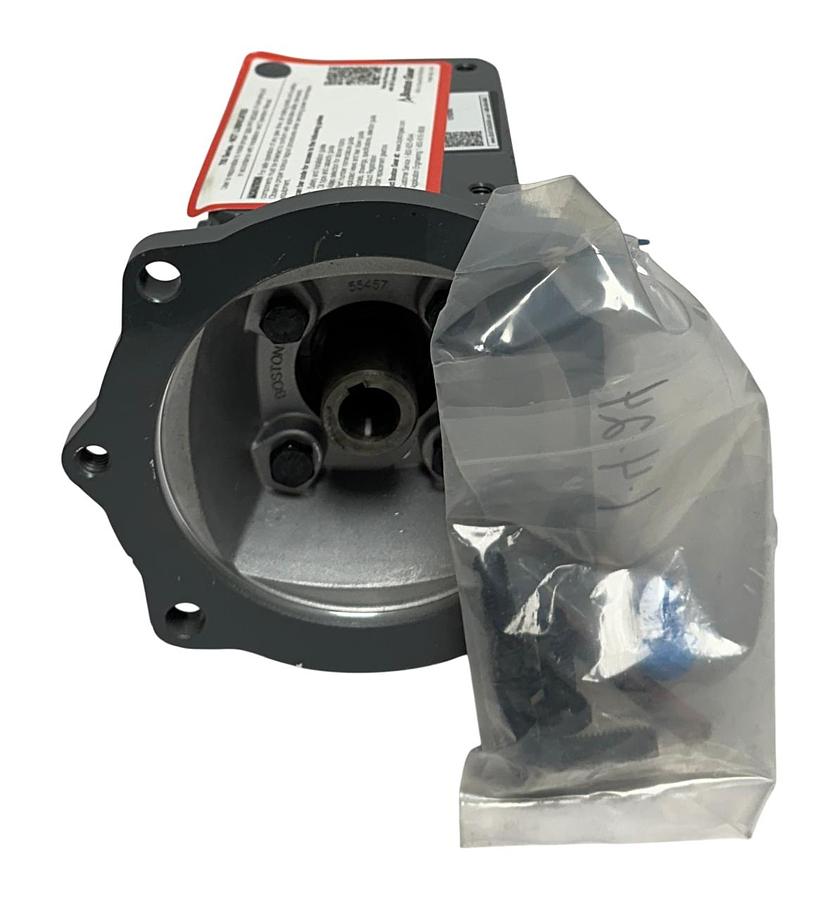

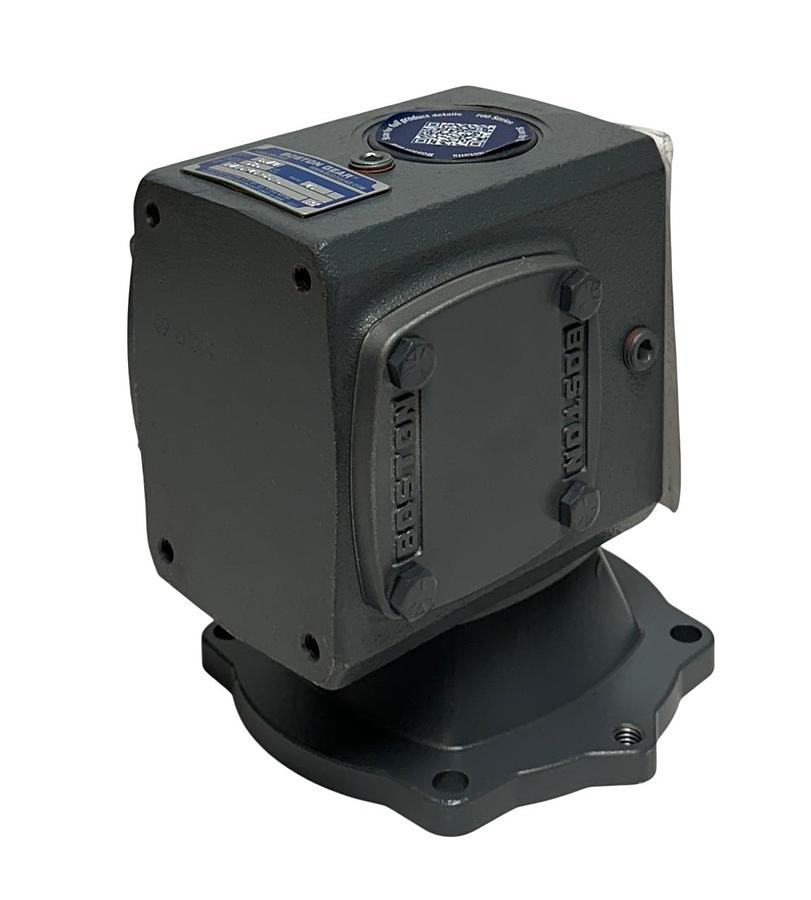

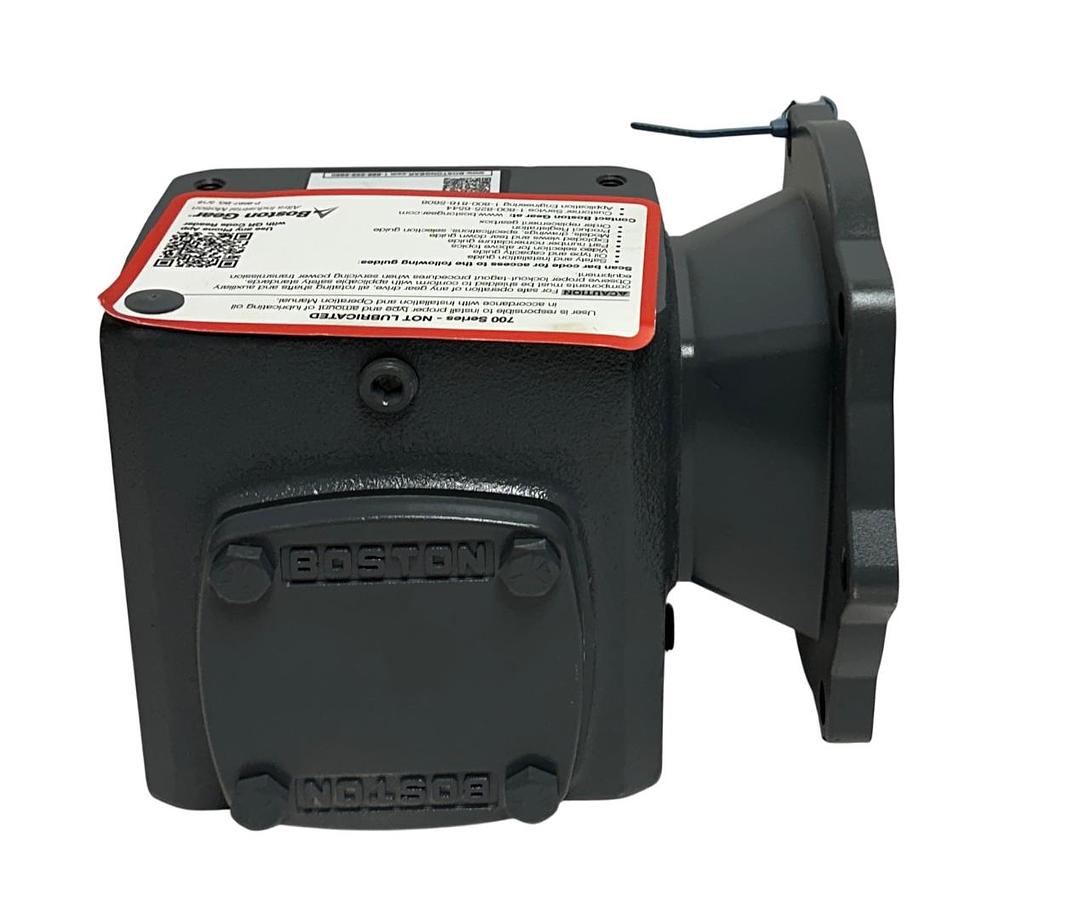

BOSTON GEAR F715-20-B5-J / 51908 RIGHT ANGLE WORM GEAR REDUCER 20:1 / .72HP NSNP

BOSTON GEAR F715-20-B5-J / 51908 RIGHT ANGLE WORM GEAR REDUCER 20:1 RATIO NSNP - Center Distance 1.5400 in - Reduction Single Reduction - Ratio 20:1 - Max Input Horsepower 0.720 hp @ 1750 rpm - Input Type C-Face Quill - Input Size 0.6250 in - Output Type Solid - Output Size 0.7500 in - Output Direction Right Hand - NEMA / IEC Frame Size 56C - Maximum Output RPM 87.500 @ 1750 rpm input - Maximum Output Torque 485 in-lbs @ 100 rpm - Housing Material Cast Iron - Overhung Load Capacity 300 lb - Housing Dimensions 5.13 x 3.69 x 5.38 in - Housing Height 5.38 in - Housing Length 5.13 in - Housing Width 3.69 in - Standards Met AGMA - Series F700 - Manufacturer Reducer Size 715 - Mounting Type No Base - Manufacturer Upc Number 781711519080 - UPC_NO 781711519080 - Weight 19.00 lbs - Lubrication No Lube - Paint Type Gray Paint CONDITION: NEW SURPLUS NO BOX, COMES WITH HARDWARE WARRANTY: 120 DAYS SAME DAY SHIPPING AVAILABLE ON ALL ORDERS MADE BEFORE 4PM EST __________________________________________________________________________________ PALLET A5
