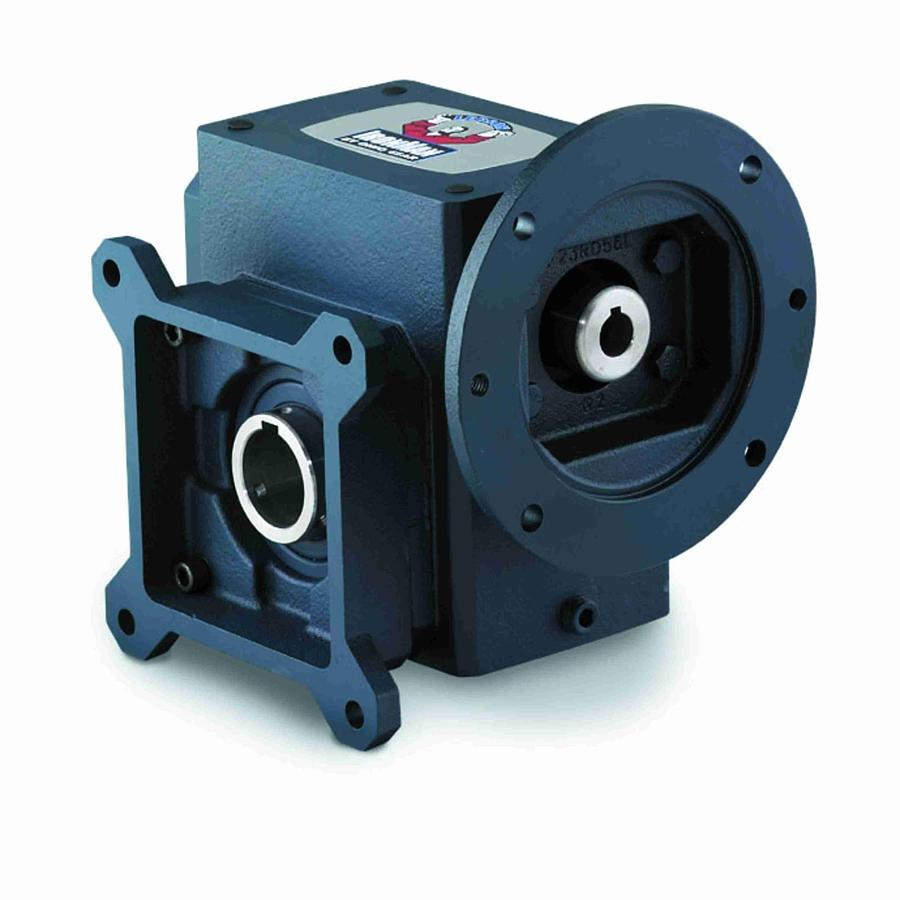

GROVE GEAR IRONMAN GR-FHMQ818-30-HL-56-16 GEAR REDUCER 30:1 GR8186076.00 NSMP

$1,150

Description

GROVE GEAR IRONMAN GR-FHMQ818-30-HL-56-16 - GR8186076.00 WORM GEAR REDUCER 30:1 NSMP Technical Specifications Series Style: GR-FHMQ-HL Output Style: HL Output Shaft Orientation: HL Output RPM: 58 Keyway: 3/16 X 3/32 Output Key: 1/4 X 2.50 Output Shaft Assembly Code: HL Series Type: Cast Iron 800 Worm Gear Reducers Series Code: GR Input HP: 0.741 Bore Code: 16 Input Style: C-Face Quill Output HP: 0.569 Input RPM: 1,750 Reducer Style: Worm - Right Angle Mounting Style: Flange Mounted Hollow Output Bore Frame Size: 56C No. of Gear Reductions: Single Output Diameter (in): 1.000 in Service Factor: 1 Input Bore (C Face): 0.625 Input Keyway: 3/16 X 1.38 in Motor Frame Size: 56C Input Quill Diameter (in): 0.625 in Reducer: Worm - Right Angle Ratio: 30:1 Center Distance (in): 1.75 Assembly: FHMQ-HL Shaft Seal Material: Viton Model Code: FHMQ818 Input Keyway (C Face): 3/16 x 3/32 Series: GR Series - Ironman Worm Gear Reducers Motor HP Rating: 0.75 Product Line: GR Series - Ironman Worm Gear Reducers Product Type: Right Angle Gear Type: Worm Thrust Rating - output shaft: 1144 Ratio Range: 30:1 Input Diameter (in): 0.625 in Input HP @ 1750 RPM: 0.741 Reduction: Single Output Shaft Direction: HL Housing Material: Cast Iron Output Shaft: Hollow Bore Overhung Load Rating (Output Shaft(lb)): 1,200 lb Output Torque Rating (in-lb): 614 in/lbs CONDITION: NSMP - New Surplus Manufacturer Package (OEM) WARRANTY: 120 DAYS SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) ________________________________________________________________________________ pallet 190

Specifications

ManufacturerGrove Gear
ModelGR-FHMQ818-30-HL-56-16
ConditionUsed
Stock Number365801011740
Country of OriginUnited States
TypeRight Angle Speed Reducer
Shaft OrientationRight Angle
Nominal Ratio30:1
