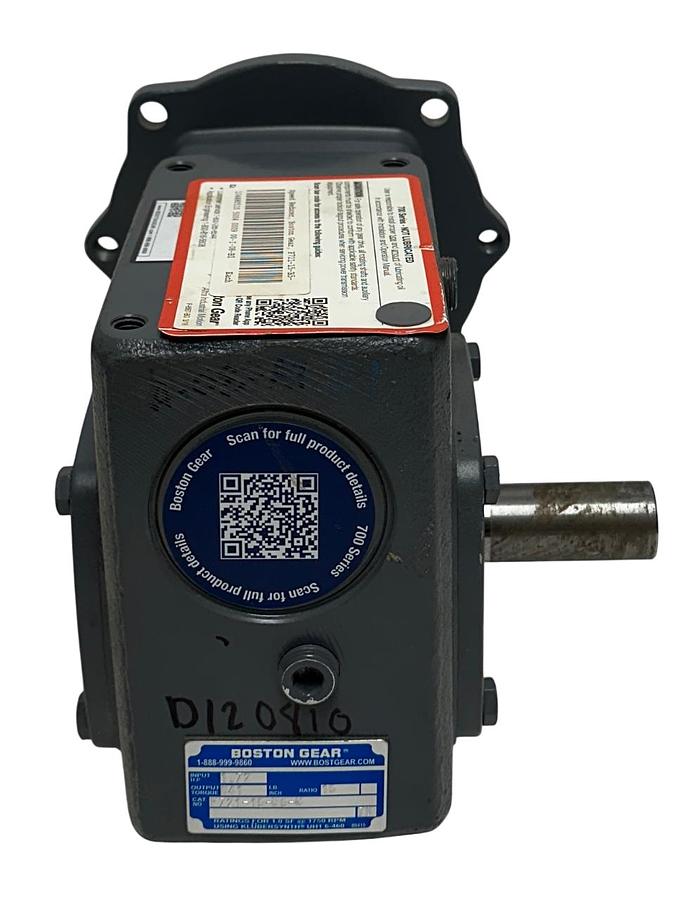

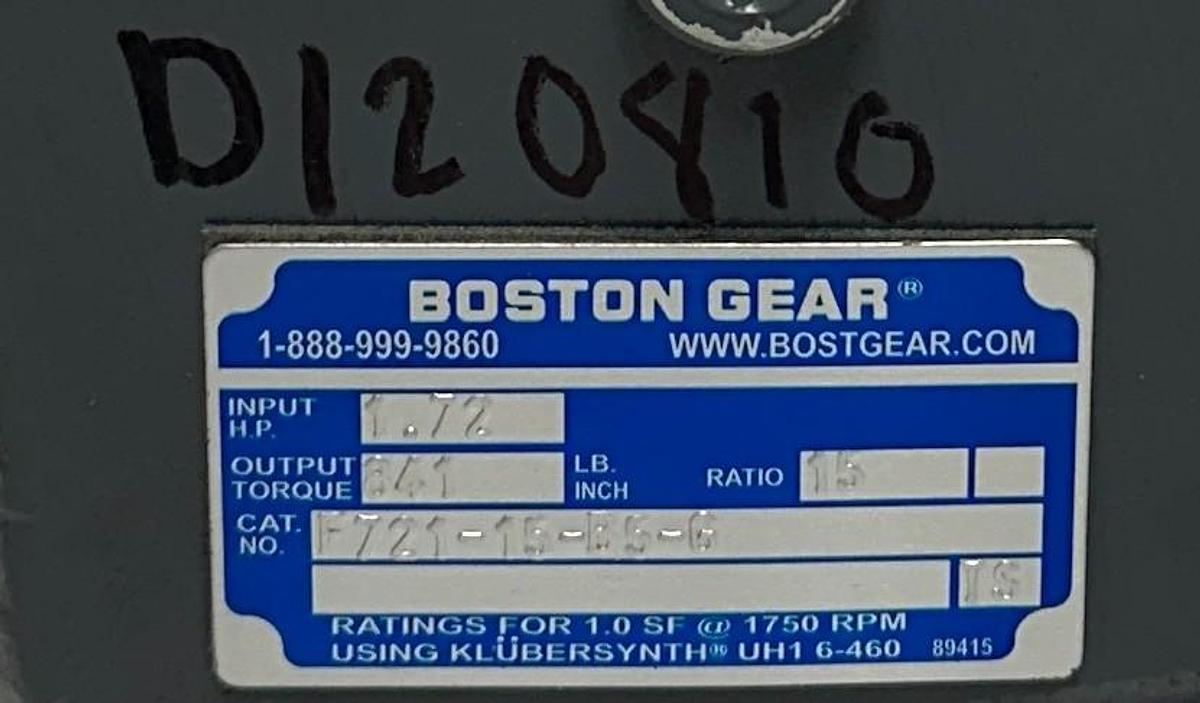

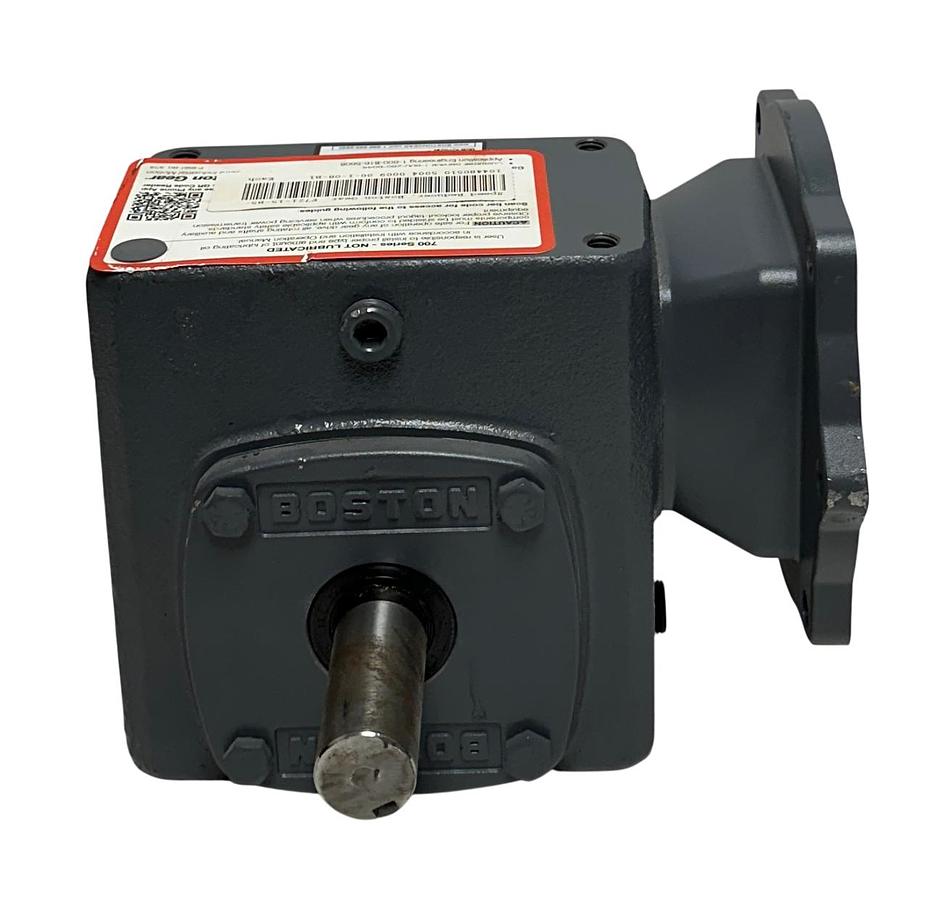

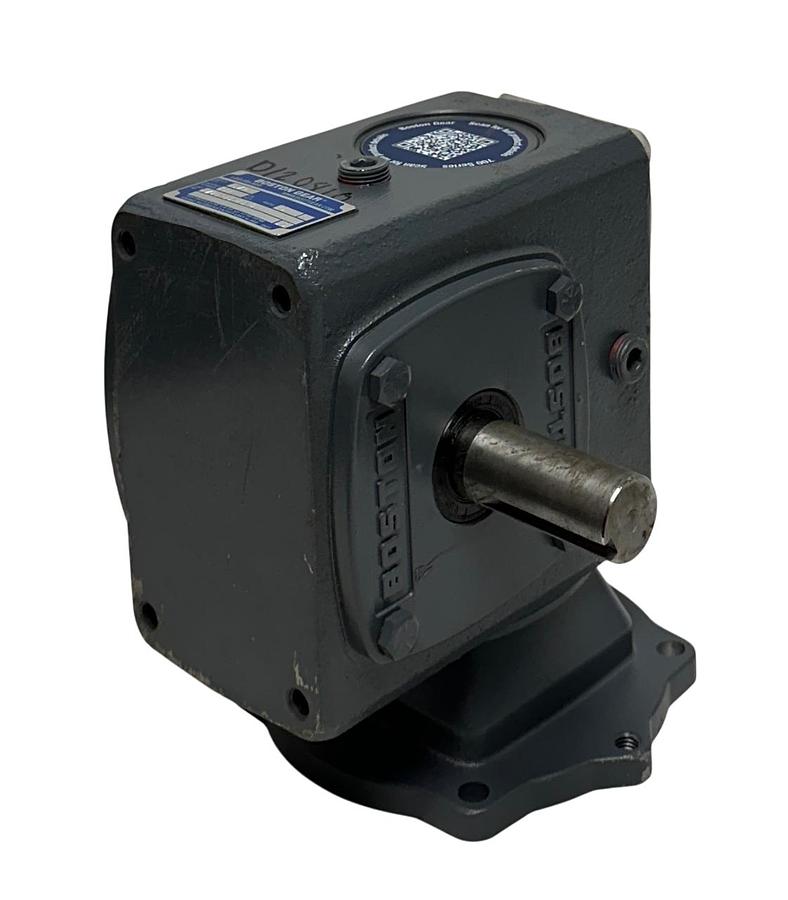

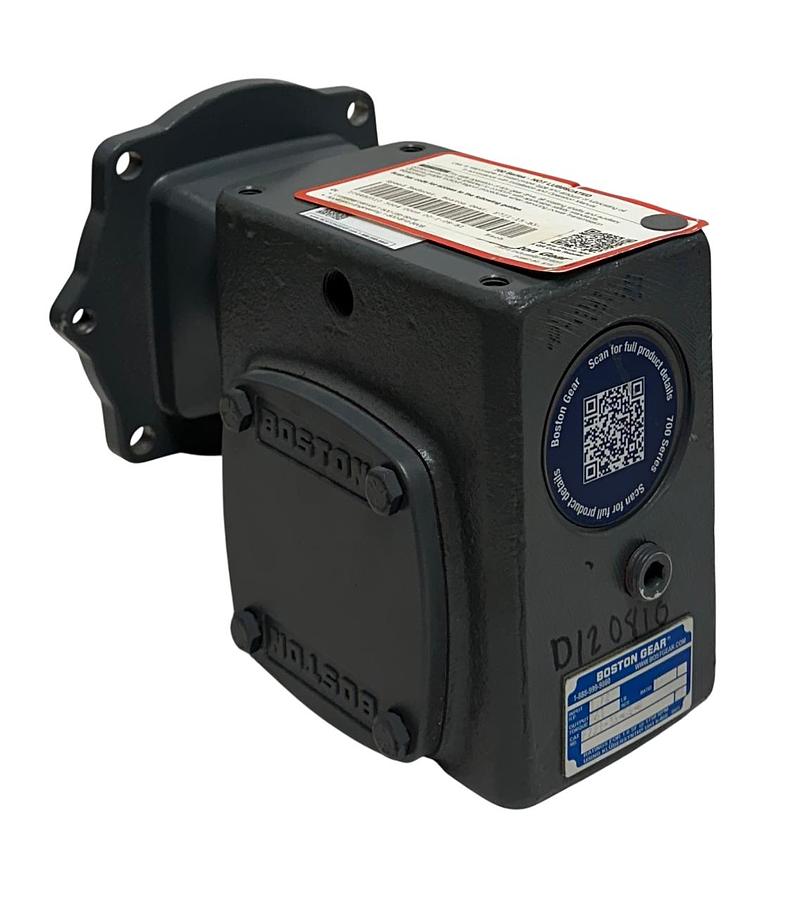

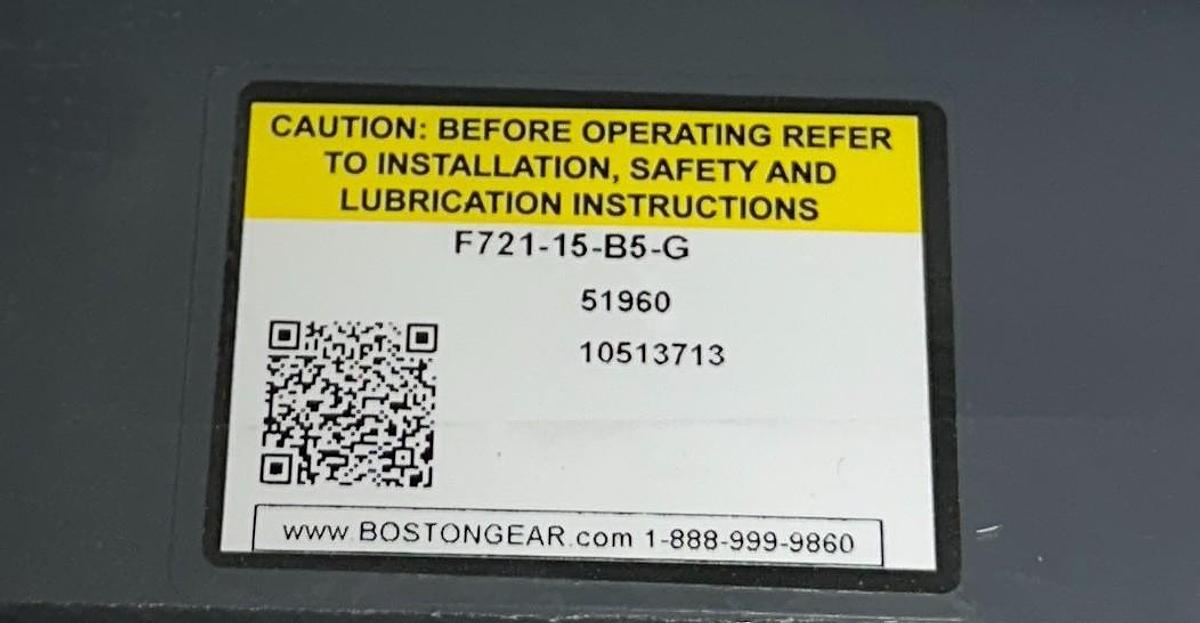

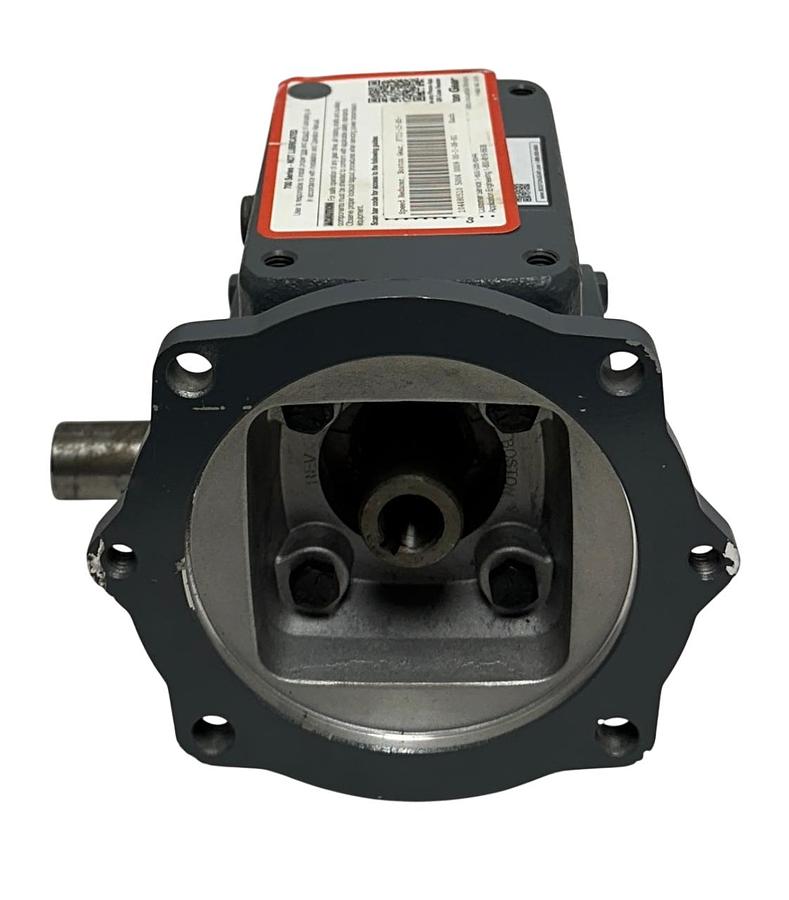

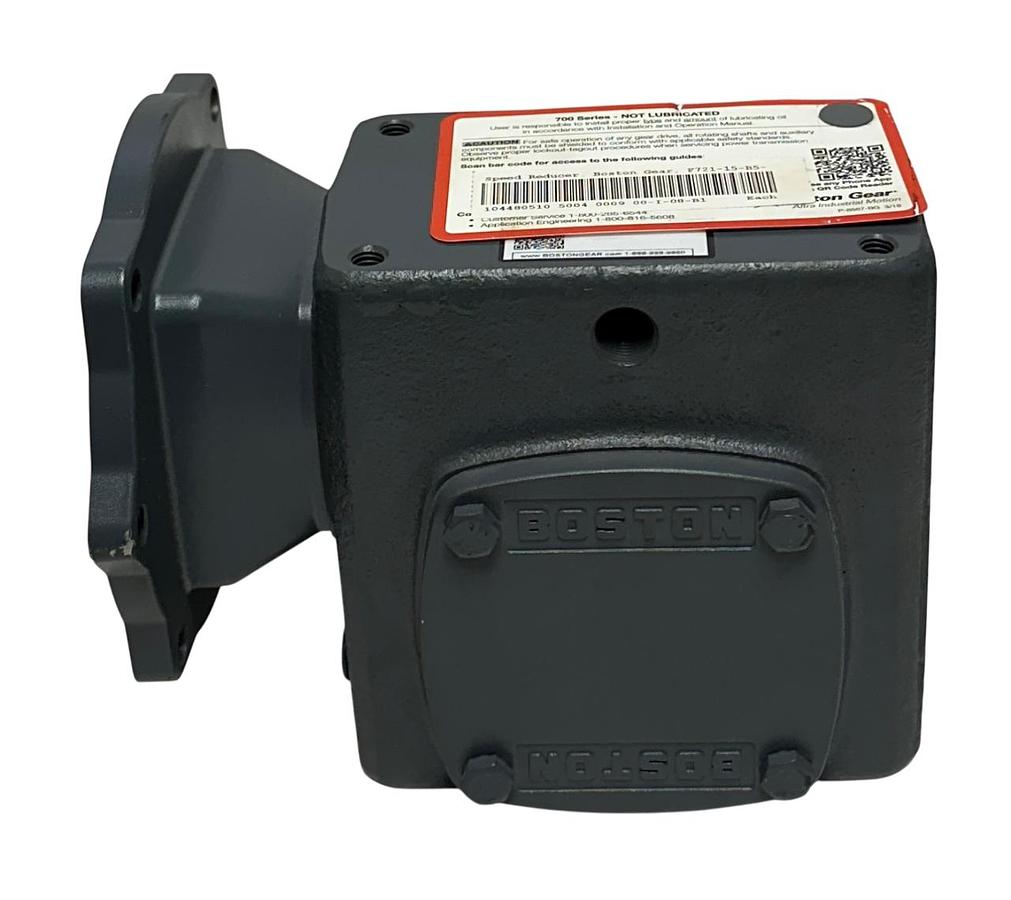

BOSTON GEAR F721-15-B5-G / 51960 RIGHT ANGLE WORM GEAR REDUCER 15:1 RATIO NSNP

BOSTON GEAR F721-15-B5-G / F72115B5G 700 SERIES WORM GEAR REDUCER 15:1 NSNP - Center Distance 2.0600 in - Reduction Single Reduction - Ratio 15:1 - Max Input Horsepower 1.720 hp @ 1750 rpm - Input Type C-Face Quill - Input Size 0.6250 in - Output Type Solid - Output Size 1.0000 in - Output Direction Left Hand - NEMA / IEC Frame Size 56C - Maximum Output RPM 116.700 @ 1750 rpm input - Maximum Output Torque 968 in-lbs @ 100 rpm - Housing Material Cast Iron - Overhung Load Capacity 700 lb - Housing Dimensions 6 x 3.81 x 6.38 in - Housing Height 6.38 in - Housing Length 6.00 in - Housing Width 3.81 in - Standards Met AGMA - Series F700 - Manufacturer Reducer Size 721 - Mounting Type No Base - Manufacturer Upc Number 781711519608 - UPC_NO 781711519608 - Weight 27.00 lbs - Lubrication No Lube - Paint Type Gray Paint CONDITION: NEW SURPLUS NO BOX WARRANTY: 120 DAYS SAME DAY SHIPPING AVAILABLE ON ALL ORDERS MADE BEFORE 4PM EST ________________________________________________________________________________ PALLET 19
