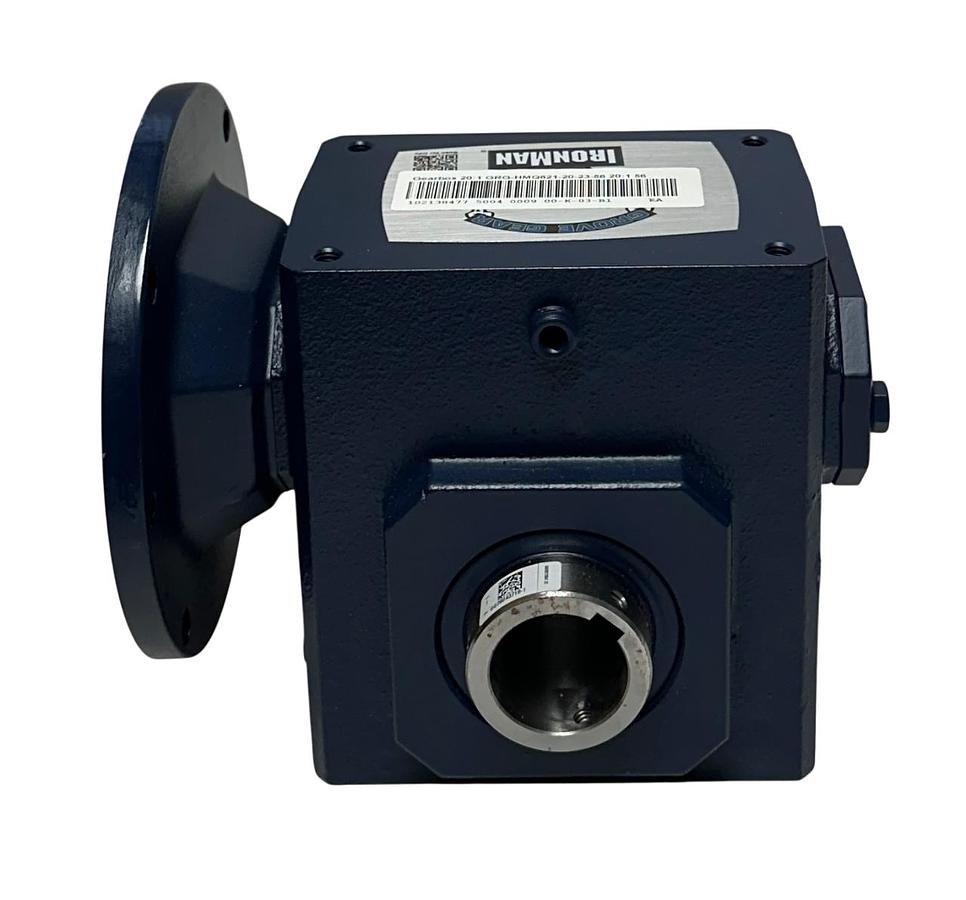

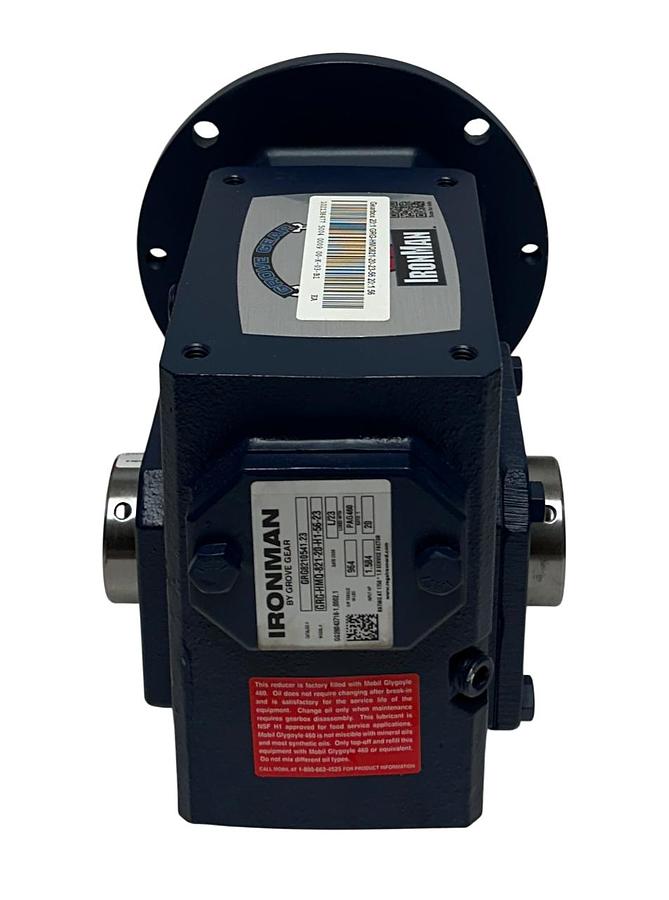

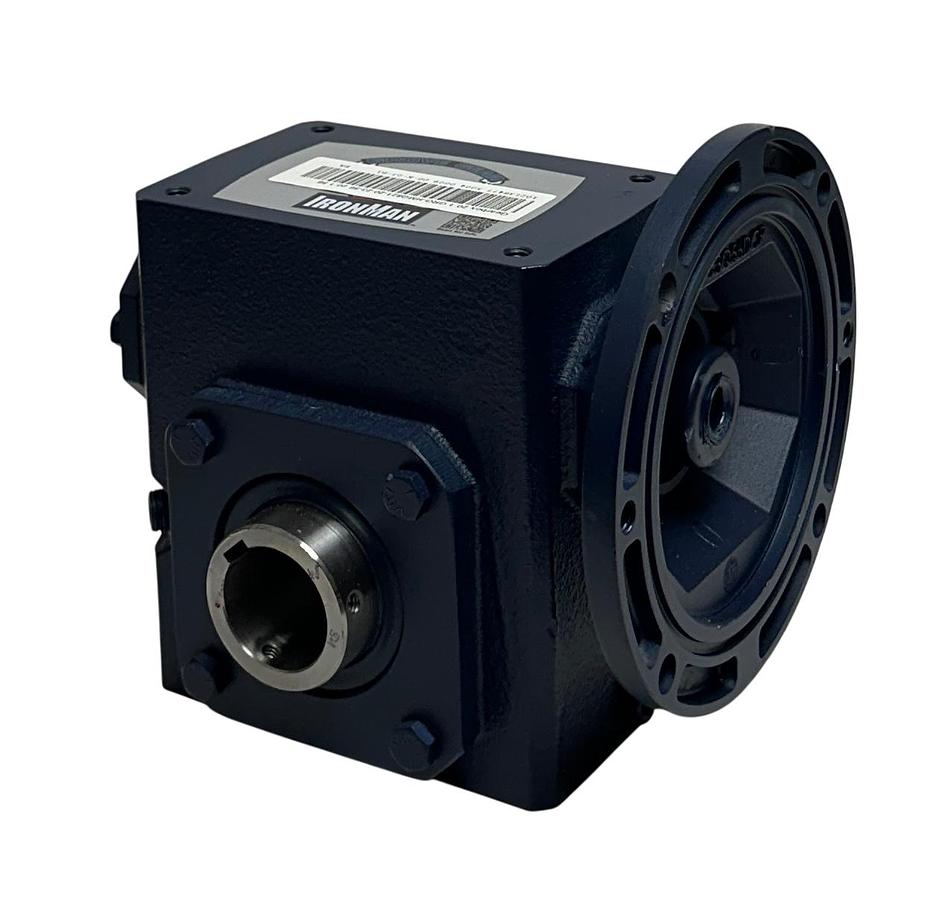

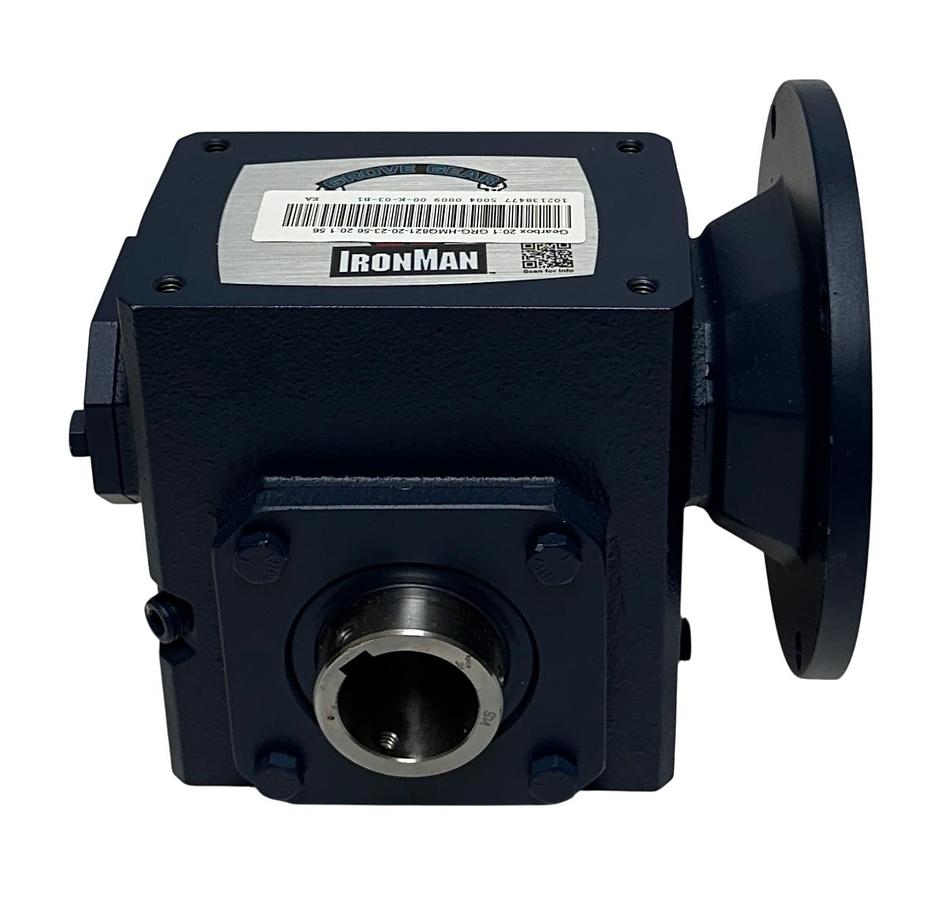

GROVE GEAR IRONMAN GRG-HMQ821-20-H1-56-23 / GRG8210541.23 GEAR REDUCER 20:1 NSNP
$1,400
Description
GROVE GEAR IRONMAN GRG-HMQ821-20-H1-56-23 / GRG8210541.23 GEAR REDUCER 20:1 NSNP
Technical Specifications
Mounting Style: Shaft Mount Reducer Style: Worm - Right Angle
Keyway: 3/16 X 3/32 Output HP: 1.338
Series Code: GRG Input Style: C-Face Quill
Output Shaft Orientation: H1 Output Key: 3/8 X 3.00
Series Type: Cast Iron 800 Worm Gear Reducers Input HP: 1.584
Bore Code: 23 Frame Size: 56C
Input RPM: 1,750 Output Style: H1
Series Style: GRG-HMQ-H1 Output Shaft Assembly Code: H1
Output RPM: 87 No. of Gear Reductions: Single
Ratio: 20:1 Input HP @ 1750 RPM: 1.584
Input Keyway: 3/16 X 1.38 in Thrust Rating - output shaft: 1144
Input Diameter (in): 0.625 in Gear Type: Worm
Product Type: Right Angle Input Keyway (C Face): 3/16 X 3/32
Output Diameter (in): 1.4375 in Series: GR Series - Ironman Worm Gear Reducers
Model Code: HMQ821 Shaft Seal Material: Viton
Ratio Range: 20:1 Center Distance (in): 2.06
Input Bore (C Face): 0.625 Input Quill Diameter (in): 0.625 in
Product Line: GR Series - Ironman Worm Gear Reducers Service Factor: 1
Motor Frame Size: 56 Reducer: Worm - Right Angle
Motor HP Rating: 1.5 Assembly: HMQ-H1
Reduction: Single Output Shaft Direction: H1
Output Shaft: Hollow Bore Overhung Load Rating (Output Shaft(lb)): 1,175 lb
Housing Material: Cast Iron Output Torque Rating (in-lb): 964 in/lbs
CONDITION: NEW SURPLUS NO BOX
WARRANTY: 120 DAYS
SAME DAY SHIPPING AVAILABLE ON ALL ORDERS MADE BEFORE 4PM EST
______________________________________________________________________________________
PALLET 54
Specifications
| Manufacturer | Grove Gear |
| Model | GRG-HMQ-821-20-H1-56-23 |
| Condition | Used |
| Stock Number | 365785920570 |
| Country of Origin | United States |
| LOCATION | PALLET 54 |
| Type | Right Angle Speed Reducer |
| Shaft Orientation | Right Angle |
| Nominal Ratio | 20:1 |
