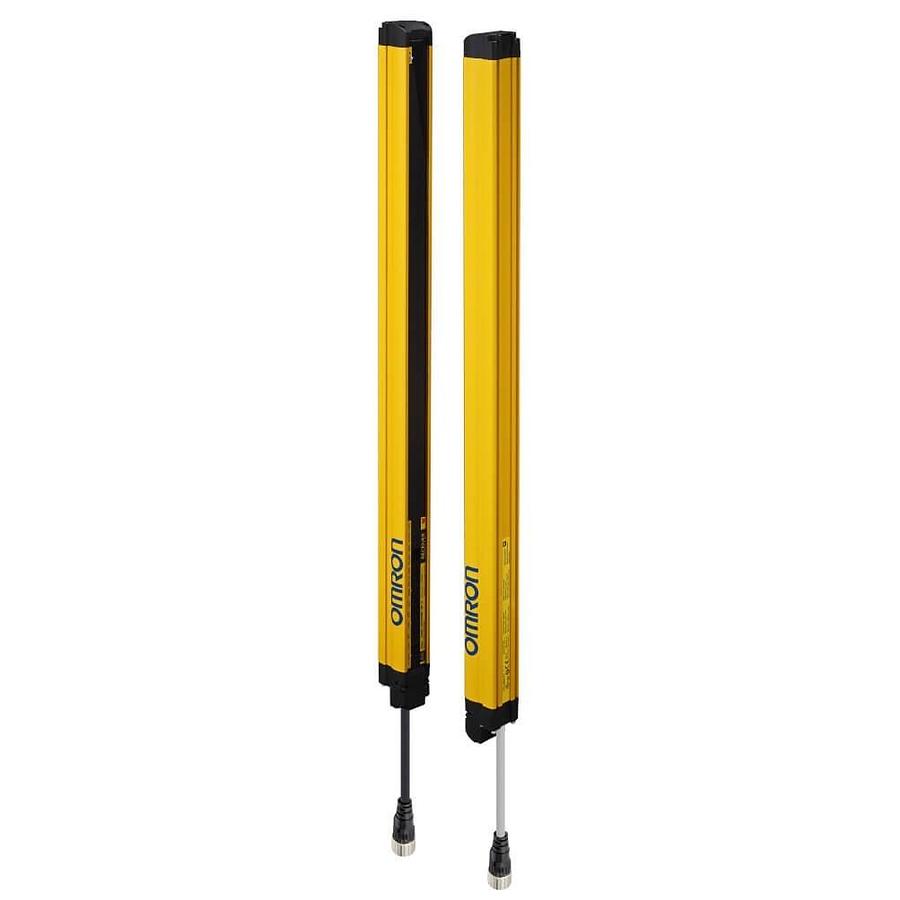

OMRON STI F3SG-4RA1040-14 F3SG-RA SAFETY LIGHT CURTAIN SET 14x1040mm NSMP
$4,250
Description
OMRON STI F3SG-4RA1040-14 F3SG-RA SAFETY LIGHT CURTAIN SET 24V 14mmx1040mm NSMP
Specifications
Type of safety according to IEC 61496-1 4
Type of protection Finger protection
Detection capability 14 mm
Safety field height 1040 mm
Beam gap 10 mm
Number of beams 103
Number of protected semiconductor outputs 2
Number of semiconductor outputs with signalling function 1
Maximum safety range 10 m
Minimum operating distance 0.3 m
Response time 13 ms
Cascadable
With muting function
With beam coding
Type of switching output of the OSSD PNP/NPN
Communication port(s) USB
Suitable for safety functions
Scope of delivery Transmitter and receiver
Wavelength of the sensor 870 nm
Connection method M12 pigtail Smartclick connector
Supply voltage DC 19.2-28.8 V
Voltage type DC
Max. output current at protected output 300 mA
Degree of protection (IP) IP67
Ambient temperature -10-55 °C
Overall length of sensor 1088 mm
Height of sensor 35 mm
Width of sensor 35 mm
1040mm Protected Height Cascadable Advanced Type Light Curtain; Object Resolution:14 mm; Type 4; Safety Outputs:2 PNP/NPN Selectable, 300 mA at 24 VDC; Muting:; Monitored Blanking:; Floating Blanking:Yes; Auxiliary Output:1 PNP/NPN Selectable, 100 mA at 24 VDC; Cascading:Yes, up to 3 Segments
CONDITION: NSMP - New Surplus Manufacturer Package (OEM)
WARRANTY: 120 DAYS (LIMITED 1 YEAR)
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
________________________________________________________________________________
PALLET 146
Specifications
| Manufacturer | Omron |
| Model | F3SG-4RA1040-14 |
| Condition | Used |
| Stock Number | 317133336278 |
| Country of Origin | United States |
| LOCATION | PALLET 146 |
| Termination Type | Cable with Connector |
| HTSUS | 8541.49.8000 |
