TTP THERMAL TRANSFER PRODUCTS C-1236-6-6-T-SS-SB-S HEAT EXCHANGER 2-PASS 97735

$6,250

Description

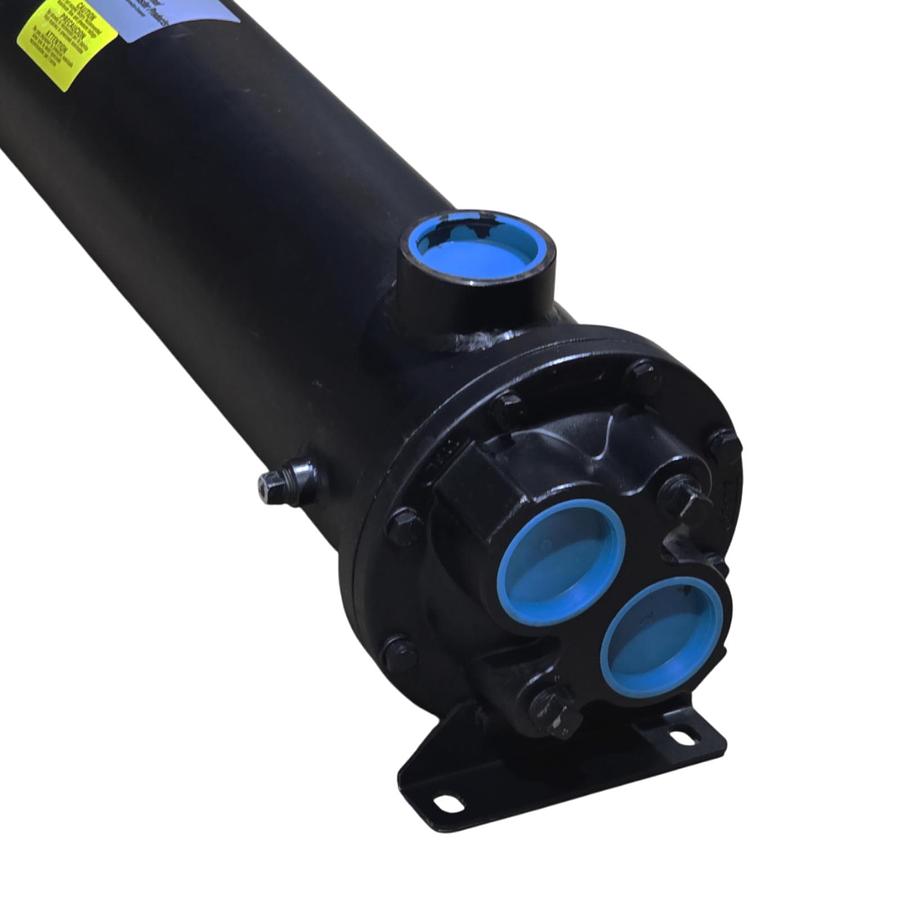

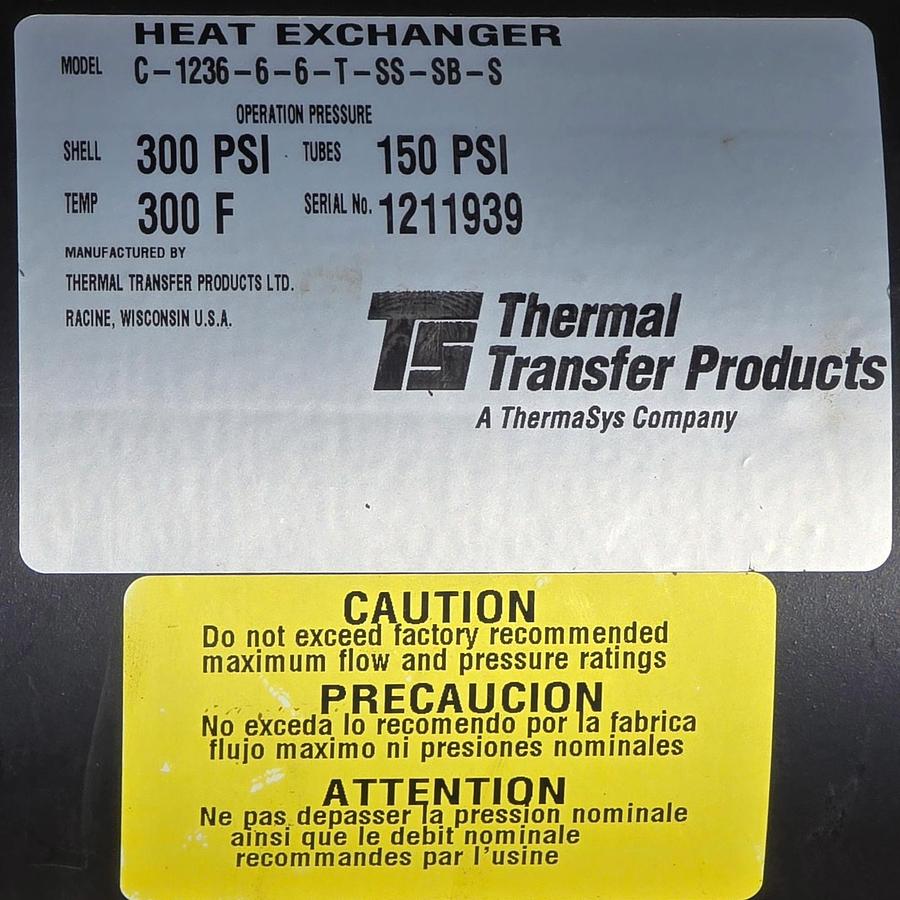

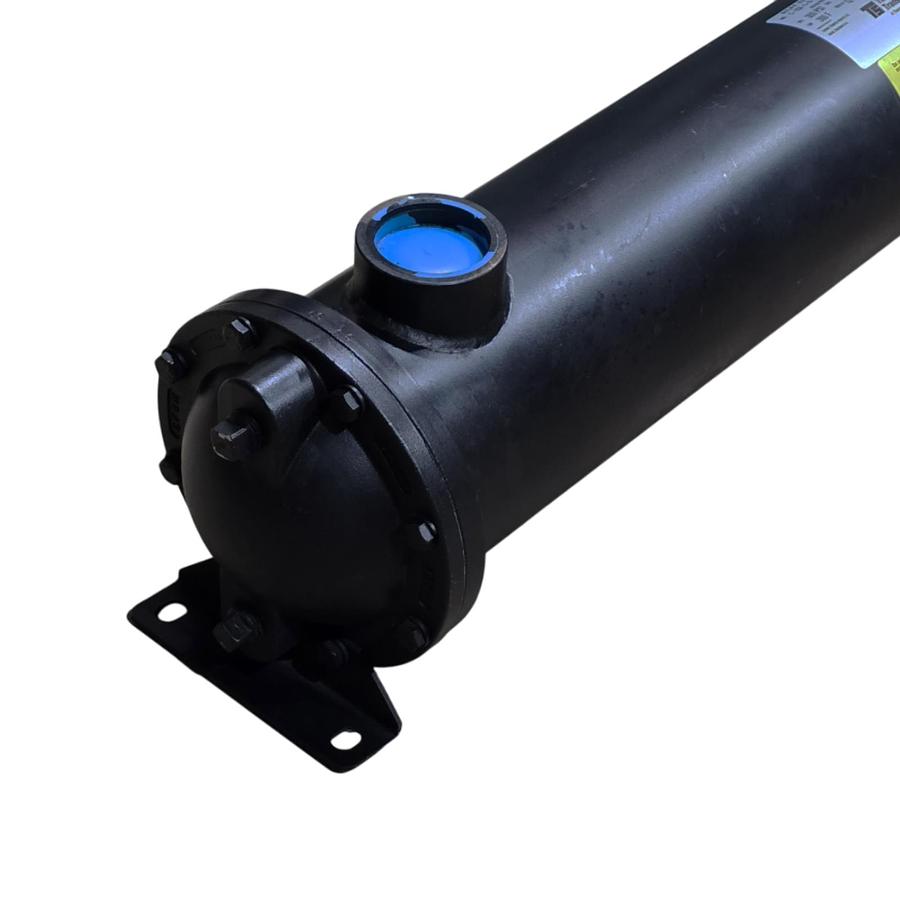

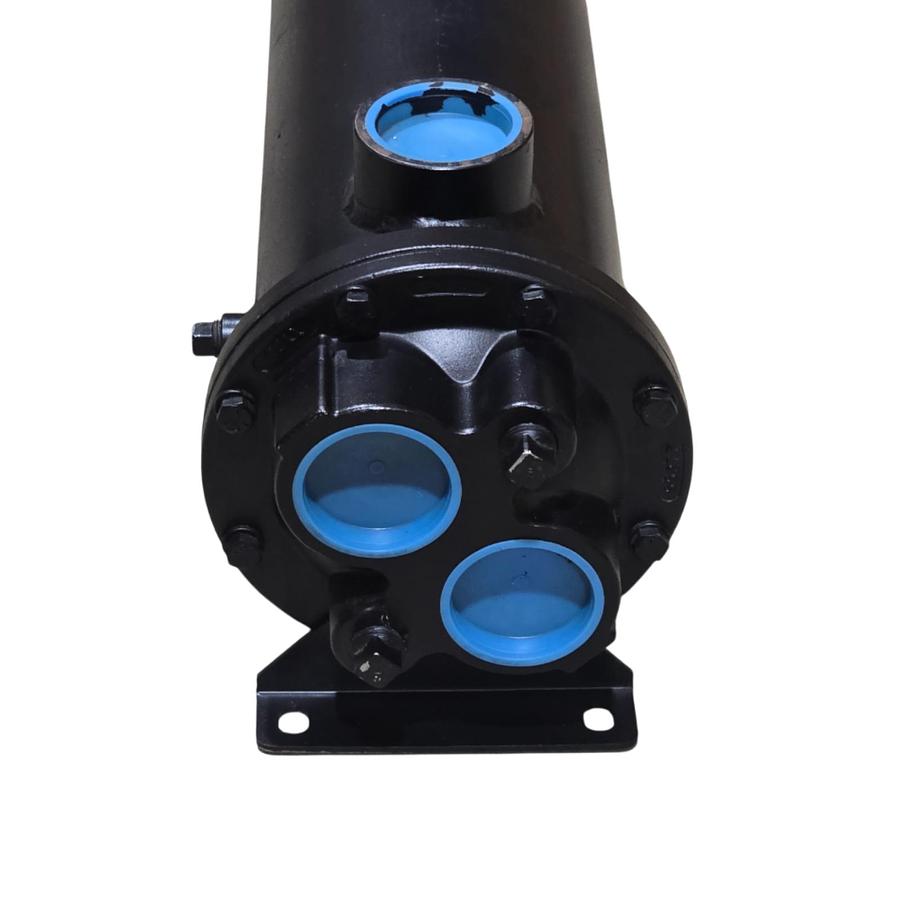

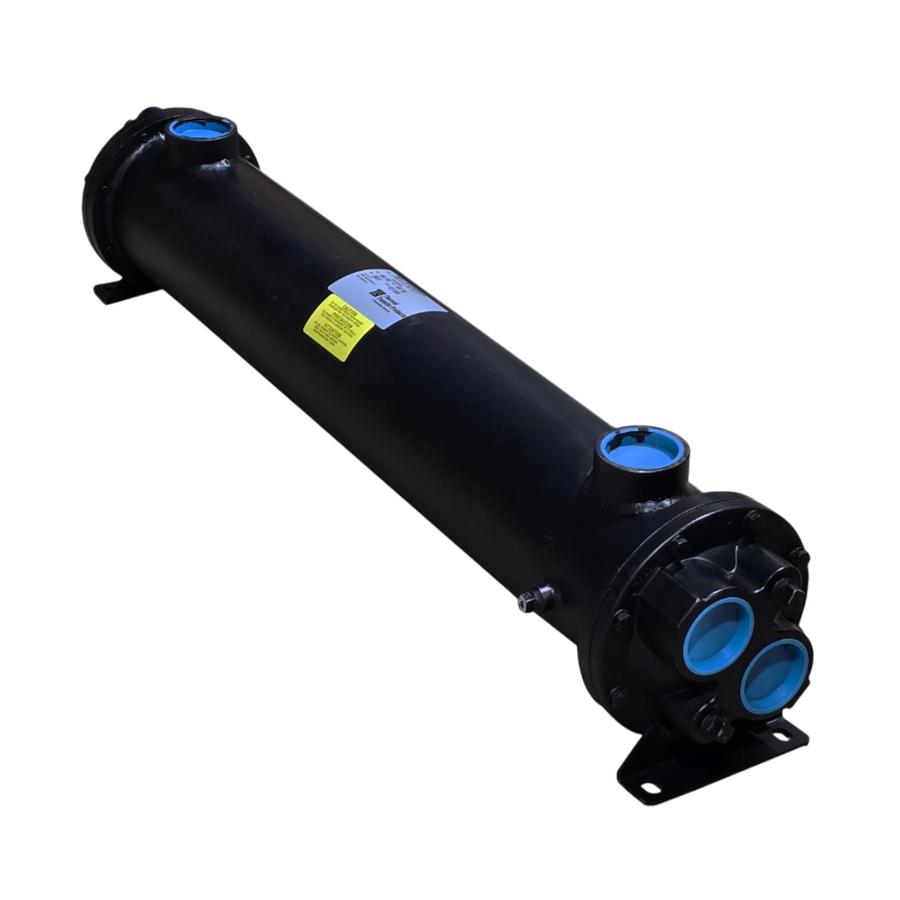

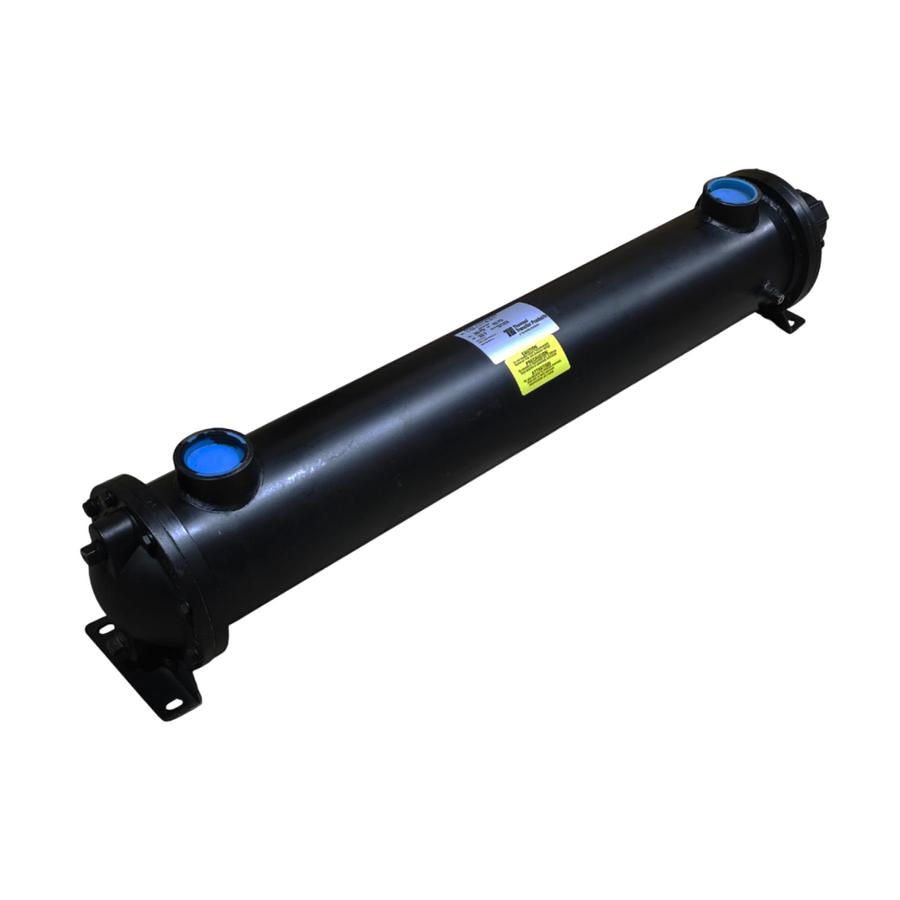

TTP THERMAL TRANSFER PRODUCTS C-1236-6-6-T-SS-SB-S HEAT EXCHANGER 2-PASS 97735 Description This C-1236-6-6-T-SS-SB-S is a TTP C Series, the industry mainstay of shell and tube fluid cooling spanning several decades. This cost-effective, rugged 2-pass heat exchanger offers reliable heat transfer for a variety of industrial cooling applications including but not limited to: water, hydraulic oil, and compressed air. The fixed tubesheet design is also a common interchange for BASCO series units. P/N C-1236-6-6-T-SS-SB-S comes standard with a 6-inch diameter steel shell, 0.375-inch 316 Stainless Steel tubes, 316 Stainless Steel tubesheet with 316 Stainless Steel end bonnets. This unit has a maximum working shell pressure of 300 PSI, tube pressure of 150 PSI, and maximum operating temperature of 300F. The C Series unit is available with optional corrosion resistant materials such as 90/10 copper nickel (CuNi) tubing, bronze bonnets, and zinc anodes, as well as partial or all 316 Stainless Steel construction. Product Overview Part Number: C-1236-6-6-T-SS-SB-S Series: C Brand: Thermal Transfer / TTP Configuration & Size Size: 6" Diameter Shell x 36" Tube Length Connections: 2" NPT Baffle Spacing: 6" Baffles Cooling Tube Diameter: 0.375" Tubing Tube Side Passes: Two Pass Materials of Construction - Tubes: 316 Stainless Steel - Tubesheet: 316 Stainless Steel - Shell: Steel - End Bonnets: 316 Stainless Steel - Namplate: Aluminum Max Rating - Shell Pressure: 300 PSI - Tube Side Pressure: 150 PSI - Temperature: 300F CONDITION: NSMP - New Surplus Manufacturer Package (OEM) WARRANTY: 120 DAYS SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) ________________________________________________________________________________ Pallet 194

Specifications

ManufacturerThermal Transfer Products
ModelC-1236-6-6-T-SS-SB-S
ConditionUsed
Stock Number317052181658
Connections2" NPT
LOCATIONPallet 194
Temperature300F
Size6" Diameter Shell x 36" Tube Length
ColorBlack
MaterialSteel, 316 Stainless Steel
Tube Side PassesTwo Pass
Tube Side Pressure150 PSI
TypeShell & Tube Heat Exchanger
Cooling Tube Diameter0.375" Tubing
Shell Pressure300 PSI
Country of OriginUnited States
Baffle Spacing6" Baffles
