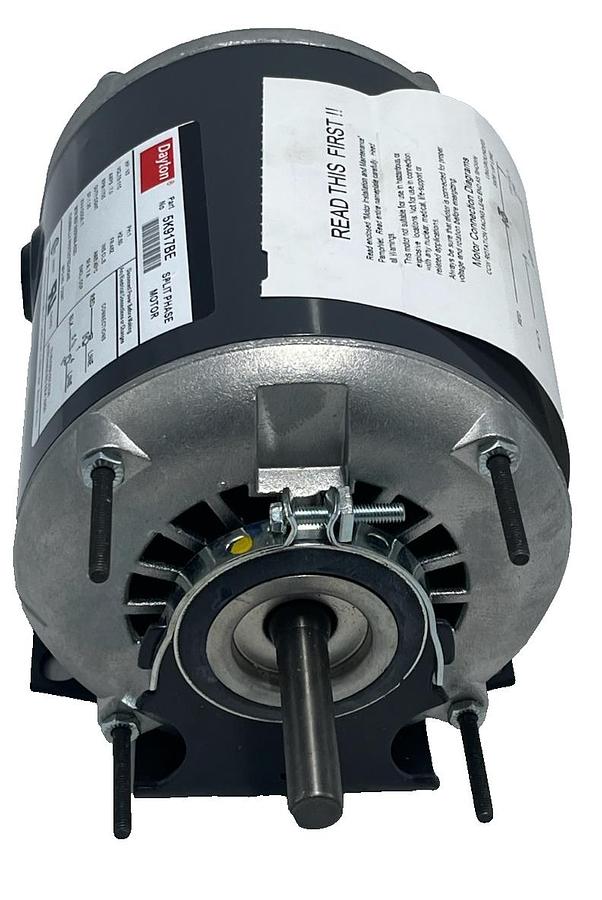

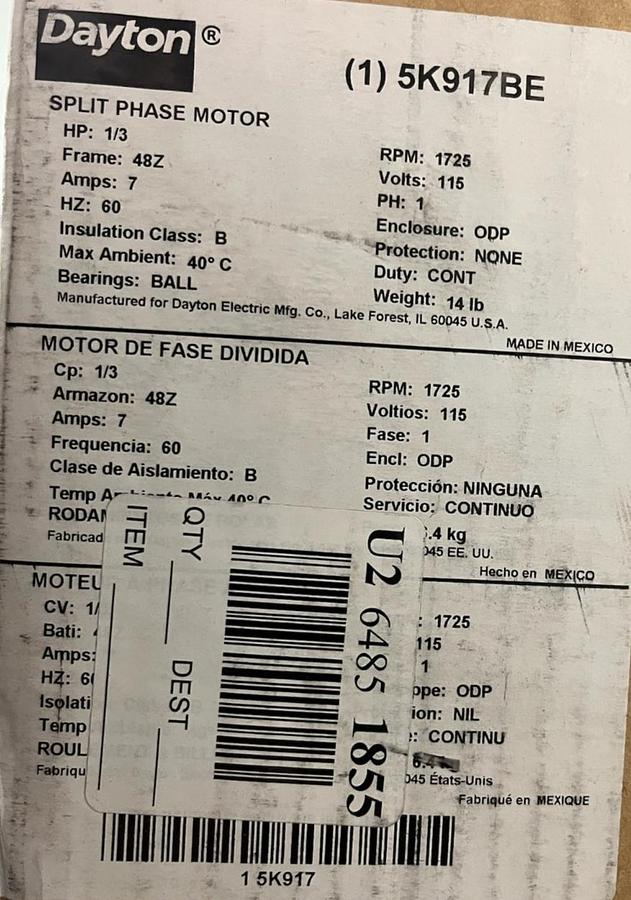

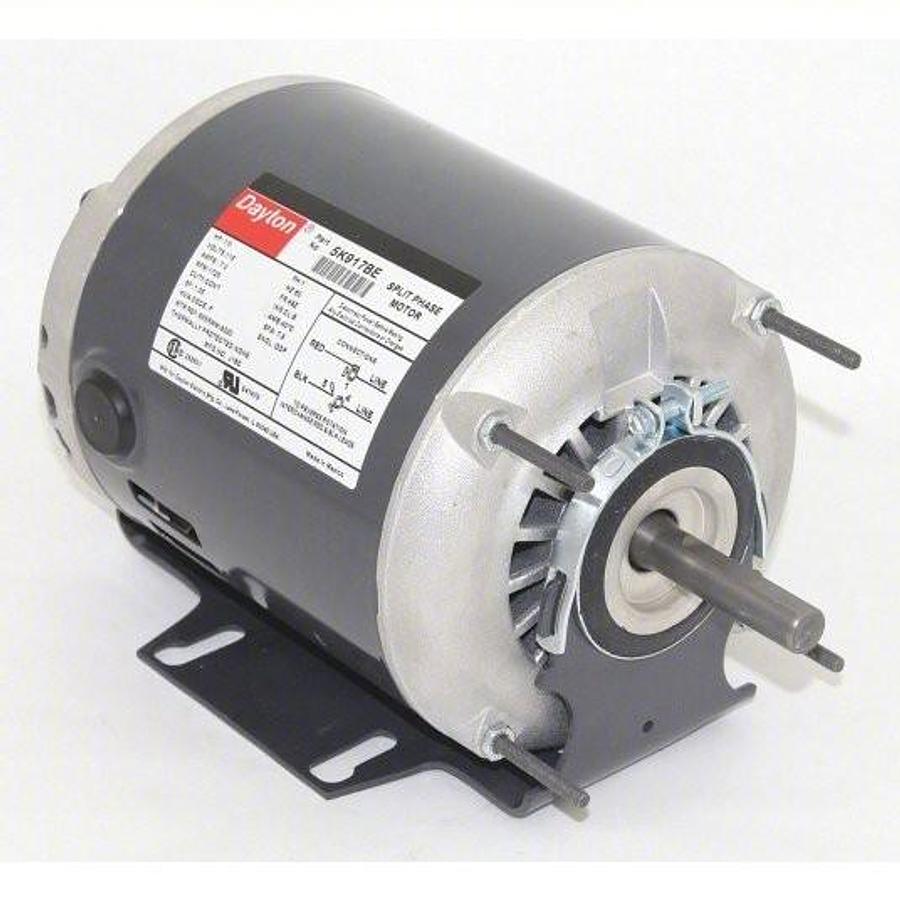

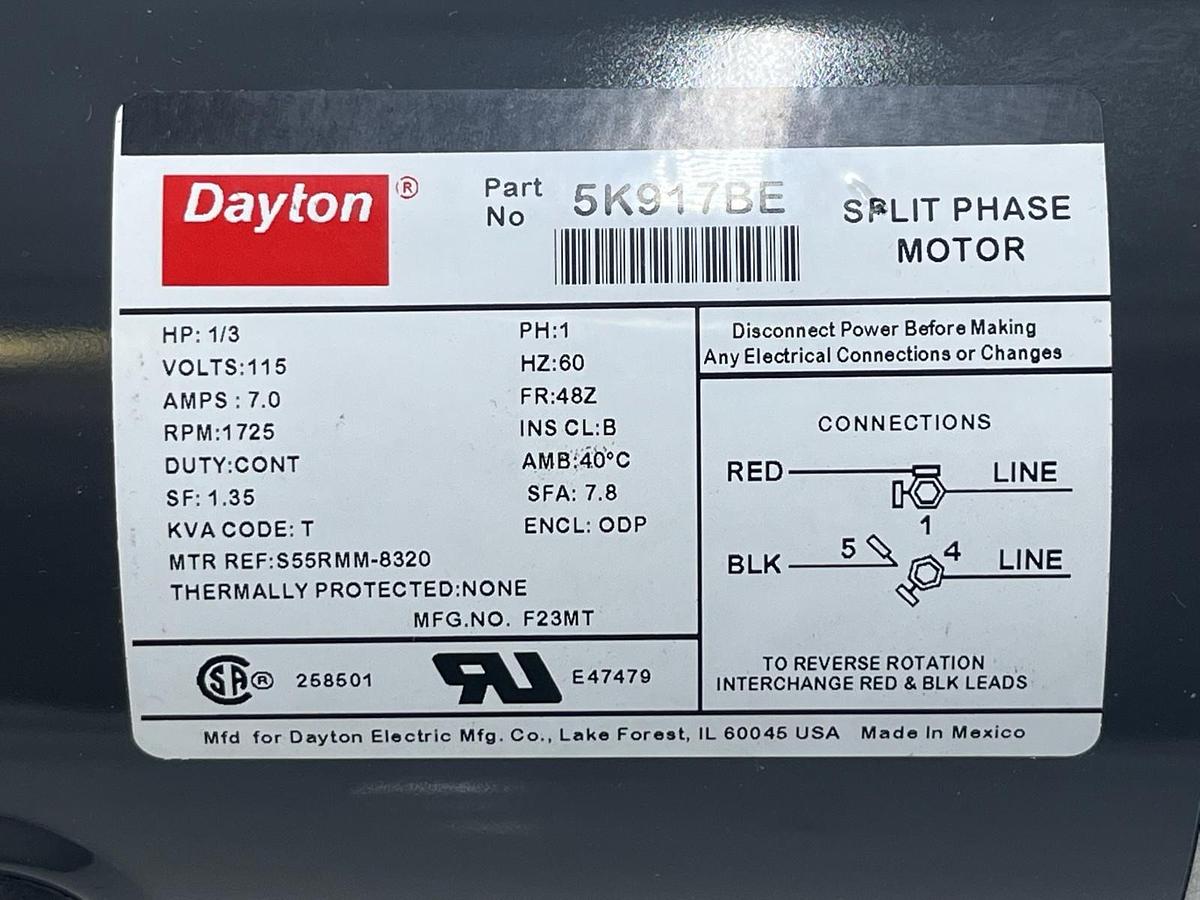

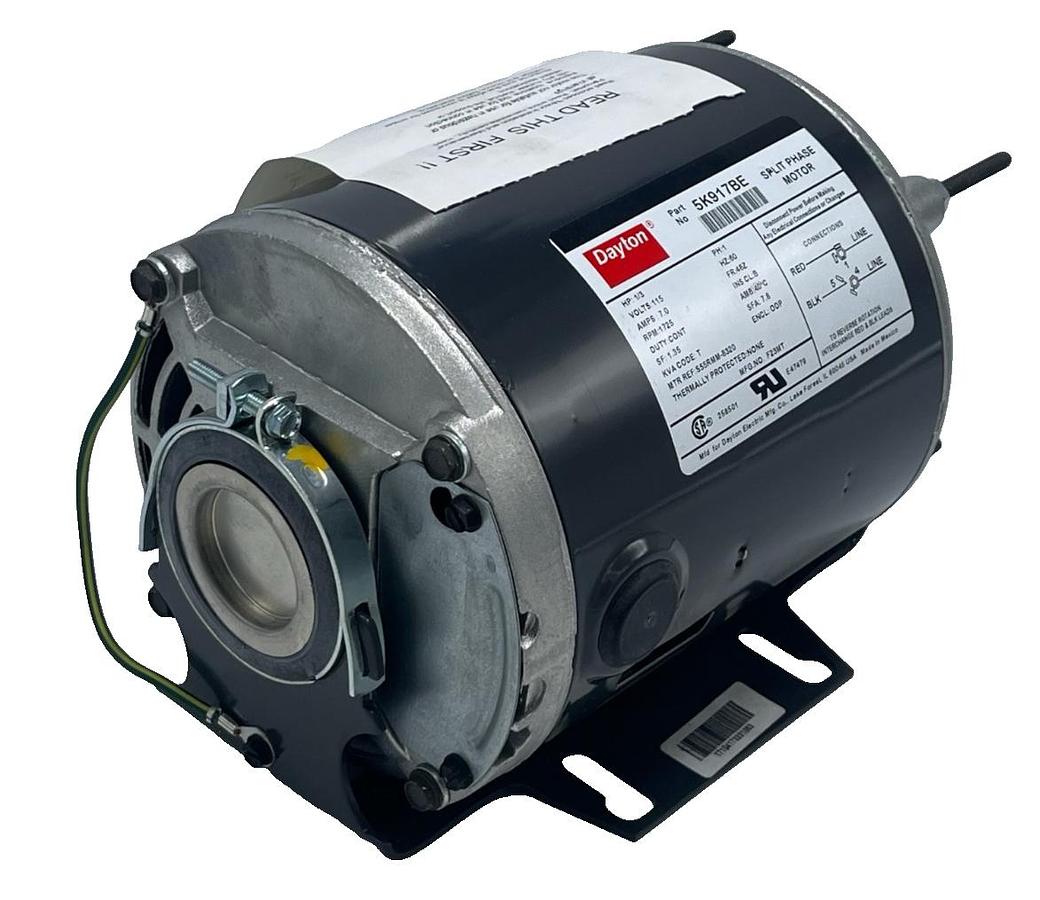

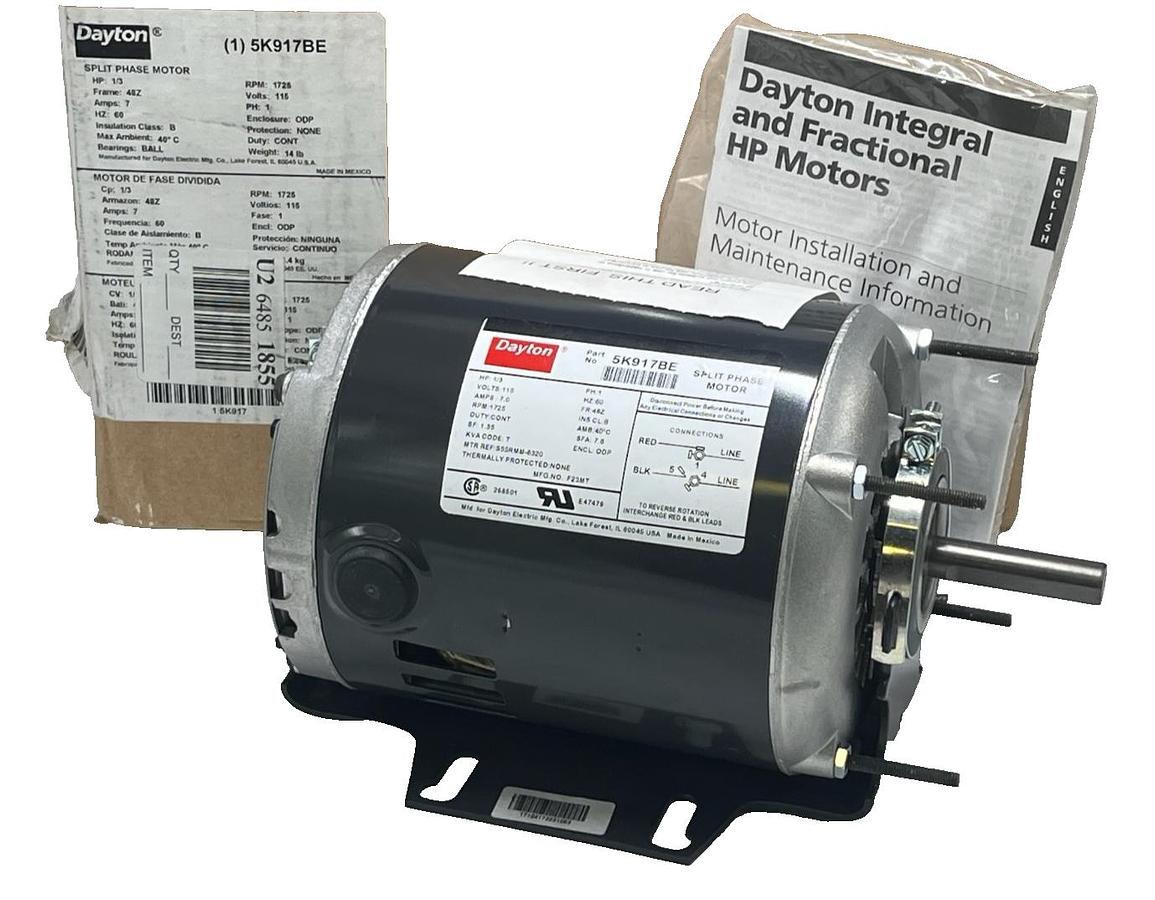

Dayton 5K917BE Split Phase Motor 1/3 HP 1725 RPM 115V 48Z Frame ODP
$225
Description
Dayton 5K917BE Split Phase Motor 1/3 HP 1725 RPM 115V 48Z Frame ODP Technical Specifications: - Model Number: 5K917BE (Replacement for standard 5K917) - Horsepower: 1/3 HP - Speed: 1725 RPM - Phase: Single Phase (1 PH) - Voltage: 115V AC - Full Load Amps: 7.0 A - Frame Size: 48Z - Enclosure: ODP (Open Dripproof) - Shaft Diameter: 1/2" (Flat shaft design) - Shaft Length: 1-7/8" - Mounting: Cradle Base / Foot Mounted - Rotation: Reversible (CW/CCW) Key Features: - Reliable Performance: Designed for continuous duty in industrial and laboratory settings. - Ball Bearing Construction: Ensures quiet operation and a long service life. - Standard Efficiency: 54.3% nominal efficiency, perfect for general applications. - Versatile Fit: Fits many stirrer assemblies and small machinery requiring a 48Z frame. CONDITION: NSMP - New Surplus Manufacturer Package (OEM) WARRANTY: 120 DAYS SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) SELL YOUR SURPLUS PremiumPLC BUYS ALL TYPES OF NEW AND USED INDUSTRIAL AUTOMATION & MRO SURPLUS ________________________________________________________________________________ PALLET 40
Specifications
| Manufacturer | Dayton |
| Model | 5K917BE |
| Condition | Used |
| Stock Number | 198066449114 |
| Actual Rated Input Voltage | ["115 V", "115"] |
| Full Load Amps | 7.0 |
| Rated Load (HP) | 1/3 |
| AC Frequency Rating | 60 Hz |
| Enclosure Type | TEFC (Totally Enclosed Fan Cooled) |
| Base RPM | 1725 |
| Shaft Type | Keyed |
| AC Motor Type | Induction/Asynchronous |
| Insulation Class | B (Max 266°F) |
| Mounting Type | Base-Mounted |
| Reversible/Non-Reversible | Reversible |
| Current Type | AC |
| Protection Against Liquids | Dripping Water |
| Nominal Rated Input Voltage | 115 V |
| Location | PALLET 40 |
| AC Phase | Single Phase |
| NEMA Frame Suffix | Z (Non-Standard NEMA Shaft) |
| Protection Against Solids | Not Protected |
