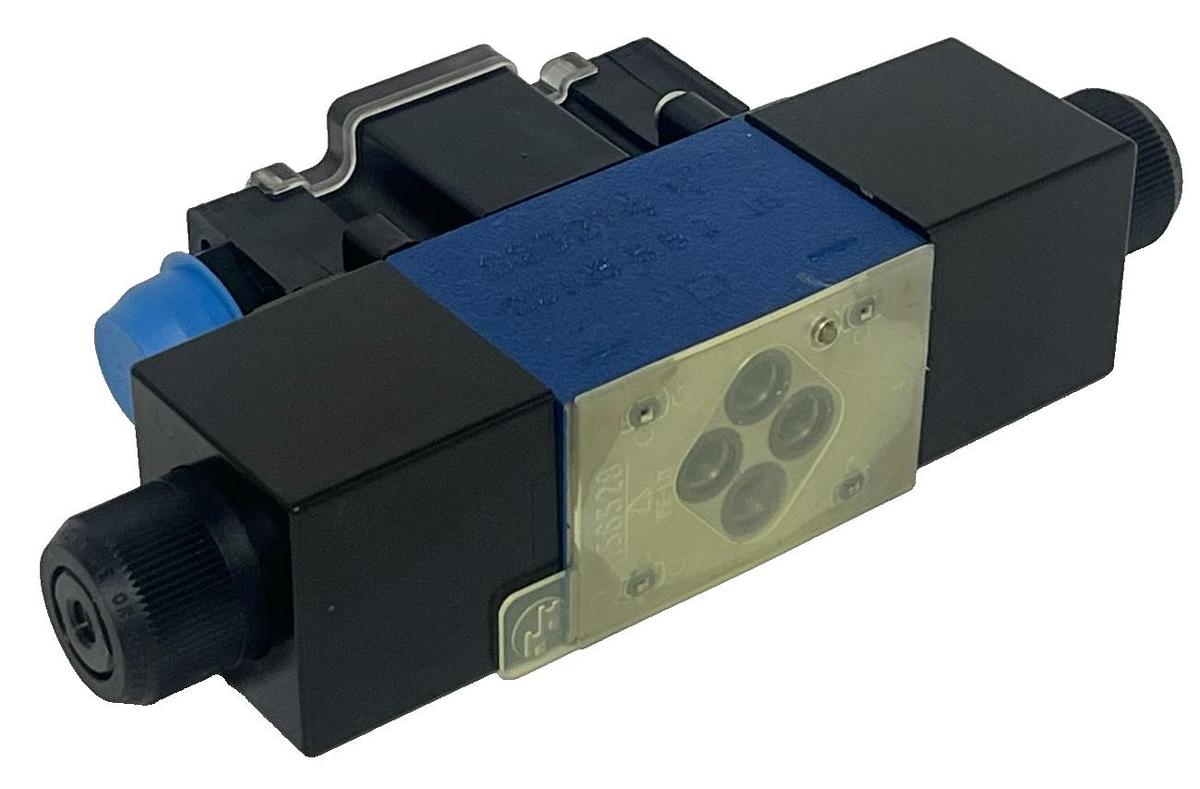

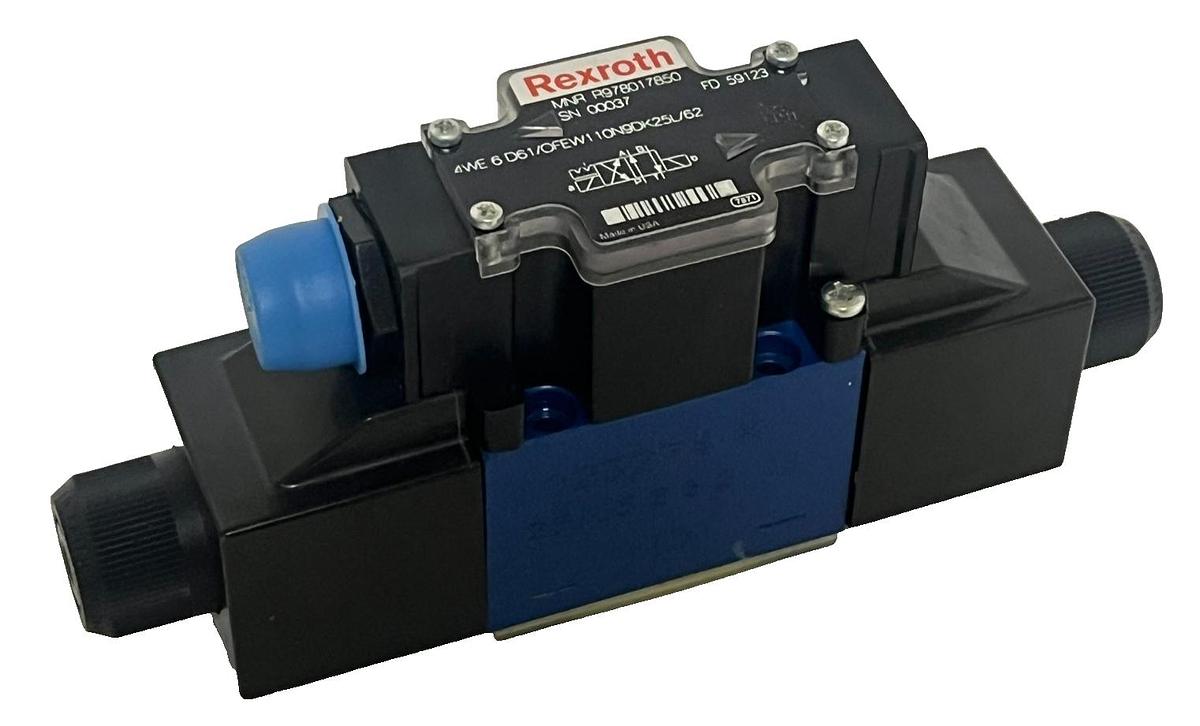

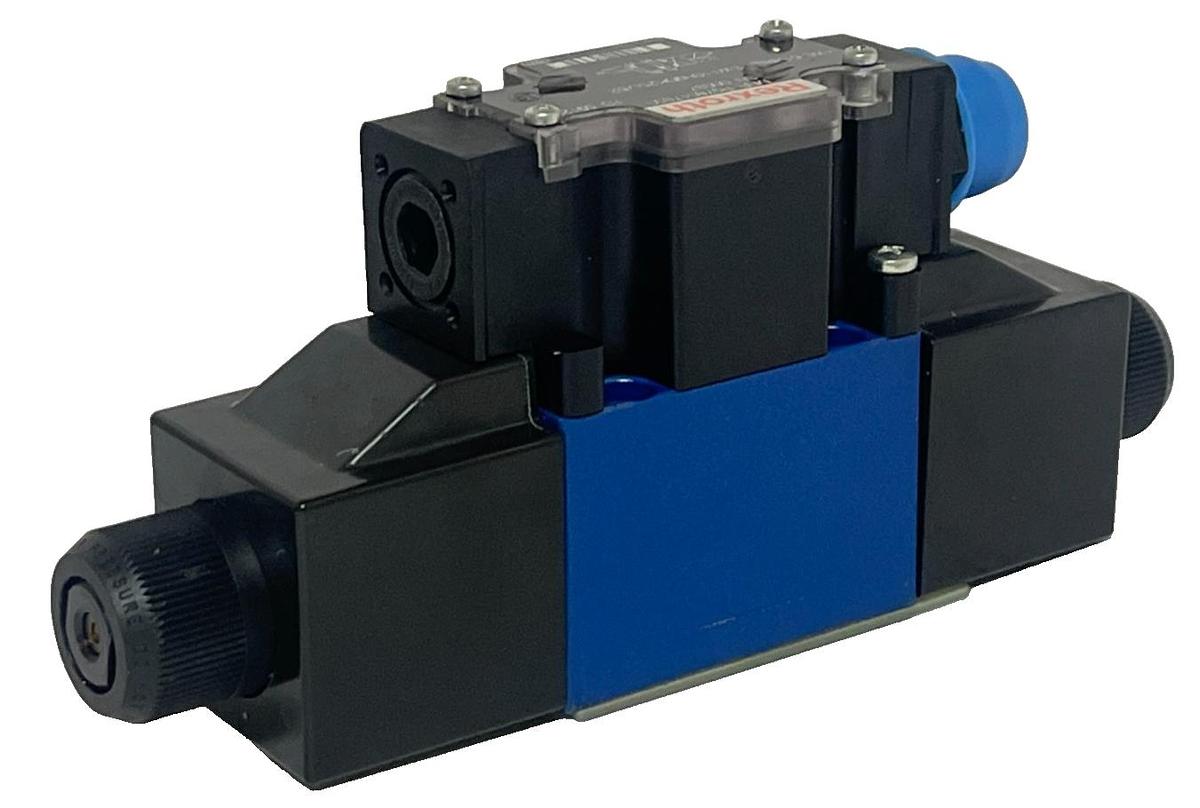

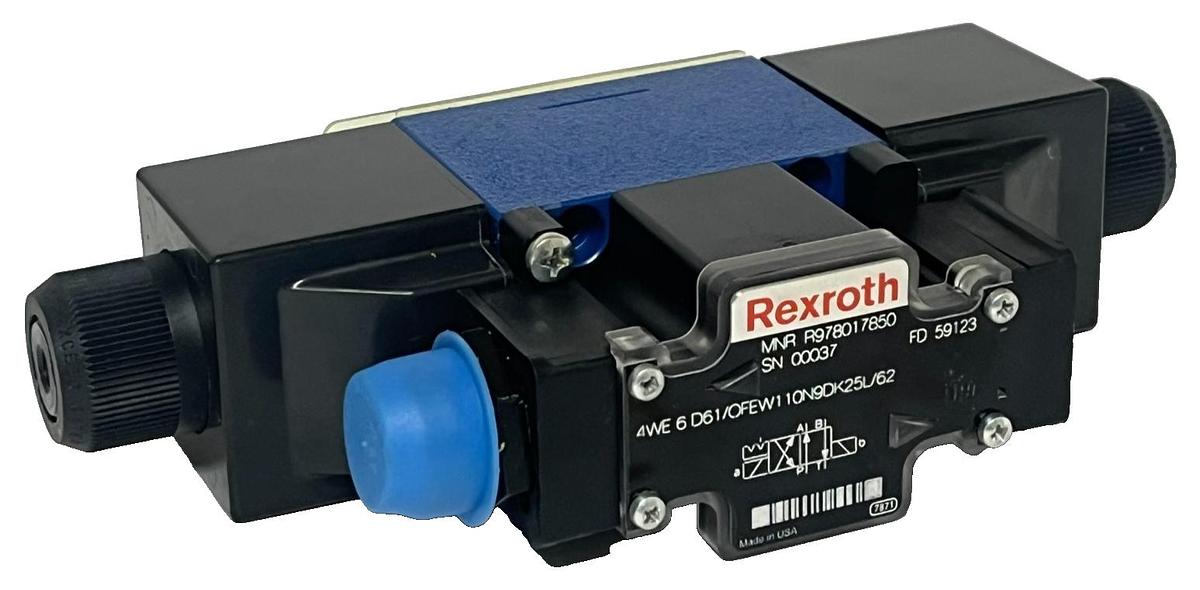

Bosch Rexroth R978017850 Directional Spool Valve - 4WE 6 D62/OFEW110N9DK25L/62

$250

Description

Bosch Rexroth R978017850 Directional Spool Valve - 4WE 6 D62/OFEW110N9DK25L/62 Technical Specifications: - Part Number: R978017850 - Model Code: [4WE 6 D62/OFEW110N9DK25L/62](https://oman.whizzcart.com/product/22059062/rexroth-bosch-r978017850-valve-4we-6-d62-ofew110n9dk25l-62/) - Valve Type: [Directional Spool Valve](https://store.evolutionmotion.com/products/R978017850) (Direct Actuated) - Configuration: 4-Way, 2-Position (4/2) - Spool Symbol: D (With Detent) - Control Voltage: 110V AC (50/60 Hz) / 120V AC (60 Hz) - Max Flow Rate: Approx. [16 GPM (60 L/min)](https://store.evolutionmotion.com/products/R978017850) - Max Operating Pressure: 350 bar (5076 psi) - Electrical Connection: 5-pin male connector (with LED status indicator) - Manual Override: Concealed "N9" type - Seals: NBR (Buna-N) Key Features: - Detent Spool: The "D" symbol with detent ensures the spool remains in its last switched position even after the solenoid is de-energized. - Heavy-Duty Build: Designed for high-pressure industrial applications with high-power wet-pin solenoids and detachable coils. - Subplate Mounting: Standardized porting pattern according to [ISO 4401-03-02-0-05](https://buyrexroth.com/product/R978017815) and NFPA T3.5.1 R2 D03. - Integrated LED: Provides clear visual confirmation of the electrical switching state directly on the valve connector. CONDITION: NSNP - New Surplus No Manufacturer Package (OEM) WARRANTY: 120 DAYS SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) ________________________________________________________________________________ 2043

Specifications

ManufacturerRexroth
ModelR978017850
ConditionUsed
Stock Number317771157739
