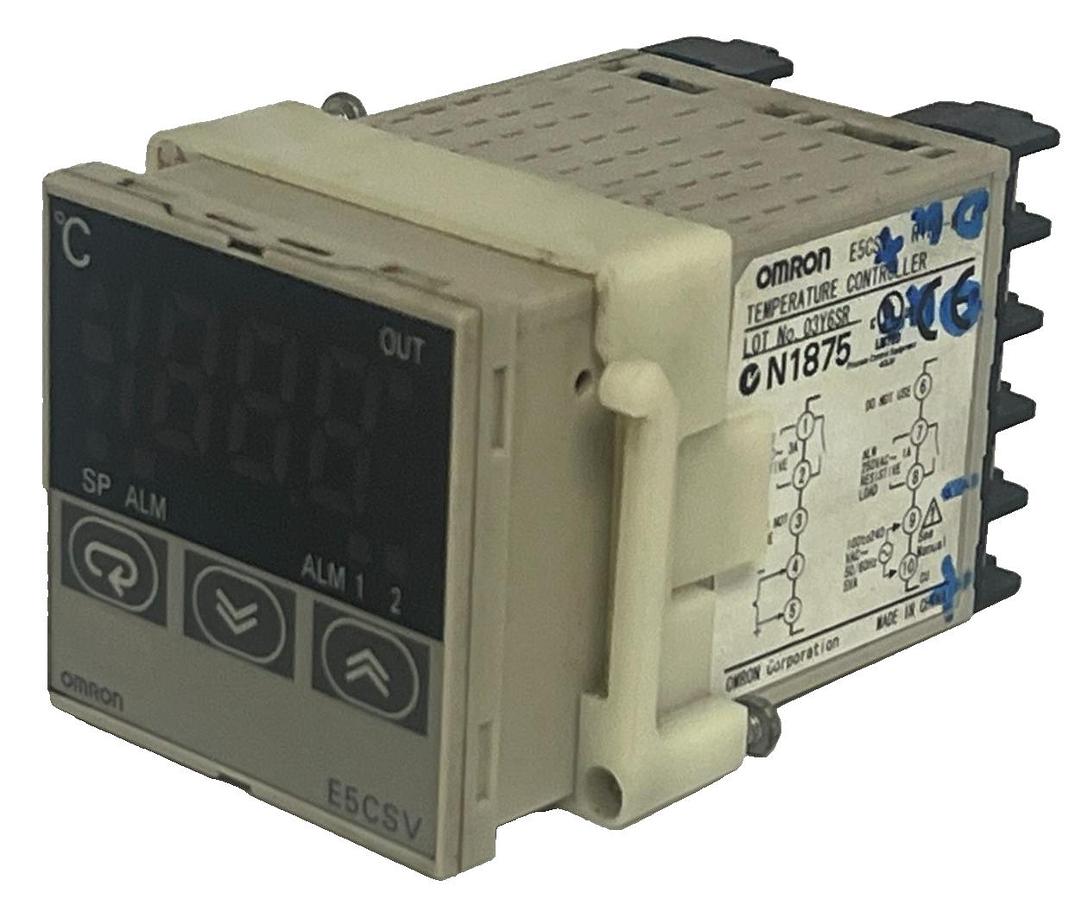

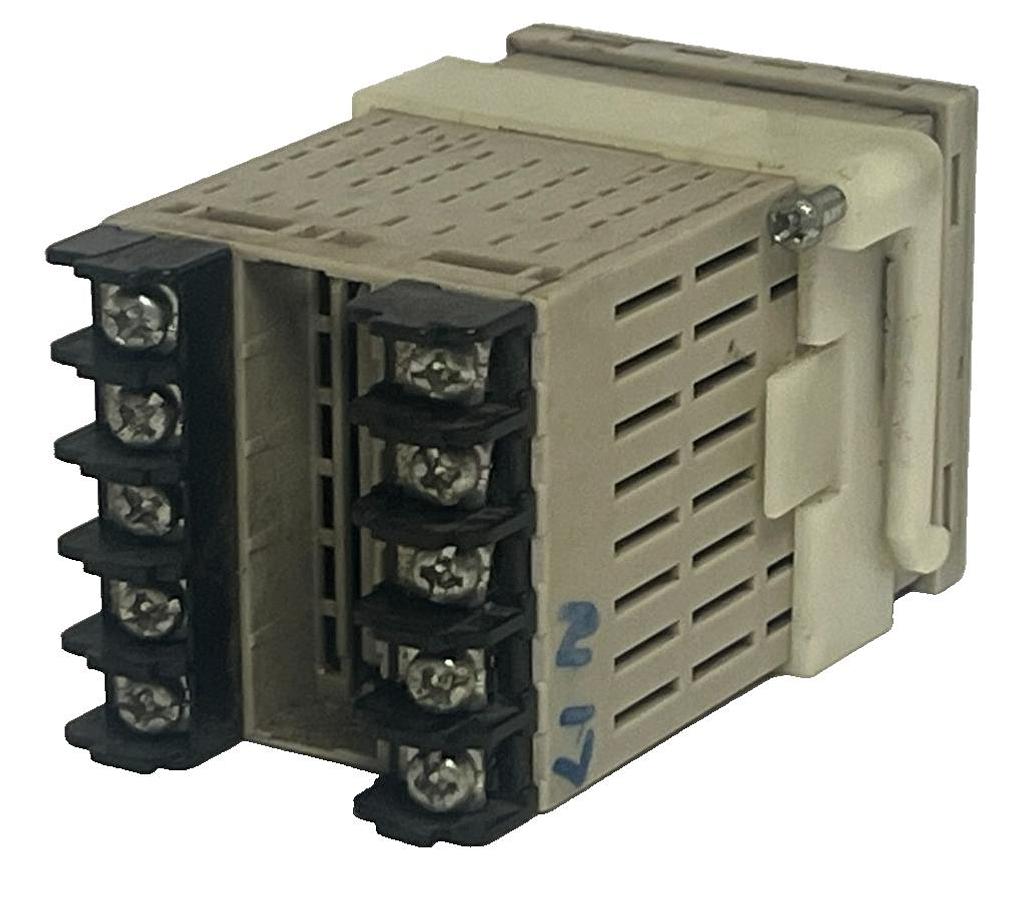

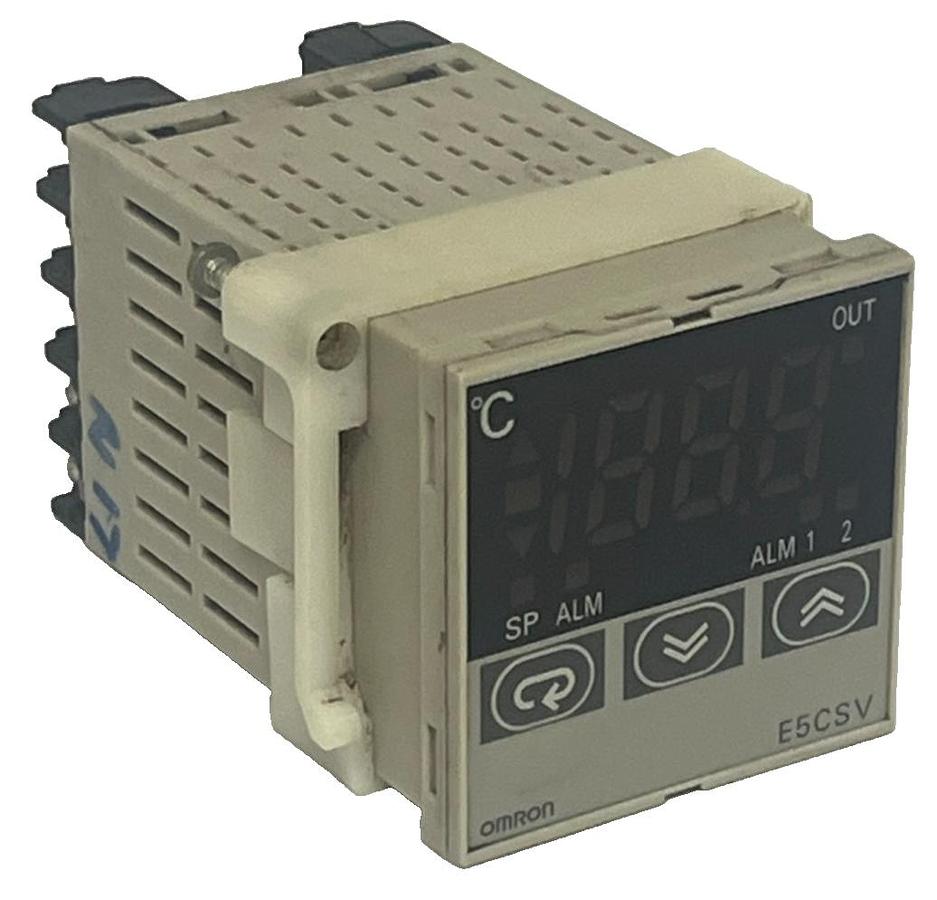

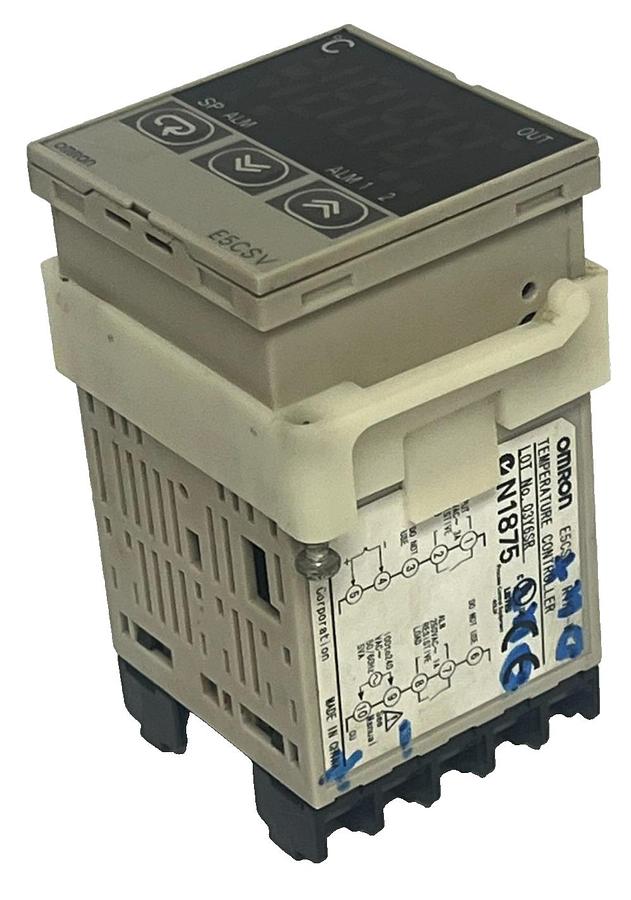

OMRON E5CSV-R1KJ-W Temperature Controller 1/8 DIN Relay Output K TC Input
$149.95
Description
OMRON E5CSV-R1KJ-W Temperature Controller 1/8 DIN Relay Output K TC Input E5CSVR1KJW
LIGHTLY USED IN GOOD CONDITION
Key Features:
- Universal Input: Configurable for standard Type K, J, T thermocouples and Pt100 RTDs (selectable via internal dip switches).
- Simple ON/OFF Control: Ideal for basic temperature maintenance applications where advanced PID tuning is not required.
- 1/8 DIN Standard: Industry-standard panel-mount size (48x96mm) for easy integration into existing control cabinets.
- Multi-Voltage Operation: Works on 100V, 120V, 208V, or 240V AC supplies.
- Genuine Omron Part: Ensures reliability, longevity, and adherence to industrial performance standards (UL/CSA/CE certified).
- High Visibility Display: Clear 4-digit LED display for easy setpoint monitoring.
Technical Specifications (2026 Reference Data):
Feature Detail
Manufacturer Omron Automation
Part Number E5CSV-R1KJ-W
Size 1/8 DIN (48 x 96mm Bezel)
Supply Voltage 100–240 VAC, 50/60 Hz
Input Type Multi-input (TC/RTD selectable)
Output Type Relay Output
Control Method ON/OFF Control
Enclosure Rating IP65 (Front Panel)
---------------------------------------------------------------
CONDITION: USPI - Used Surplus Previously Installed (OEM)
WARRANTY: 90 DAYS
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
________________________________________________________________________________
2042
Specifications
| Manufacturer | Omron |
| Model | E5CSV-R1KJ-W |
| Condition | Used |
| Stock Number | 198028478675 |
