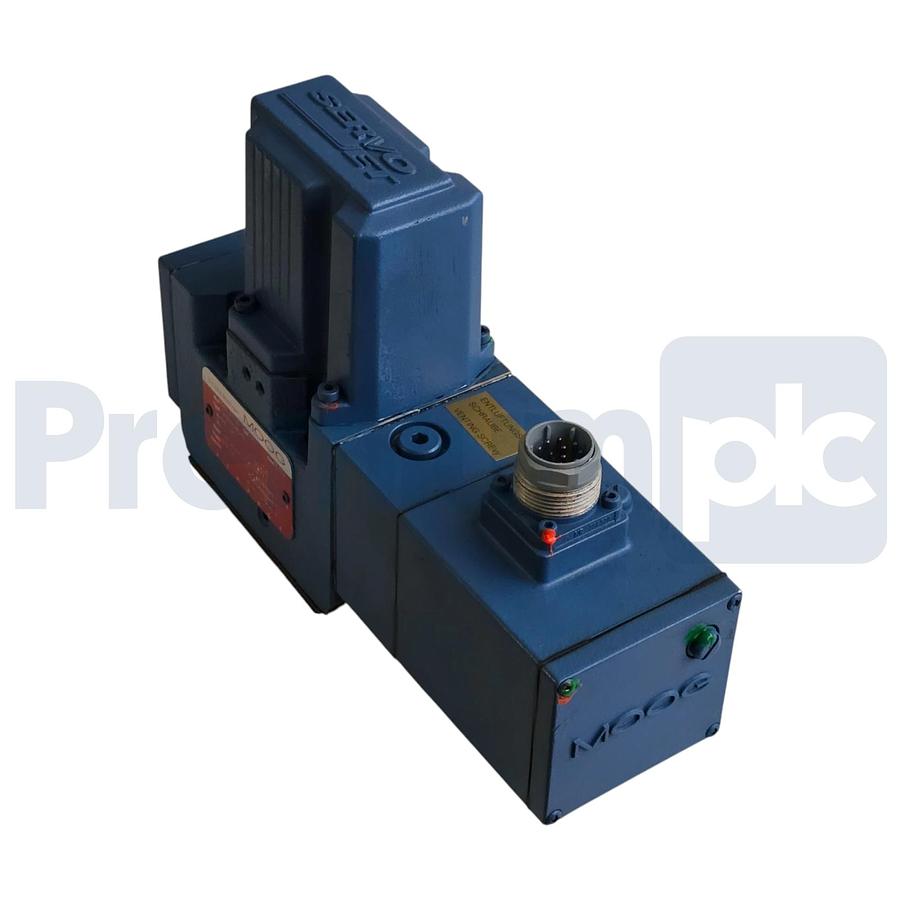

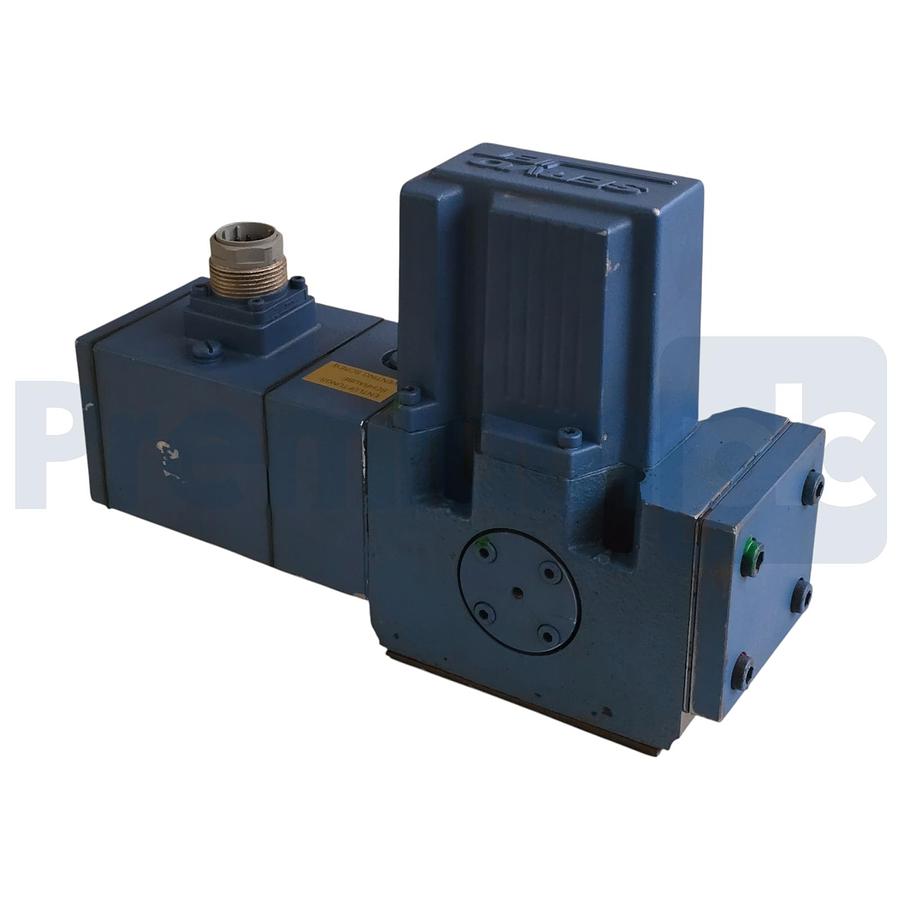

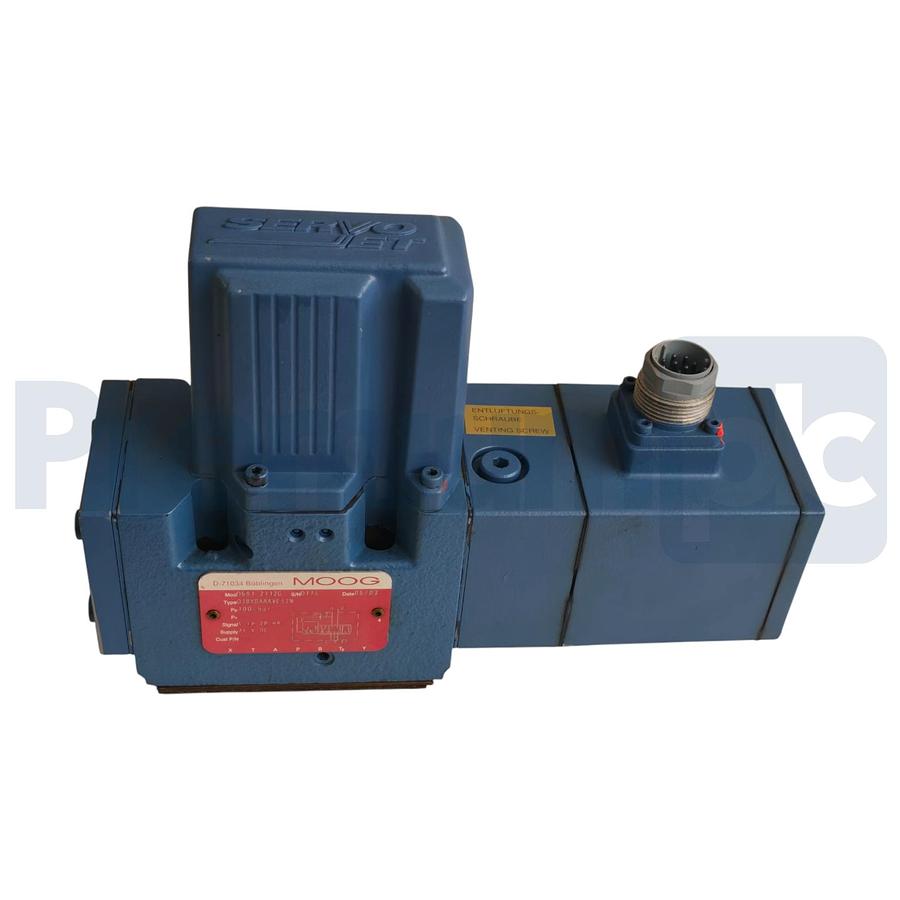

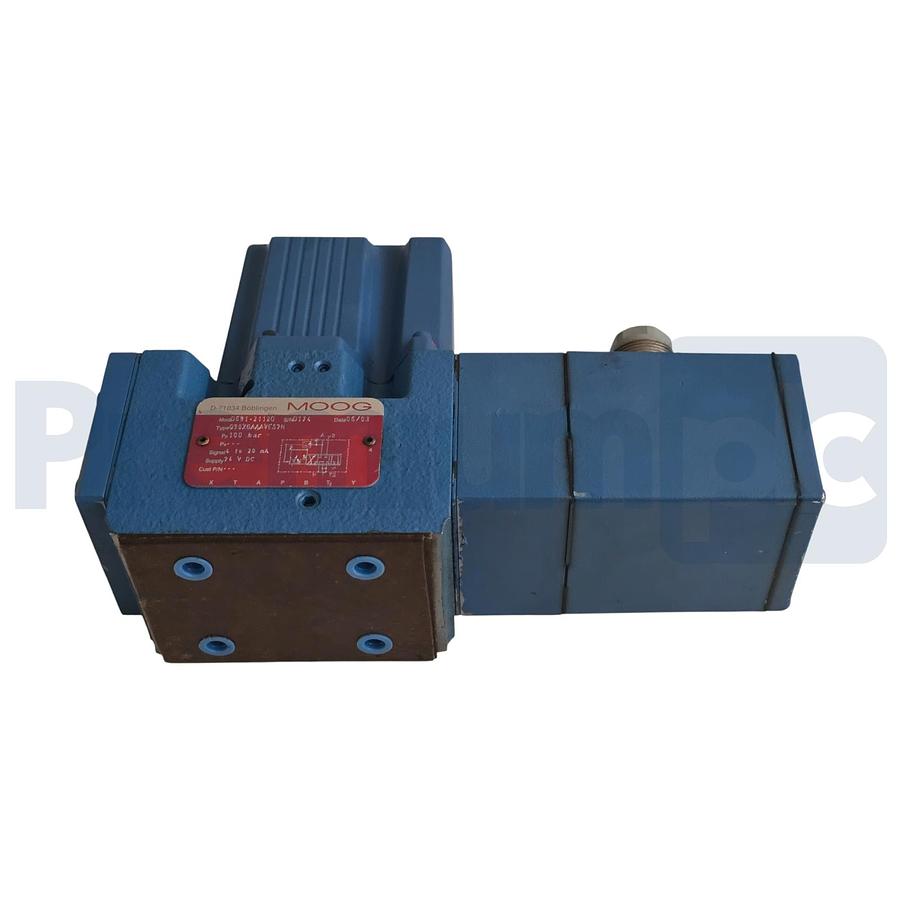

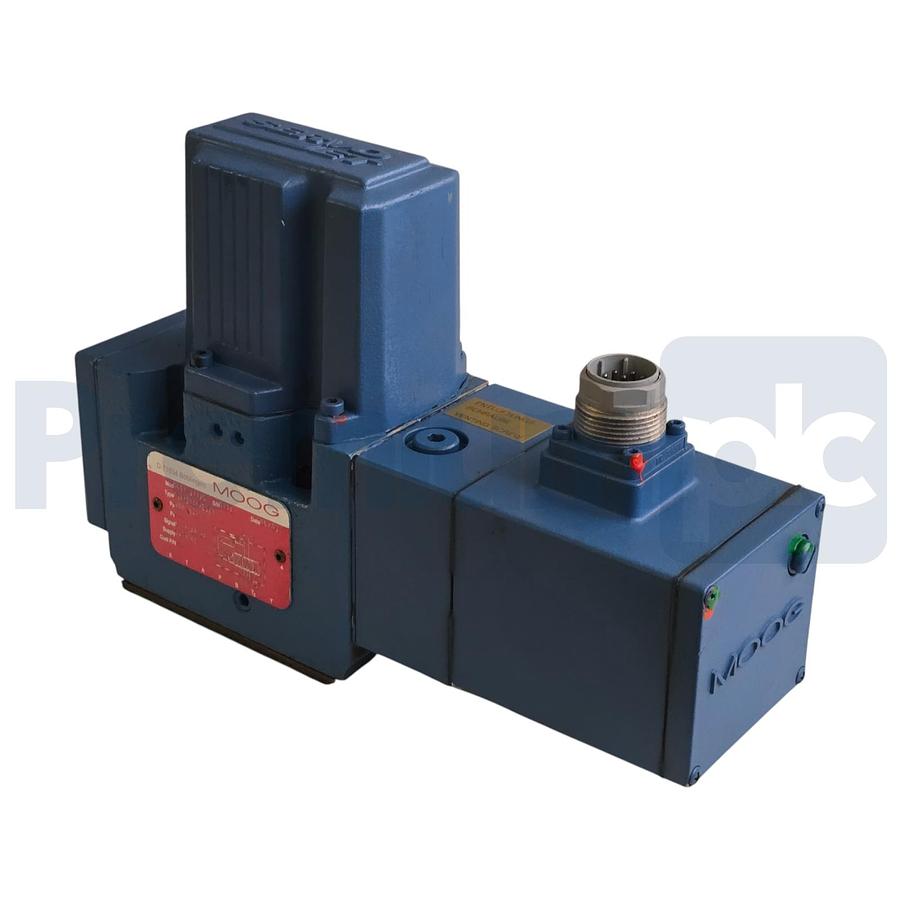

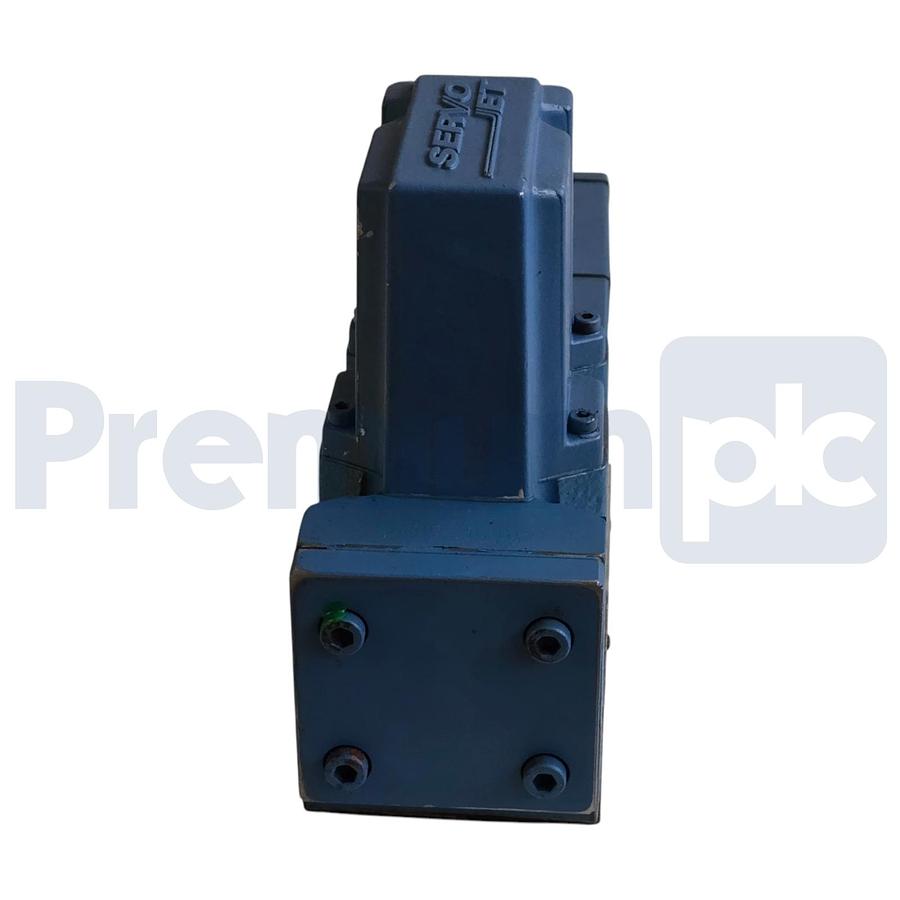

Moog D691-2112G PQ-Proportional Servo Valve 100bar 24V Type: Q30XBAAAVES2N NSNP
$2,250
Description
Moog D691-2112G PQ-Proportional Servo Valve 100bar 24V Type: Q30XBAAAVES2N NSNP
This is a
Moog D691-2112G servo-proportional control valve, specifically configured as
Type Q30XBAAAVES2N. Part of the high-performance D691 Series, this PQ-Valve is designed for precise, dual-function control of both fluid flow (Q) and pressure (P). It features integrated electronics and a closed-loop system for the spool position, ensuring high dynamic response in industrial automation.

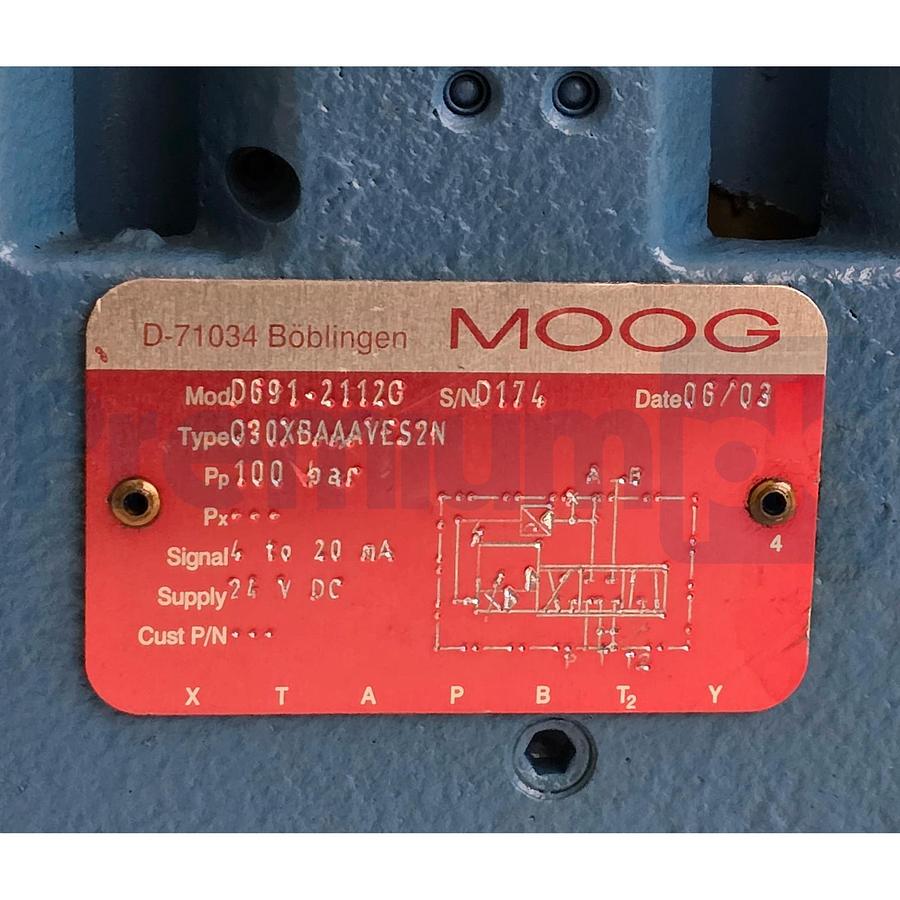

Full Model Code Breakdown (Q30XBAAAVES2N):
- Q30: Rated flow capacity of 30 l/min (7.9 gpm) at \(\Delta p\) 5 bar (75 psi) per land.
- X: 4-way valve configuration for multi-directional control.
- B: Standard spool type with linear flow characteristics.
- A: Mechanical fail-safe position (spool moves to a defined safe position on power loss).
- A: Supply voltage requirements (standard 24V DC or ±15V DC for integrated electronics).
- V: Fluorocarbon (FKM/Viton) seals for high chemical and temperature resistance.
- E: Pilot stage type (integrated ServoJet® technology for enhanced robustness).
- S2N: Standardized 11+PE or 6+PE pole connector and manufacturing revision code.
Technical Specifications:
- Valve Series: D691 (Servo-Proportional PQ-Valve).
- Mounting Pattern: NG10 / ISO 4401-05-05-0-94.
- Operating Pressure: 100 bar
- Weight: Approximately 6.28 kg (13.8 lbs).
- Applications: Injection molding, heavy presses, die casting, and paper processing machinery.
CONDITION: NSNP - New Surplus No Manufacturer Package (OEM)
(COMES AS SHOWN IN PHOTOS)
WARRANTY: 120 DAYS (LIMITED 1 YEAR)
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
________________________________________________________________________________
Specifications
| Manufacturer | MOOG |
| Model | D691-2112G |
| Condition | Used |
| Stock Number | 366124669320 |
| Valve Operation | servo-proportional |
| Country of Origin | Germany |
| Location | Shelf D15 |
