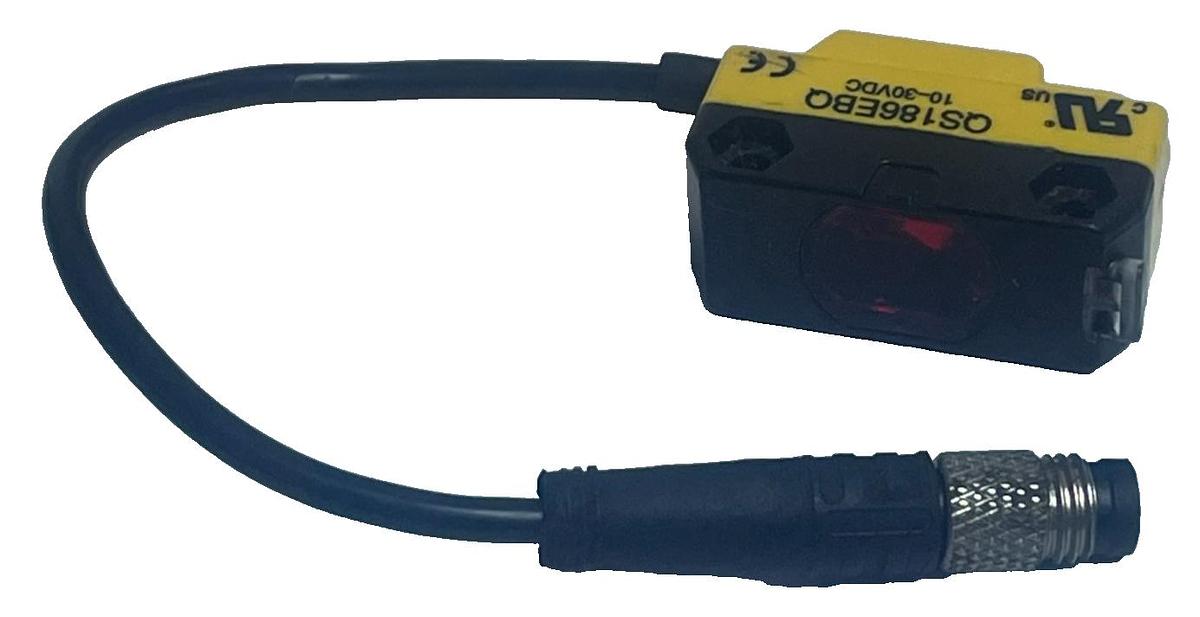

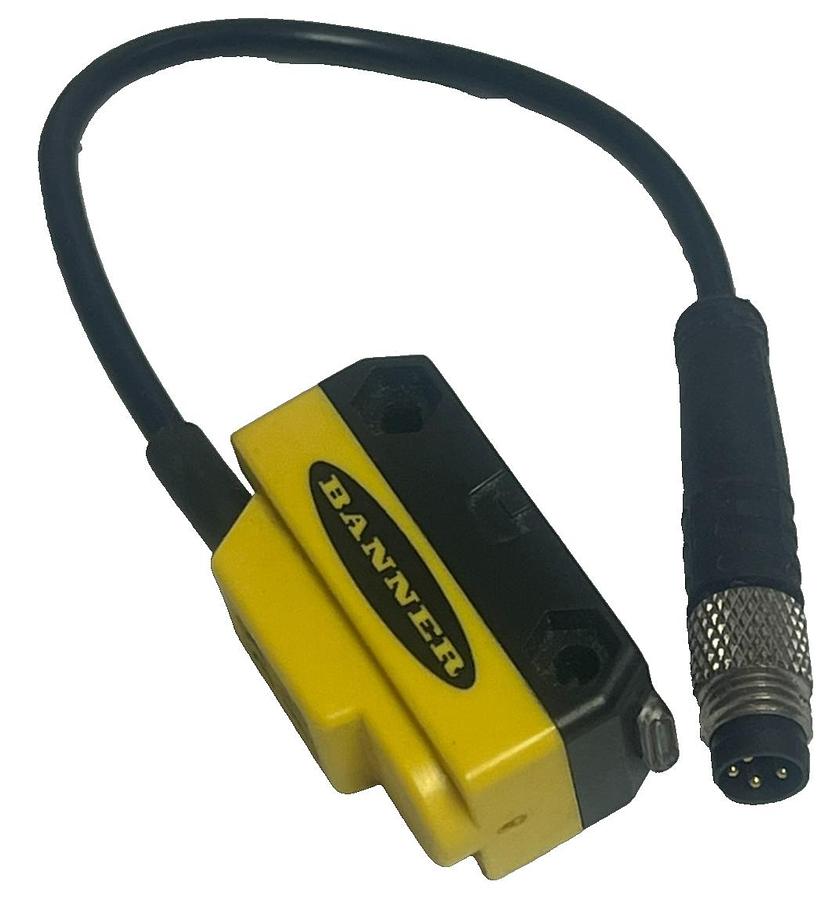

BANNER QS186EBQ Photoelectric Sensor Diffuse Mode 18mm Barrel 6" Range M12 NPN
$59.95
Description
BANNER QS186EBQ Photoelectric Sensor Diffuse Mode 18mm Barrel 6" Range M12 NPN

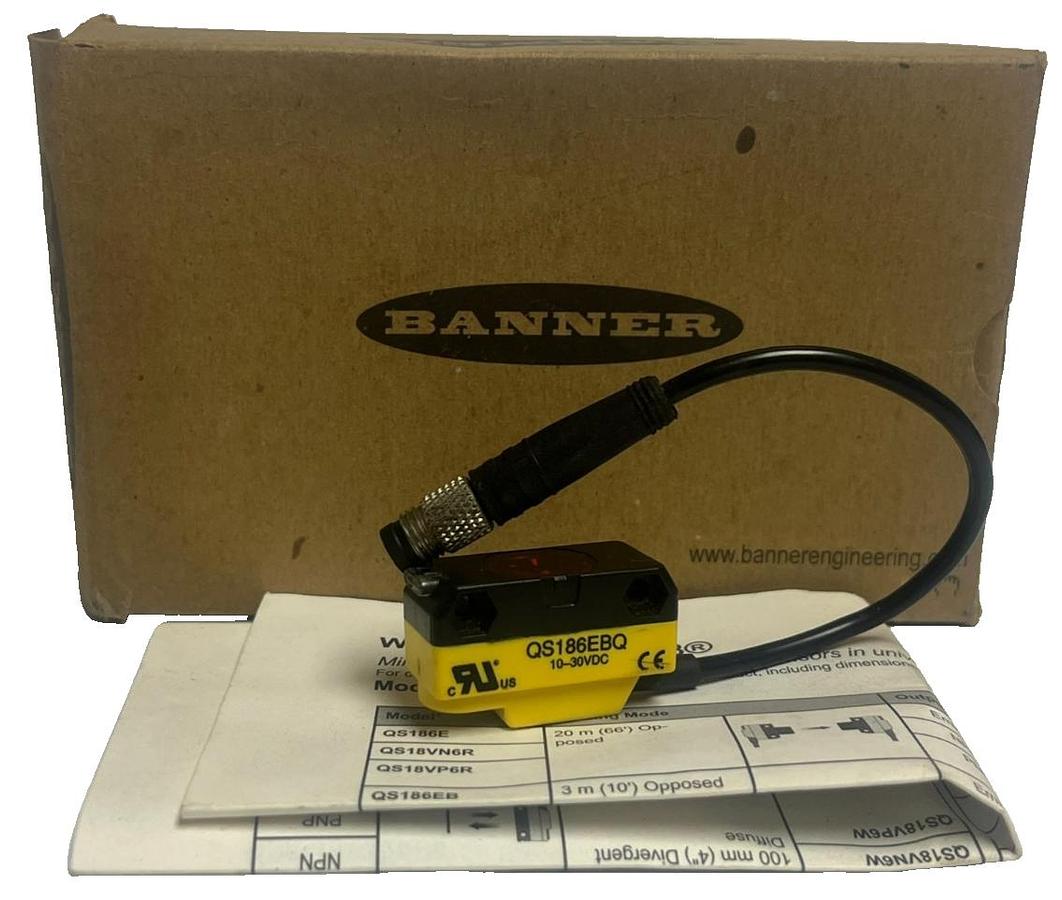

UNUSED SURPLUS ITEM IN ORIGINAL PACKAGING, EXTERIOR OF BOX MAY SHOW SOME SHELF WEAR
Key Features:
- Diffuse Sensing Mode: Detects targets by using light reflected from the object itself (Self-Contained/Proximity).
- Fixed Short Range: Reliable detection up to 6 inches (150 mm), ideal for precise placement in assembly applications.
- NPN Output: Standard NPN Normally Open output for compatibility with common PLC inputs.
- M12 Quick Disconnect: Uses a standard 4-pin M12 connector for fast installation and maintenance.
- High Environmental Rating: IP67 and NEMA 6 rated, protecting against dust and water immersion/washdown.
- Diagnostic LEDs: Integrated LED indicators provide immediate visual feedback for power and output status.
Technical Specifications (2026 Reference Data):
Feature Detail
Manufacturer Banner Engineering
Part Number QS186EBQ
Sensing Mode Diffuse (Proximity)
Max Range 6 inches (150 mm)
Operating Voltage 10 to 30 VDC
Output Type NPN (N.O. - Normally Open)
Connection M12 QD 4-Pin
Housing Style 18mm Threaded Barrel
Enclosure Rating IP67 / NEMA 6
---------------------------------------------------------------
CONDITION: NSMP - New Surplus Manufacturer Package (OEM)
WARRANTY: 120 DAYS
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
________________________________________________________________________________
2033
Specifications
| Manufacturer | Banner |
| Model | QS186EBQ |
| Condition | Used |
| Stock Number | 198004733890 |
