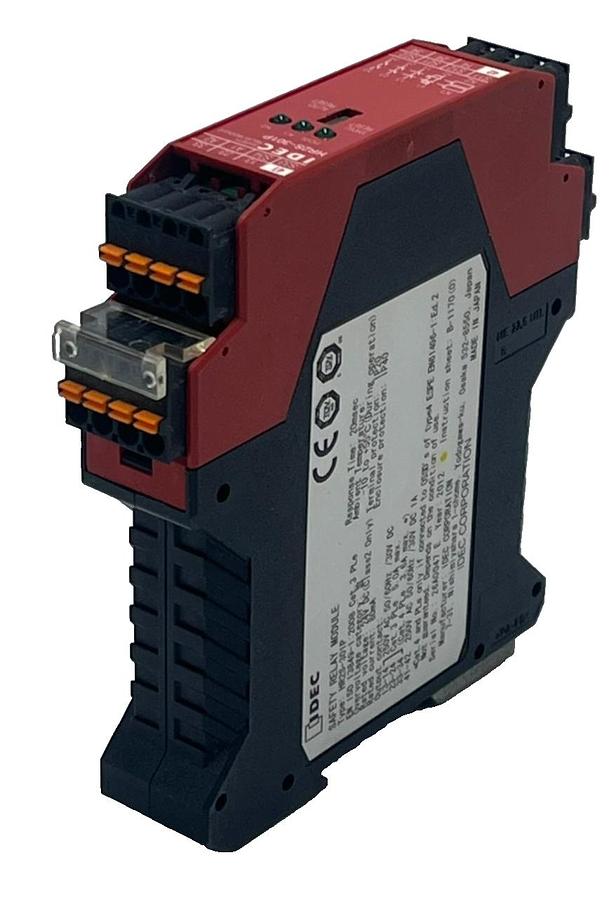

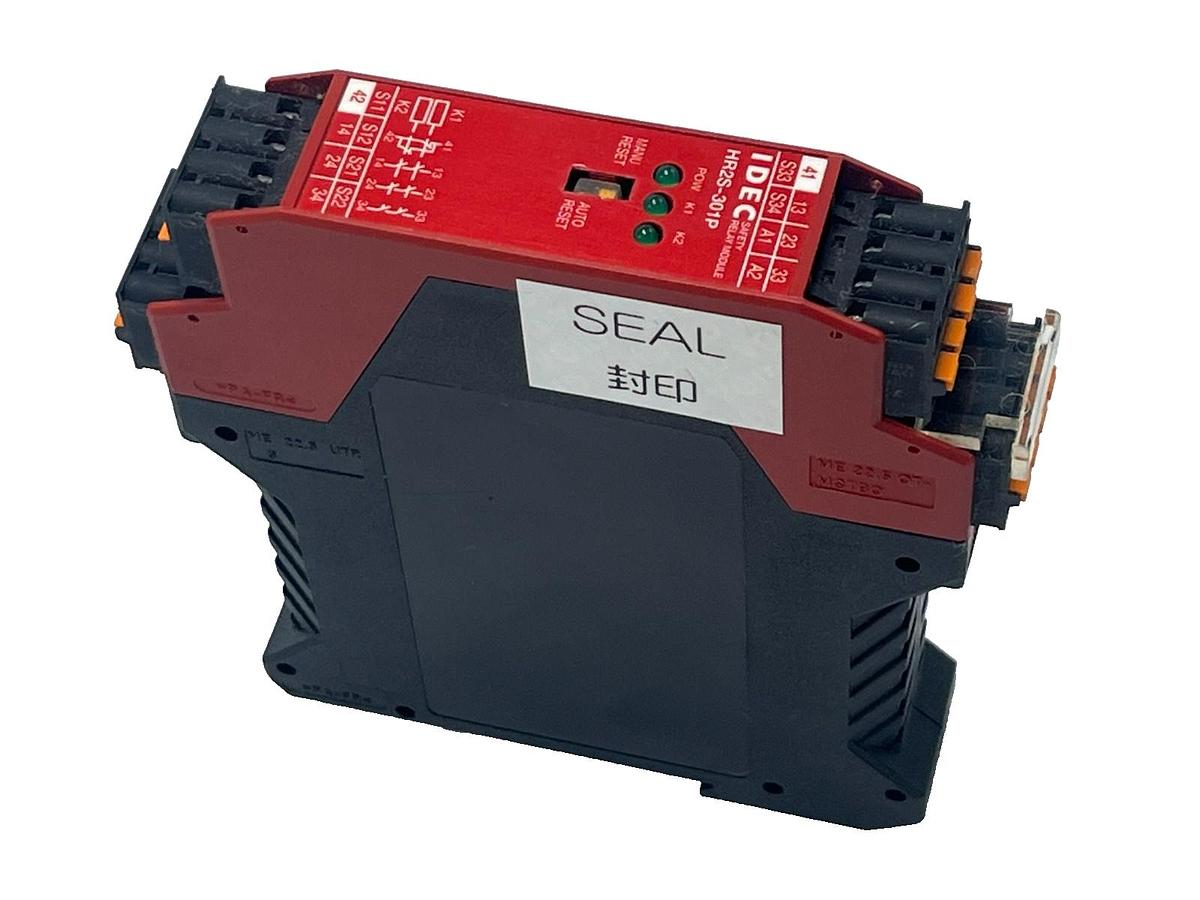

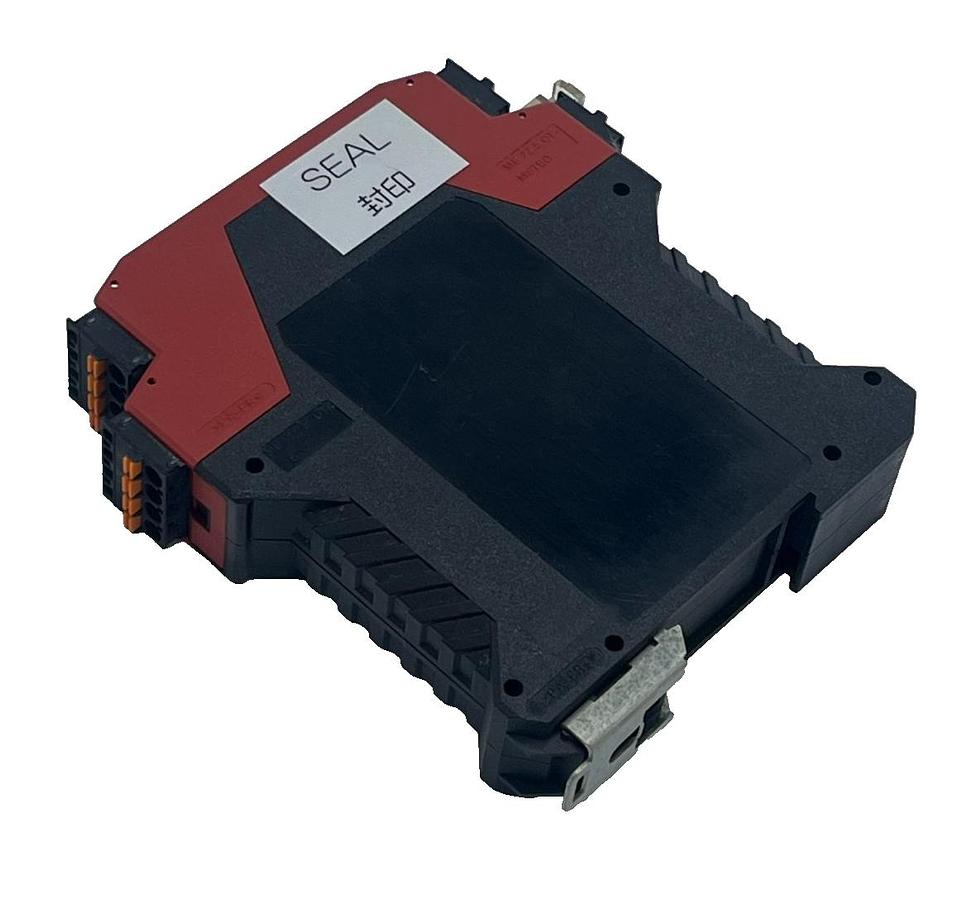

IDEC HR2S-301P Safety Relay Module 24VDC Dual Channel 3 N.O. Safety Outputs HR2S
$174.95
Description
IDEC HR2S-301P Safety Relay Module 24VDC Dual Channel 3 N.O. Safety Outputs HR2S
---------------------------------------------------------------
A COUPLE LIGHT SURFACE SCRATCHES OTHWISE IN EXCELLENT CONDITION
Key Features:
- Highest Safety Rating: Certified Category 4, SIL CL 3, PLe according to ISO 13849-1 and IEC 61508 standards.
- Dual Channel Monitoring: Monitors two independent safety channels simultaneously for enhanced fault detection and redundancy.
- Three N.O. Safety Outputs: Provides three positively guided outputs for reliable power interruption to hazardous loads.
- 24 VDC Operation: Standard control voltage for seamless integration with modern PLCs and control panels.
- Compact DIN Rail Mount: Standard 22.5mm width saves valuable control cabinet space.
- Force-Guided Contacts: Uses mechanically linked contacts to ensure safety even in the event of a welded contact.

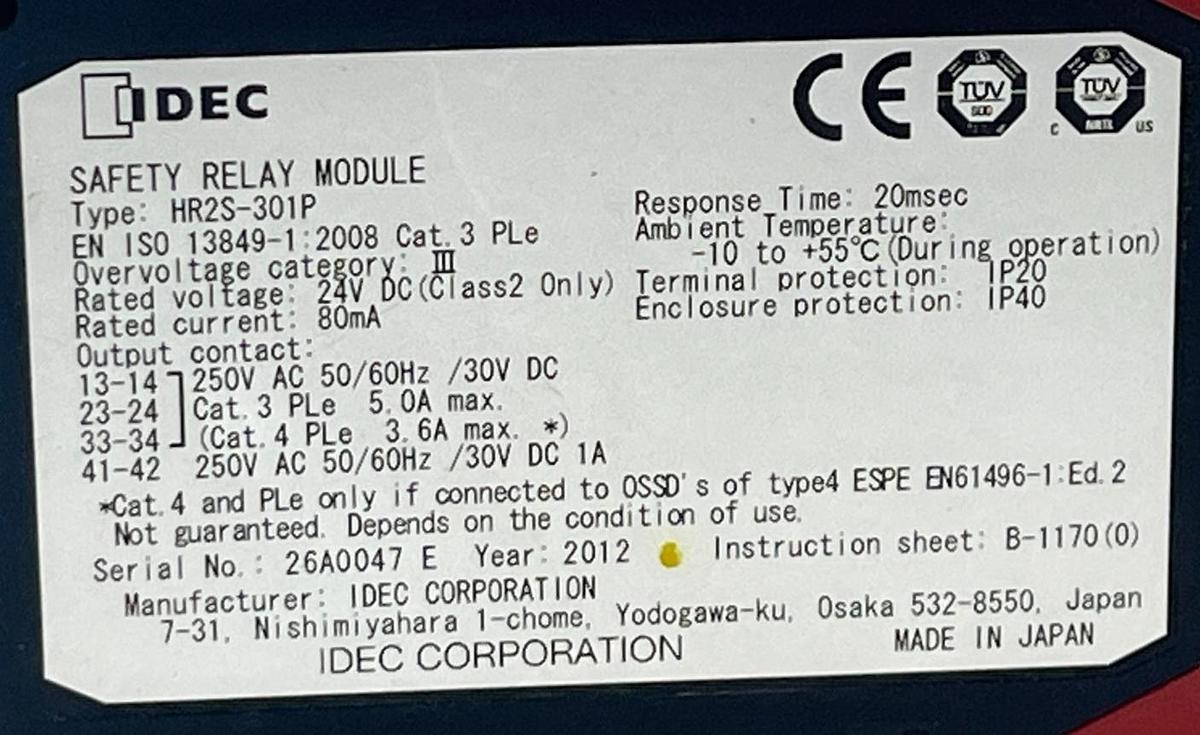

Technical Specifications (2026 Reference Data):
Feature Detail
Manufacturer IDEC Corporation
Part Number (MPN) HR2S-301P
Input Voltage 24 VDC
Safety Outputs 3 N.O. (Force-Guided)
Auxiliary Output 1 N.C.
Safety Standards PL e, Cat 4, SIL 3
Terminal Type Screw Terminals
Dimensions 22.5mm width
CONDITION: USPI - Used Surplus Previously Installed (OEM)
WARRANTY: 90 DAYS
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
________________________________________________________________________________
2033
Specifications
| Manufacturer | IDEC |
| Model | HR2S-301P |
| Condition | Used |
| Stock Number | 317725296106 |
| Type | Safety Relay |
