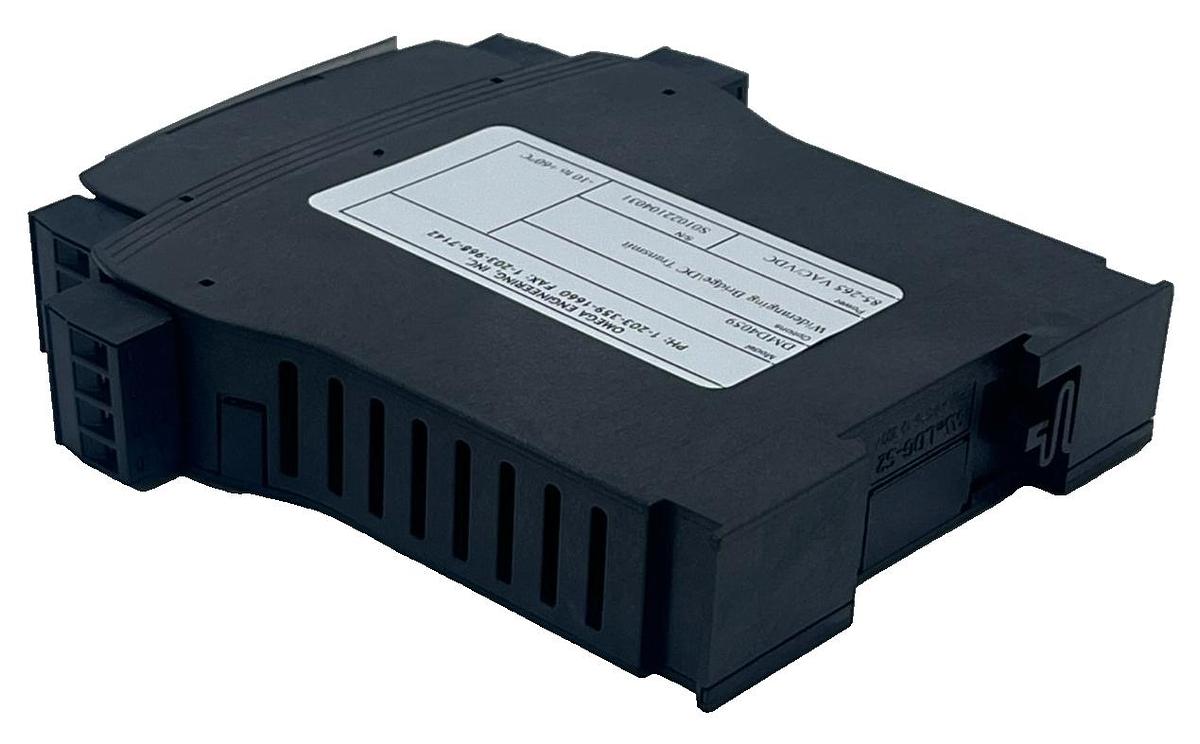

OMEGA DMD4059 Strain Gauge to DC Transmitter Signal Conditioner 1200V Iso, NSNP

$379.95

Description

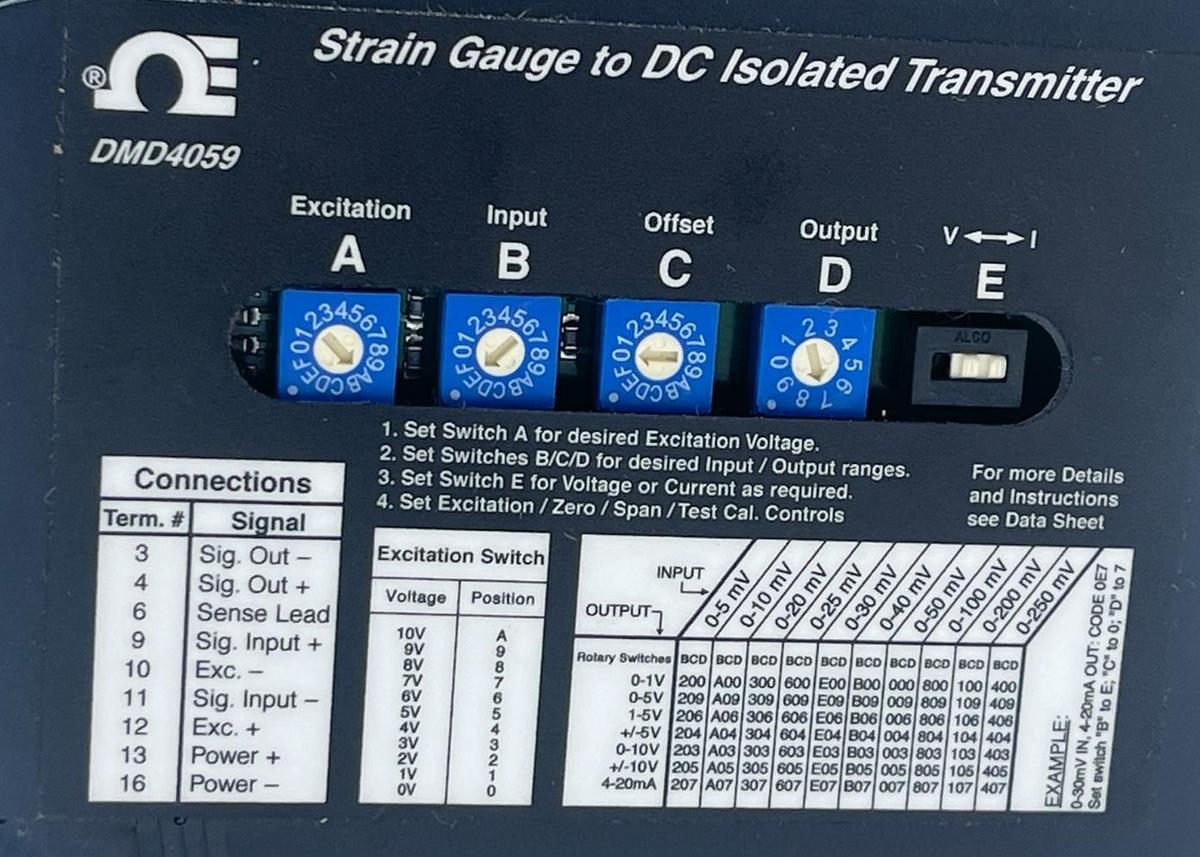

OMEGA DMD4059 Strain Gauge to DC Transmitter Signal Conditioner 1200V Iso, NSNP Key Features: - Field Configurable: Easily set input/output ranges and zero offset via external switches and potentiometers. - 3-Way Isolation: 1200 Vrms isolation between input, output, and power circuits ensures reliability and safety. - Adjustable Excitation: Provides an adjustable 0 to 10 VDC excitation voltage supply to power up to four 350Ω bridges. - Test Button: Features a function test button that sets the output to a specific level (adjustable 0-100% span) for simplified setup and troubleshooting. - Sense Lead Compensation: Includes circuitry to cancel the effects of lead wire resistance for maximum accuracy. Technical Specifications (2025 Data Reference): Feature Detail Manufacturer Omega Engineering Part Number [DMD4059](https://www.google.com/search?ibp=oshop&prds=pvt:hg,pvo:29,imageDocid:1826341771683438085,headlineOfferDocid:14584083260342759574,productDocid:14584083260342759574&q=product&sa=X&ved=2ahUKEwiAhaiV3OiRAxW3AHkGHenGEDkQxa4PegYIAQgUEAQ) Input Ranges 0 to 400 mV max range, 0.5 to 40 mV/V sensitivity Output Ranges 0-1V to 0-10VDC (10mA max) or 0-2mA to 0-25mA Power Input Standard: 85-265 VAC / DC; Low Voltage (Option -DC): 9-30 VDC / 10-32 VAC Response Time 70 milliseconds typical Mounting 35 mm DIN rail standard Operating Temp -10°C to +60°C --------------------------------------------------------------- CONDITION: NSNP - New Surplus No Manufacturer Package (OEM) WARRANTY: 120 DAYS SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) ________________________________________________________________________________ 2032

Specifications

ManufacturerOMEGA
ModelDMD4059
ConditionUsed
Stock Number366097444051
Country of OriginUnited States
