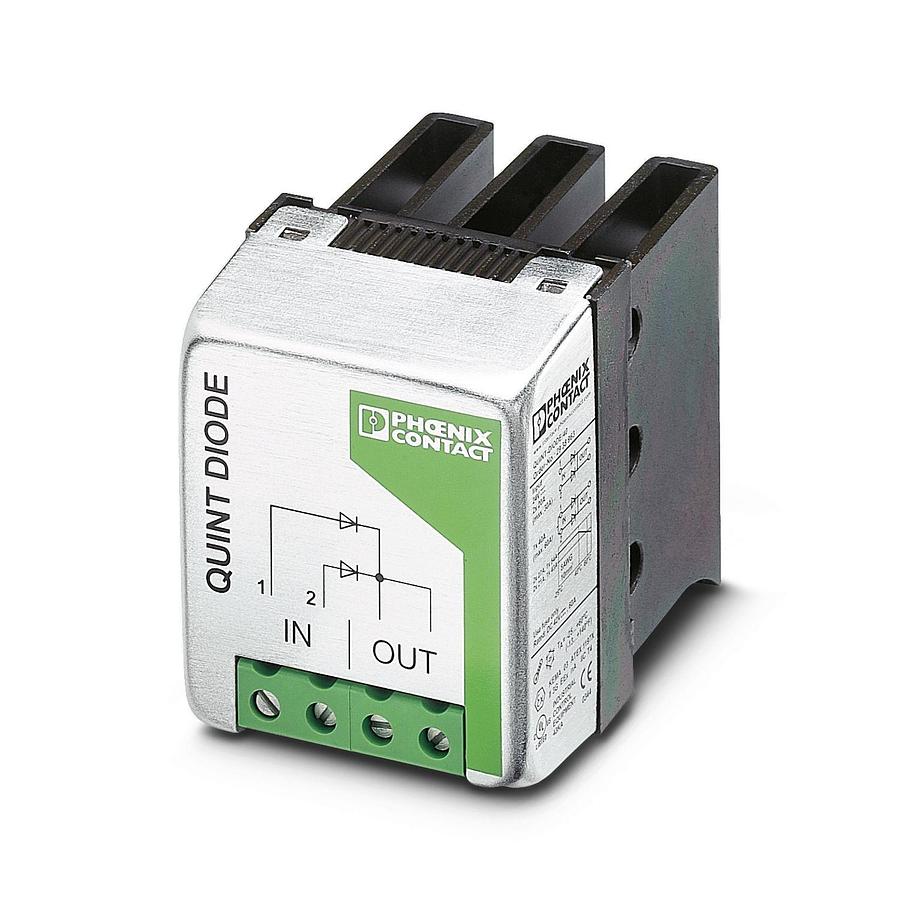

Phoenix Contact 2938963 | QUINT-DIODE/40 Redundancy Power Module 24VDC 40A NSMP
$195
Description
Phoenix Contact 2938963 | QUINT-DIODE/40 Redundancy Power Module 24VDC 40A NSMP
Specifications:
- Model Name:
[QUINT-DIODE/40](https://www.google.com/search?ibp=oshop&prds=pvt:hg,pvo:29,imageDocid:17443630188526856915,headlineOfferDocid:10609804133009463891,productDocid:10609804133009463891&q=product&sa=X&ved=2ahUKEwjjmbDSx-iRAxUmrokEHV__LX0Qxa4PegYIAQgKEAI)
- Part Number:
2938963
- Nominal Input/Output Voltage: 24V DC (Range: 0V DC to 30V DC)
- Nominal Output Current: 40A
- Nominal Input Current: 2x 20A (Standard) or 1x 40A
- Efficiency: > 97% for minimal energy loss
- Protection Features: Integrated transient surge protection (Transil diode) and reverse polarity protection
- Mounting: Standard DIN rail mount (NS 35)
- Construction: Rugged metal housing (AIMg/GD-ZnAICu) with IP20 protection
- Dimensions: Approximately 62mm (W) x 84mm (H) x 102mm (D)
- Connection Method: Secure screw terminals

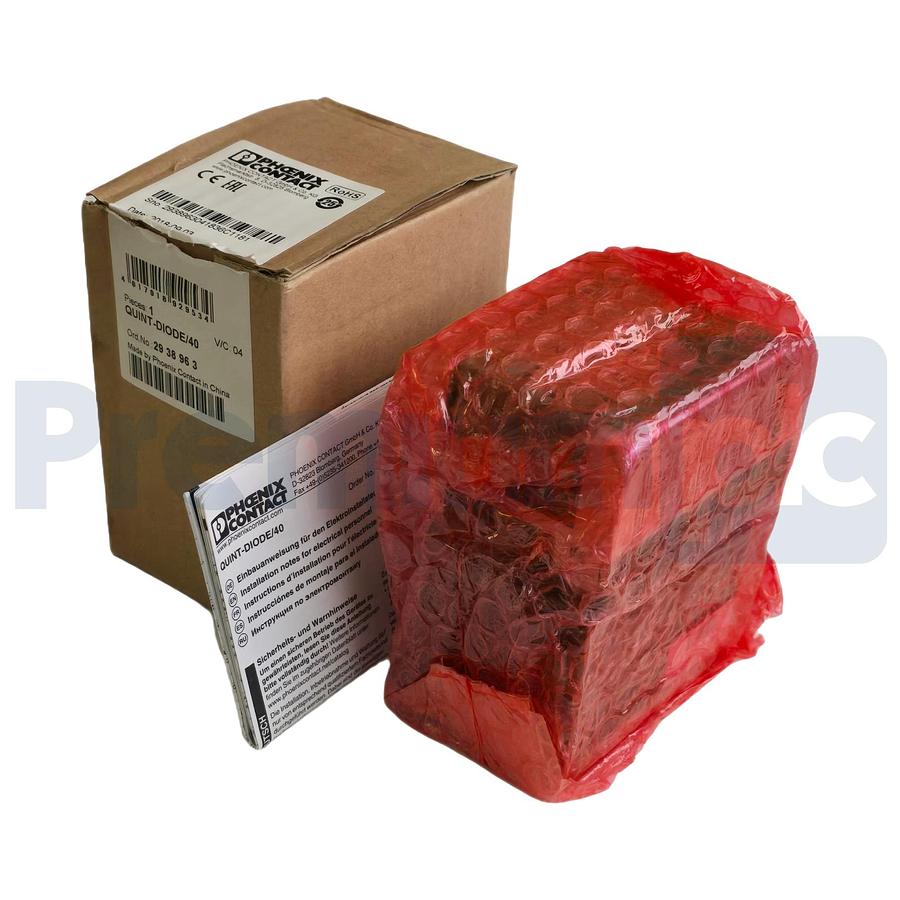

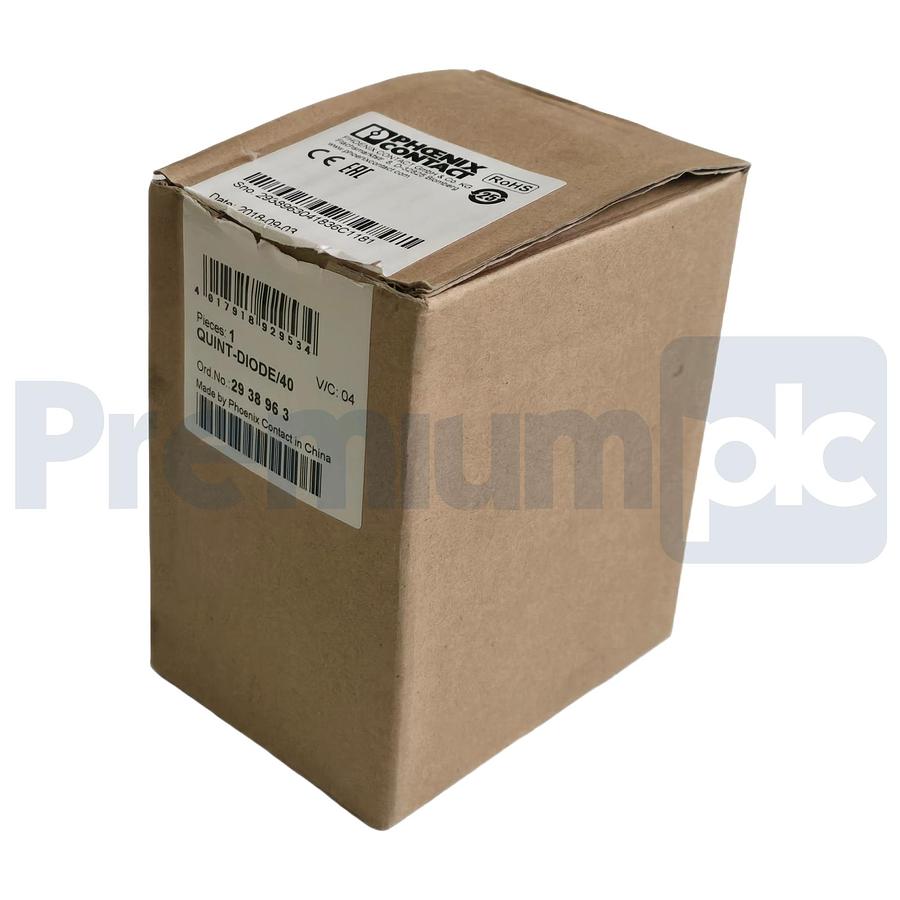

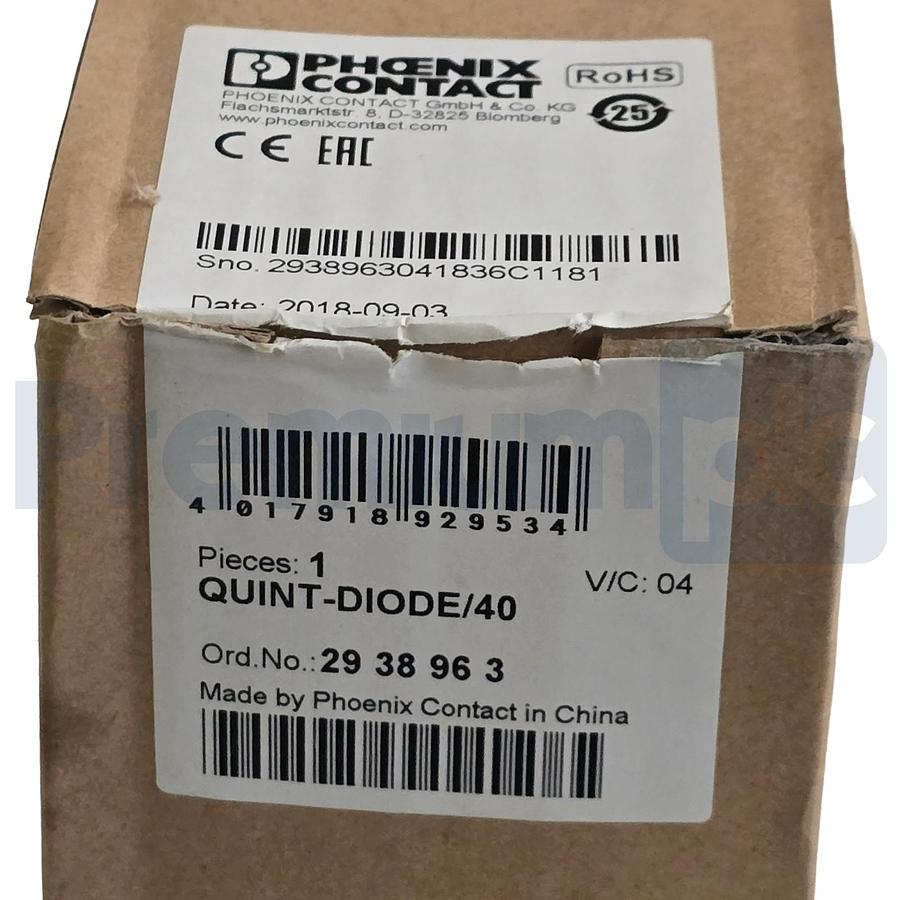

CONDITION: NSMP - New Surplus Manufacturer Package (OEM)
WARRANTY: 120 DAYS
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
__________________________________________________________________________________
3088
Specifications
| Manufacturer | Phoenix Contact |
| Model | ["2938963", "QUINT-DIODE/40"] |
| Condition | Used |
| Stock Number | 317718437394 |
| Nominal Voltage Rating (DC) | 24 V |
| Mounting Style | DIN Rail Mount |
| Output Voltage Rating (AC) | 24 V |
| Type | Redundancy module |
| Output Voltage Rating (DC) | 24 V |
