GE DS200ACNAG1A | DS200ACNAG1ADD Mark V Turbine ArcNet LAN Connection Board NSNP
$3,250
Description

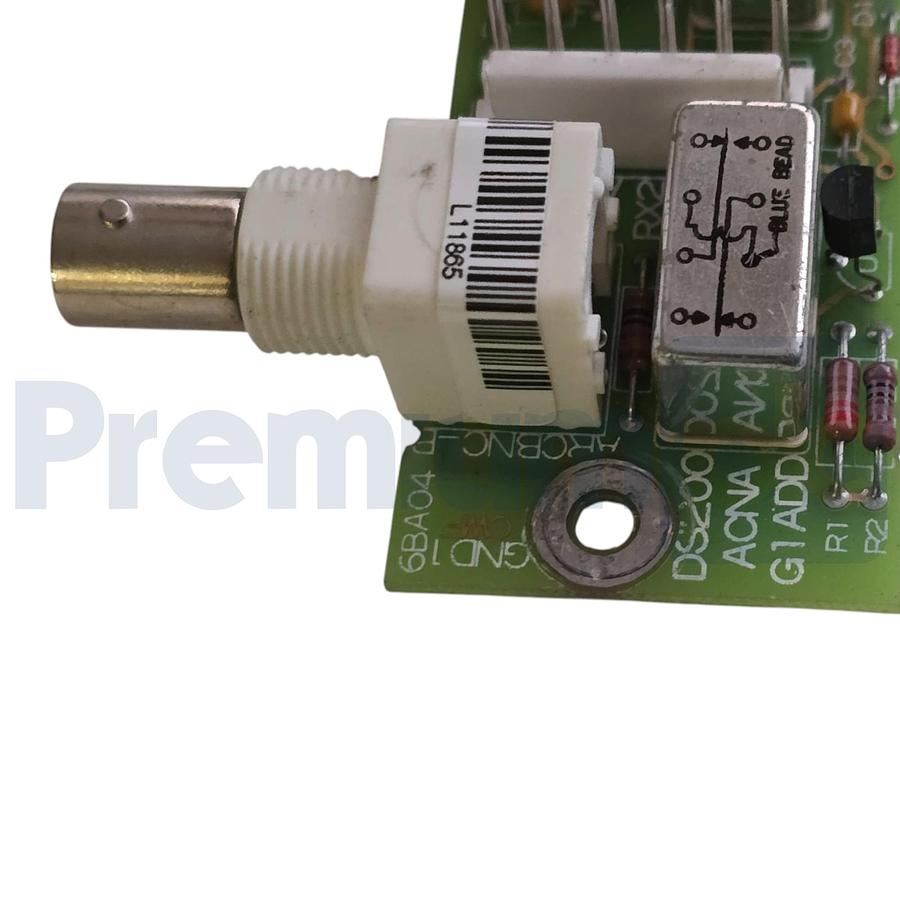

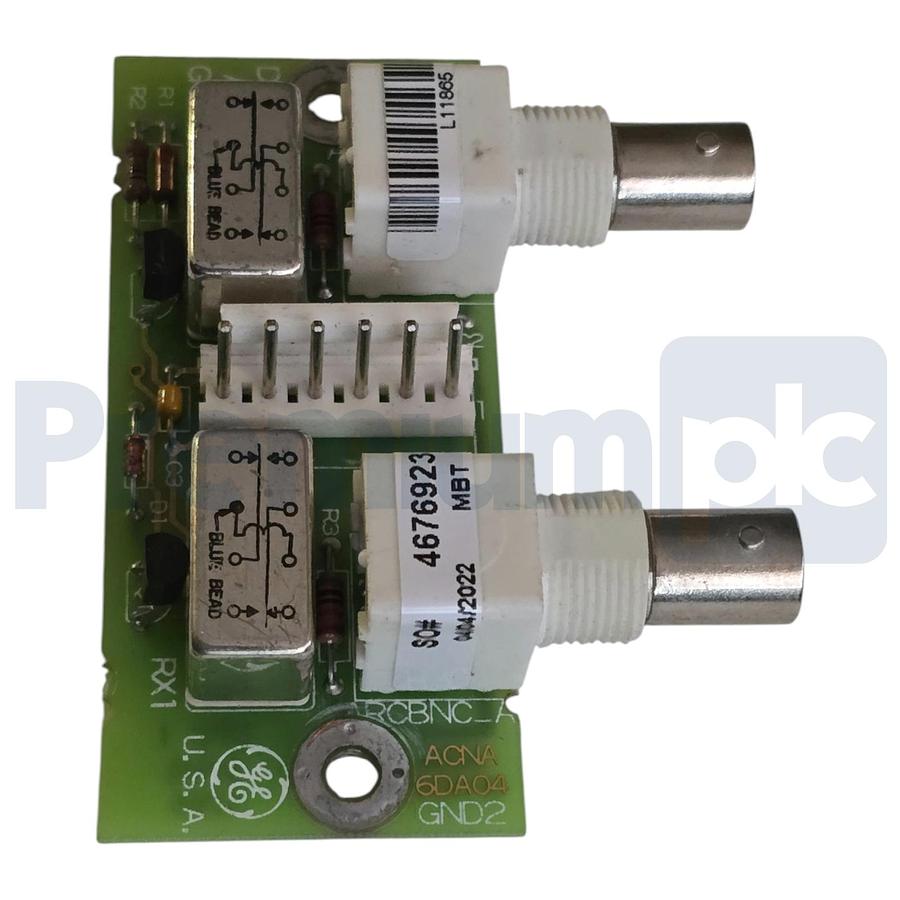

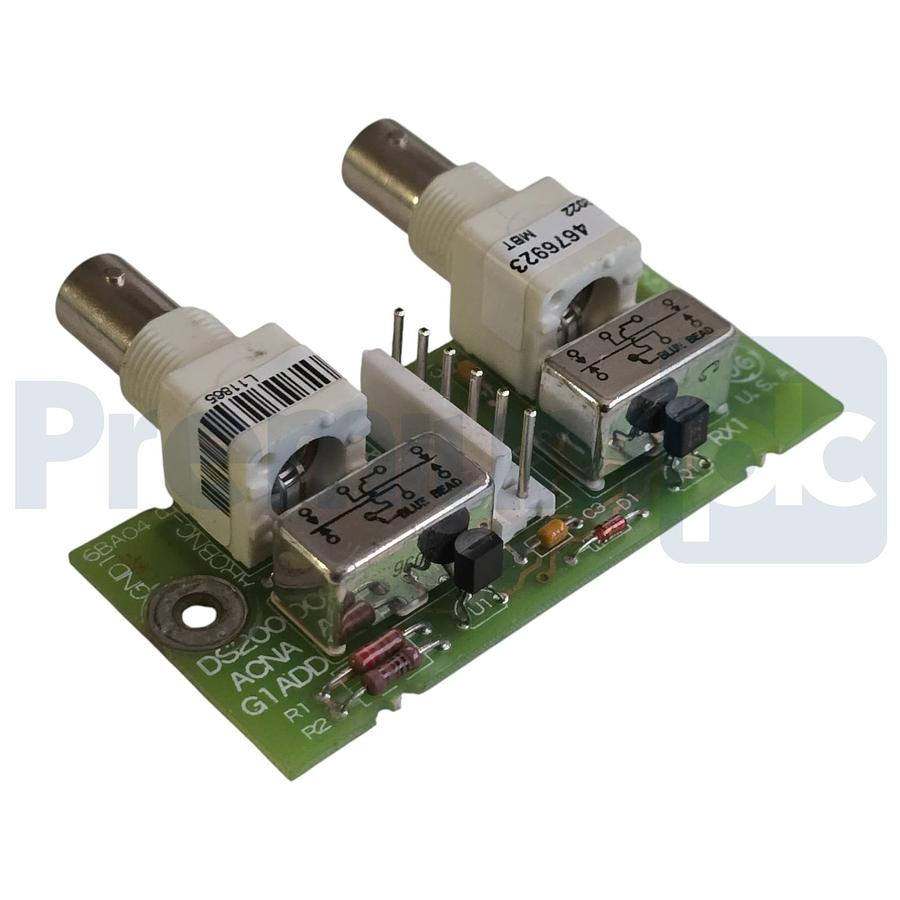

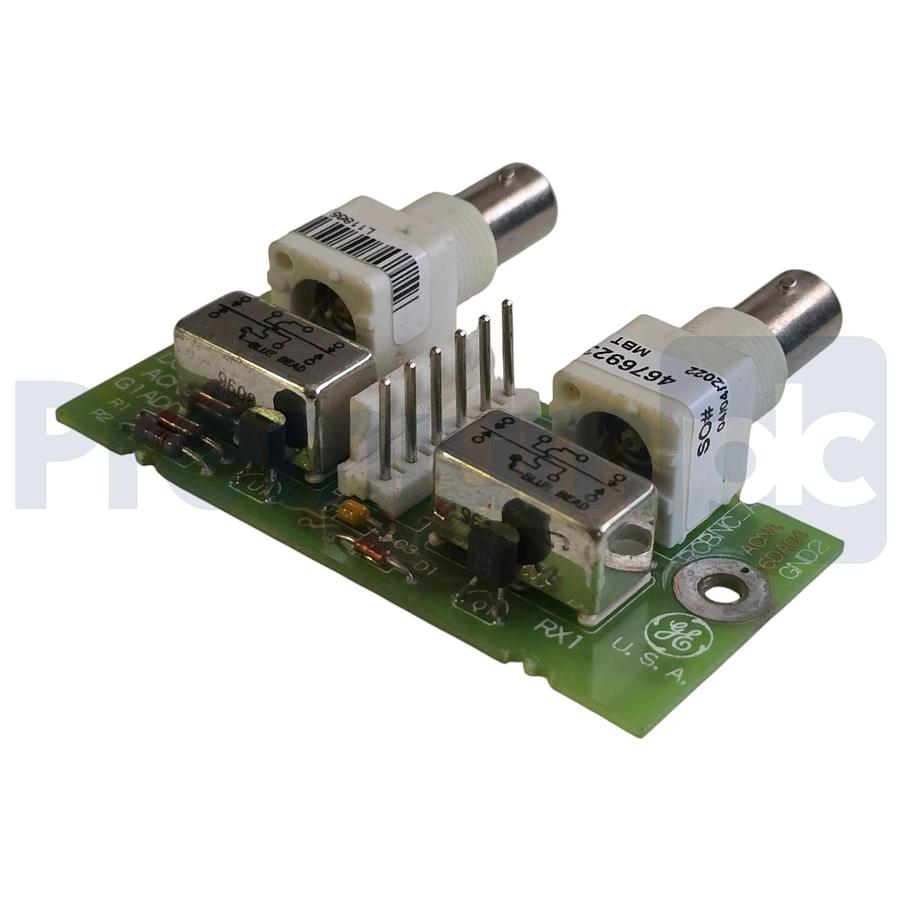

GE DS200ACNAG1A | DS200ACNAG1ADD Mark V Turbine ArcNet LAN Connection Board NSNP
The
[GE DS200ACNAG1A](https://www.google.com/search?ibp=oshop&prds=pvt:hg,pvo:29,imageDocid:13768020041909550754,headlineOfferDocid:15907962602468331454,productDocid:15907962602468331454&q=product&sa=X&ved=2ahUKEwisi4WChtyRAxUAz_ACHVMHGUsQxa4PegYIAQgFEAI) (also known as the ACNA board) is a high-performance ARCNET LAN Connection Board from General Electric's Mark V Speedtronic series. It is a critical component used in gas and steam turbine control systems to facilitate data link communication between the main controller, IOS, protection modules, and the turbine control panel.
Technical Specifications:
- Manufacturer: General Electric (GE)
- Model Number:
[DS200ACNAG1A](https://www.google.com/search?ibp=oshop&prds=pvt:hg,pvo:29,imageDocid:6053310392886257406,headlineOfferDocid:1980012863765705319,productDocid:1980012863765705319&q=product&sa=X&ved=2ahUKEwisi4WChtyRAxUAz_ACHVMHGUsQxa4PegYIAQgHEAM)
- Revision Level:
DS200ACNAG1ADD (Revision DD)
- Series Compatibility: Mark V Speedtronic
- Abbreviation: ACNA Terminal Board
- Network Speed: 2.5 Mbps (ARCNET protocol)

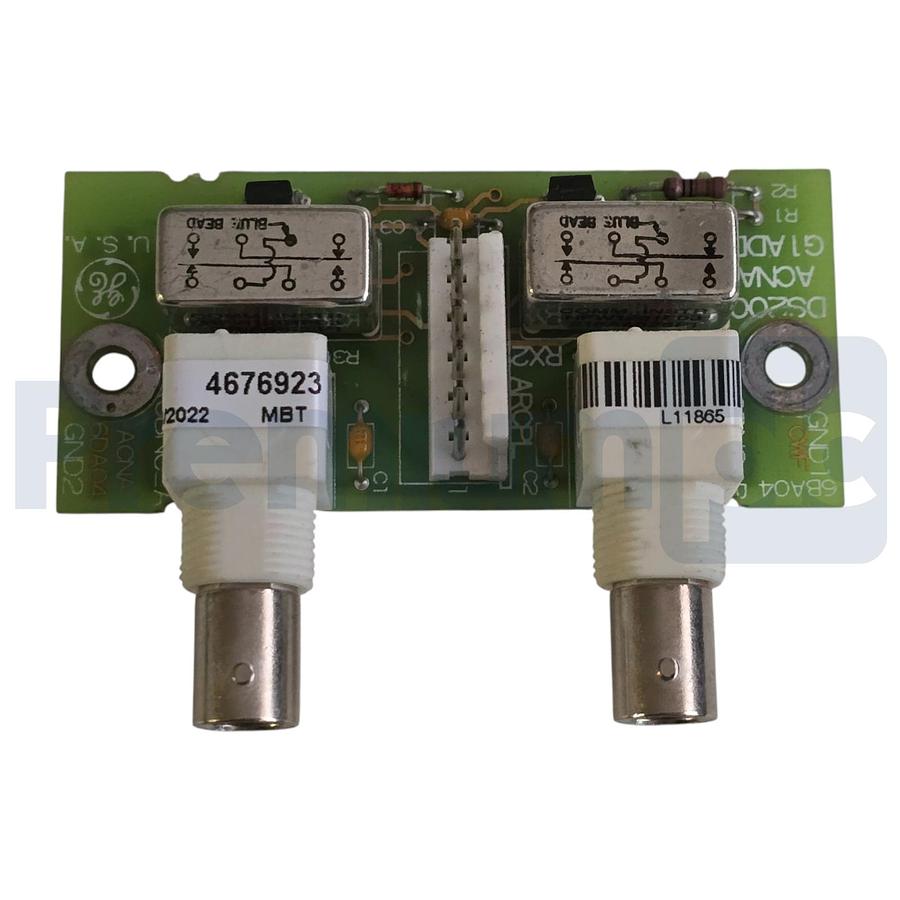

- Connections:
- 2x Female BNC Plugs: For LAN coaxial cable communications.
- 1x Vertical 6-Pin Male Terminal: Located in the center for system integration.
- On-Board Components: Two communications relays, four metal film resistors, three capacitors, and protective grounding holes (GND1/GND2).
- Coating: G1 group designation indicating a standard protective PCB coating for moisture and dust resistance.

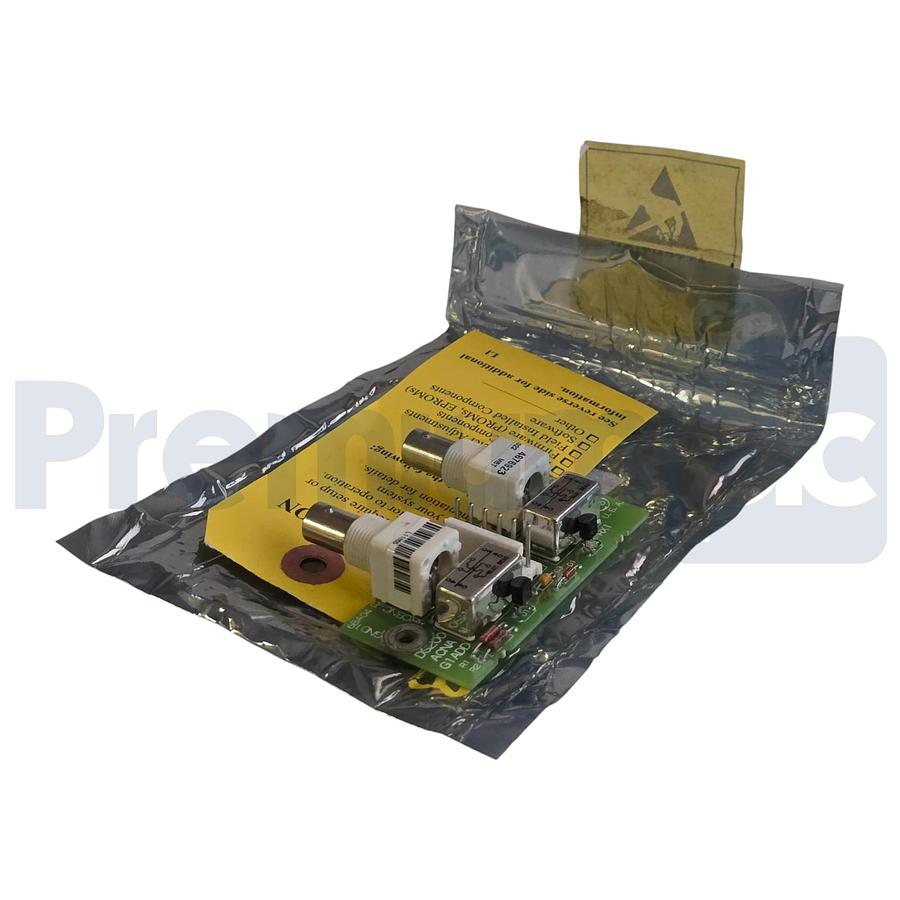

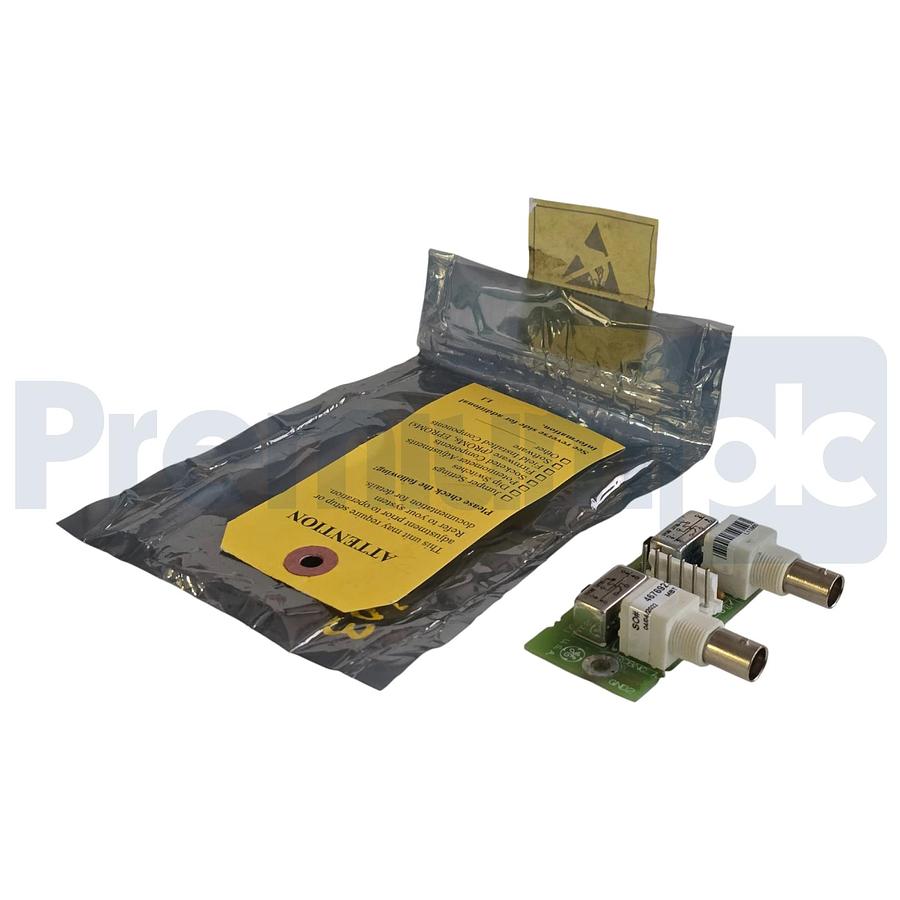

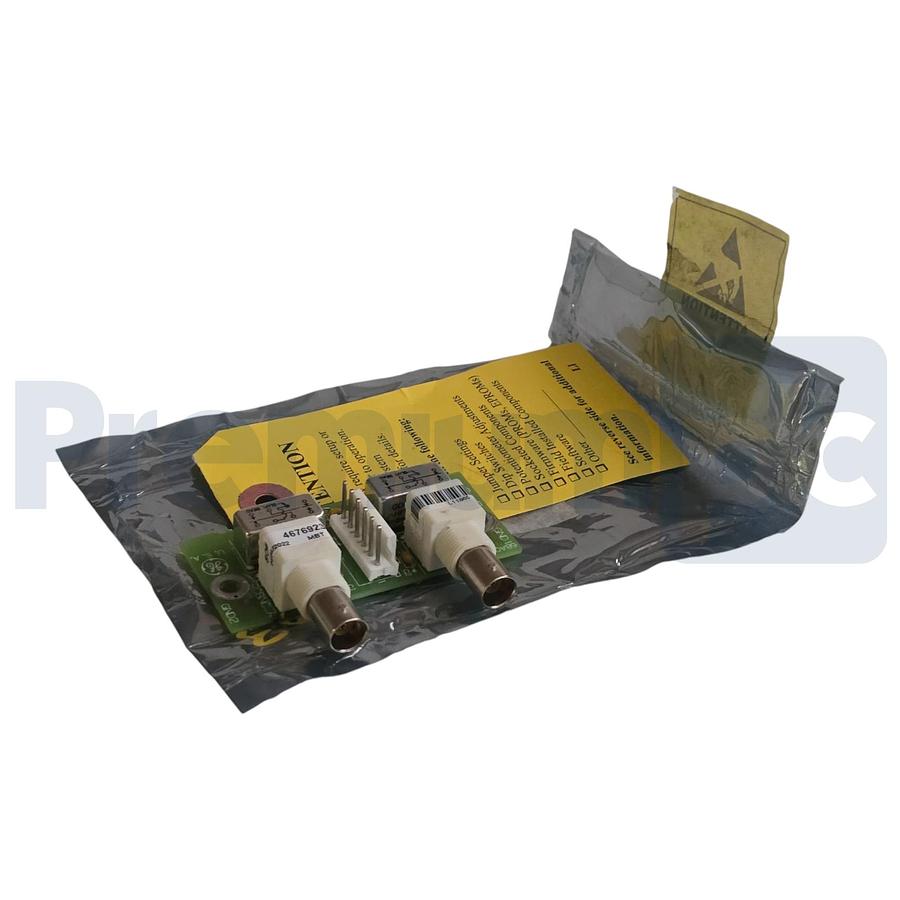

CONDITION: NSNP - New Surplus No Manufacturer Package (OEM)
WARRANTY: 120 DAYS (LIMITED 1 YEAR)
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
__________________________________________________________________________________________
2016
Specifications
| Manufacturer | GE |
| Model | DS200ACNAG1ADD |
| Condition | Used |
| Stock Number | 317701199906 |
| Type | ArcNet LAN Connection Board |
| Controller Platform | Mark V Speedtronic |
| Country of Origin | United States |
