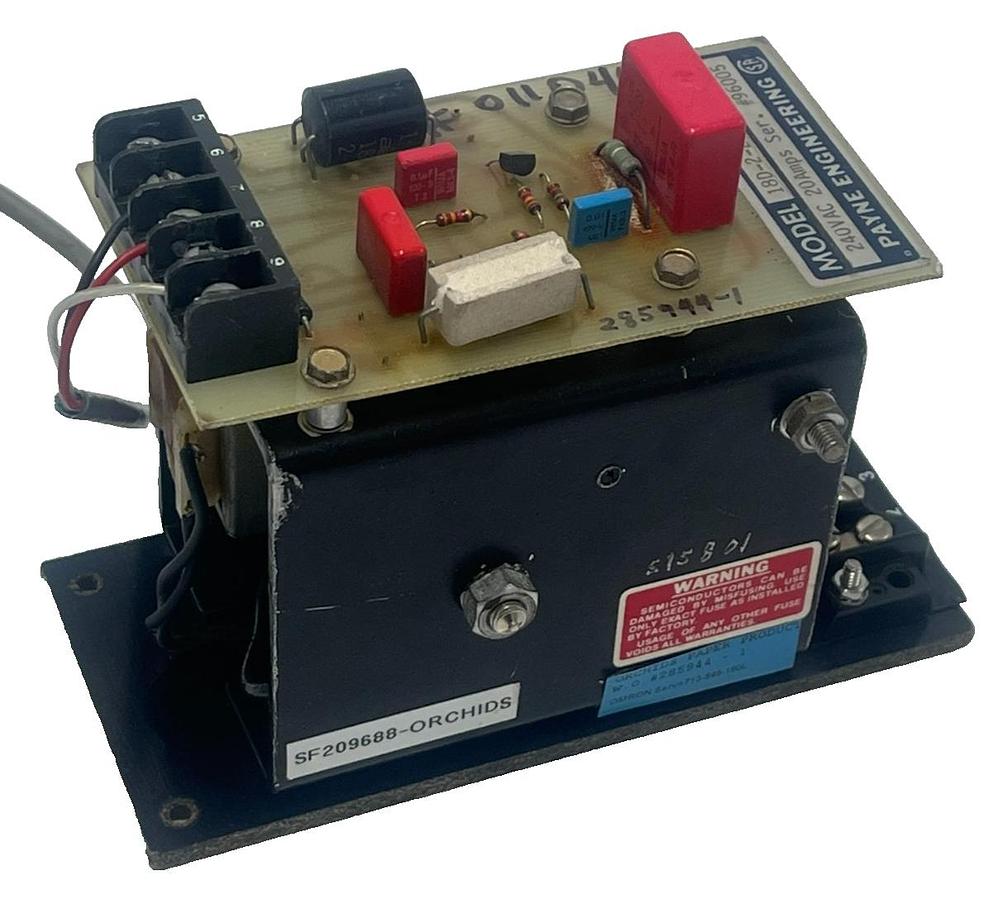

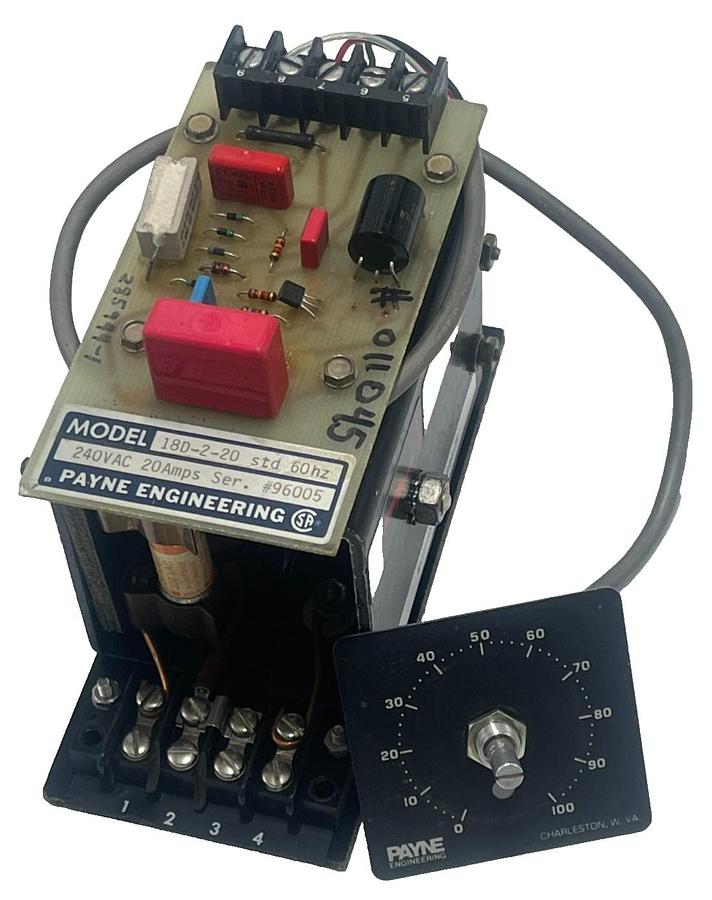

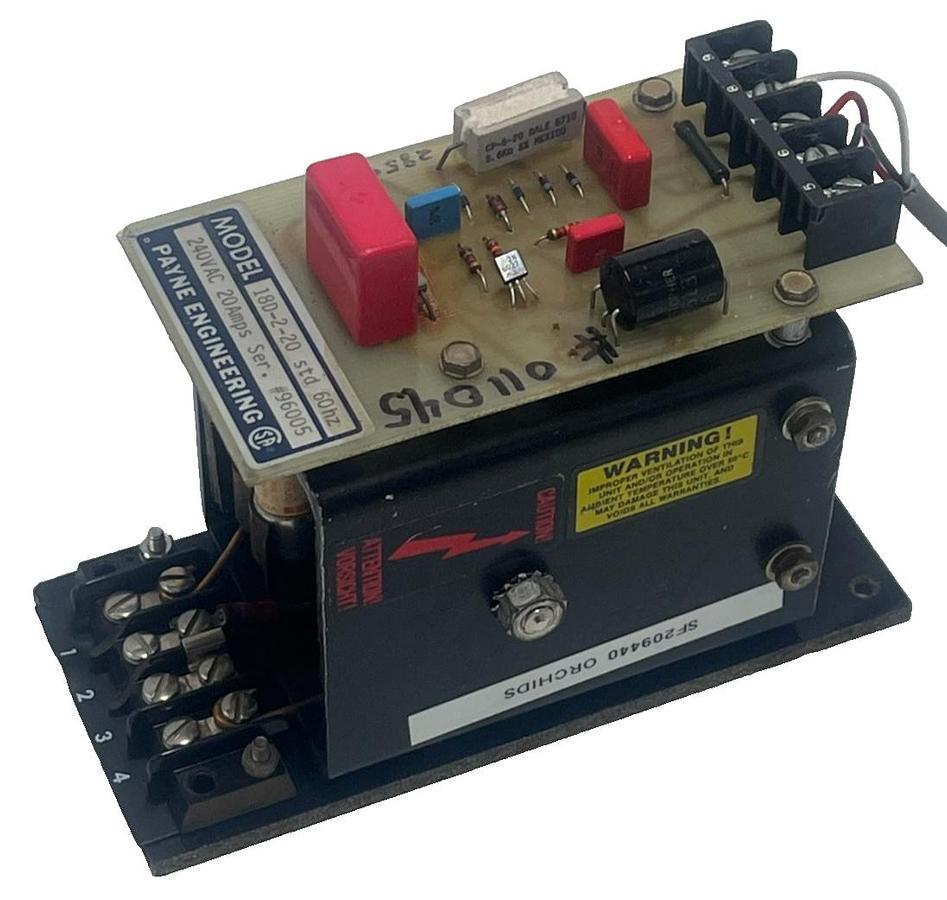

PAYNE ENGINEERING 18D-2-20 std 60Hz Power Controller 240VAC 20A TURN DIAL 0-100

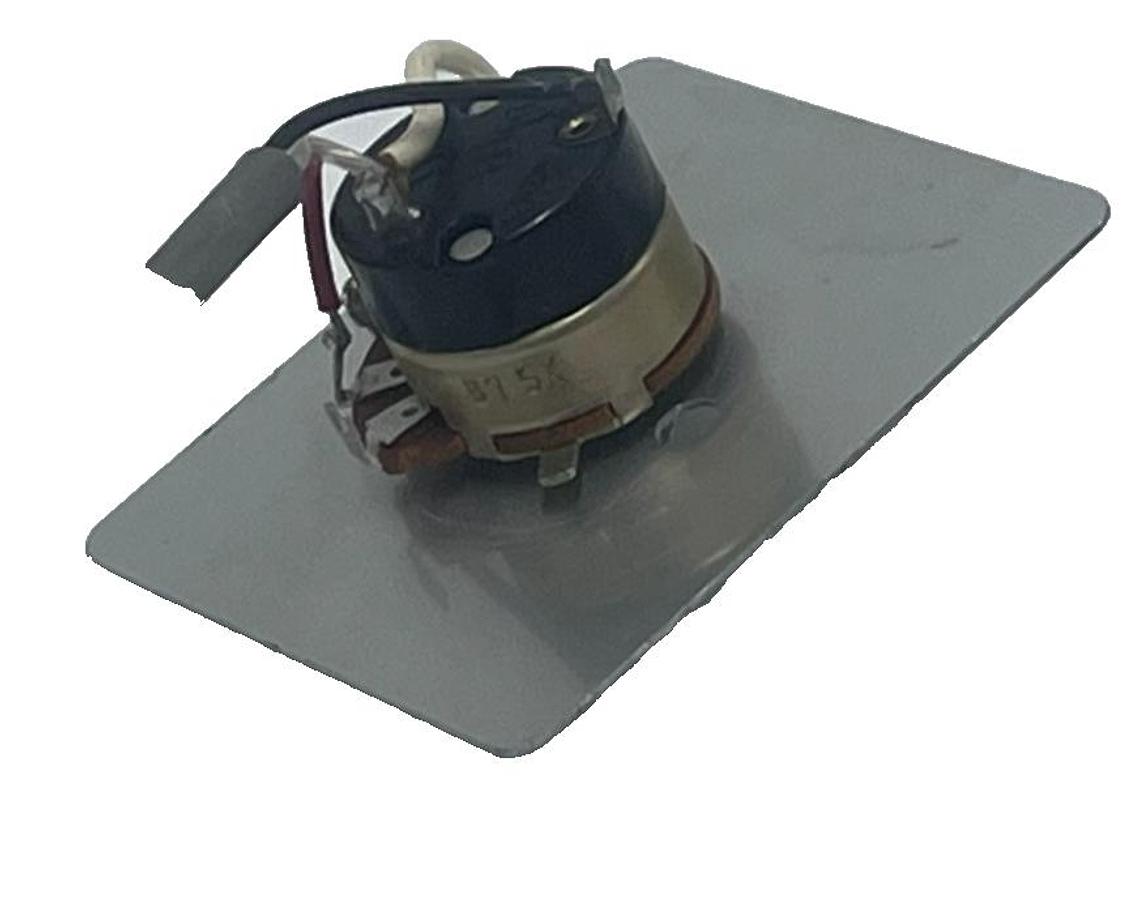

PAYNE ENGINEERING 18D-2-20 std 60Hz Power Controller 240VAC 20A TURN DIAL 0-100 CLEAN CONTROLLER IN GREAT CONDITION Key Features: - Phase-Angle Fired Control: Provides the fastest and most precise response for constant resistance heaters. - Rugged 20A Rating: Handles steady-state current up to 20 Amps without the need for external cooling fans in ambients up to 50°C (122°F). - Transient Protection: Exclusive "Vbo Clamping" protects against voltage spikes common on industrial mains. - High Efficiency: Operates with 98.5% to 99% overall efficiency with very low power loss (approx. 1-2 watts per ampere). - Standard Manual Control: Includes a standard potentiometer for manual 0-100% control, but can be configured for automatic control via PLC or external analog signals with the proper interface card. Technical Specifications (2025 Data): Feature Detail Manufacturer Payne Engineering MPN 18D-2-20 Voltage Input 208 / 220 / 240 VAC (Single Phase) Current Rating 20 Amps Voltage Output 0 to 99% of input voltage (Variable) Control Signal 75K Ohm 2W Potentiometer (Standard) Protection 2ms I²t Fuse-protected Chassis Type Open Chassis, Isolated Weight Approx. 1.50 lbs CONDITION: USPI - Used Surplus Previously Installed (OEM) WARRANTY: 90 DAYS SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) ________________________________________________________________________________ 2030
