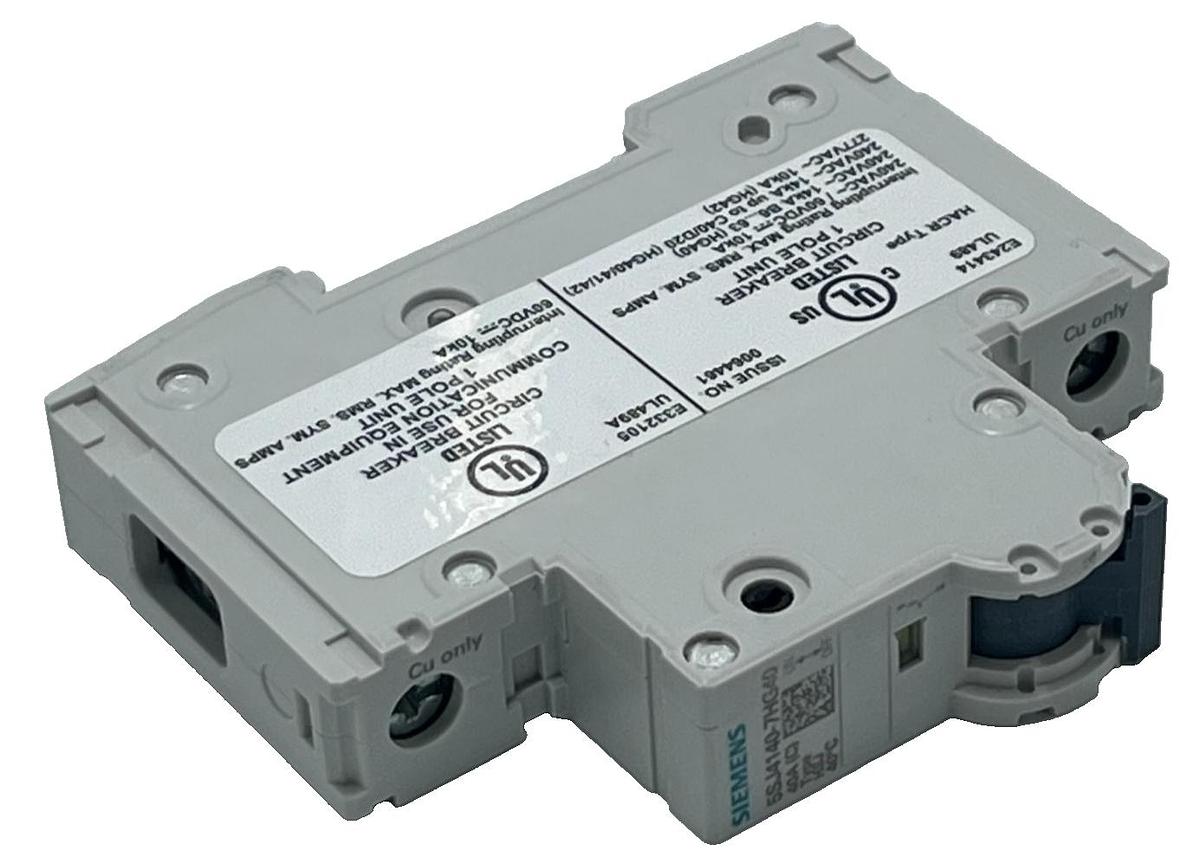

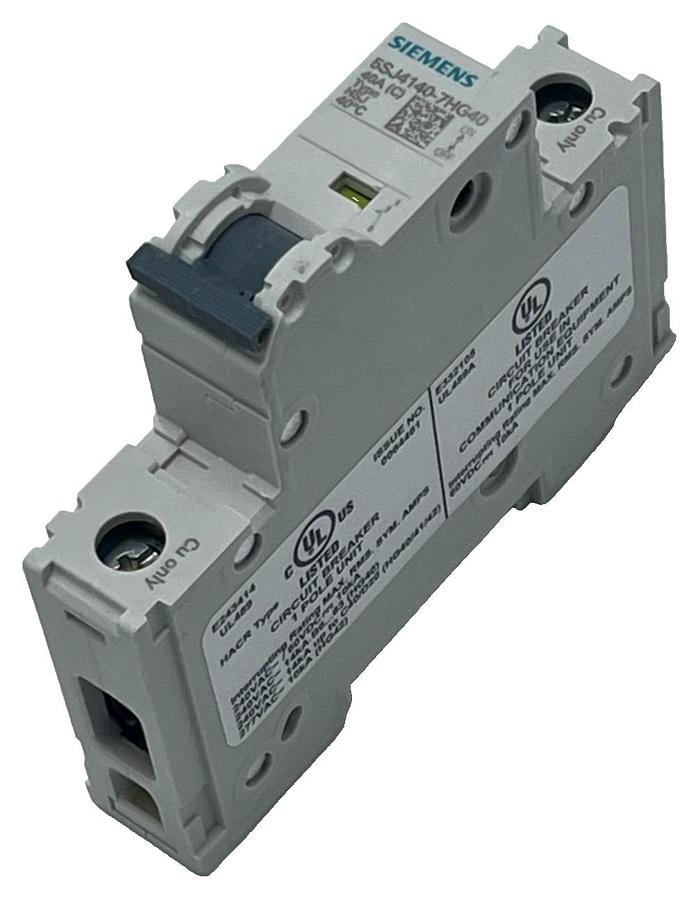

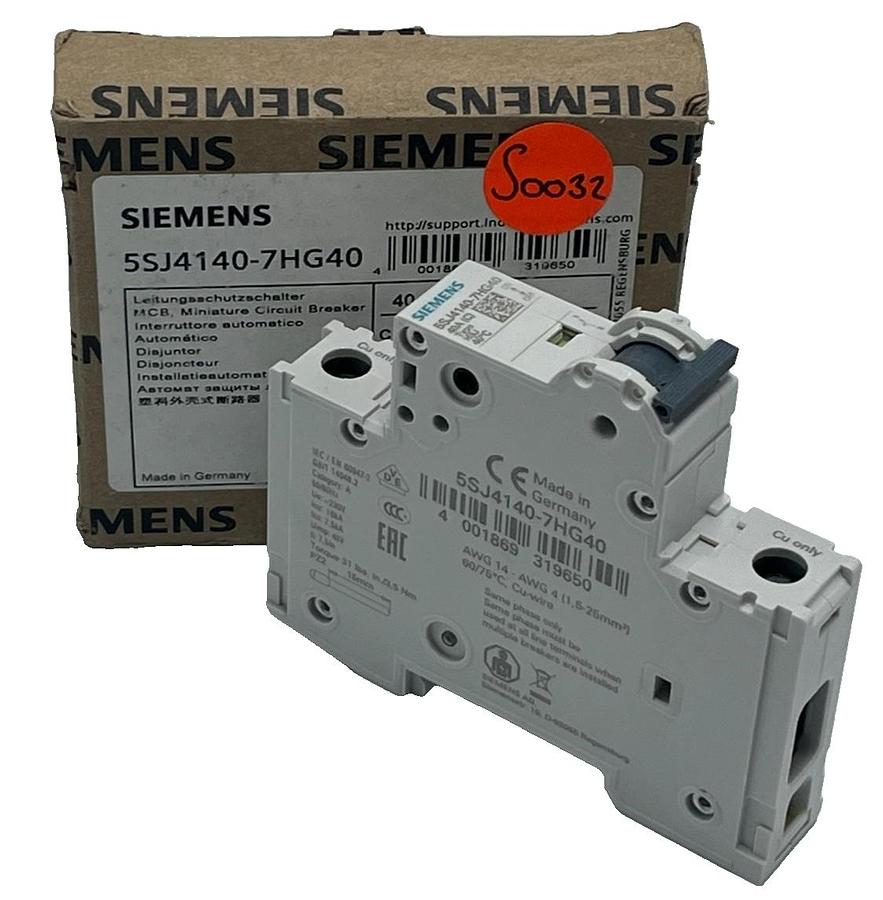

Siemens 5SJ4140-7HG40 Miniature Circuit Breaker 40A 1P C-Curve 240VDC/AC UL 489
$75
Description
Siemens 5SJ4140-7HG40 Miniature Circuit Breaker 40A 1P C-Curve 240VDC/AC UL 489
- Brand: Siemens
- MPN:
[5SJ4140-7HG40](https://www.google.com/search?ibp=oshop&prds=pvt:hg,pvo:29,mid:576462737471468473,imageDocid:2472480290583137697,gpcid:12153493940549196320,headlineOfferDocid:17286491583703549527,catalogid:2266904434193813788,productDocid:15125374946117258811&q=product&sa=X&ved=2ahUKEwit3Ln8srGRAxVzlYkEHSElPRYQxa4PegYIAQgEEAQ)
- Model: 5SJ4
- Current Rating: 40 A
- Voltage Rating (AC): 240 VAC max (UL 489/CSA rated for 120 V AC per pole)
- Voltage Rating (DC): 60 VDC max
- Number of Poles: 1
- Tripping Characteristic: C-Curve
- Interrupting Rating: 14 kA at 240 VAC (UL 489 Type HSJ)
- Mounting Style: 35mm DIN Rail Mount
- Approvals: UL 489 Listed, CSA C22.2, CE Marked
- UPC: Does Not Apply
Item Description
Condition Details:
[Be honest and transparent about the condition. If it's used, clearly list any scuffs, scratches, or operational flaws. If new, specify if it's in original packaging, open box, etc.]
For example:
- Condition: New in Open Box. Item is in excellent, new condition and has no functional defects. The original packaging has been opened for inspection.
- Condition: Used, fully tested and in good working condition. Pulled from a working control panel. Minor cosmetic wear is present (see photos for details).
Product Overview:
This listing is for a genuine
[Siemens 5SJ4140-7HG40](https://www.google.com/search?ibp=oshop&prds=pvt:hg,pvo:29,mid:576462737471468473,imageDocid:2472480290583137697,gpcid:12153493940549196320,headlineOfferDocid:17286491583703549527,catalogid:2266904434193813788,productDocid:15125374946117258811&q=product&sa=X&ved=2ahUKEwit3Ln8srGRAxVzlYkEHSElPRYQxa4PegYIAQgIEAI) miniature circuit breaker. This high-quality, single-pole breaker is designed for branch circuit protection in industrial applications where compliance with North American standards (UL 489, CSA) is required.
It features a C-curve tripping characteristic, which provides protection against medium-level short-circuit faults (trips at 5 to 10 times the 40A rated current). The device mounts easily on a standard 35mm DIN rail and has identical screw terminals on both the line and load sides.
Key Features & Specifications:
- Manufacturer: Siemens (SENTRON Product line)
- Part Number: 5SJ4140-7HG40
- Current Rating: 40 Ampere
- Poles: 1-Pole (1P)
- Voltage AC (UL/CSA): 240 VAC
- Voltage DC: 60 VDC
- Interrupting Capacity: 14 kA @ 240 VAC
- Trip Curve: Type C (thermal magnetic protection)
- Mounting: Standard DIN Rail (1 modular width unit, 18mm wide)
- Wire Size: Accepts 14 AWG to 4 AWG copper wire (using combined terminals)
CONDITION: NSMP - New Surplus Manufacturer Package (OEM)
WARRANTY: 120 DAYS
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
________________________________________________________________________________
2019
Specifications
| Manufacturer | Siemens |
| Model | 5SJ4140-7HG40 |
| Condition | Used |
| Stock Number | 366050911557 |
