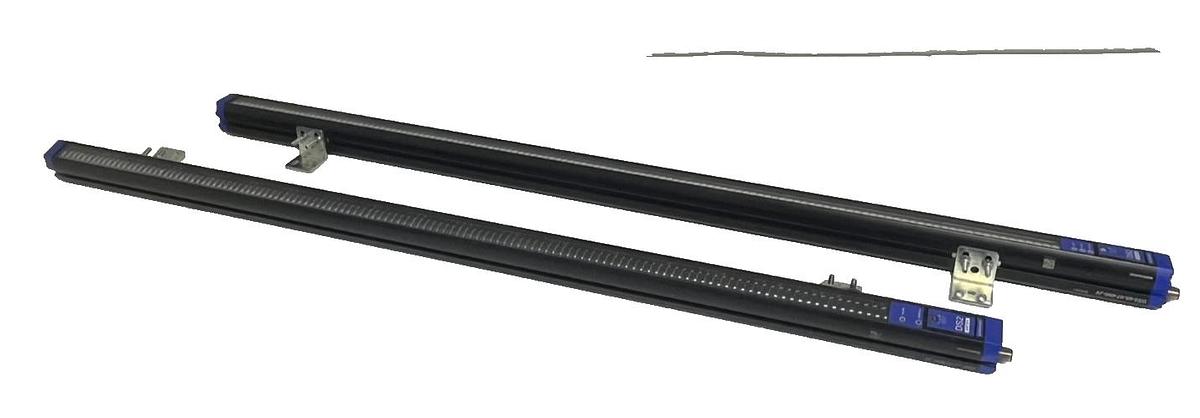

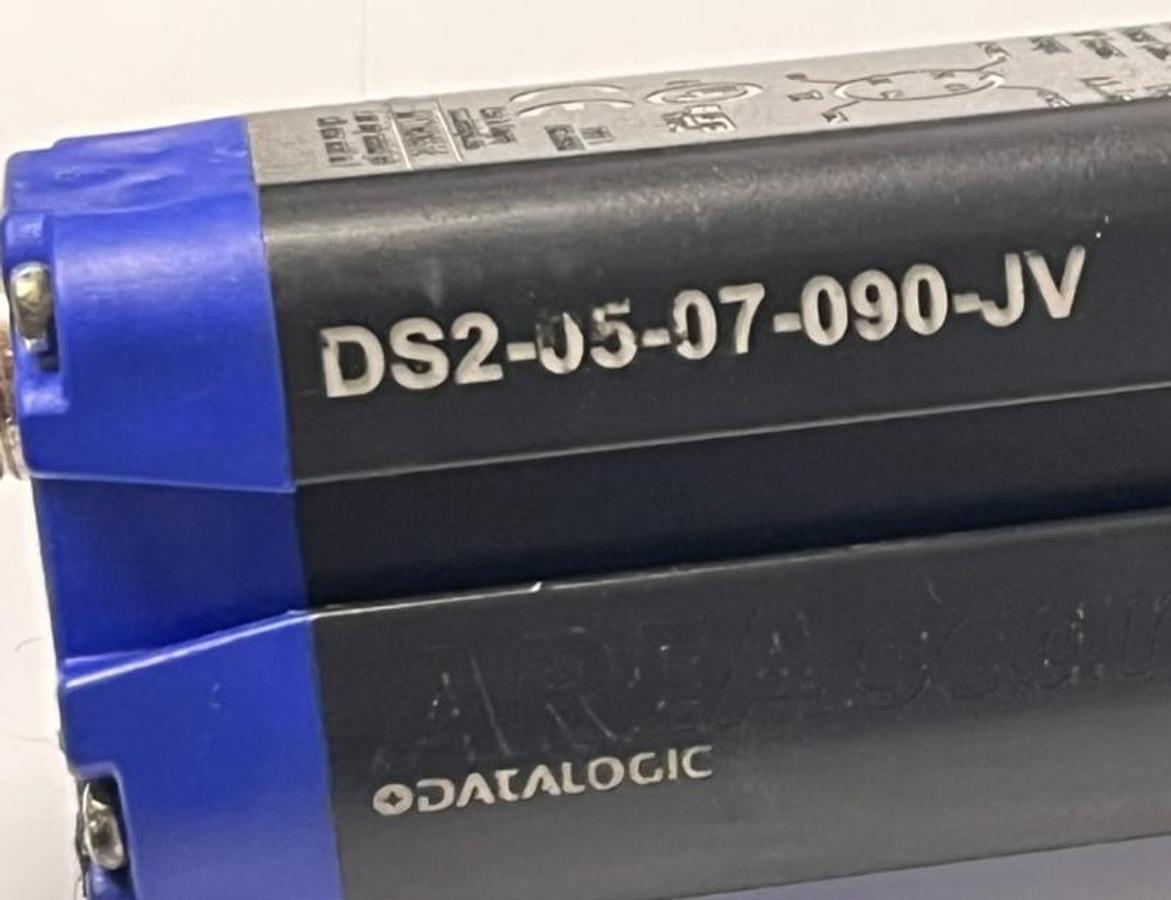

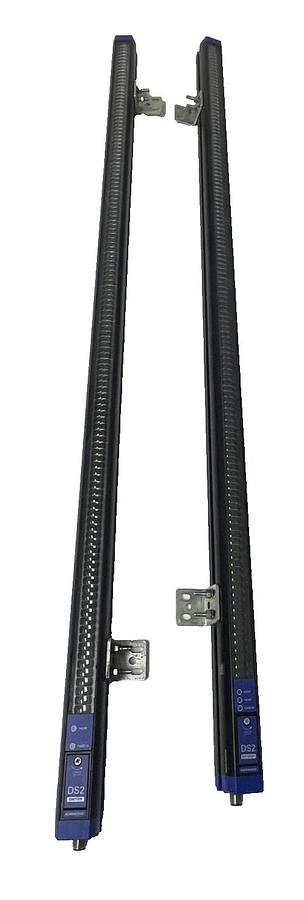

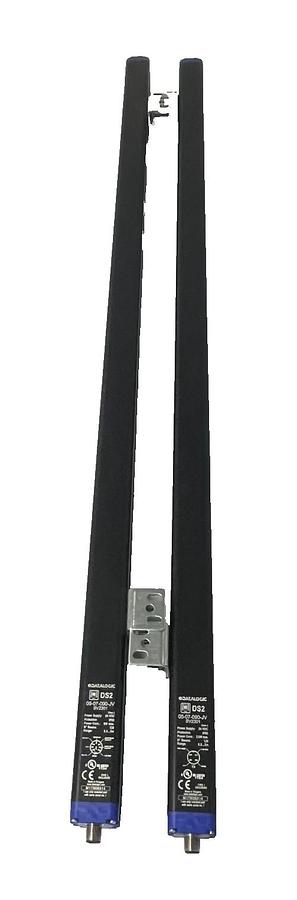

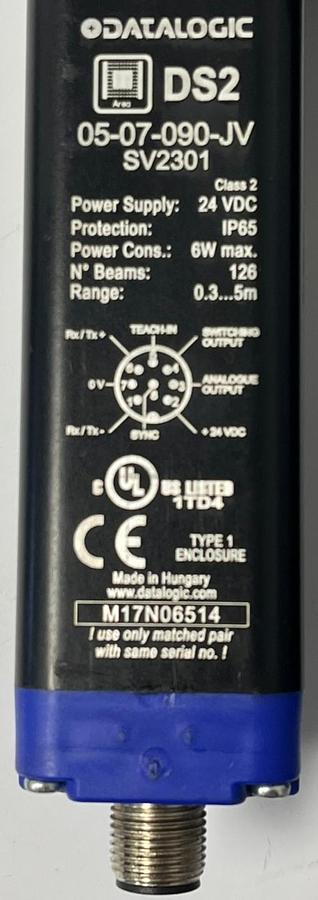

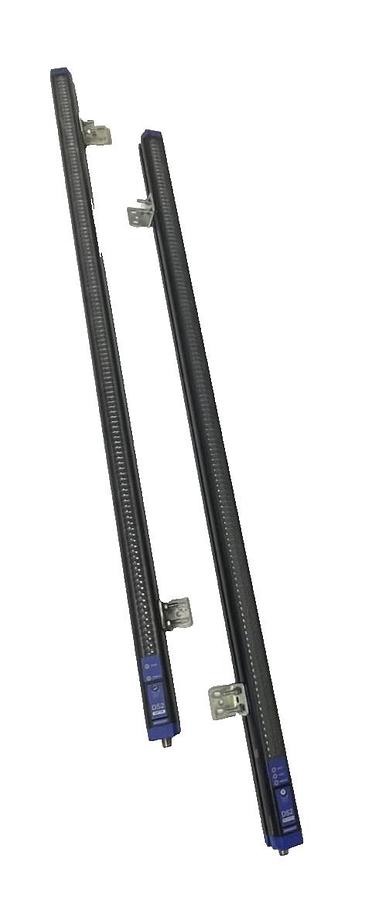

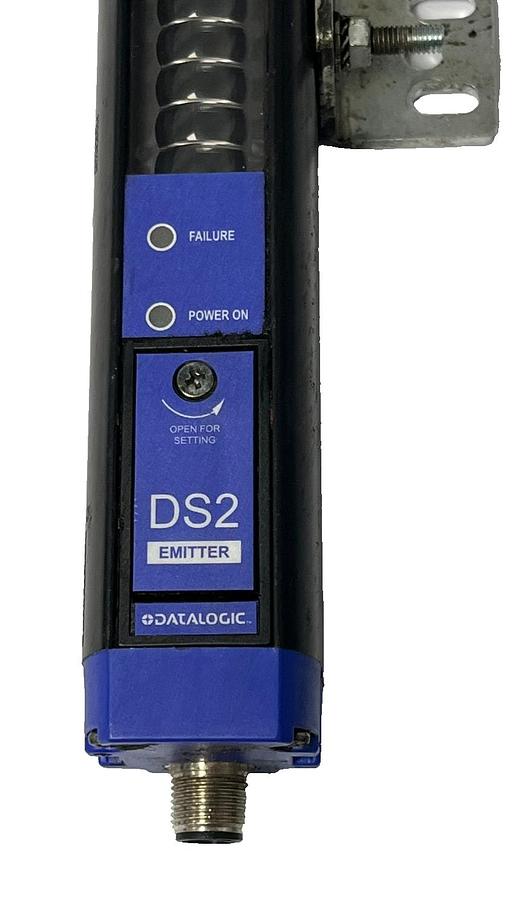

DATALOGIC DS2-05-07-090-JV Light Grid Set 900mm H 5m Range 7mm Beam Sep
$1,500
Description
DATALOGIC DS2-05-07-090-JV Light Grid Set 900mm H 5m Range 7mm Beam Sep
LIGHTLY USED LIGHT GRID SETUP , A BIT OF COSMETIC WEAR OTHERISE IN EXCELLENT CONDITION
- Brand: Datalogic
- MPN (Manufacturer Part Number):
[DS2-05-07-090-JV](https://www.google.com/search?ibp=oshop&prds=pvt:hg,pvo:29,imageDocid:6997004599643328795,headlineOfferDocid:11497579760620301331,productDocid:11497579760620301331&q=product&sa=X&ved=2ahUKEwiom5O3ya6RAxVj2PACHT0pPM0Qxa4PegYIAQgKEAM) (or 957501010)
- Model:
[DS2](https://www.google.com/search?ibp=oshop&prds=pvt:hg,pvo:29,imageDocid:11416239323795226083,headlineOfferDocid:5126321895362286037,productDocid:5126321895362286037&q=product&sa=X&ved=2ahUKEwiom5O3ya6RAxVj2PACHT0pPM0Qxa4PegYIAQgKEAY)
- Sensor Type: Safety Light Curtain / Area Sensor & Measurement Light Array
- Power Supply: 19.2-28.8 VDC (typical 24VDC)
- Sensing Range: 0.3-5m
- Controlled Height: 900mm
- Beam Separation: 7mm
- Output Type: PNP, Analog 0-10 V, RS485
- Connection Type: M12 Plug (4-pole and 8-pole connectors)
- IP Rating: IP65
- Housing Material: Aluminium / Metal
- Approvals: CE, cULus
Item Description
Use this description, adjusting the first paragraph based on the item's actual condition and included components.
"This is a
[Datalogic DS2-05-07-090-JV Area Sensor and Measurement Light Array](https://www.google.com/search?ibp=oshop&prds=pvt:hg,pvo:29,imageDocid:11416239323795226083,headlineOfferDocid:5126321895362286037,productDocid:5126321895362286037&q=product&sa=X&ved=2ahUKEwiom5O3ya6RAxVj2PACHT0pPM0Qxa4PegYIAQgMEAI). The unit is new and in working condition. It is an industrial-grade light grid for object detection and measurement in automated systems. We only sell what is pictured, so please refer to the photos for included accessories and condition."
Key Features & Applications:
- Object Detection and Measurement: Ideal for use on conveyor belts to measure height or width.
- Material Control: Controls the correct positioning of various materials, including opaque and transparent items like plastic, metal, and paper.
- Positioning and Loop Control: Useful for loop control and positioning, even with transparent materials.
- Multiple Object Detection: Designed to detect objects with different shapes and in various positions.
- Configuration: Measurement configuration can be set manually via internal dip-switches or a graphic interface from a remote PC.
Technical Specifications (from Datasensing):
- Sensing Distance: 0.3m to 5m
- Controlled Height: 882mm
- Number of Rays: 126
- Response Time: 13ms
- Operating Temperature: 0°C to +50°C
CONDITION: USPI - Used Surplus Previously Installed (OEM)
WARRANTY: 90 DAYS
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
________________________________________________________________________________
PALLET A3
Specifications
| Manufacturer | Datalogic |
| Condition | Used |
| Stock Number | 197934015932 |
