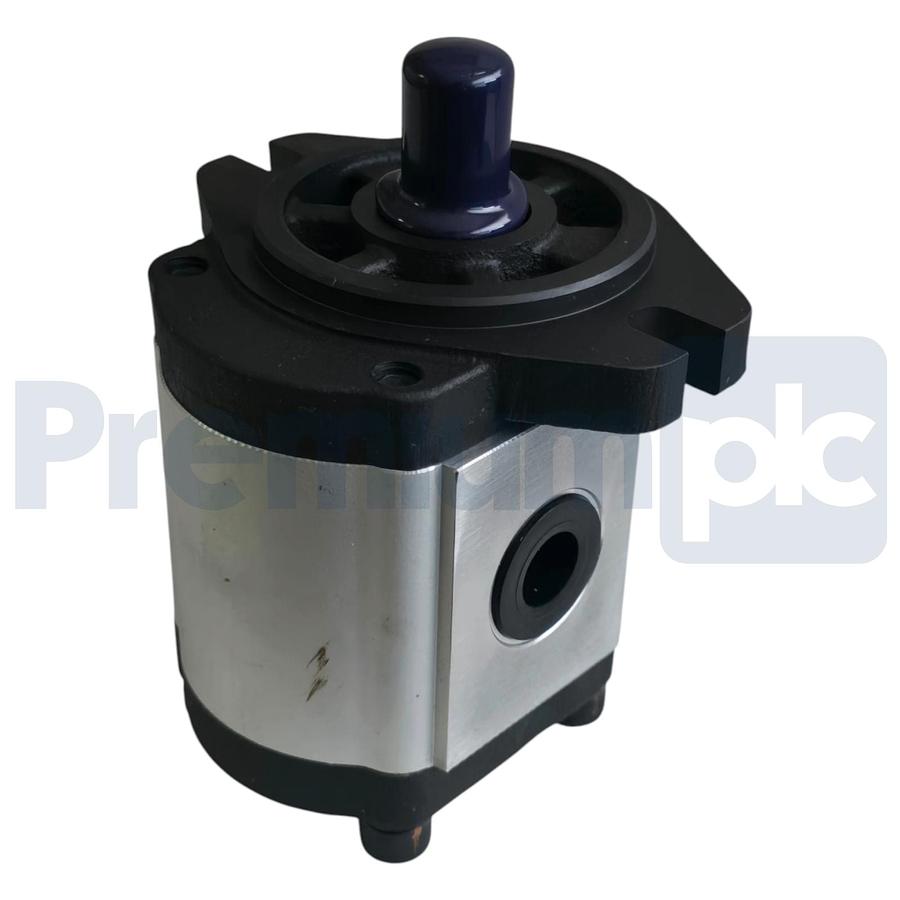

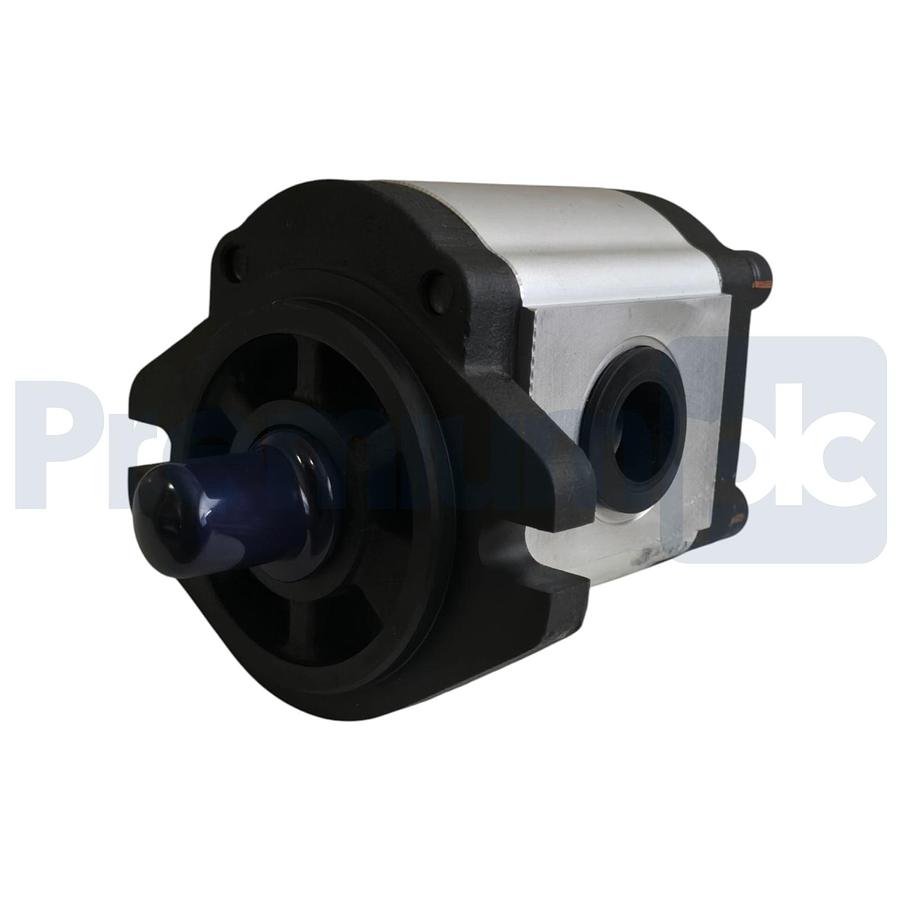

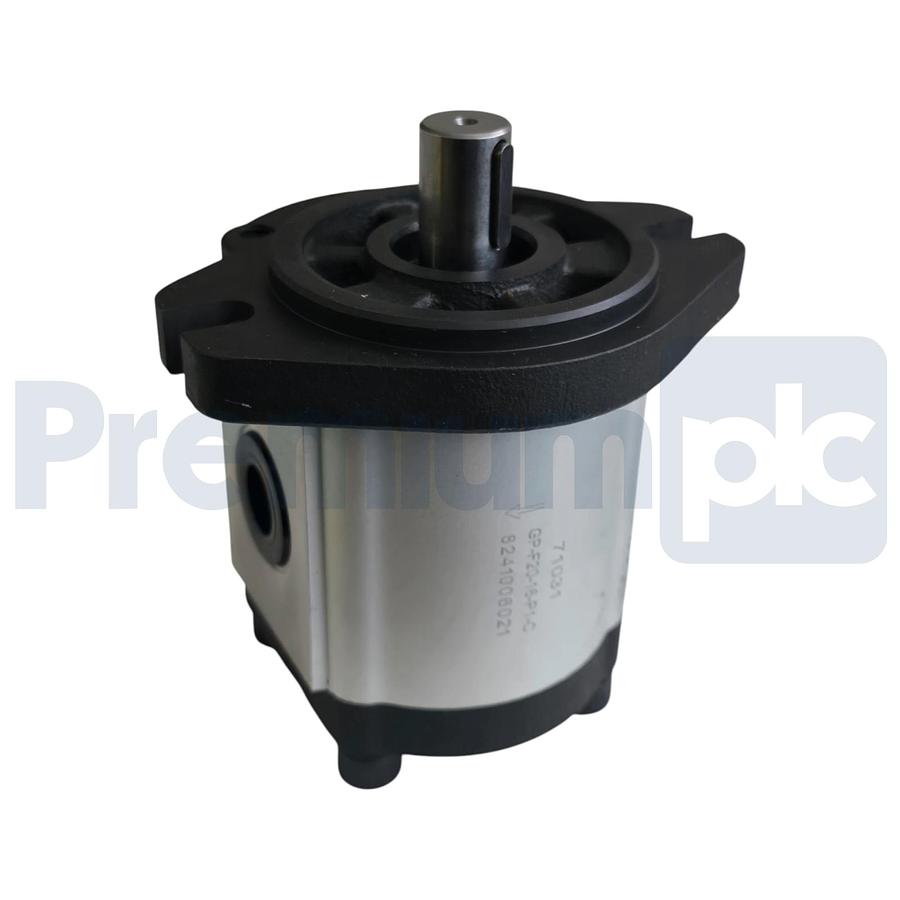

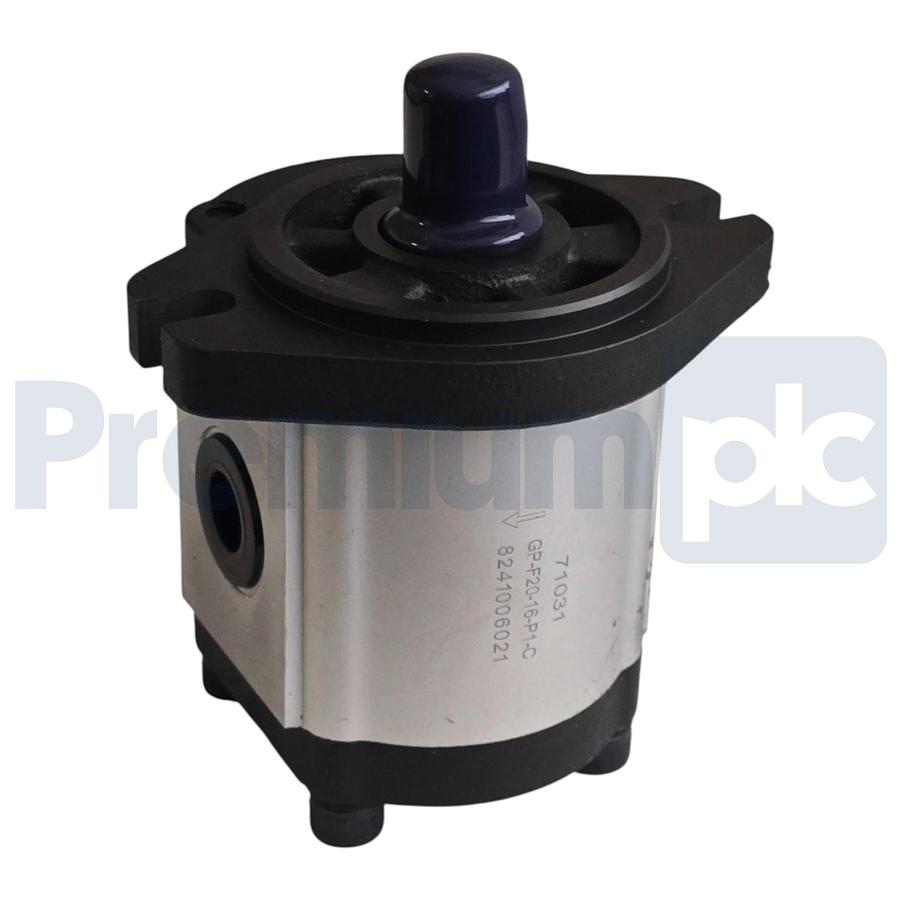

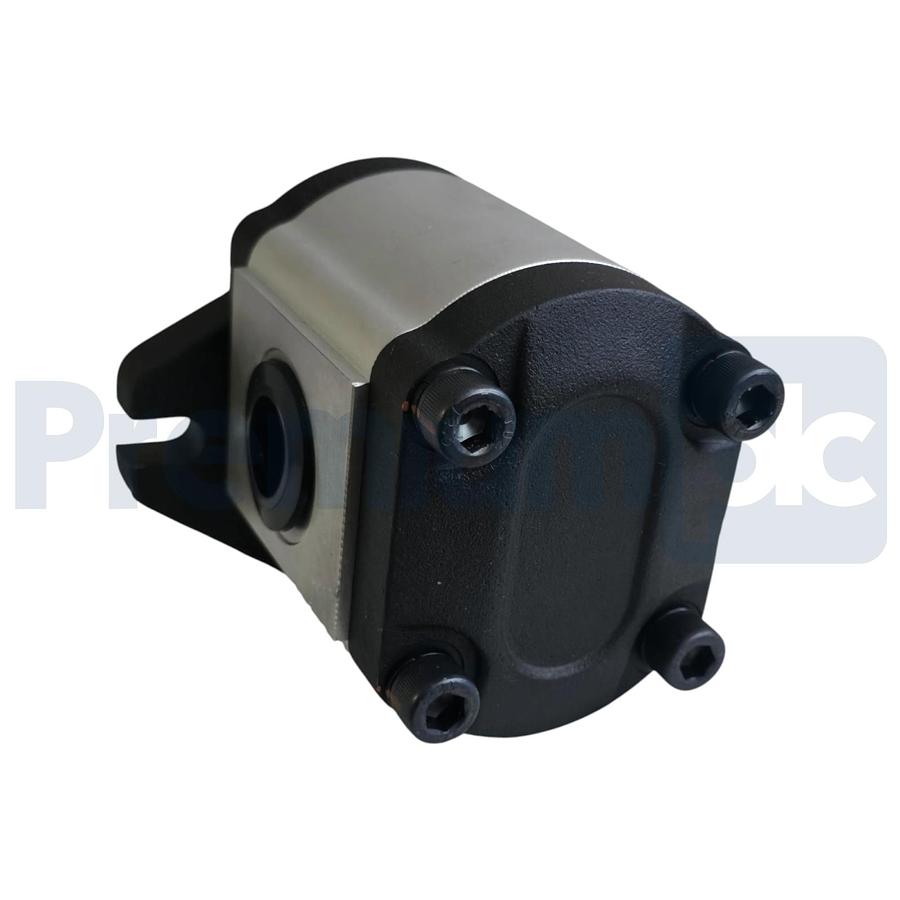

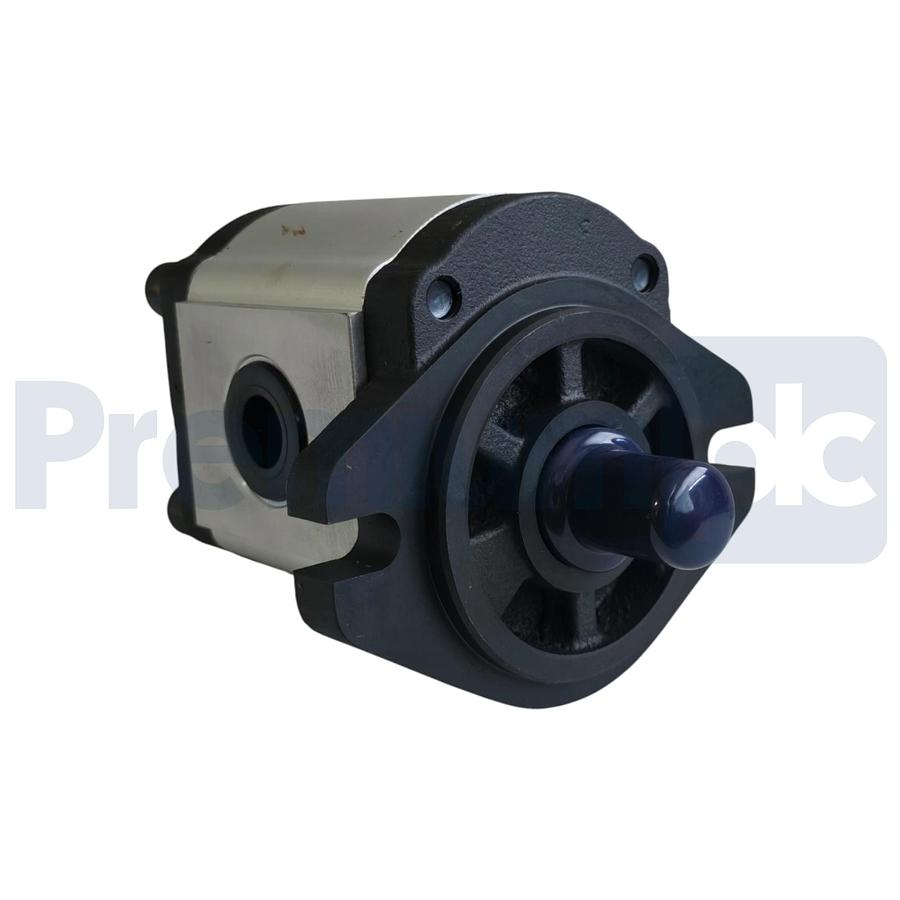

Dynamic Fluid Components GP-F20 Gear Pump 7.5 GPM 3/4” Keyed GP-F20-16-P1-C NSNP
$225
Description

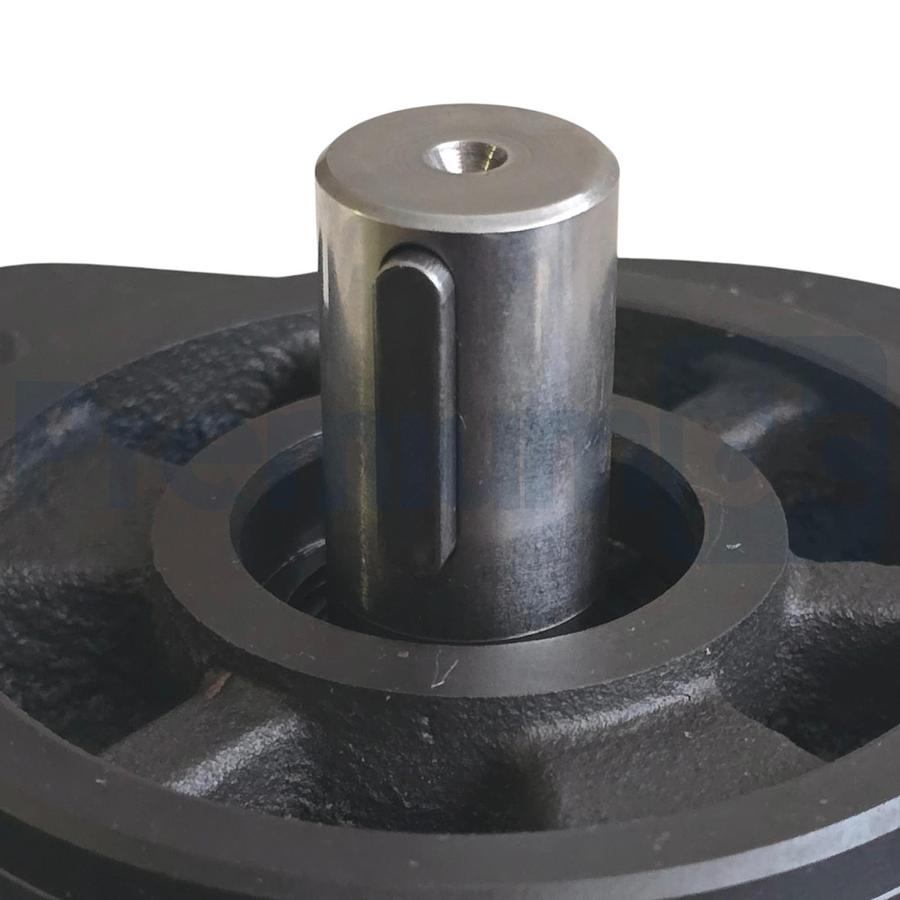

Dynamic Fluid Components GP-F20 Gear Pump 7.5 GPM 3/4” Keyed Shaft GP-F20-16-P1-C NSNP Key Features & Specifications - Brand: Dynamic Fluid Components - Model: [GP-F20-16-P1-C](https://www.google.com/search?ibp=oshop&prds=pvt:hg,pvo:29,imageDocid:11893787450868304795,headlineOfferDocid:8397545271588573238,productDocid:8397545271588573238&q=product&sa=X&ved=2ahUKEwio88G6gO2QAxVUv4kEHcjkAqAQxa4PegYIAQgIEAM) - Type: Hydraulic Gear Pump - Construction: Aluminum center housing, cast iron end plates - Displacement: 0.97 cu. in./rev (16 cc/rev) - Max Pressure: Up to 2900 PSI (200 bar) - Rated Speed: 2000 RPM - Max Speed: 3600 RPM - Mounting Flange: Standard SAE A - 2 Bolt - Drive Shaft: 3/4" diameter straight shaft with key - Rotation: Clockwise (CW) - Ports: - Inlet Port: SAE-12 (ORB-12) - Outlet Port: SAE-10 (ORB-10) - Weight: Approximately 9.35 lbs. CONDITION: NSNP - New Surplus No Manufacturer Package (OEM) (DOES HAVE SOME MINOR SHELF WEAR COMES AS SHOWN IN PHOTOS) WARRANTY: 120 DAYS SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) ________________________________________________________________________________ 3020
Specifications
| Manufacturer | Dynamic Fluid Components |

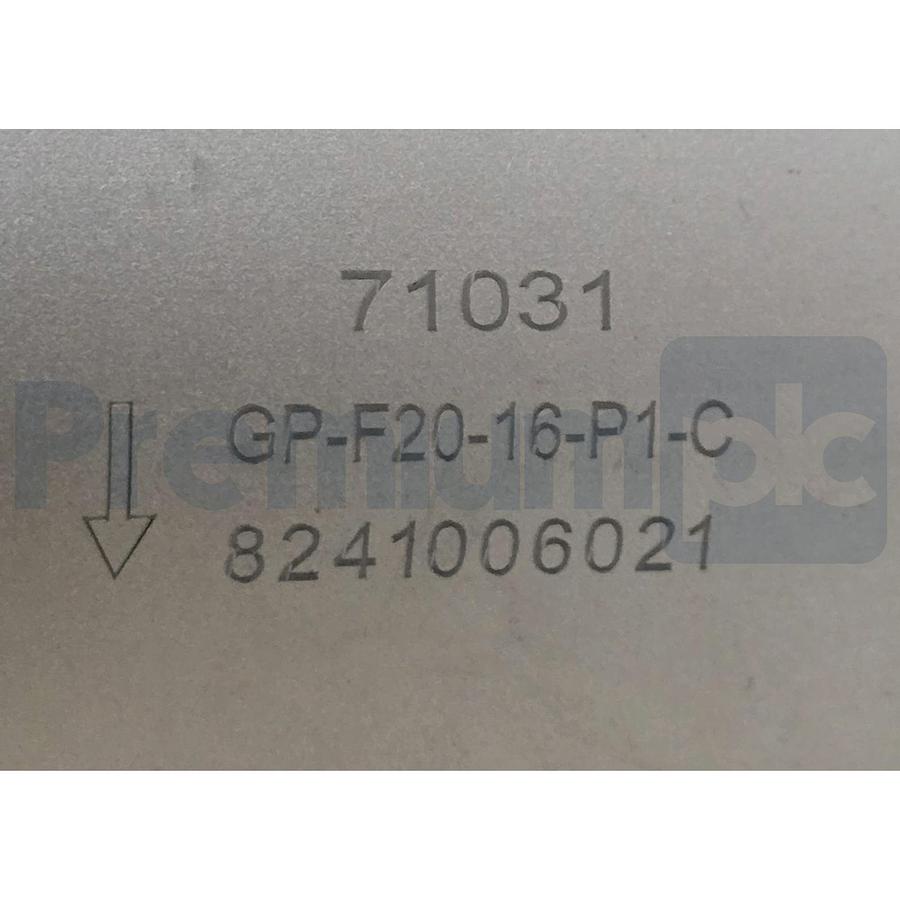

| Model | GP-F20-16-P1-C |
| Condition | Used |
| Stock Number | 365981748090 |
| Rated Pressure | 2000 psi (140 bar) |
| Type | Hydraulic |
| Outlet Port Diameter | SAE-10 |
| Inlet Port Diameter | SAE-12 |
| Hydraulic Pump Type | Hydraulic Gear Pump |
