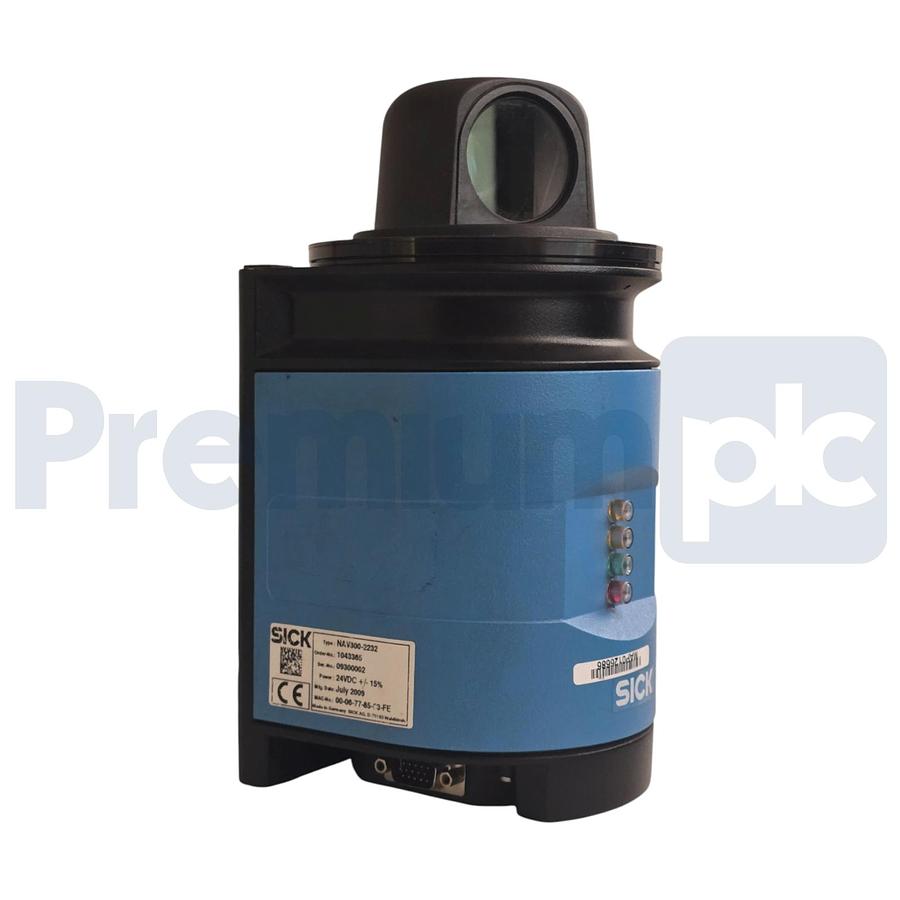

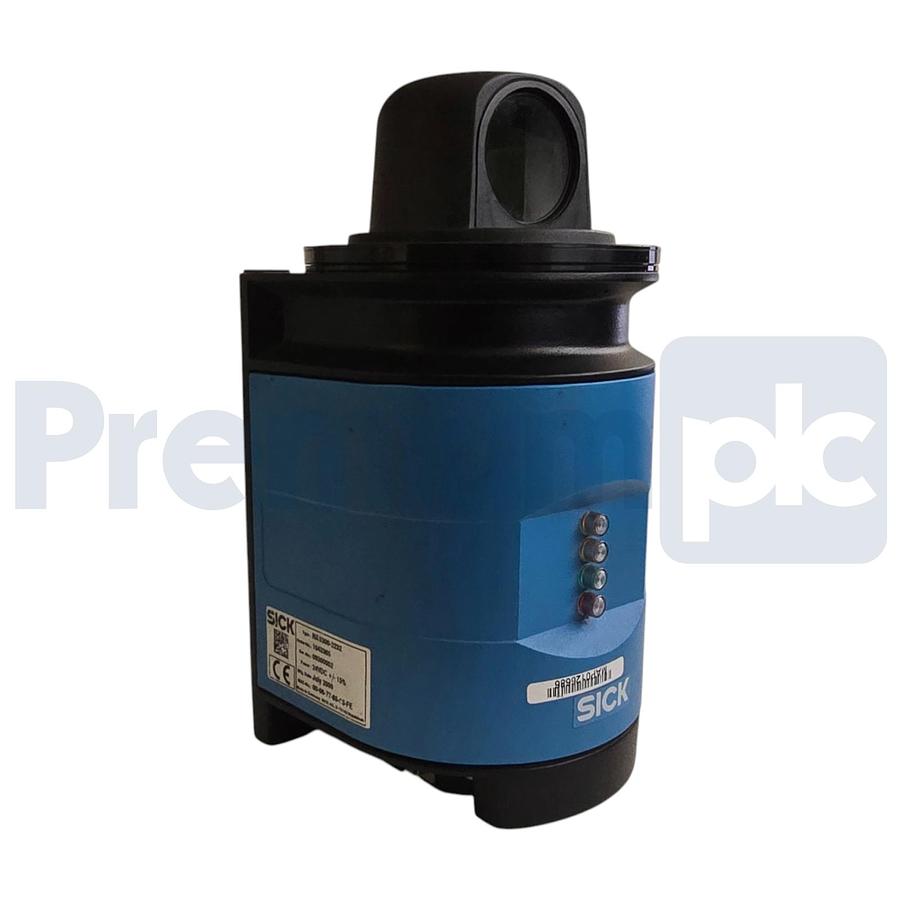

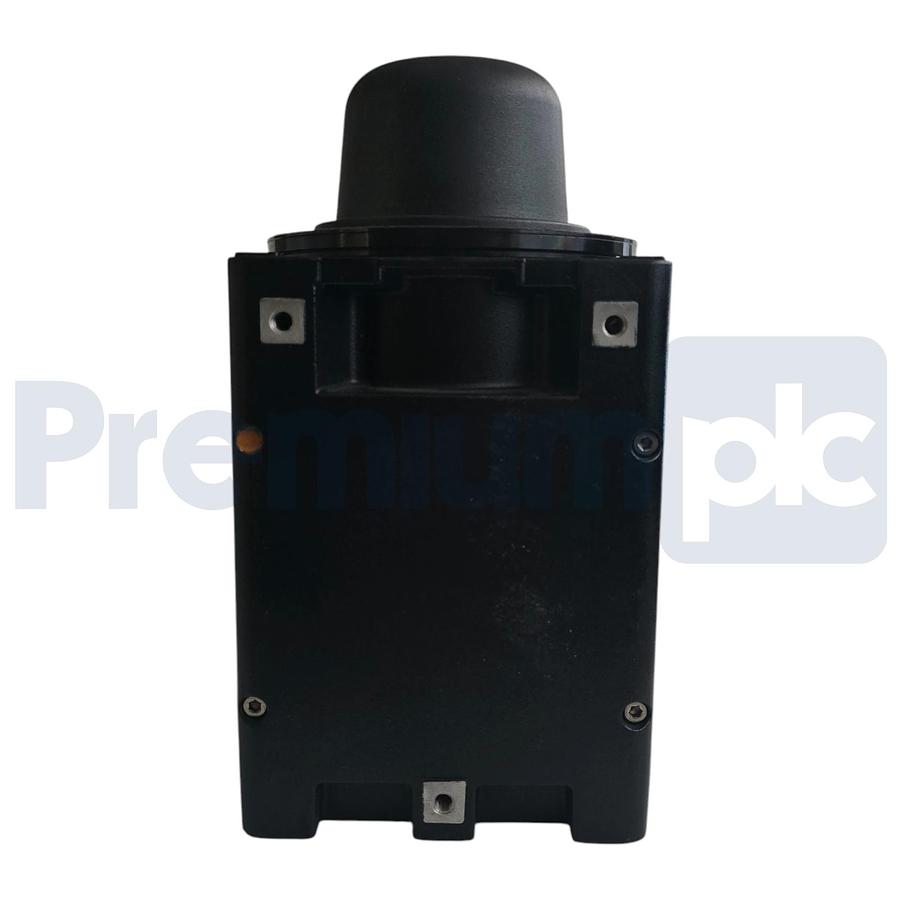

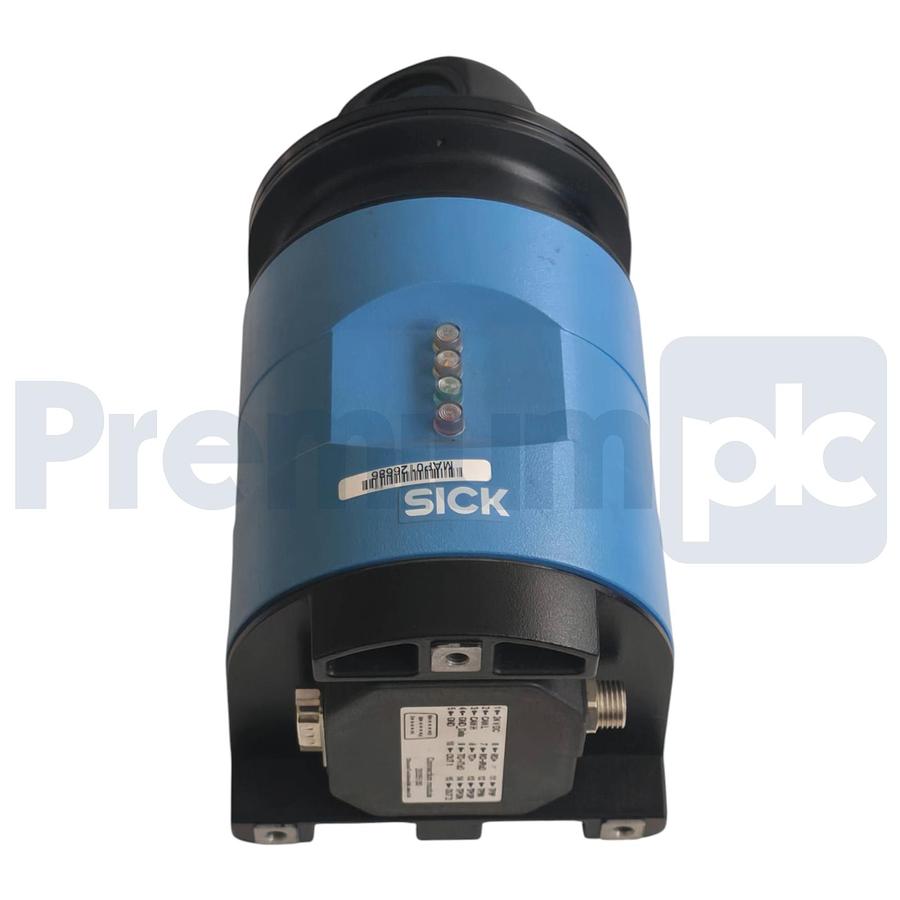

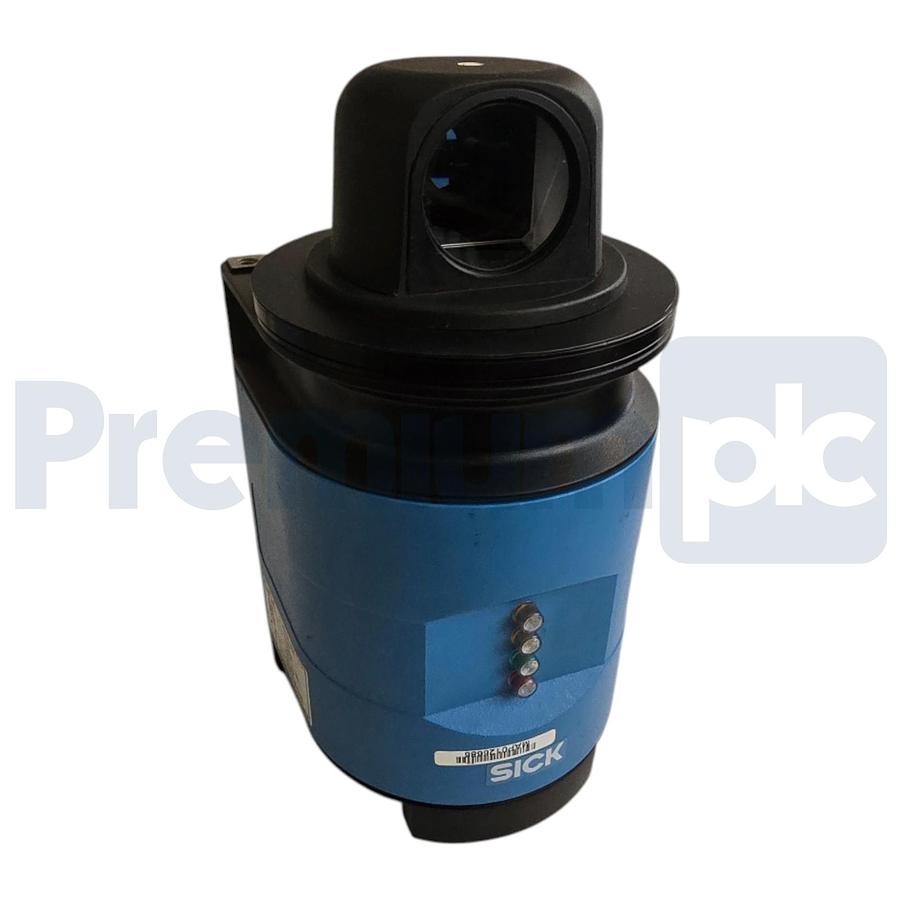

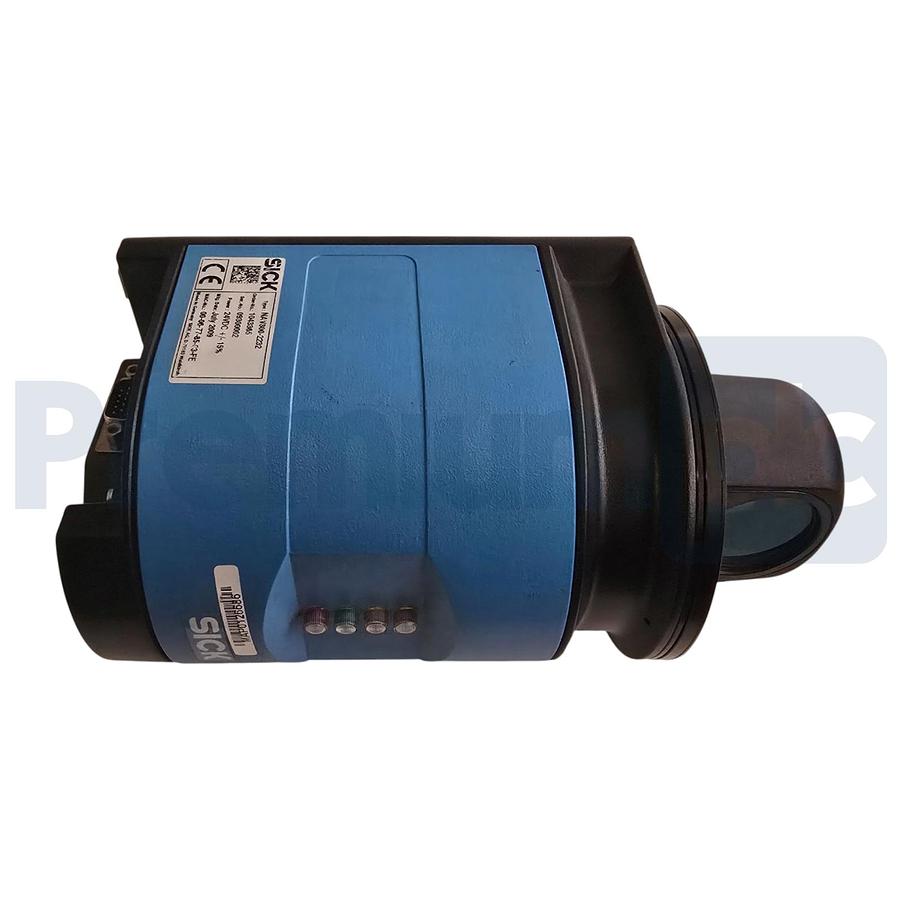

SICK NAV300-2232 - 1043365 2D LIDAR POSITIONING SENSOR/SCANNER NAV3002232 REFURB
$1,850
Description
SICK NAV300-2232 - 1043365 2D LIDAR POSITIONING SENSOR/SCANNER NAV3002232 REFURB
-
FEATURES
Version Long Range
Field of application Indoor
Light source 905 nm
Laser class 1, eye-safe
Aperture angle 360°
Scanning frequency 5 Hz ... 15 Hz
Angular resolution 0.1°
Operating range 0.5 m ... 250 m (70 m on reflectors)
Max. range with 10 % reflectivity 35 m
-
-
-
PERFORMANCE
Detectable object shape Almost any
Systematic error
± 10 mm (RDI)
± 15 mm (Contour) 1)
Statistical error
± 10 mm (RDI)
± 15 mm (Contour) 1)
Integrated application Navigation1) Typical value, actual value depends on environmental conditions.
-
-
-
INTERFACES
Serial (RS-232, RS-422) ✔
Data transmission rate 19.2 kBaud ... 115 kBaud
Ethernet ✔
Data transmission rate 10 Mbit/s
Protocol TCP/IP
CAN bus ✔
Data transmission rate 10 bit/s ... 1 Mbit/s
Switching outputs 1 (digital)
Optical indicators 4 LEDs (status displays)
-
-
MECHANICS/ELECTRONICS

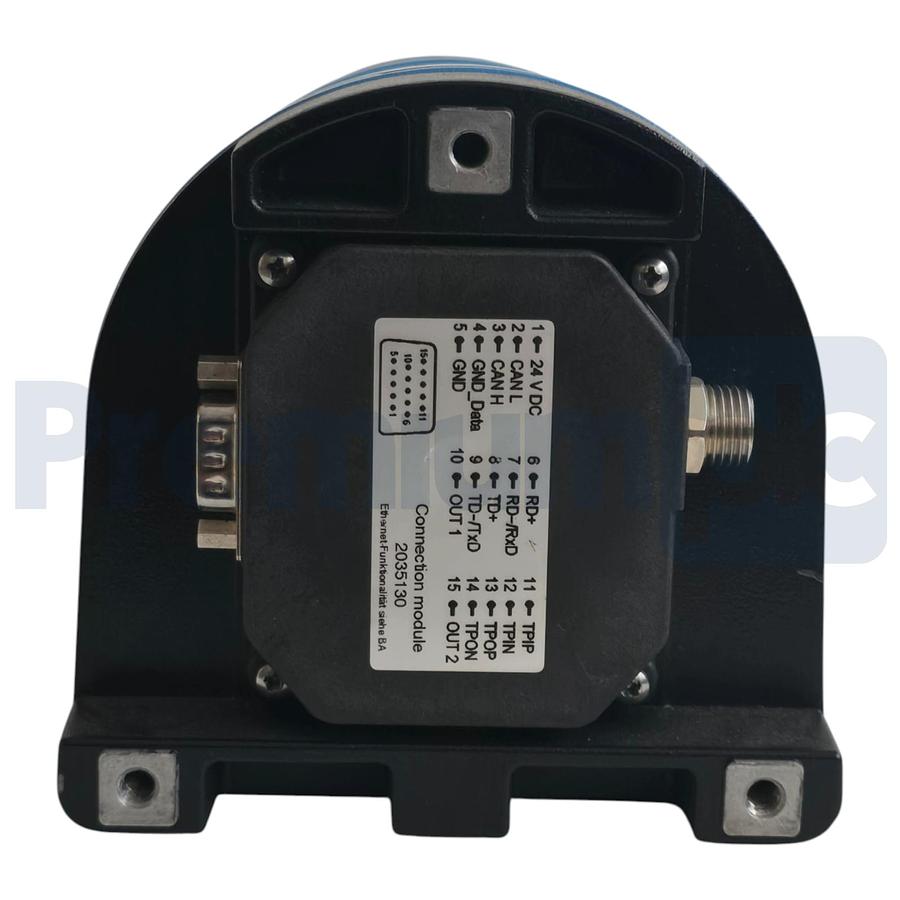

Electrical connection 1, 1 x 6-pin terminal block, 15-pin D-Sub HD male connector (0.9 m)
Operating voltage ≥ 24 V DC, ± 15 %
Power consumption 36 W
Housing Aluminum die cast
Housing color Light blue (RAL 5012)
Enclosure rating IP 65
Protection class III
Weight 2.4 kg
Dimensions (L x W x H) 115 mm x 120.5 mm x 222 mm
-
-
AMBIENT DATA
Ambient operating temperature 0 °C ... +50 °C
Storage temperature –20 °C ... +80 °C
Permissible relative humidity ± 85 %, Non-condensing
Reflector marks (recommended) Stripes: width ≥ 80 mm, cylindrical: diameter ≥ 80 mm
-
-
GENERAL NOTES
Note on use Not suitable for personnel protection
-
CLASSIFICATIONS
ECl@ss 5.0 27270990
ECl@ss 5.1.4 27270990
ECl@ss 6.0 27270913
ECl@ss 6.2 27270913
ECl@ss 7.0 27270913
ECl@ss 8.0 27270913
ECl@ss 8.1 27270913
ECl@ss 9.0 27270913
ETIM 5.0 EC002550
ETIM 6.0 EC002550
UNSPSC 16.0901 46171620
-
CONDITION: REFURBISHED
-
WARRANTY: 120 DAYS (LIMITED 1 YEAR)
-
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
-
________________________________________________________________________________________________________________________________________________
Specifications

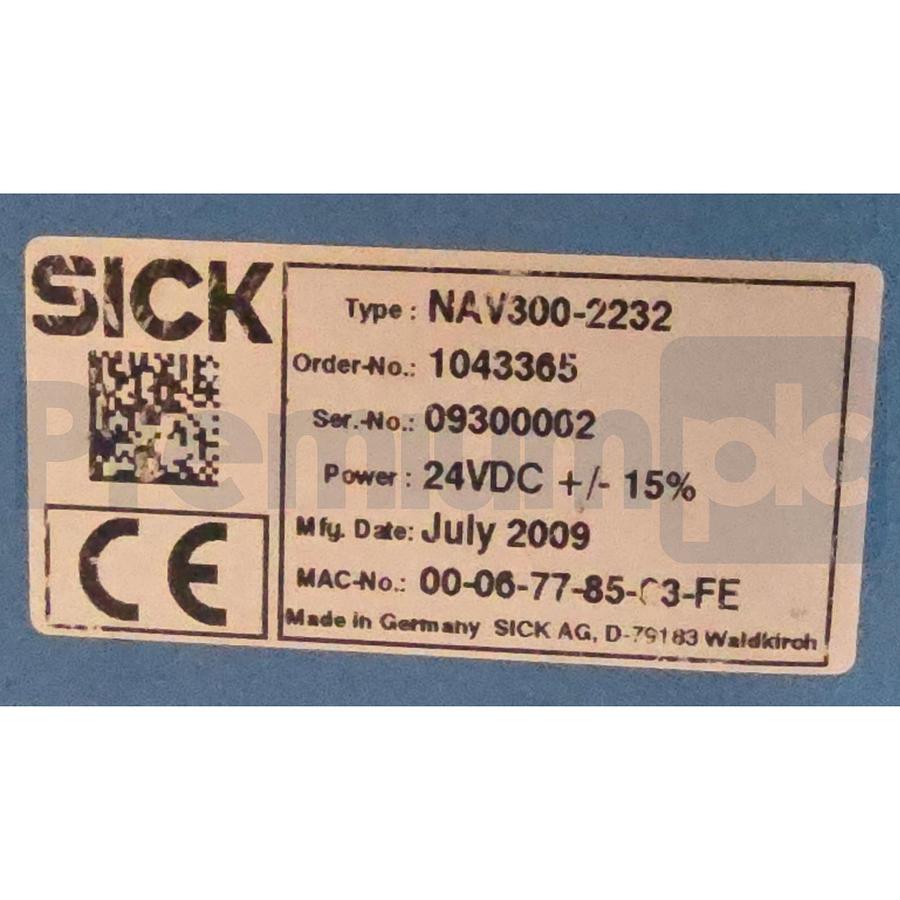

| Manufacturer | SICK |
| Model | NAV300-2232 |
| Condition | Used |
| Stock Number | 317378522077 |
| Country of Origin | Germany |
