APEX Dynamics AB142-010-S1-P1 Planetary Gearbox 10:1 for MITSUBISHI HF-SP202B

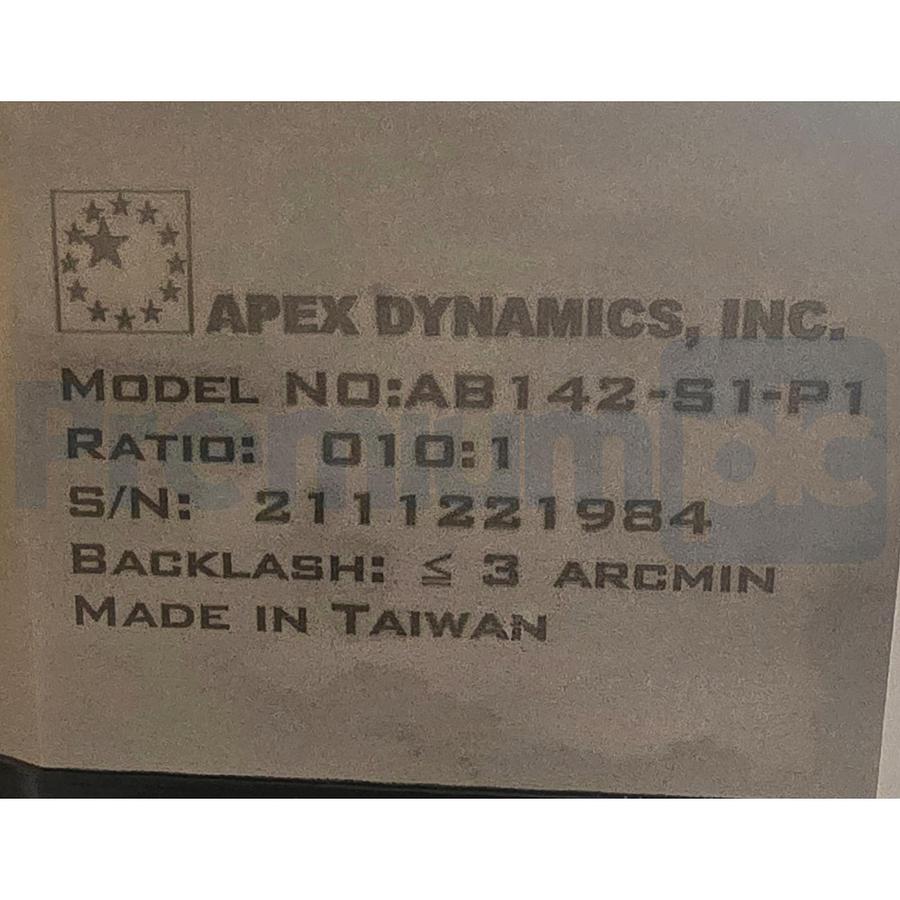

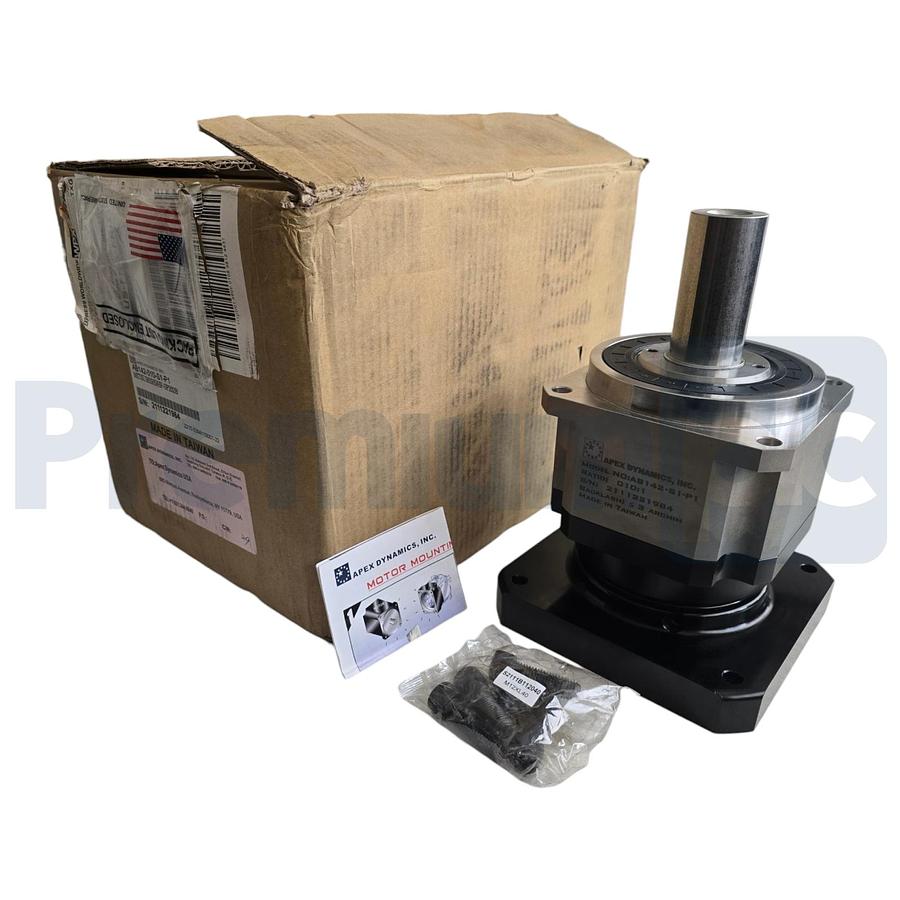

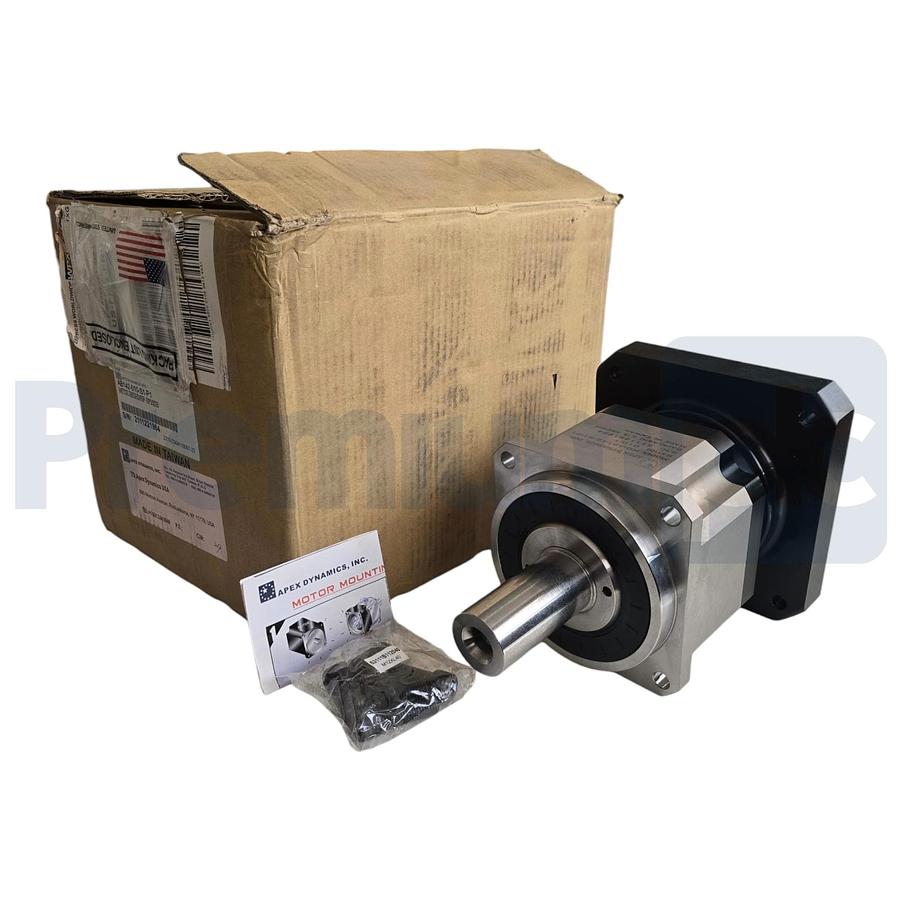

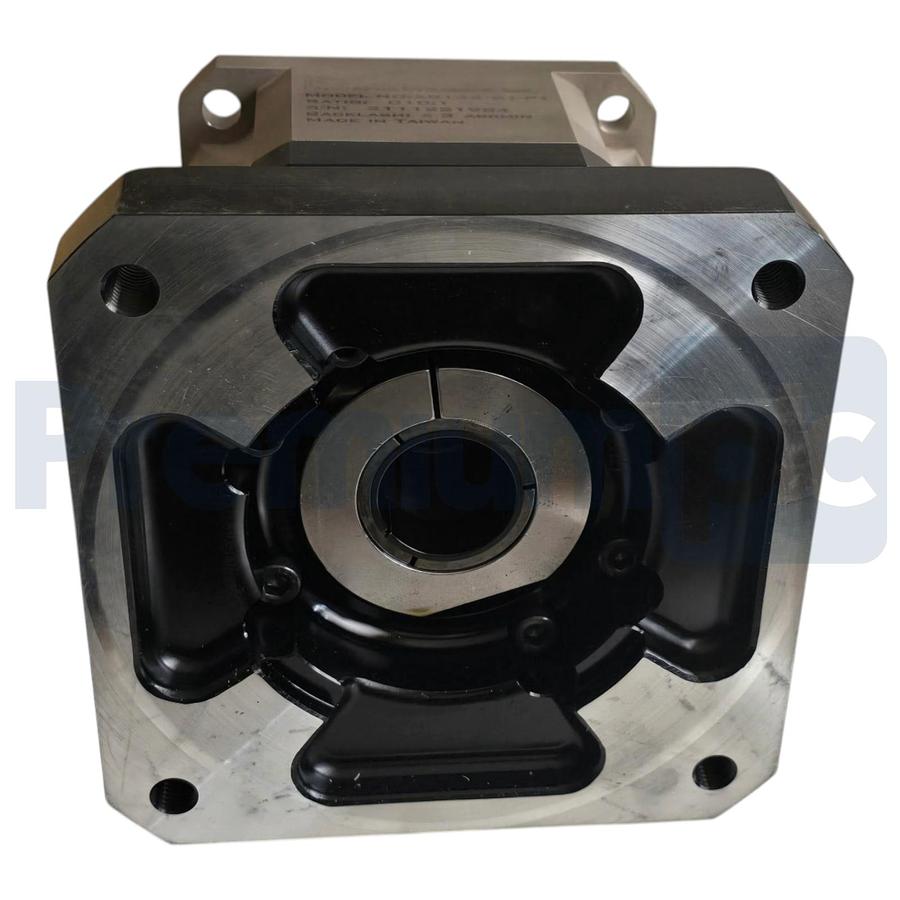

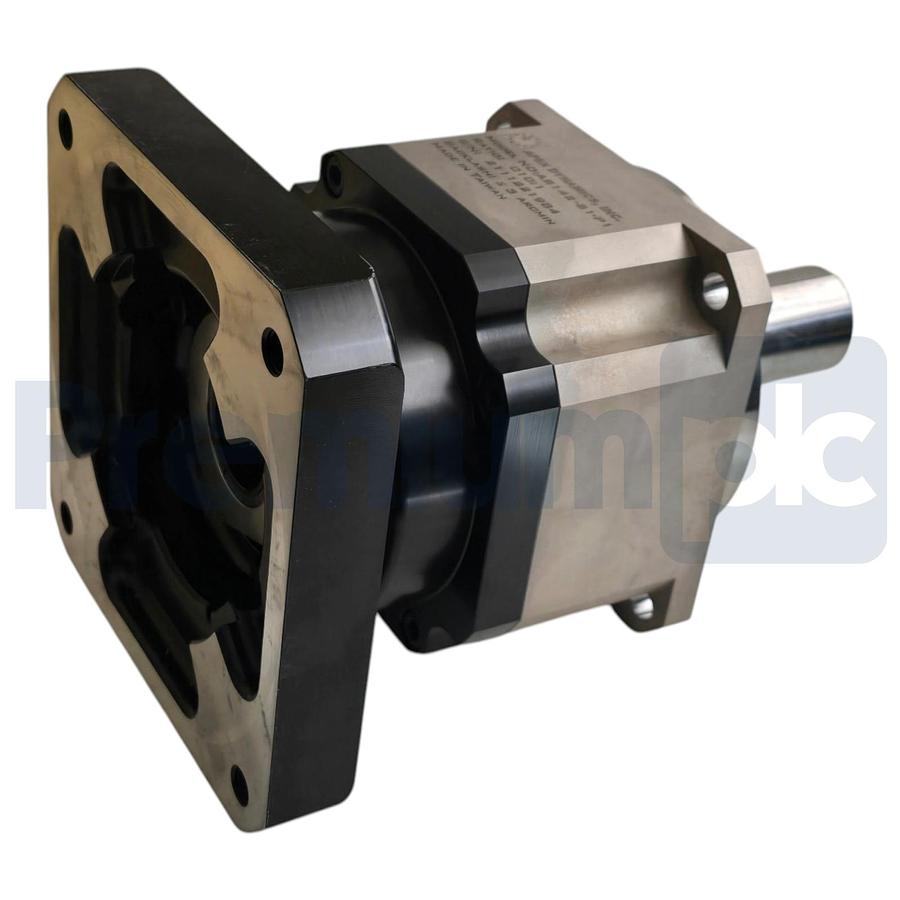

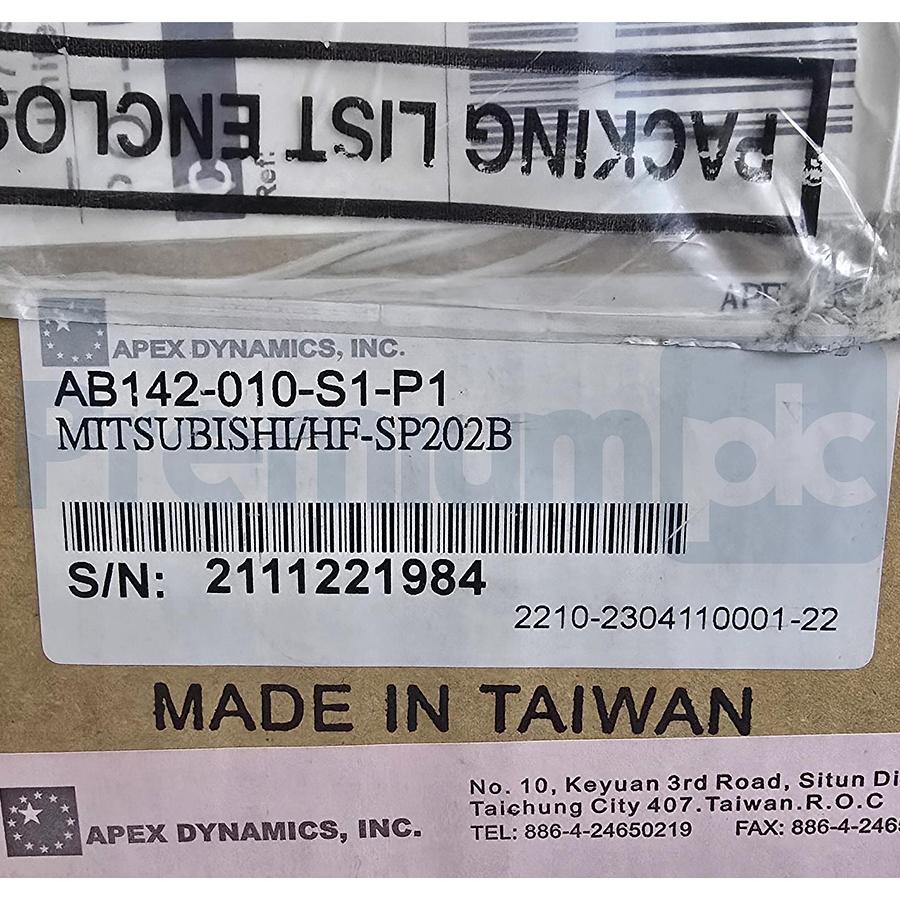

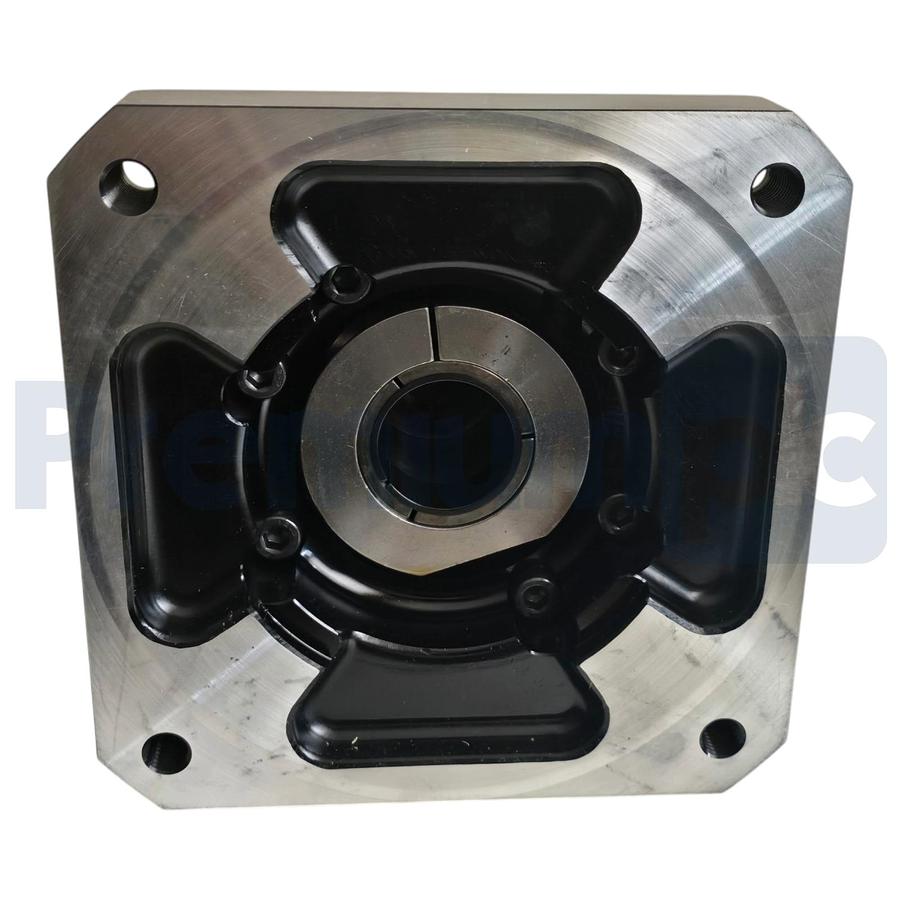

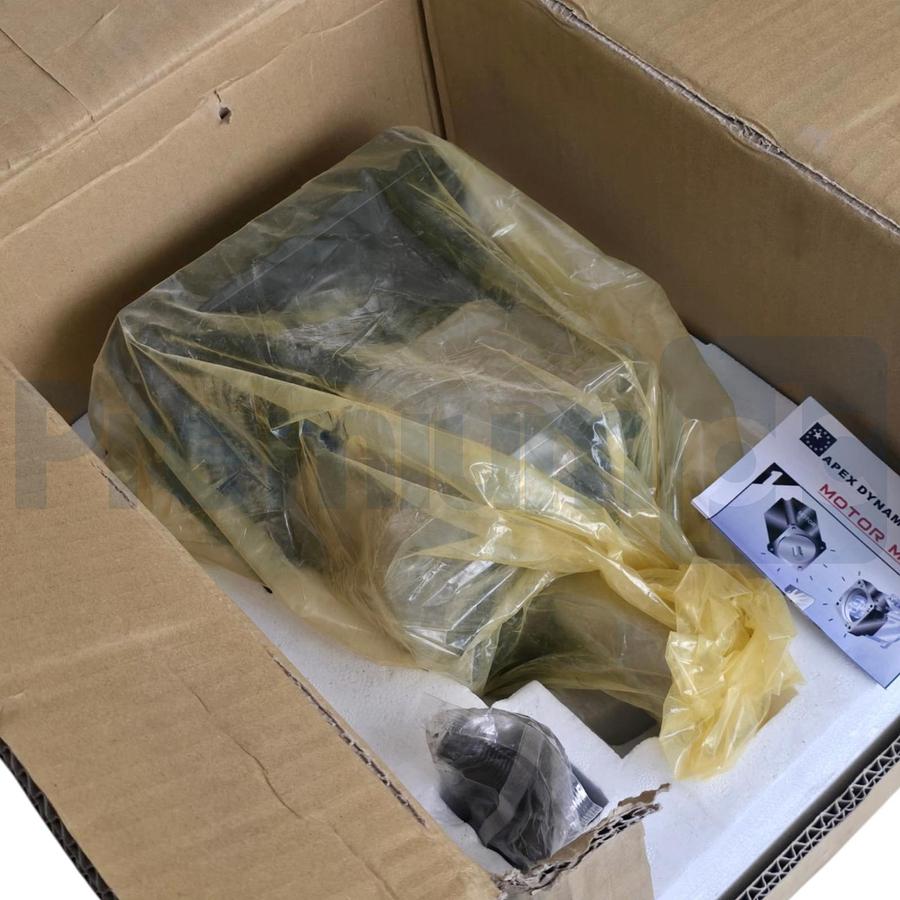

APEX Dynamics AB142-010-S1-P1 Planetary Gearbox 10:1 for MITSUBISHI HF-SP202B NSMP High-Precision Inline Planetary Gearbox | 10:1 Ratio | Reduced Backlash Item Condition: NSMP – New Surplus Manufacturer Package (OEM) (FACTORY BOX DOES HAVE DAMAGE SEE PHOTOS) Warranty: 120 Days Availability: Ready for immediate shipment. Next-day air available upon request. Product Item Specifics Brand APEX DYNAMICS, INC. Model Number AB142-010-S1-P1 Compatable Motor MITSUBISHI HF-SP202B Gear Ratio 10:1 Reduction (Single-Stage) Shaft Design (S1) Smooth Output Shaft (No Keyway) Backlash Rating (P1) Reduced Backlash (≤ 3 arcmin) Flange Frame Size 142 mm Ingress Protection IP65 Rated (Sealed against dust/water jets) Country of Manufacture Taiwan Product Overview & Features Up for sale is a high-precision Apex Dynamics AB142-010-S1-P1 Inline Planetary Gearbox. This unit features premium helical gearing for superior torque capabilities, reduced operation noise, and minimal backlash. This specific unit comes pre-configured from the factory to mount directly onto a Mitsubishi HF-SP202B servo motor, eliminating the need to source an external input adapter kit. - Helical Gearing Design: Maximizes tooth engagement to deliver up to 33% higher torque and ensure exceptionally smooth, quiet operation. - S1 Smooth Shaft: Provides a robust, uniform contact surface for high-accuracy coupling in continuous positioning tasks. - Rugged Environmental Sealed Housing: IP65 sealed enclosure protects internal components against ambient dust, dirt, and water splash hazards. Engineering Specifications - Nominal Output Torque: 450 N.m (331.9 ft.lbf) - Maximum Emergency Stop Torque: 1,350 N.m - Nominal Input Speed: 3,000 RPM - Maximum Permissible Speed: 6,000 RPM - Mechanical Efficiency: ≥ 97% - Torsional Rigidity: 50 Nm/arcmin - Operating Temperature Bounds: -10 °C to +90 °C - Unit Net Weight: 14.5 kg (Approx. 32 lbs) Shipping & Return Policies Shipping: Professionally packed to industrial standards to protect against transit damage. Orders ship Same business day if ordered before 4pm est.if Shipping UPS.International shipping is handled through eBay's International Shipping Program. Returns / Warranty: We offer a 120 Day return policy. Please verify motor adapter plate compatibility prior to purchasing.
