Leeson 191204.00 Washguard SST 1HP 1750RPM 3PH 56C Stainless Motor C6T17NK30
$399.95
Description

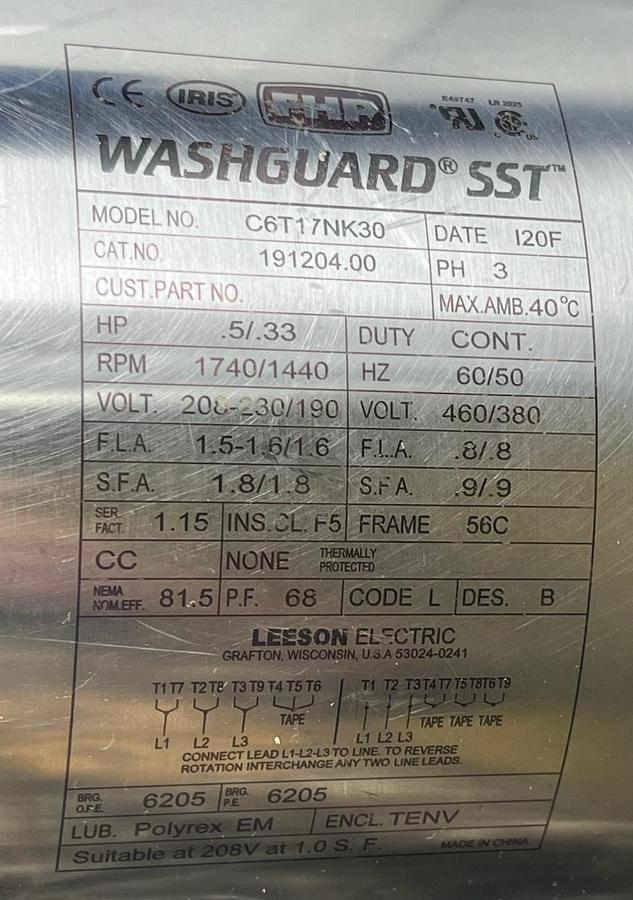

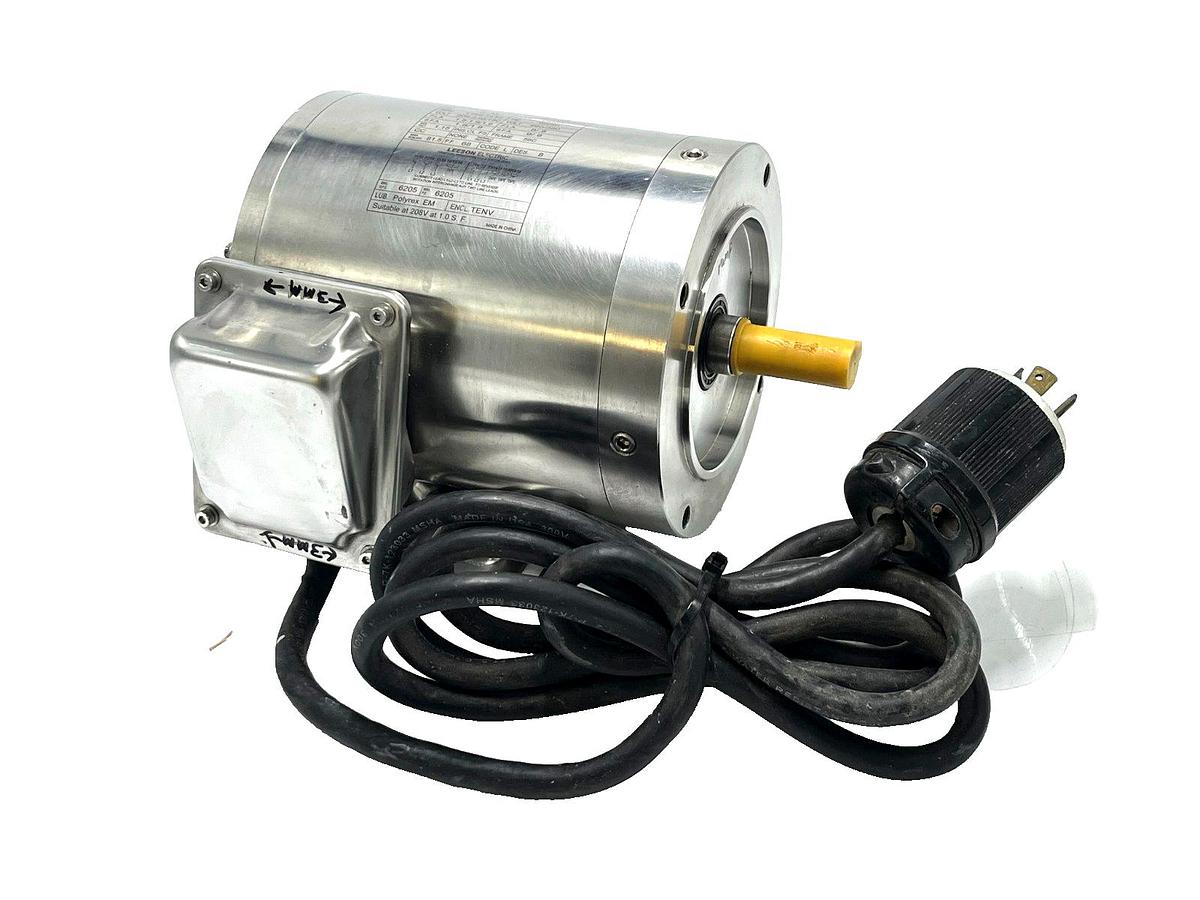

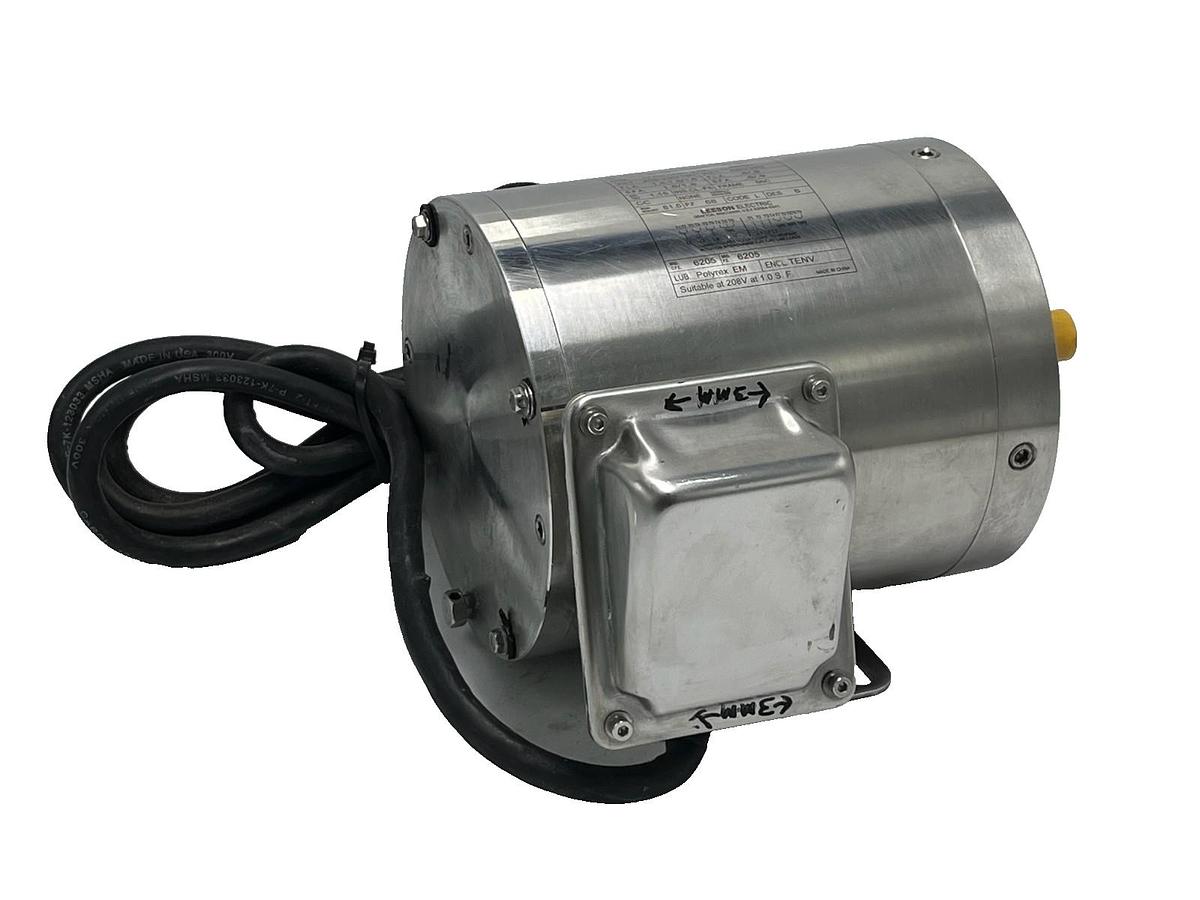

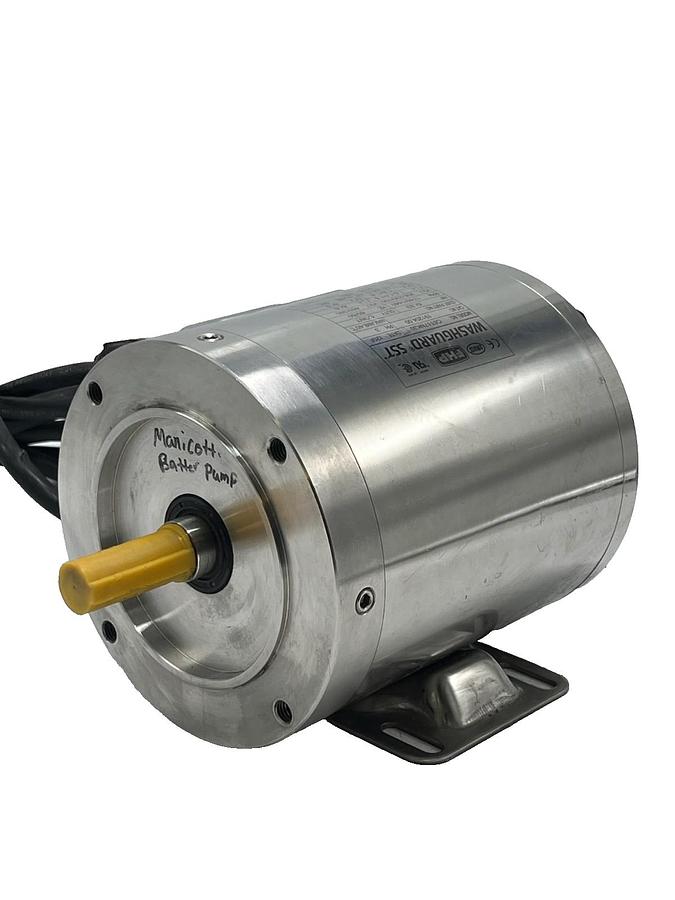

Leeson 191204.00 Washguard SST 1HP 1750RPM 3PH 56C Stainless Motor C6T17NK30 Up for sale is a Leeson Washguard SST (Stainless Steel) AC Induction Motor, Model C6T17NK30 (Catalog No. 191204.00). This is a premium, all-stainless motor designed for the most demanding food processing and pharmaceutical washdown environments. Technical Specifications: - Horsepower: 1 HP - Speed: 1750 RPM - Voltage: 208-230 / 460V (3-Phase) - Frame: 56C (C-Face with Base) - Enclosure: TENV (Totally Enclosed Non-Ventilated) - Material: Full Stainless Steel Construction Condition & Wiring: This unit is Unused Surplus. It appears to have been prepared for installation as it is currently wired with an 8ft power cable featuring a Cooper Turn/Pull connector. It was never put into active production. Important Note: When the motor is handled/tilted, there is an audible rattle coming from inside the housing. However, the shaft spins smoothly and freely by hand. Due to the internal noise, this motor is being sold AS-IS for parts or repair. It may simply be a loose internal clip or minor debris, but we have not opened the casing to investigate. ______________________________________________________________________________________________________ PALLET 1
Specifications
| Manufacturer | LEESON |
| Model | 191204.00 |
| Condition | Used |
| Stock Number | 318149757544 |
| Inverter/Vector Duty Rating | Inverter Duty |
| NEMA Design Letter | Design B (General Purpose) |
| Rated Load (HP) | 1 |
| AC Frequency Rating | 60 Hz |
| Special Motor Construction | Washdown Duty Motor |
| Enclosure Type | TEFC (Totally Enclosed Fan Cooled) |
| Shaft Type | Keyed |
| AC Motor Type | Induction/Asynchronous |
| Insulation Class | F (Max 311°F) |
| Mounting Type | Face-Mounted |
| Reversible/Non-Reversible | Reversible |
| Current Type | AC |
| Service Factor | 1.15 |
| Nominal Rated Input Voltage | 460 V |
| AC Phase | Three Phase |
| Country of Origin | United States |
