Opto 22 PB4R | G1 I/O 4-Channel Isolated Output-Only Module Rack PB4R_G1 NSNP

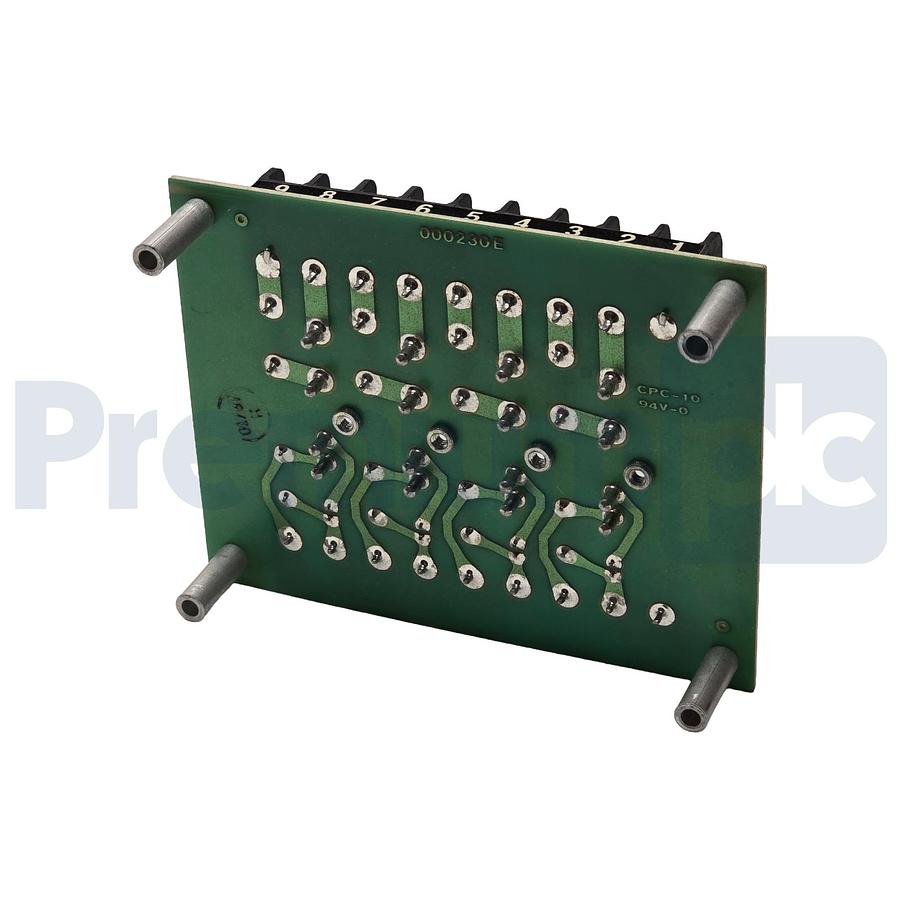

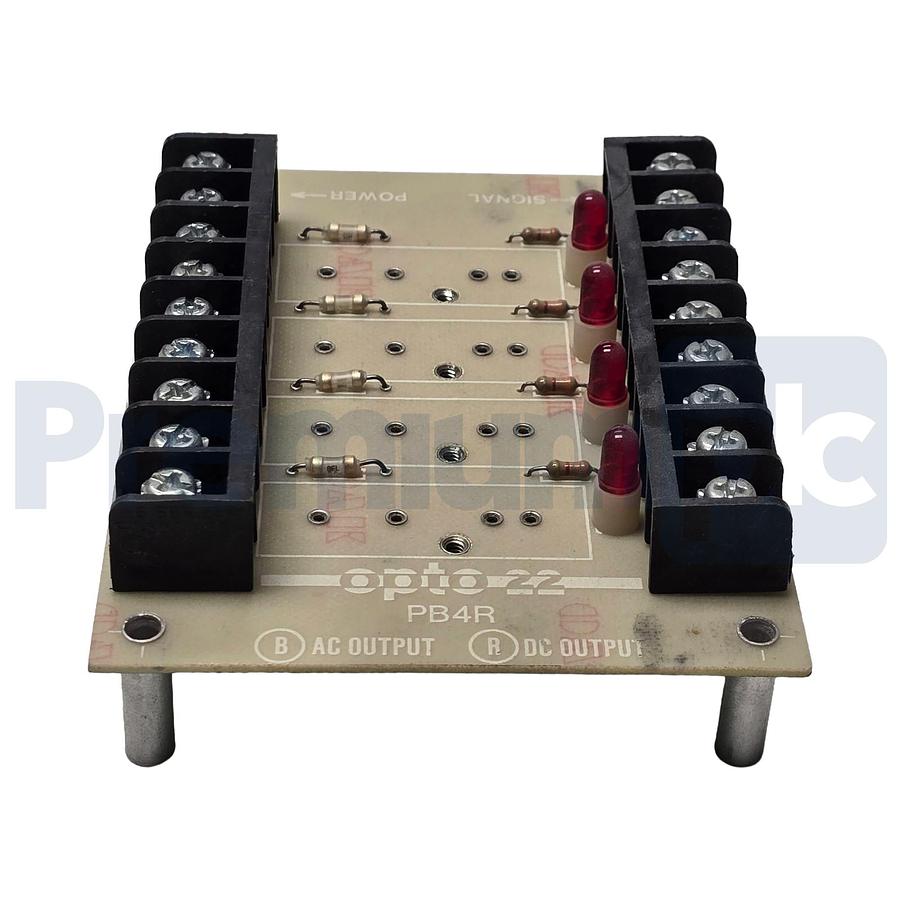

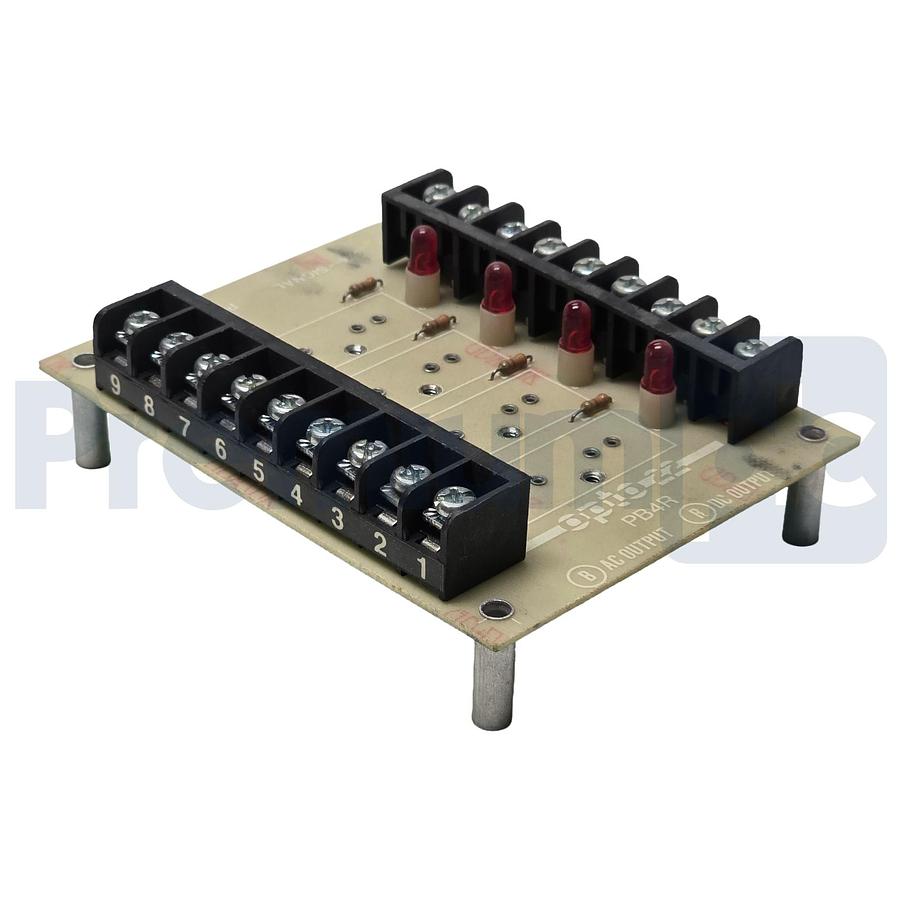

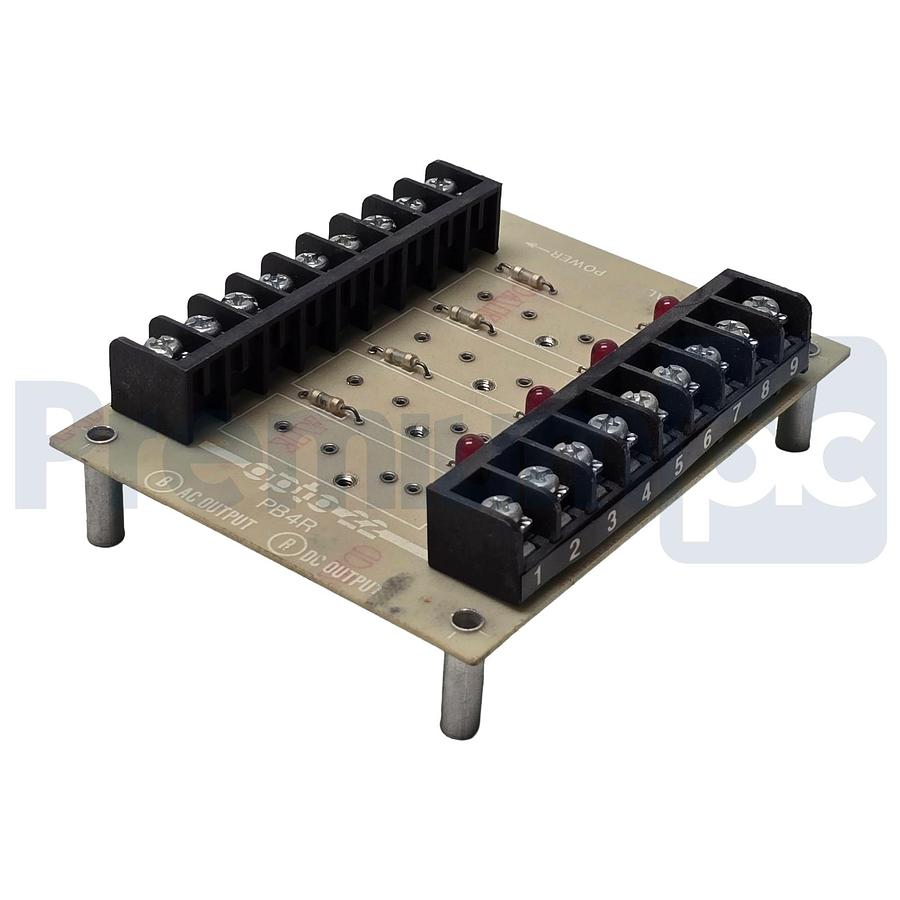

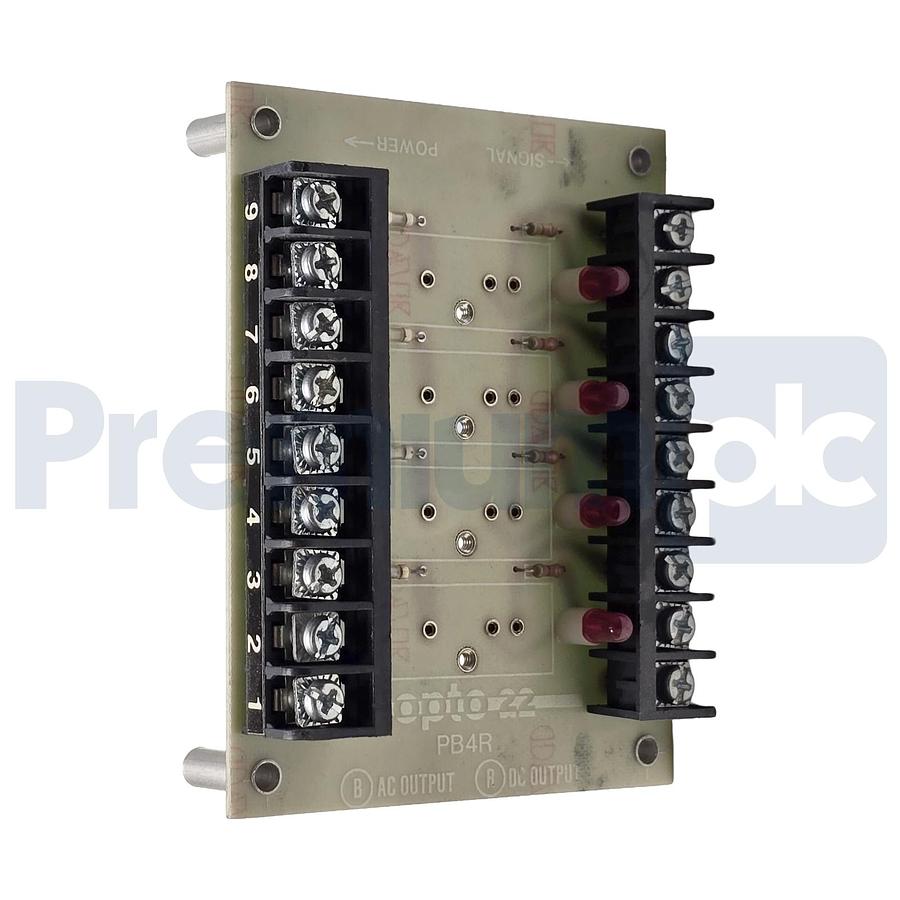

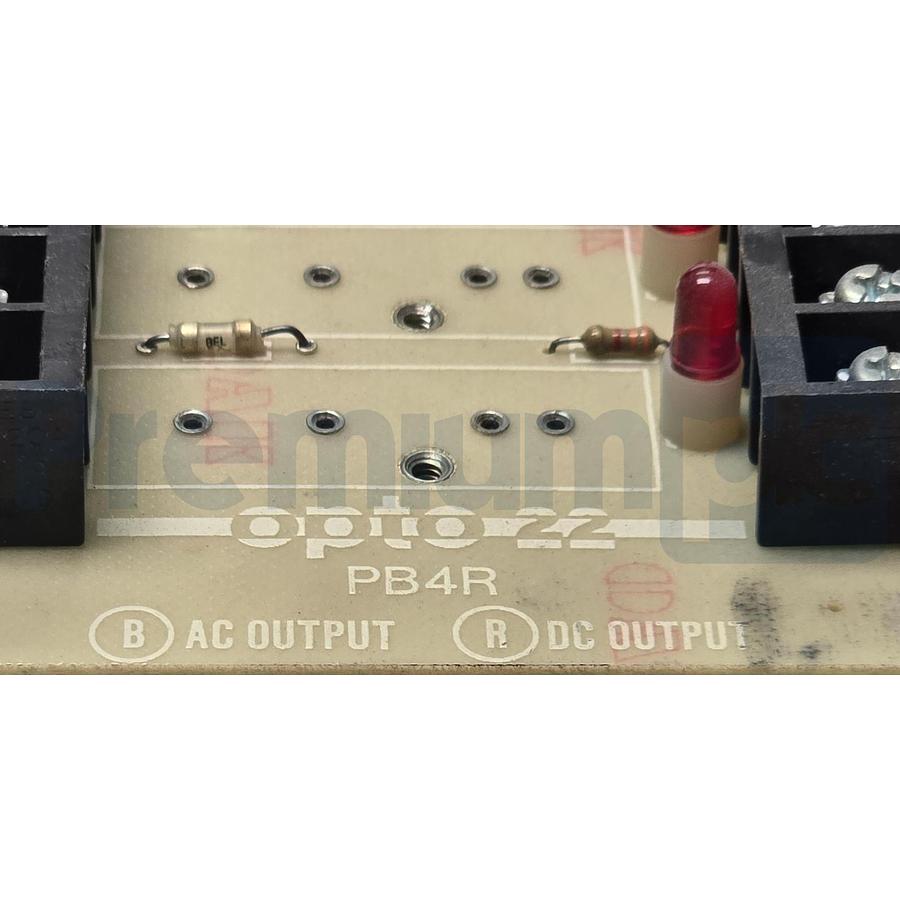

Opto 22 PB4R | G1 I/O 4-Channel Isolated Output-Only Module Rack PB4R_G1 NSNP The Opto 22 PB4R is a 4-channel isolated output-only mounting rack designed for use with Standard G1 (Generation 1) single-channel digital or analog I/O modules. It is ideal for interfacing different logic families, such as connecting 24V positive-true logic from a PLC to 5V negative-true PC logic. The rack features complete channel-to-channel isolation on both the logic and field sides. Technical Specifications - Number of Channels: 4 Isolated Output Channels - Module Compatibility: Opto 22 Standard (Generation 1) I/O Modules - Logic Voltage Compatibility: 5V, 15V, and 24V DC - Interface Connectors: 6-32 Screw Terminals (Field and Logic sides) - Operating Temperature: 0°C to 70°C (32°F to 158°F) - Relative Humidity: 95%, Non-condensing - Dimensions: Approximately 4.5" x 3.5" CONDITION: NSNP - New Surplus No Manufacturer Package (OEM) WARRANTY: 120 DAYS (LIMITED 1 YEAR) SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) SELL YOUR SURPLUS PremiumPLC BUYS ALL TYPES OF NEW AND USED INDUSTRIAL AUTOMATION & MRO SURPLUS ________________________________________________________________________________ 3193
