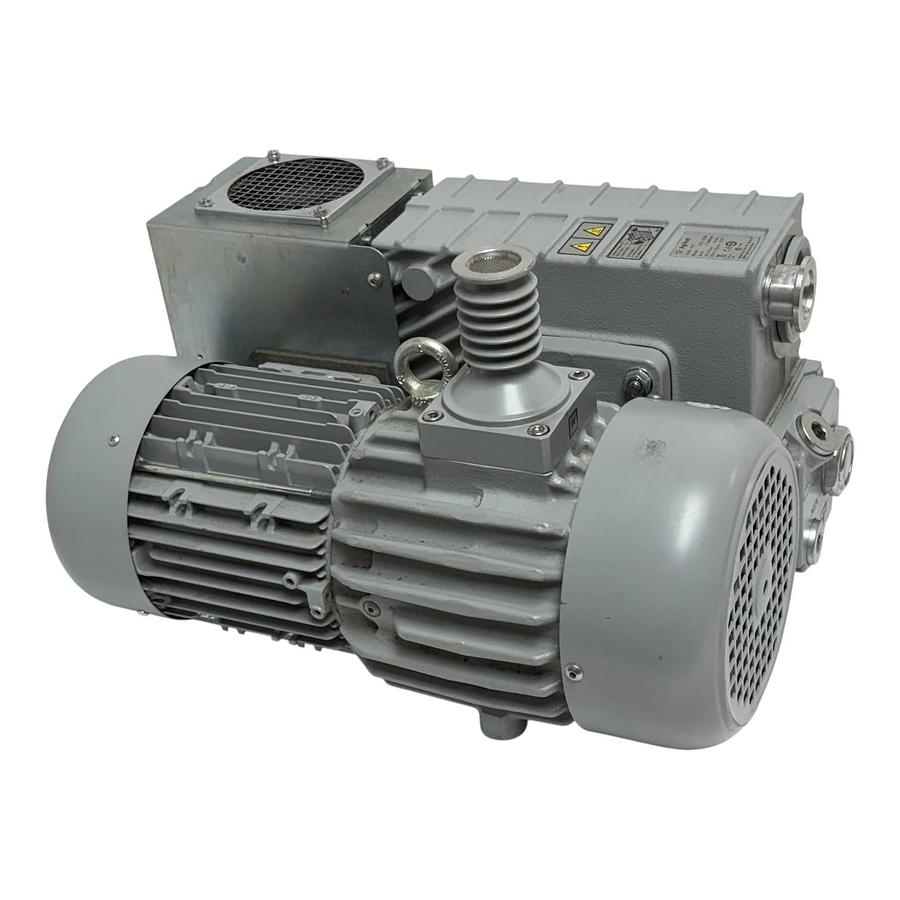

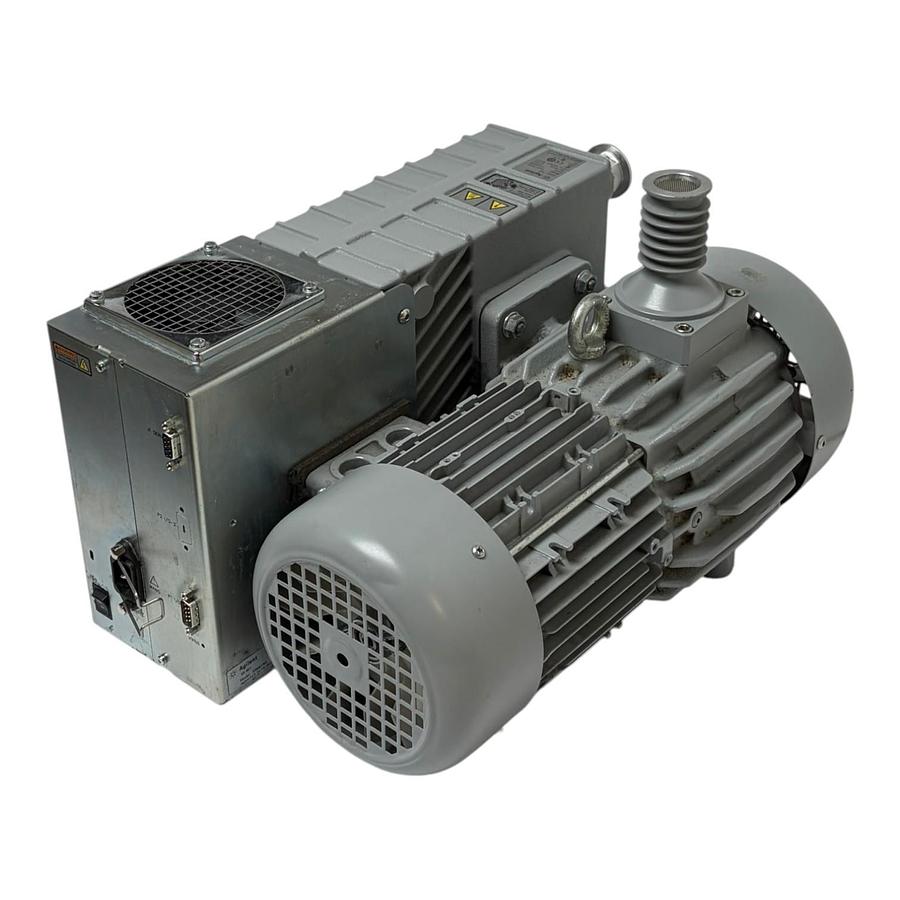

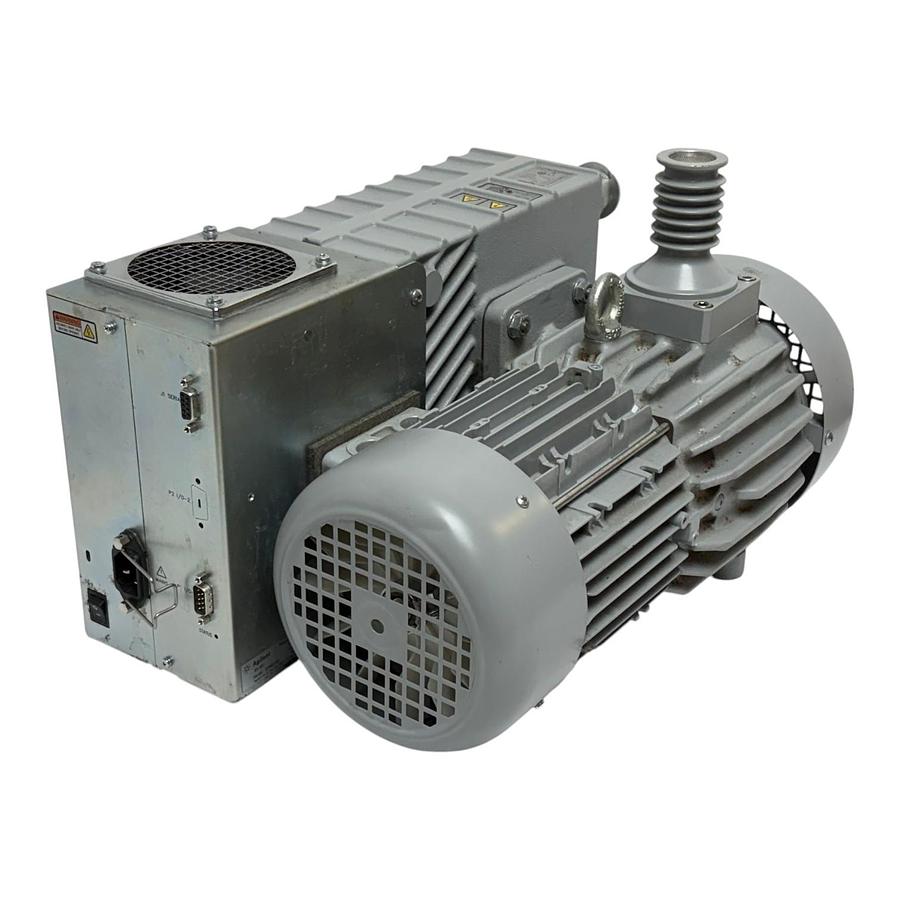

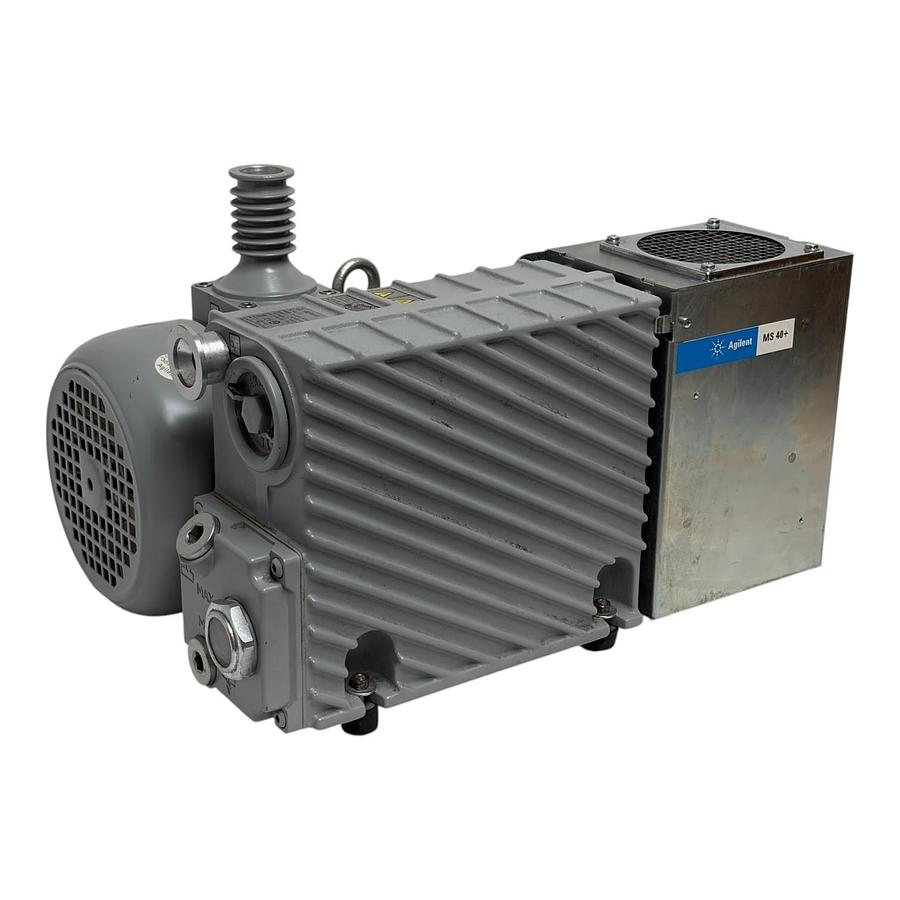

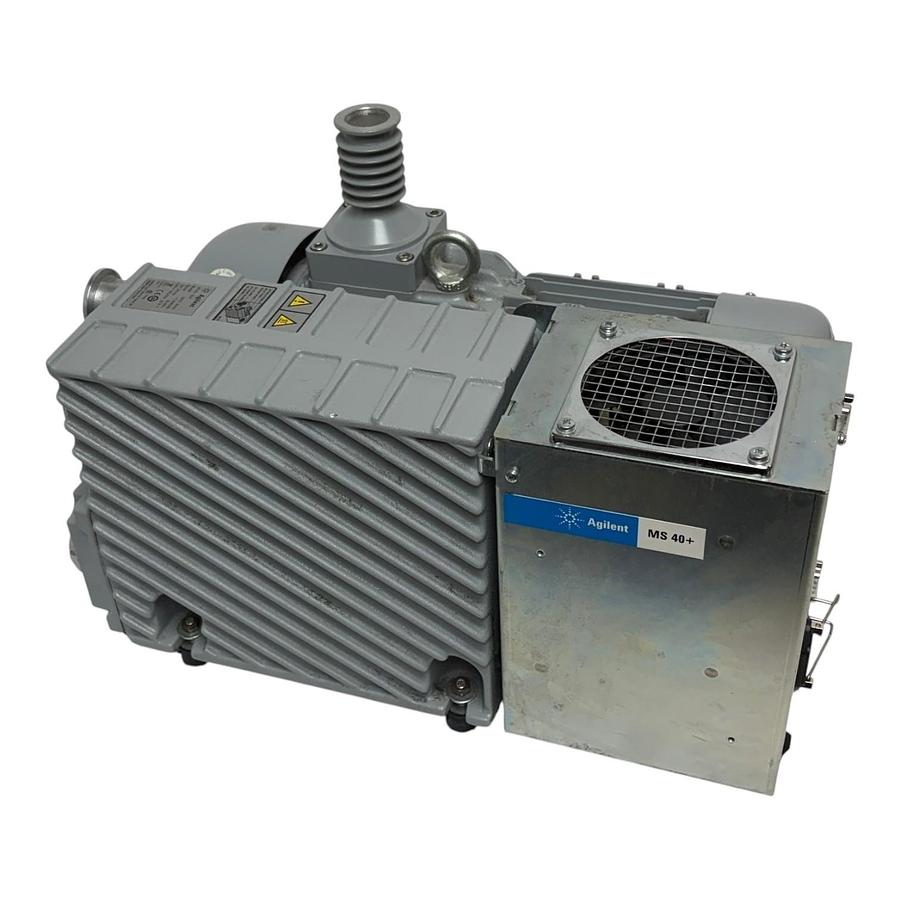

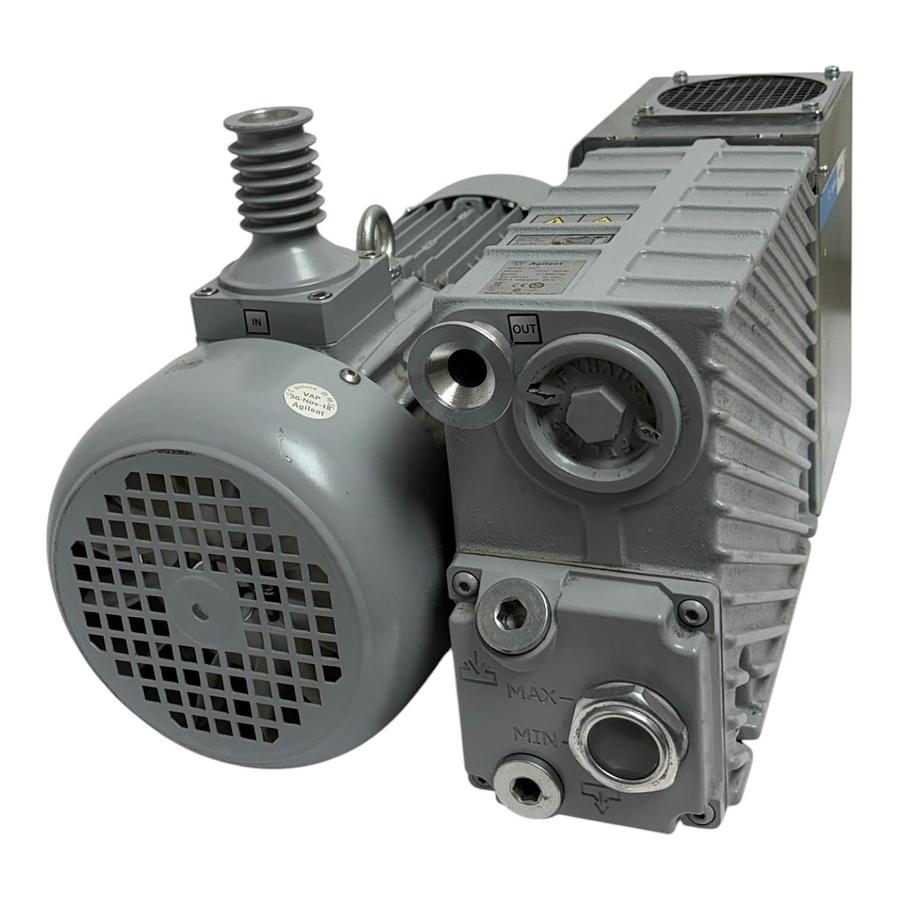

Agilent MS40+ RVP Rotary Vane Vacuum Pump G6301-80040 SS 40+ 200-240V
$899.95
Description
Agilent MS40+ RVP Rotary Vane Vacuum Pump G6301-80040 SS 40+ 200-240V
Item Condition: Used (Very clean cosmetic and structural condition. Pulled from a professional laboratory environment. The unit shows minimal superficial wear or light handling marks from previous service as pictured. The integration casing, motor housing vents, and mounting tabs are physically sound. The oil sight glass is clear and readable. Shipped completely drained of oil in heavy generic protective packaging).
Brand: Agilent Technologies

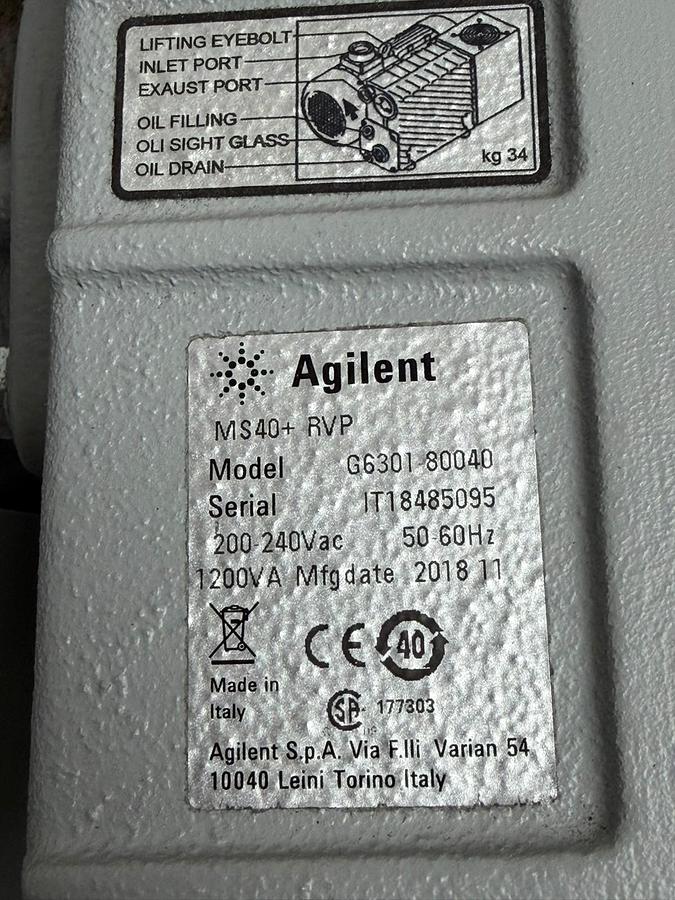

Pump Model: MS40+ RVP
Pump Part / Catalog Number: G6301-80040 (G630180040)
Pump Serial Number: IT18485095
Pump Manufacturing Date: November 2018 (2018 11)

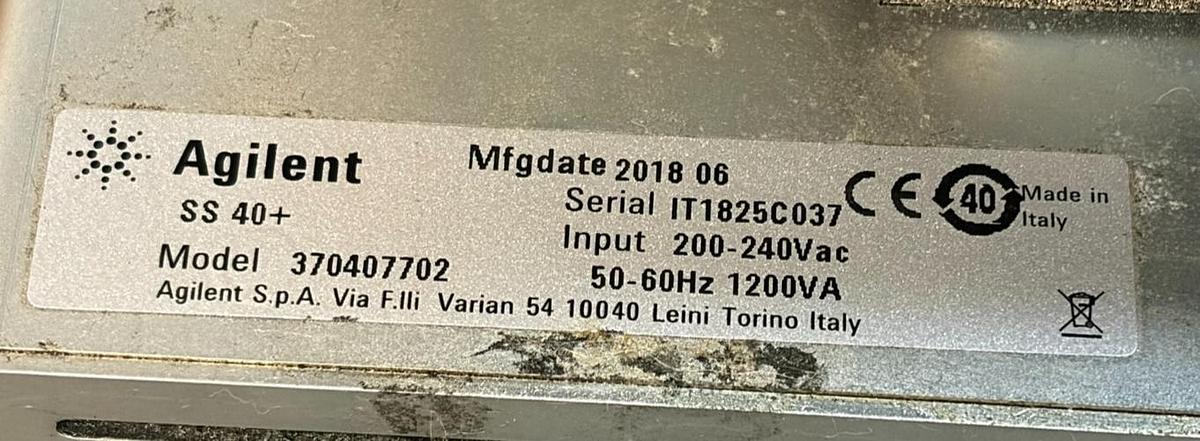

Controller Model: SS 40+
Controller Part Number: 370407702
Controller Serial Number: IT1825C037
Controller Manufacturing Date: June 2018 (2018 06)

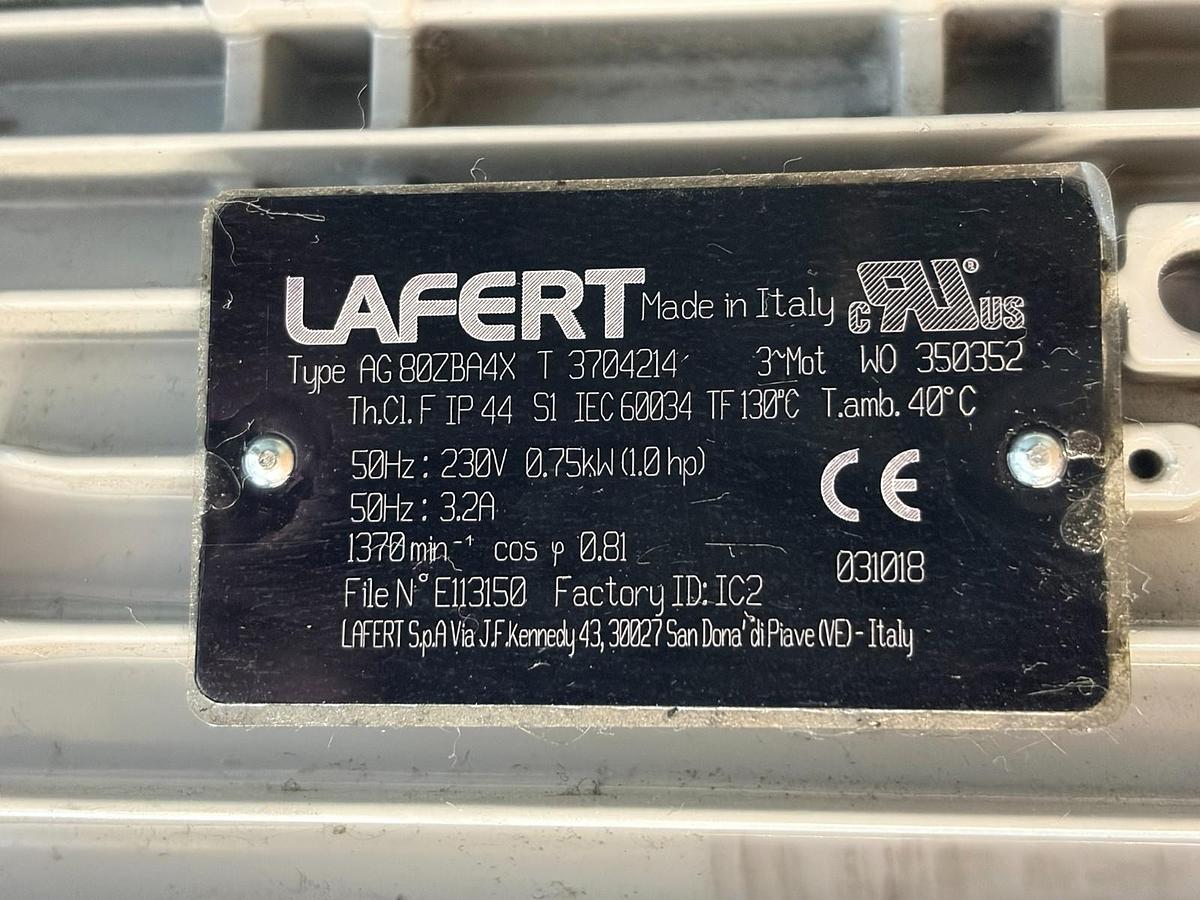

Motor Brand: LAFERT (Made in Italy)
Motor Type: AG 80ZBA4X T 3704214
Motor Work Order (WO): 350352
Product Overview:
This is a premium, high-performance Agilent MS40+ Line Mono-Stage Rotary Vane Vacuum Pump (RVP) assembly integrated with an Agilent SS 40+ power controller module and a heavy-duty Italian-made LAFERT electric motor. Engineered for continuous duty in demanding analytical laboratories, it serves as an exceptional high-capacity roughing or backing pump for LC/MS (Liquid Chromatography-Mass Spectrometry) and ICP-MS systems. It features a high pumping speed combined with a compact, space-saving design and quiet operational output parameters.
Technical Specifications:
- Controller Input Voltage: 200-240V AC Symmetrical
- Frequency: 50 / 60 Hz
- Power Consumption Rating: 1200 VA
- Motor Electrical Input: 3-Phase Motor (3~Mot) Rated for 50Hz, 230V AC
- Motor Power Rating: 0.75 kW (1.0 Horsepower / 1.0 hp)
- Motor Amperage Draw: 3.2A at 50Hz
- Motor Rotational Speed: 1370 RPM (1370 min-1)
- Power Factor: cos phi 0.81
- Motor Thermal and Insulation Class: Th.Cl. F, IP 44 Protection Rating, S1 Duty Cycle, IEC 60034 Standards
- Ambient Operating Limit: T.amb. 40 degrees Celsius / TF 130 degrees Celsius
- UL File Recognition: File Number E113150, Factory ID: IC2
- Net Unit Base Weight: 34 kg (Approx. 75 lbs)
- Regulatory Approvals: CE, CSA Certified (177303)
- Address of Origin: Agilent S.p.A. Via F.lli Varian 54, 10040 Leini Torino, Italy / LAFERT S.p.A. Via J.F. Kennedy 43, 30027 San Dona di Piave (VE), Italy
