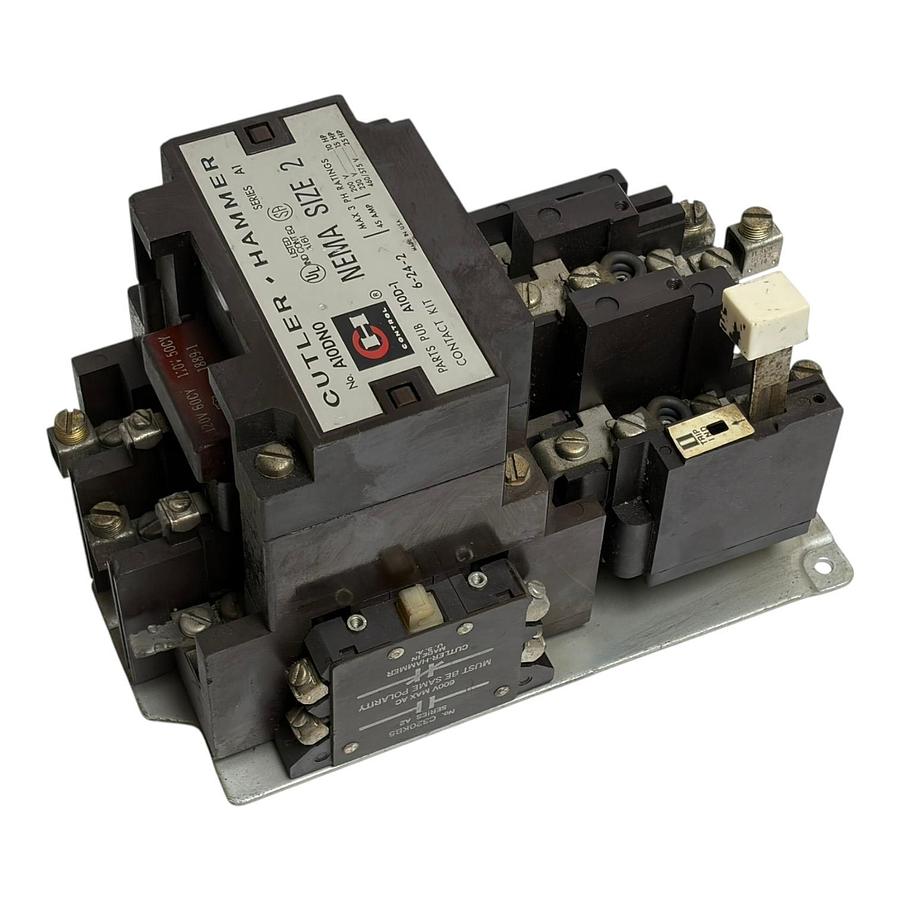

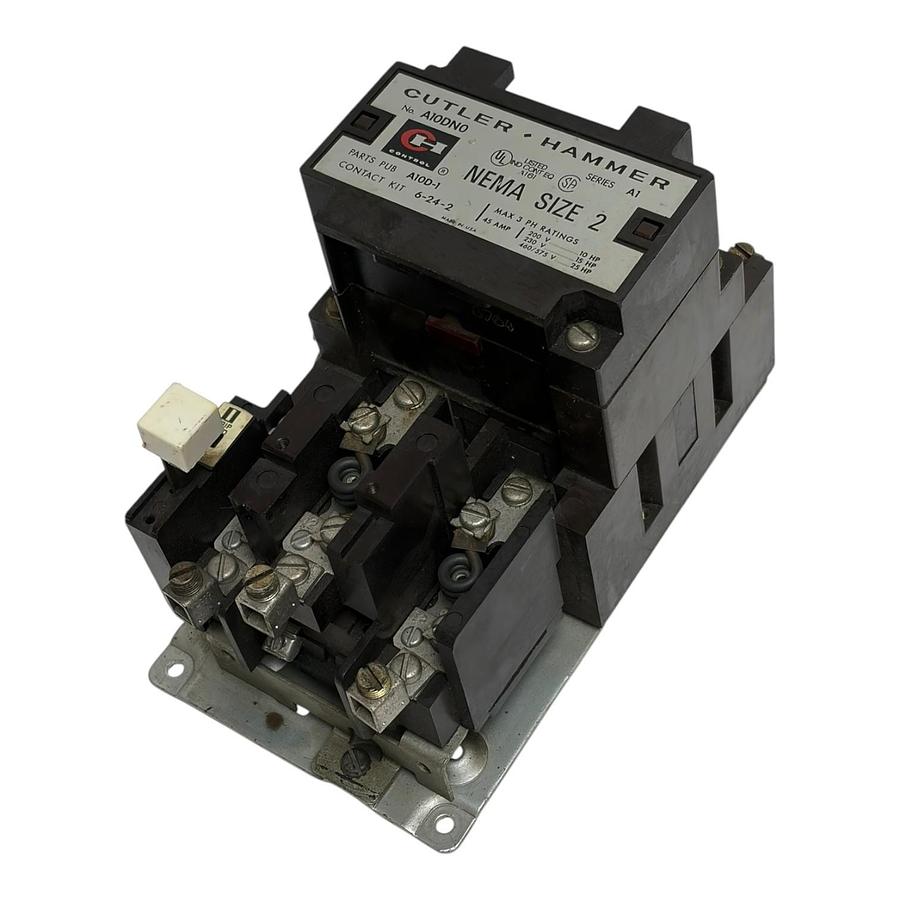

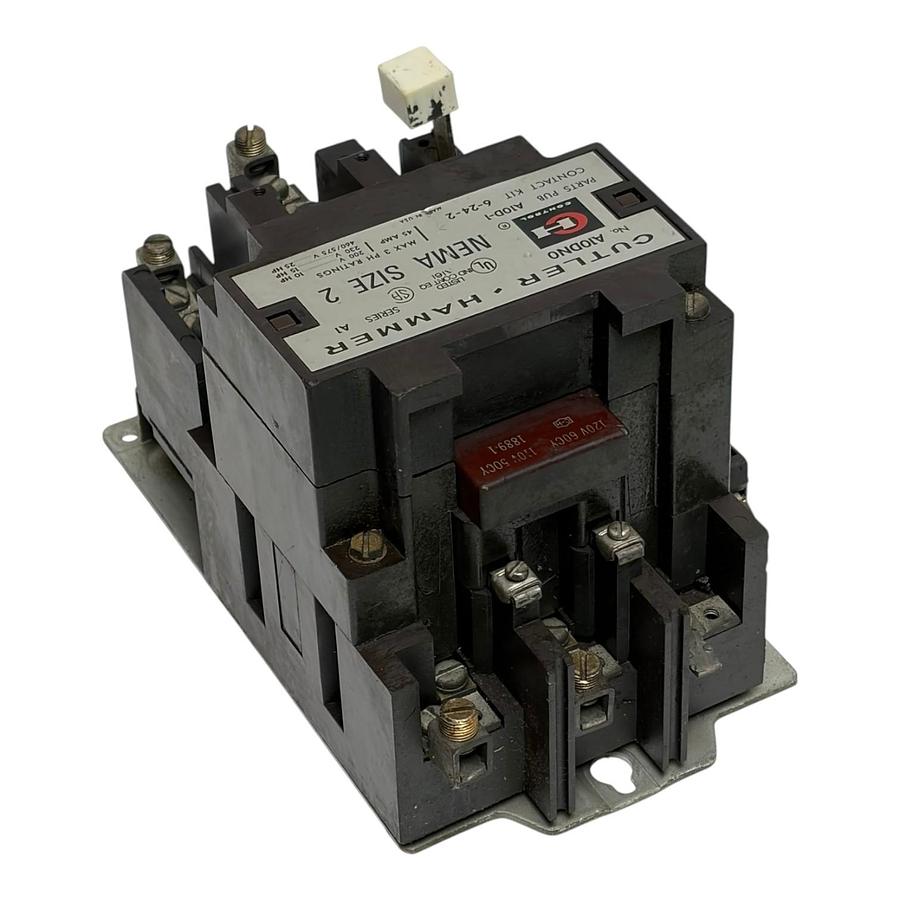

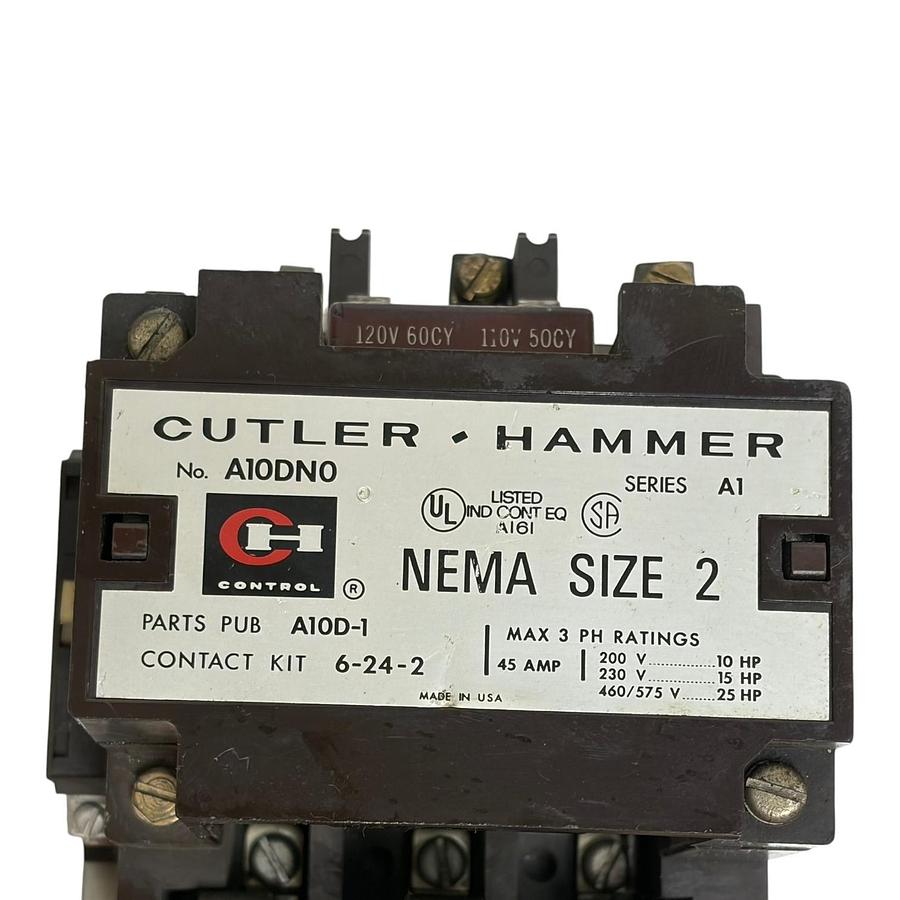

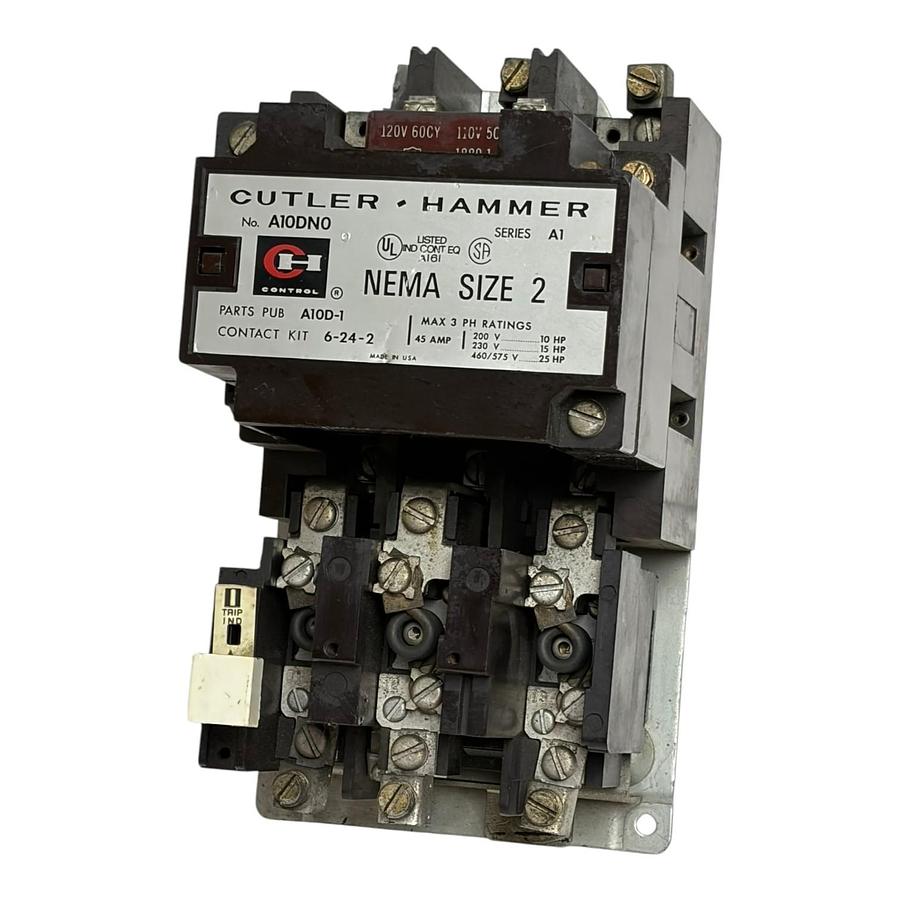

Cutler-Hammer A10DNO Series A1 NEMA Size 2 Motor Starter 45A 120V Coil

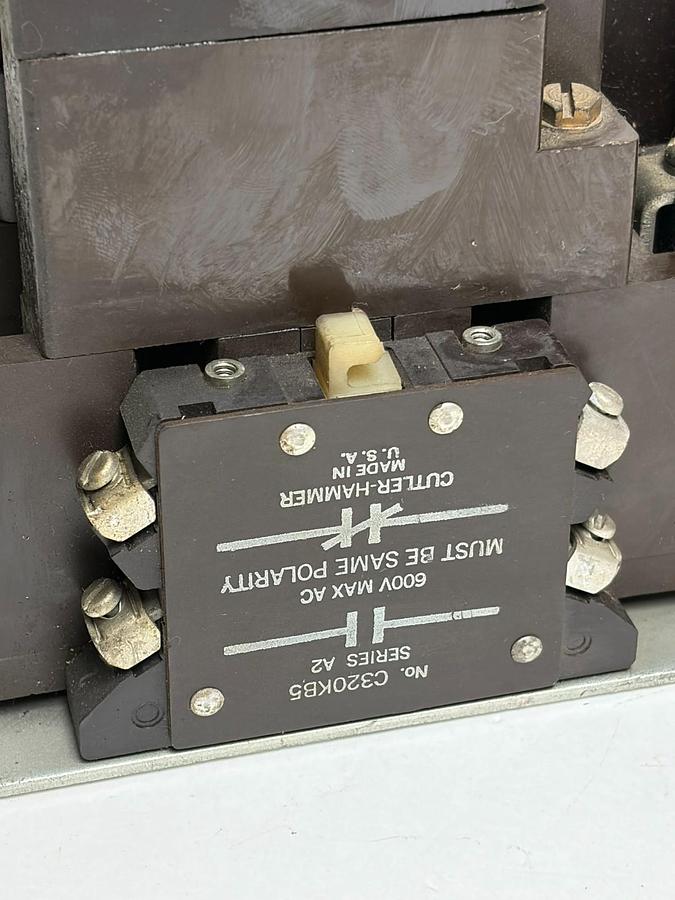

Cutler-Hammer A10DNO Series A1 NEMA Size 2 Motor Starter 45A 120V Coil This listing is for a genuine Cutler-Hammer NEMA Size 2 magnetic motor starter assembly. It features a 3-pole design integrated with a 120V control coil, a side-mounted auxiliary contact block, and a manual overload relay trip indicator module. It is engineered for heavy-duty industrial motor control, line voltage starting, and overcurrent protection loops. Item Specifications: - Brand: Cutler-Hammer / Eaton - Catalog Number: A10DNO - Series: A1 - NEMA Size: Size 2 - Continuous Current Rating: 45 Amps Maximum - Coil Voltage Rating: 120V 60Hz / 110V 50Hz (Coil Part No: 1889-1) - Phase Configuration: 3-Phase - Maximum 3-Phase Horsepower Ratings: - 200V: 10 HP - 230V: 15 HP - 460V / 575V: 25 HP - Auxiliary Contact Block: Cutler-Hammer C320KB5 Series A2 (600V Max AC, Same Polarity Only) - Replacement Parts Information: Parts Publication A10D-1 | Contact Kit 6-24-2 - Country of Manufacture: Made in USA Condition: - Used: Removed from a decommissioned industrial electrical panel enclosure. - Mechanical Status: The spring-loaded armature core mechanisms depress smoothly and firmly. All terminal terminal screws and wire pressure clamps are solid and untorqued. No heater elements are currently installed in the overload block. - Cosmetics: Shows normal signs of light industrial use and field storage. The dark brown molded resin housings have superficial surface dust and handling scuffs but are entirely free of structural chips, cracks, or electrical burn marks. The aluminum specification nameplates are fully intact, clean, and legible. No original factory box is included. WARRANTY: 90 DAYS SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) SELL YOUR SURPLUS PremiumPLC BUYS ALL TYPES OF NEW AND USED INDUSTRIAL AUTOMATION & MRO SURPLUS _________________________________________________________________________________ 2211
