ifm electronic EVF571 M12 Male 5-Pin Field Wireable Plug Connector New
$34.95
Description
ifm electronic EVF571 M12 Male 5-Pin Field Wireable Plug Connector New
This listing is for a brand new, factory-sealed ifm electronic premium M12 male 5-pin field wireable connector plug. This commercial-grade component allows technicians to custom-wire sensor lines directly in the field using internal screw terminal blocks, featuring an integrated heavy-duty strain relief gland backshell.
Product Specifications:
- Brand: ifm electronic gmbh (Essen, Germany)
- Model / Part Number: EVF571
- Specific Configuration Code: SSTGH050VASFKPG
- Connector Gender Type: M12 Male Plug (5-Pin layout)
- Wiring Connection Type: Internal Screw Terminals (Torque = 0.4 Nm)
- Supported Conductor Size: 0.25 to 1.0 mm² (AWG 23 to AWG 17)
- Acceptable Outer Cable Diameter: 3.5 mm to 6.0 mm
- Voltage Rating (U): 60V AC / 60V DC
- Current Rating (I): 4A Max
- Enclosure Protection Class: IP65 / IP67 / IP68 / IP69K (Washdown rated)
- Temperature Rating: -25 to 100 °C
- Pin Colors standard mapping: 1-BN (Brown), 2-WH (White), 3-BU (Blue), 4-BK (Black), 5-GY (Gray)
- Batch Reference: B AA 2108 800301
- Certifications: CE, UKCA, EAC, cRUus Recognized (E174191)
- Manufacturing Origin: Designed by ifm / Made in Poland

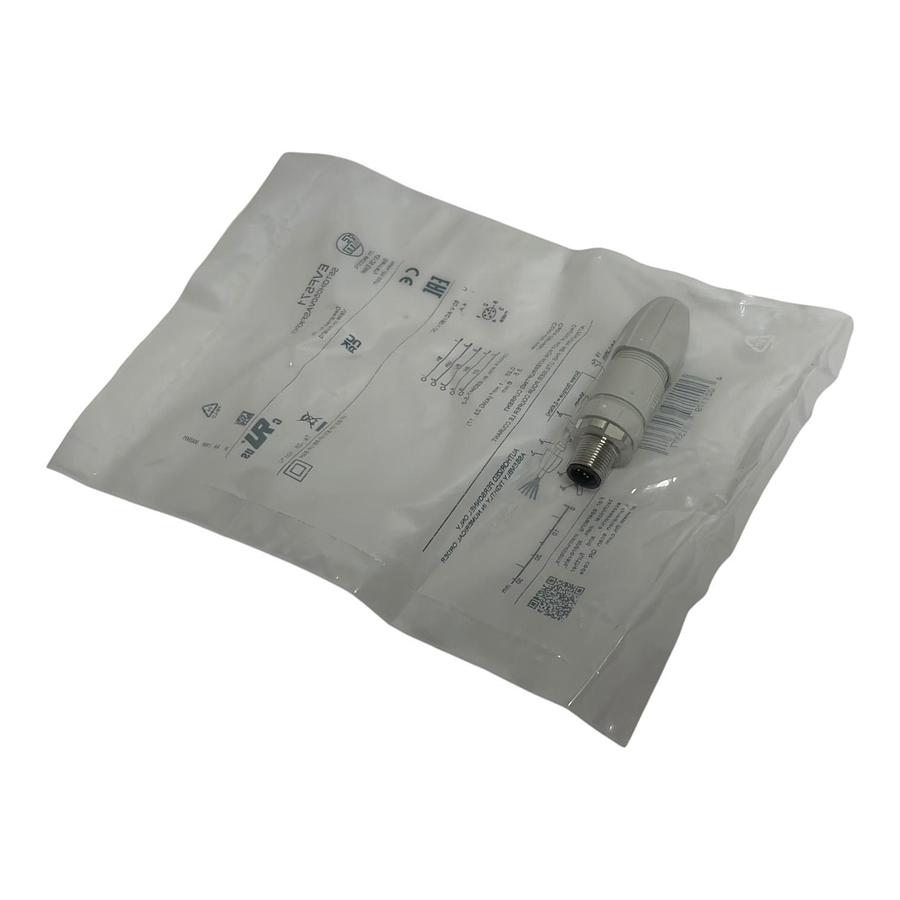

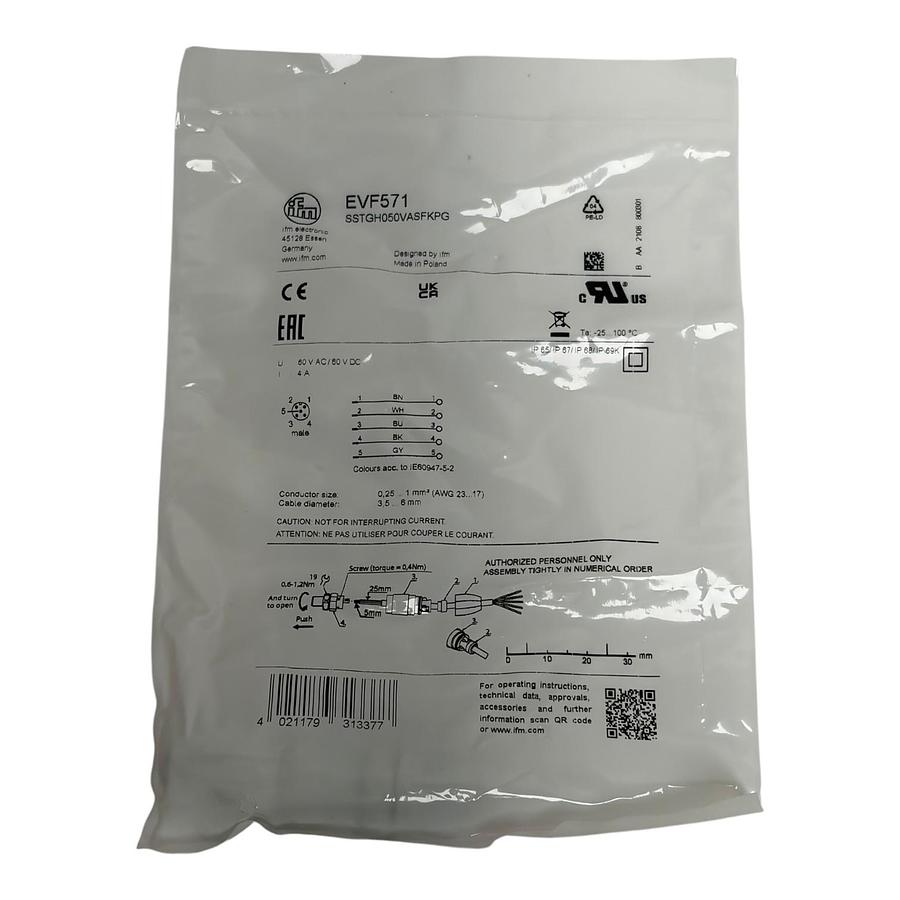

Condition Note: Brand New in original factory packaging. The field attachable plug assembly is entirely unused and remains factory sealed inside its original white protective component pouch with all structural graphic installation schematics perfectly intact.
CONDITION: NSFS - New Surplus Factory Sealed (OEM)
WARRANTY: 120 DAYS
SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST.
(CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT)
SELL YOUR SURPLUS
PremiumPLC BUYS ALL TYPES OF NEW AND USED INDUSTRIAL AUTOMATION & MRO SURPLUS
________________________________________________________________________________
2202
Specifications
| Manufacturer | IFM |
| Model | EV571 |
| Condition | New |
| Stock Number | 318878858021 |
| Country of Origin | Germany |
