Siemens Sirius 3RH2262-1BB40 Contactor Relay 24VDC 62E Auxiliary Block New

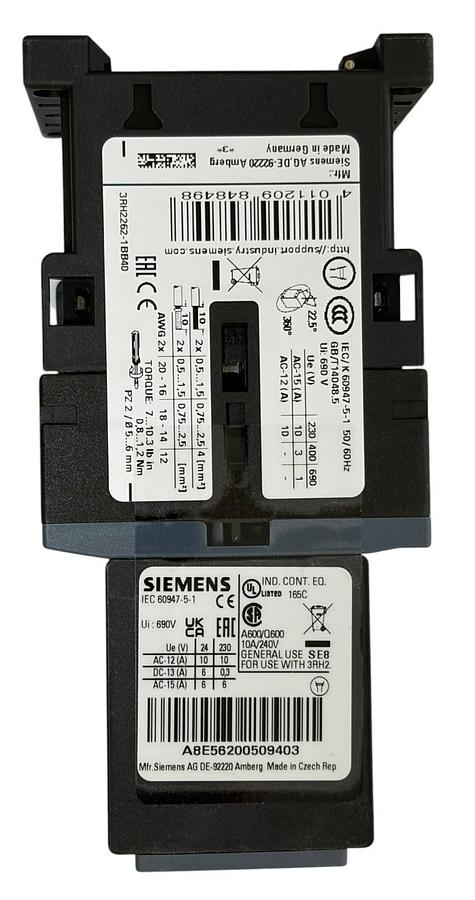

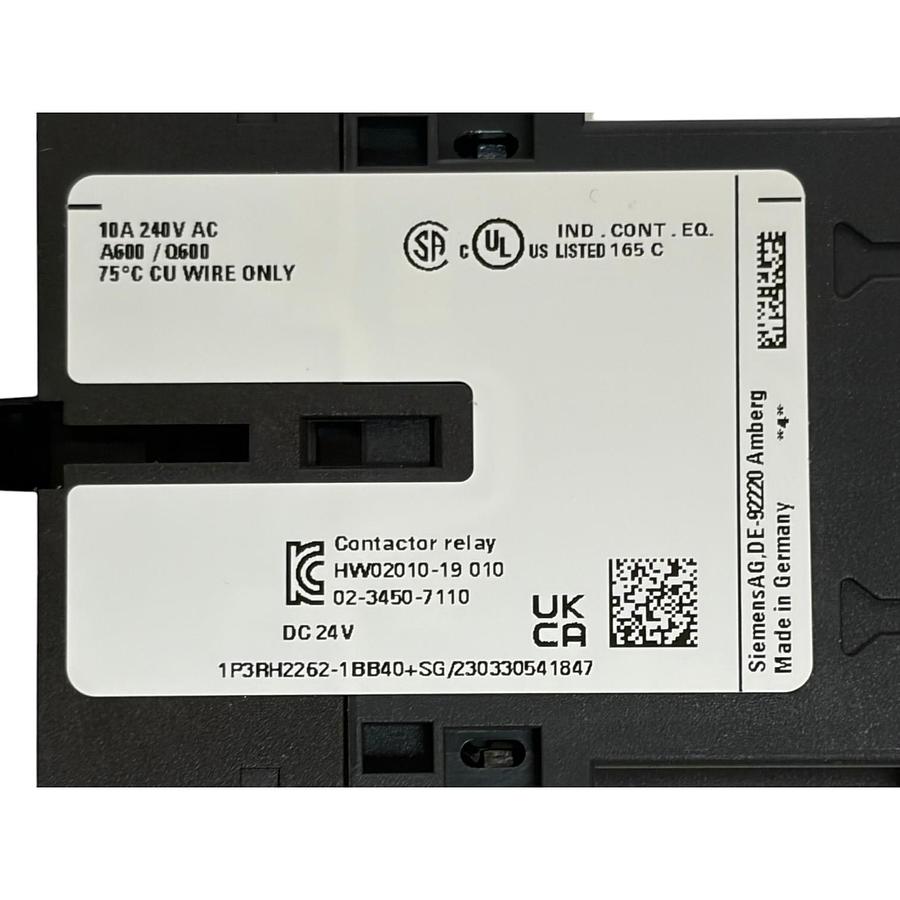

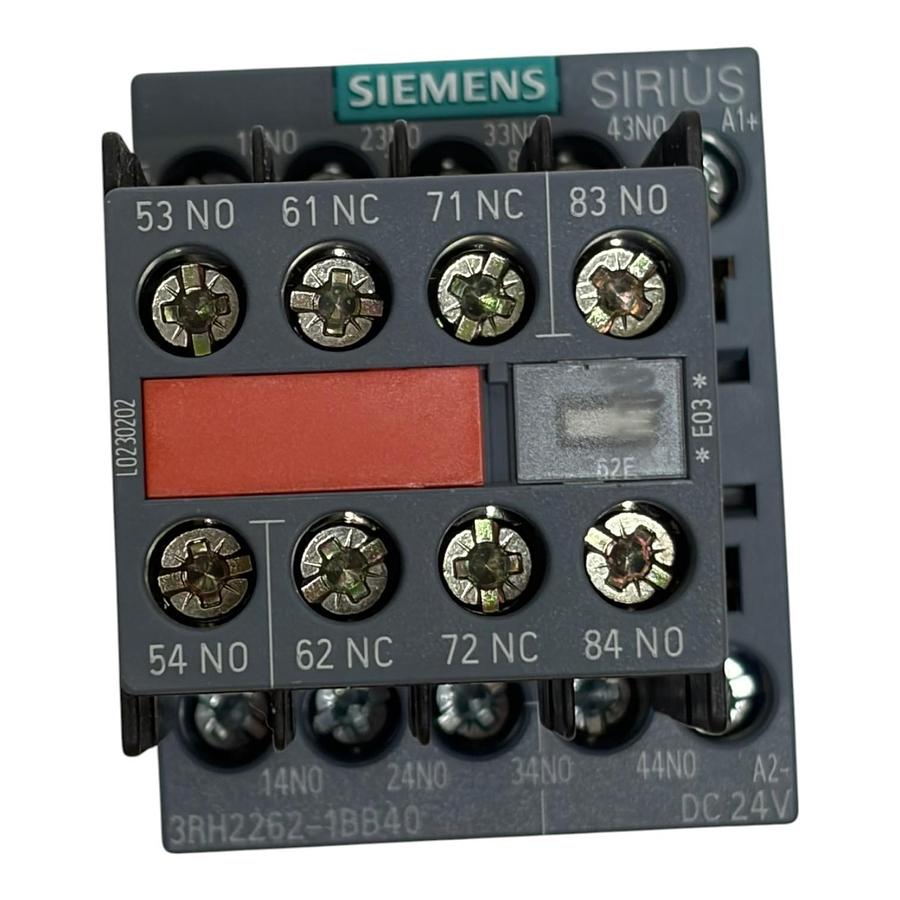

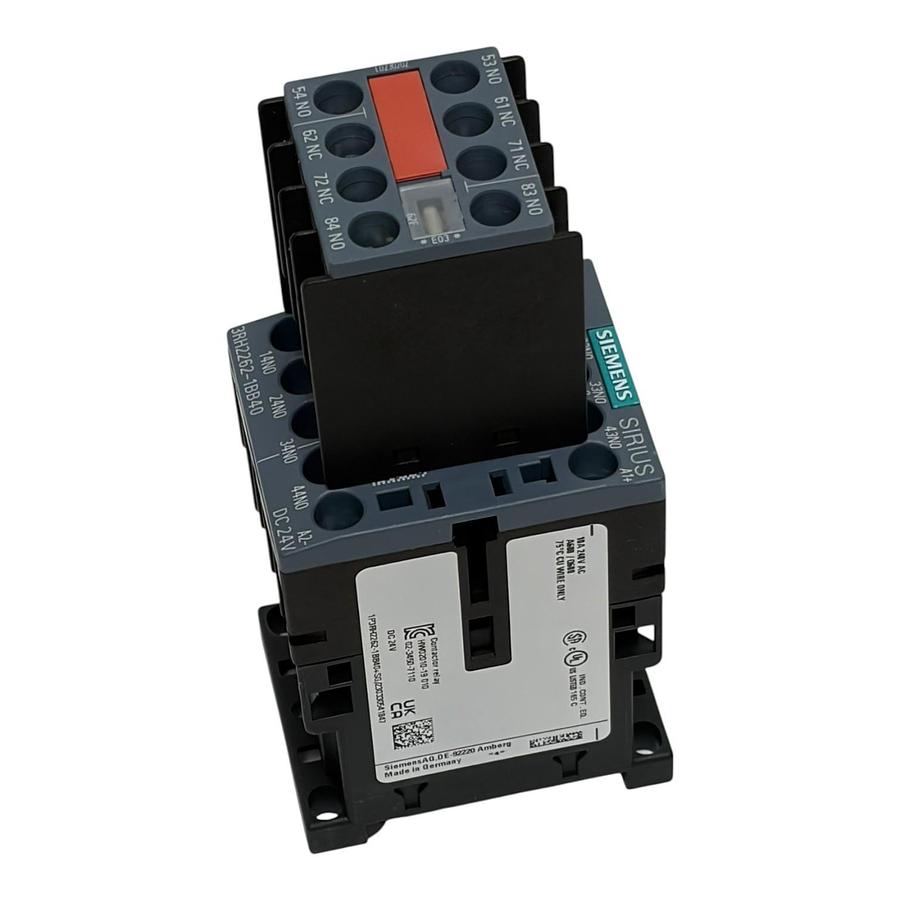

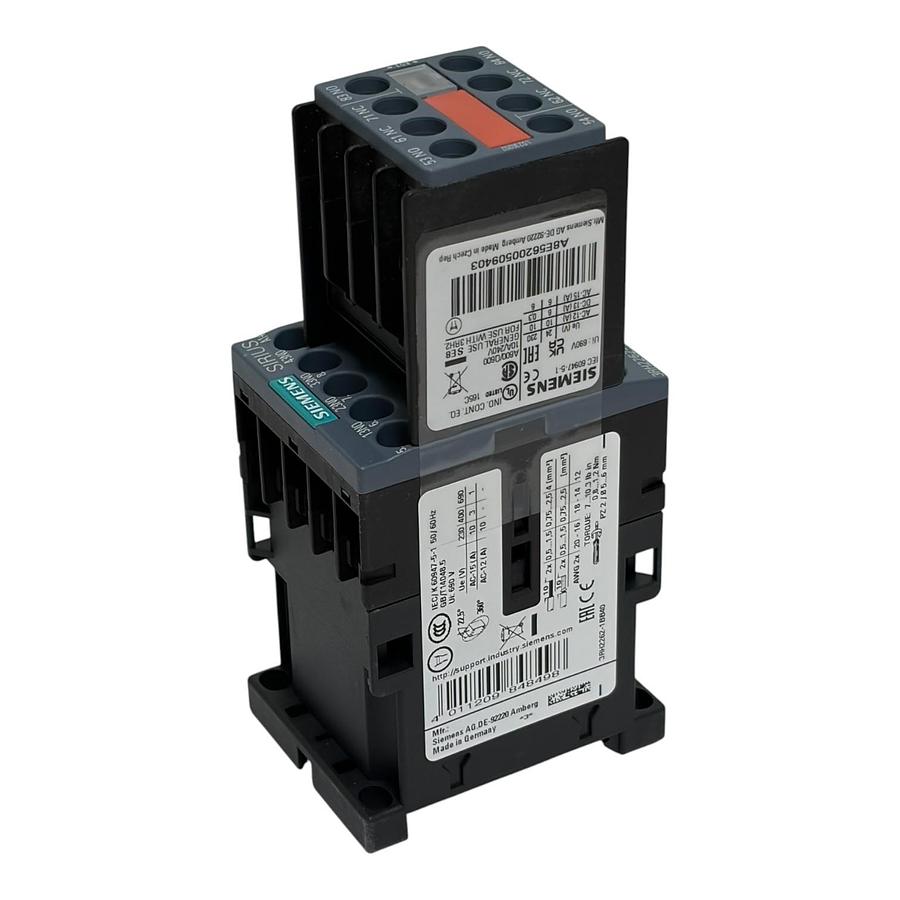

Siemens Sirius 3RH2262-1BB40 Contactor Relay 24VDC 62E Auxiliary Block New Up for sale is a genuine Siemens Sirius 3RH2 series industrial contactor relay configuration, part number 3RH2262-1BB40. This premium control cabinet component includes a core single-tier base contactor block mated with a top-mounted auxiliary contact expansion block, creating a highly capable 62E contact code sequence. Driven by a 24V DC control coil layout, this solid-state auxiliary relay matrix offers robust safety logic manipulation, signal multiplication, and interlock control across factory automated systems, safety panel loops, and motor starter assemblies. Technical Specifications - Manufacturer: Siemens - Product Line: Sirius Innovation Series - Complete Unit Part Number: 3RH2262-1BB40 - Alternate Assembly Code String: 1P3RH2262-1BB40+SG/230330541847 - Auxiliary Top Block Marking Identifier: A8E56200509403 - Component Arrangement Structure Code: 62E Sequence - Total System Control Contacts: 8 Pole Contacts Total - Contact Configurations: 6 NO (Normally Open) / 2 NC (Normally Closed) - Base Core Contacts: 4 NO (Terminals 13-14, 23-24, 33-34, 43-44) - Top Auxiliary Card Contacts: 2 NO (53-54, 83-84) / 2 NC (61-62, 71-72) - Control Coil Operational Rating: 24 VDC Nominal - Insulation Voltage Threshold (Ui): 690 Volts - Thermal Amperage Carrying Limit (Ith): 10 Amps (A600 / Q600 AC-DC Rating) - Switching Operational Capacity (Ue/Ie): 230V at 10A (AC-12), 400V at 3A (AC-15) - Connection Terminal Infrastructure: Standard heavy-duty M3 screw clamp terminal grids - Recommended Lug Torque Limit: 7.1 to 10.3 lb-in (0.8 to 1.2 Nm via PZ2 or flat screwdriver) - Physical Mount Footprint: Dual option integrated snap clamp for standard 35mm DIN rail tracks or flat panel backplate screw holes - Standards Compliance: IEC/EN 60947-5-1, UL Listed 165C, CSA Certified, CE, UKCA, EAC, CCC - Manufacturing Origin: Core Base made in Germany / Top Expansion module assembled in Czech Republic Item Condition - Condition: New Surplus (Open Box / No Retail Packaging). This industrial control assembly is an entirely unused facility replacement spare that was cataloged and stored safely inside a clean, climate-controlled warehouse facility. It has never been deployed, wired, or energized. - Storage Condition: The housing body, terminal screw heads, terminal divider gates, and sliding auxiliary mechanical flags are in pristine condition with flawless tracking text print and zero shelf scuffs. WARRANTY: 120 DAYS SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) SELL YOUR SURPLUS PremiumPLC BUYS ALL TYPES OF NEW AND USED INDUSTRIAL AUTOMATION & MRO SURPLUS ________________________________________________________________________________ 2190
