Beckhoff EL2008 Digital Output Module 8 Channel 24VDC 0.5A EtherCAT New Surplus

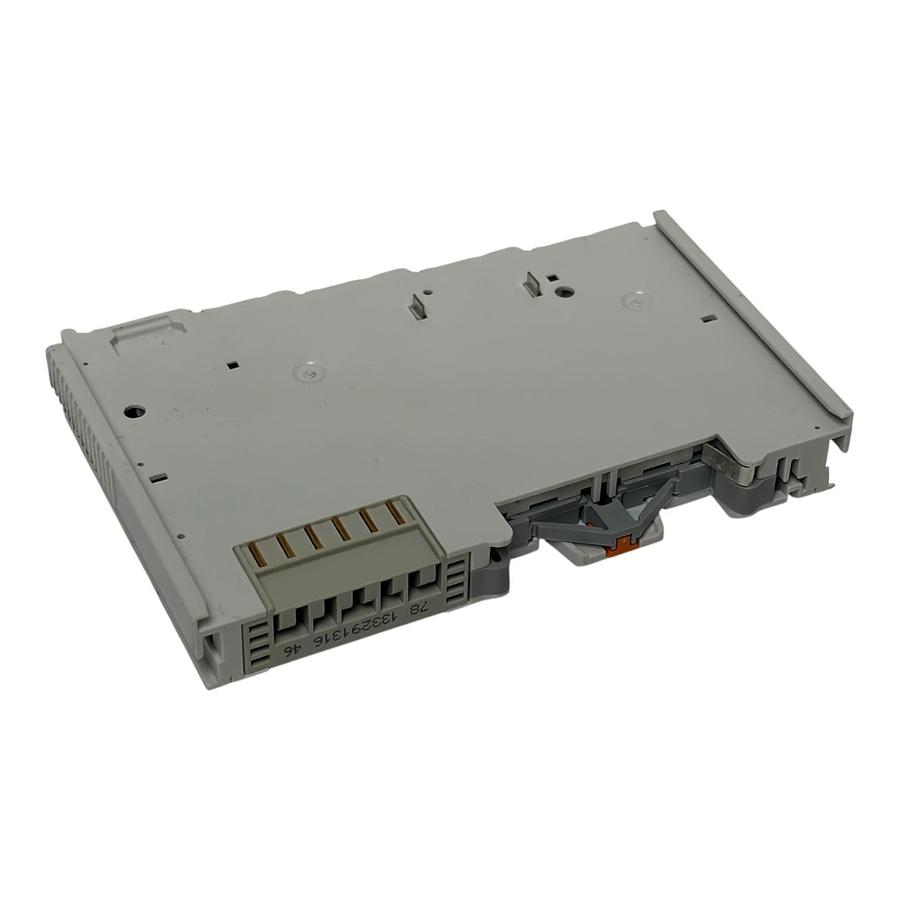

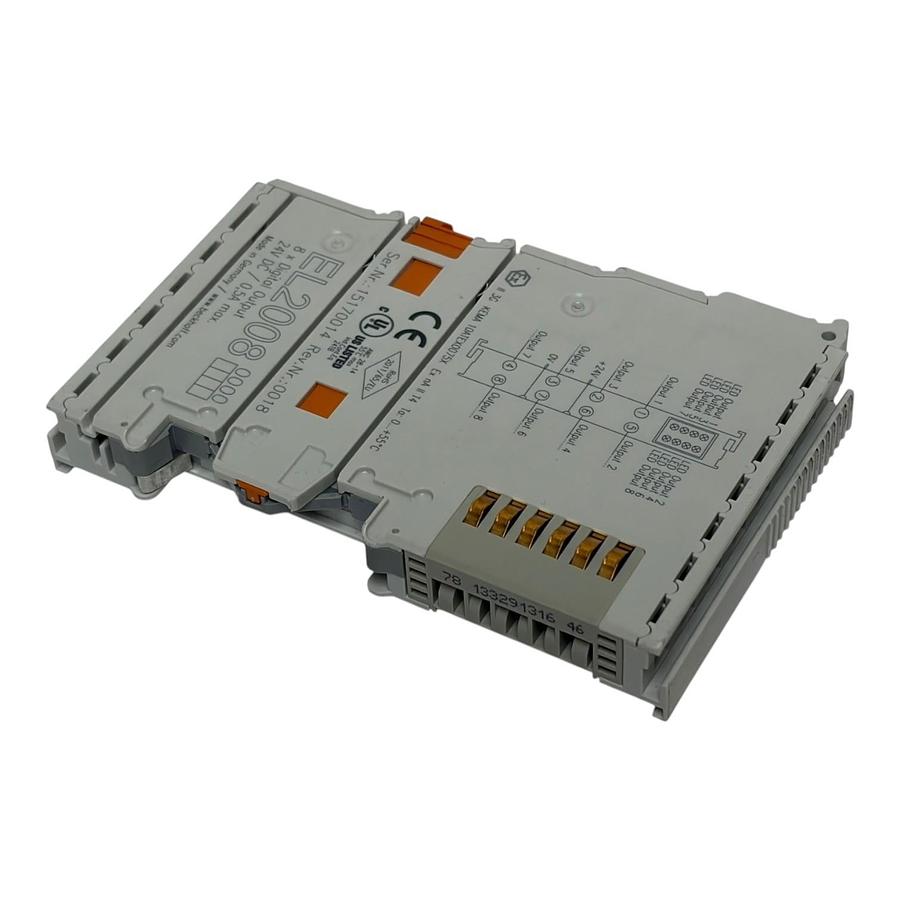

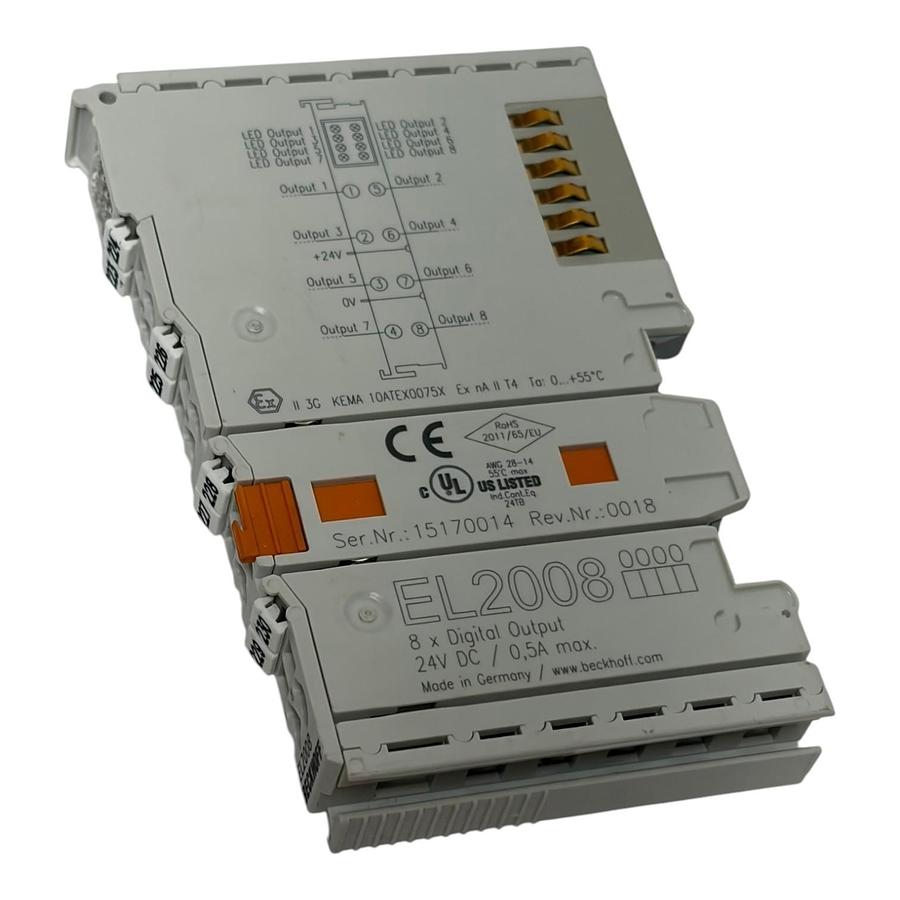

Beckhoff EL2008 Digital Output Module 8 Channel 24VDC 0.5A EtherCAT New Surplus Up for sale is a genuine Beckhoff Automation EtherCAT Terminal digital output module, part number EL2008 (Version 0018). This high-speed industrial slice component interfaces directly with EtherCAT coupler setups and industrial PCs. It delivers eight electrically isolated binary outputs to drive actuators, small solenoids, indicator panels, and interposing relay logic blocks. The module includes individual front-facing diagnostic signaling LEDs and clean spring-cage wiring blocks for streamlined DIN rail panel integration. Technical Specifications - Manufacturer: Beckhoff Automation GmbH & Co. KG - Product Family: EtherCAT Terminal System - Model Part Number: EL2008 - Version Extension: 0018 - Serial Number: 15170014 - Module Type: 8-Channel Digital Output Terminal Slice - Number of Outputs: 8 Channels - Rated Nominal Voltage: 24 VDC (-15% / +20% operating envelope) - Maximum Output Current: 0.5 Amps Per Channel (Short-circuit and overload protected) - Load Topology Handling: Resistive, Inductive, Lamp Loads - Current Consumption from E-Bus: 110 mA Typical - Electrical Isolation Profile: 500 V (E-bus / Field Potential) - Connection Method: Direct Cage Clamp Spring Terminals (AWG 28-14) - Diagnostic Display Indicators: 8x Green Signal Channel Status LEDs - Mechanical Mounting Format: Modular Slice-style for Standard 35mm DIN Rail Assemblies - Operating Temperature Window: 0 to 55 Degrees C - Standards Compliance: CE, RoHS, UL Listed (E172151 Ind. Cont. Eq. 24TB), ATEX Zone 2 Certified (II 3G KEMA 10ATEX0075X Ex nA II T4 Gc) - Manufacturing Origin: Made in Germany Item Condition - Condition: New Surplus (Open Box / No Retail Packaging). This premium automation terminal is an entirely unused facility replacement spare that was cataloged and stored safely inside a clean, climate-controlled warehouse facility. It has never been deployed, wired, or energized. - Storage Condition: Kept inside a protected warehouse environment to maintain immaculate housing surfaces, clean side-facing gold contact fingers, and untarnished terminal connectors. WARRANTY: 120 DAYS SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) SELL YOUR SURPLUS PremiumPLC BUYS ALL TYPES OF NEW AND USED INDUSTRIAL AUTOMATION & MRO SURPLUS ________________________________________________________________________________ 2184
